DEA Temperatures Check
Summary
| Date start | 2025:292:21:44:50.716 |
| Date stop | 2025:299:22:52:08.316 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/OCT2025/oflsa |
| Run time | Thu Oct 16 19:20:06 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -2.18 | -1.38 | -0.86 | -0.05 | 0.96 | 1.40 | 2.07 |
| pitch | -11.396 | -1.347 | -0.004 | -0.000 | 0.004 | 1.227 | 11.847 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.089 | -0.196 | -0.008 | 0.000 | 0.009 | 0.338 | 2.337 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 1 | -2.18 | 2.00 |
| 1DEAMZT | 99 | 2.07 | 2.00 |
| PITCH | 1 | -11.396 | 3.00 |
| PITCH | 99 | 11.847 | 3.00 |
1DEAMZT

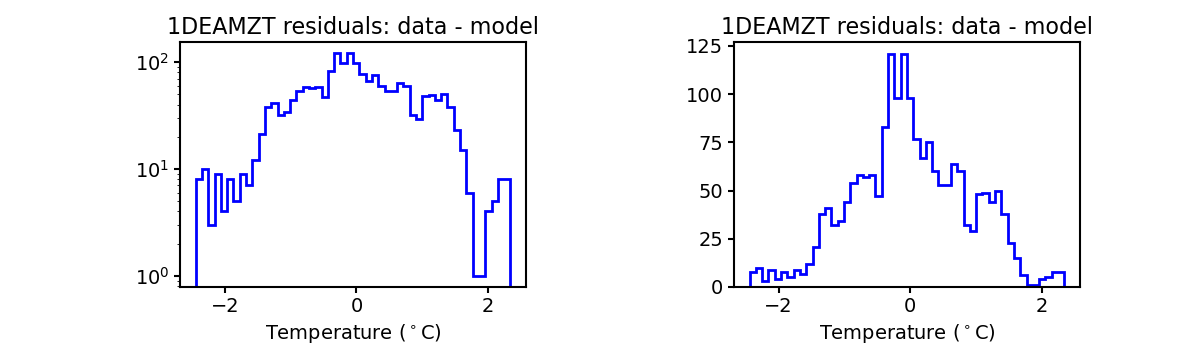

Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

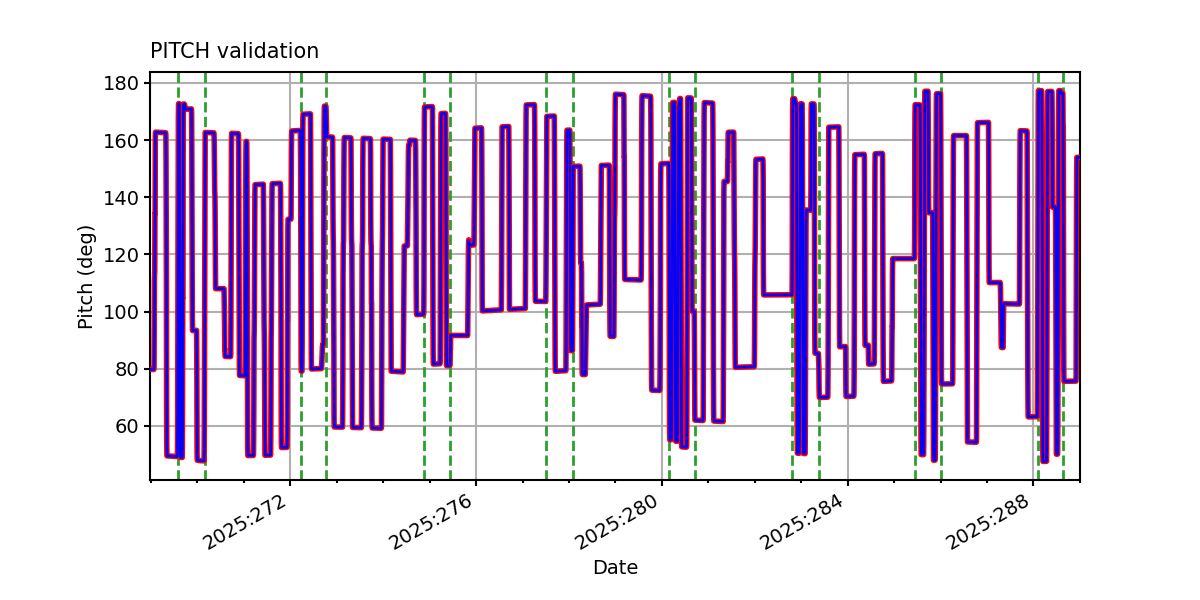

PITCH

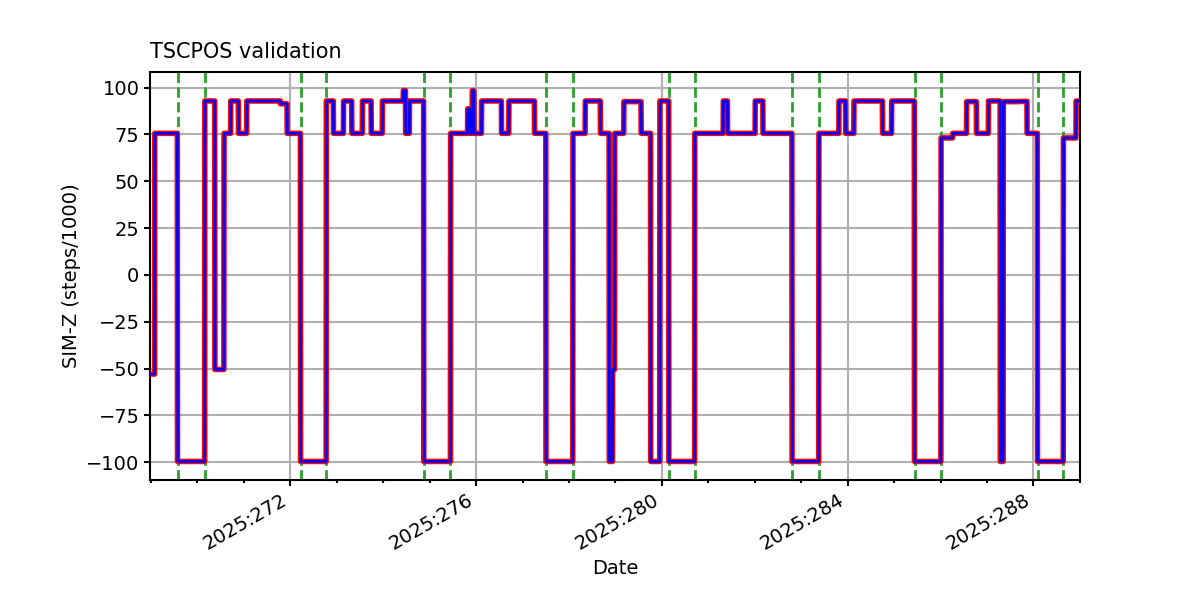

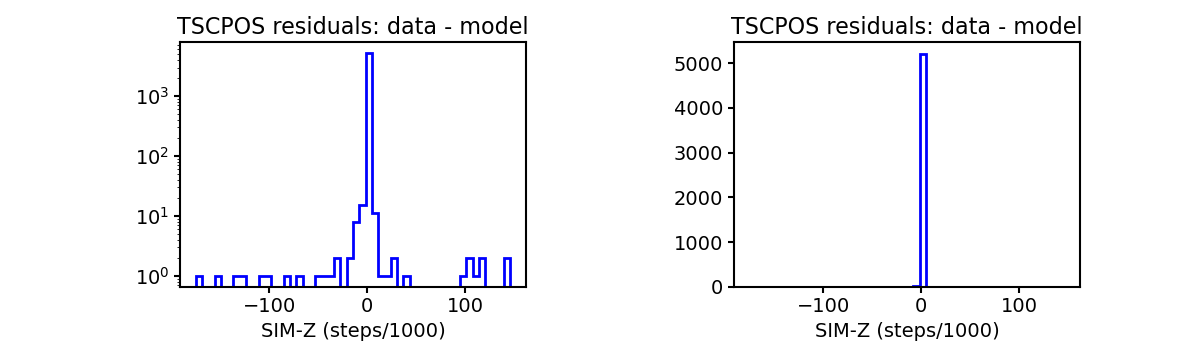

TSCPOS

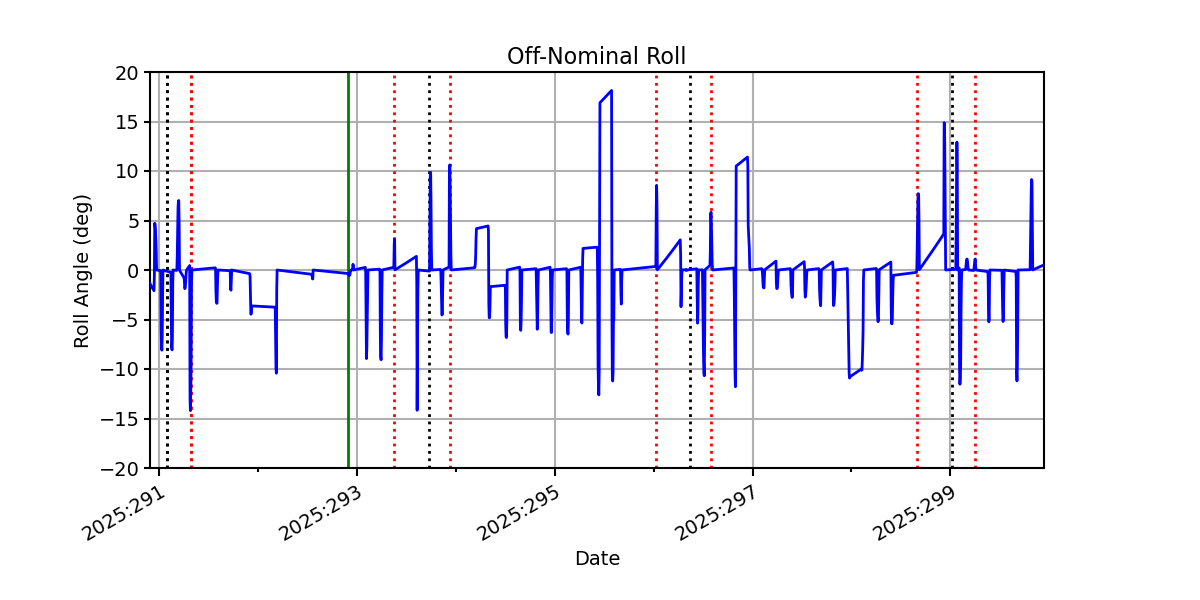

ROLL

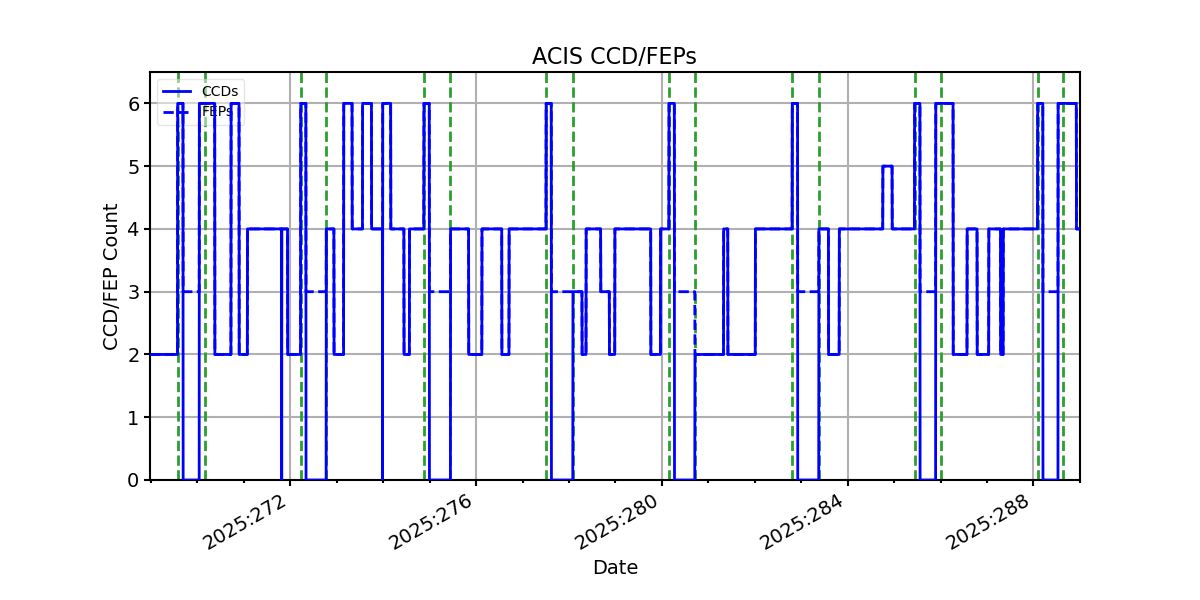

ACIS CCD/FEP Count
