DEA Temperatures Check
Summary
| Date start | 2025:246:00:40:00.016 |
| Date stop | 2025:250:21:18:18.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/SEP0325/oflsa |
| Run time | Mon Sep 1 23:19:54 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

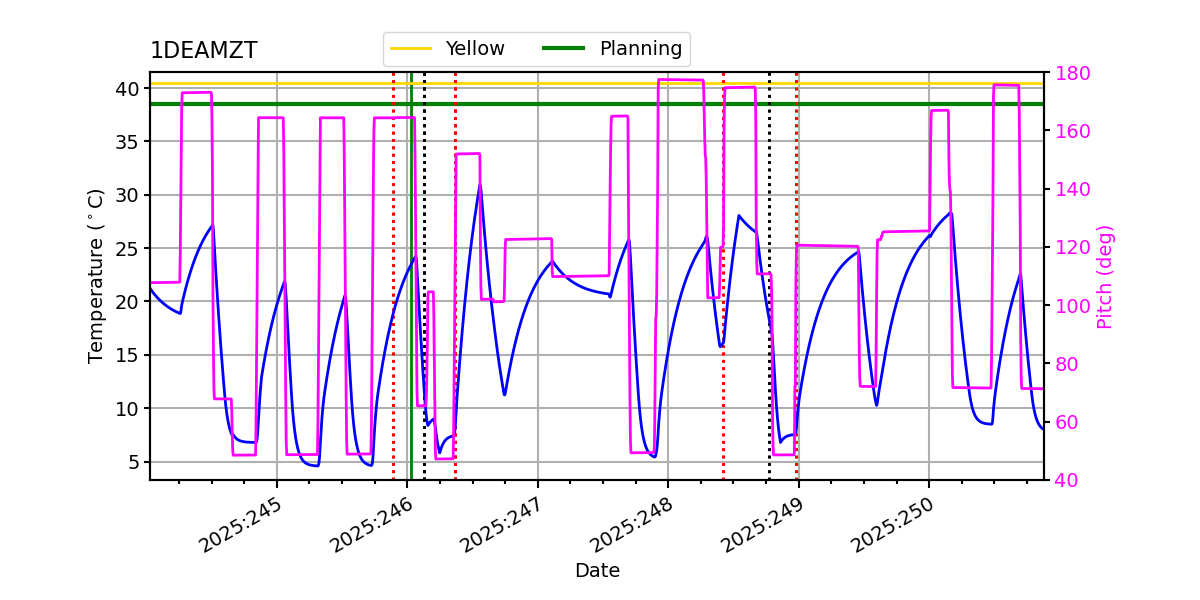

No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -1.87 | -1.28 | -0.84 | 0.06 | 1.30 | 1.67 | 1.93 |
| pitch | -8.760 | -0.107 | -0.004 | -0.000 | 0.004 | 0.045 | 8.420 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.357 | -0.050 | -0.005 | -0.000 | 0.005 | 0.051 | 1.516 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -8.76 | 3.00 |
| PITCH | 99 | 8.42 | 3.00 |

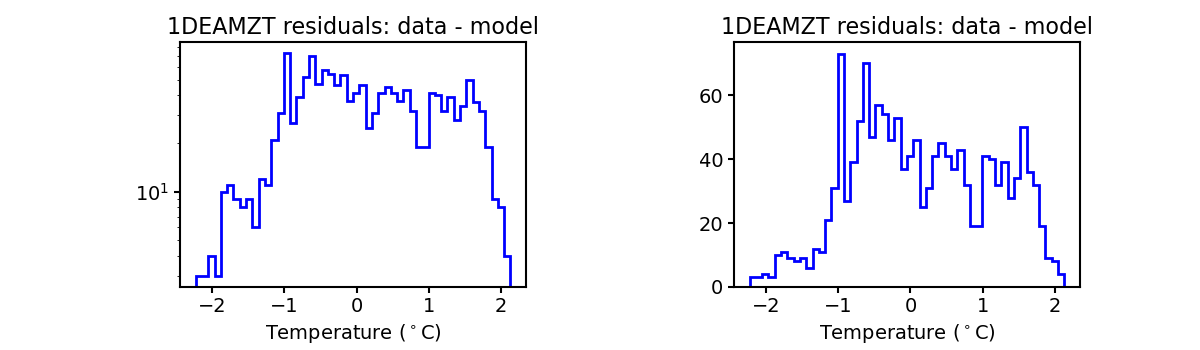

1DEAMZT
Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

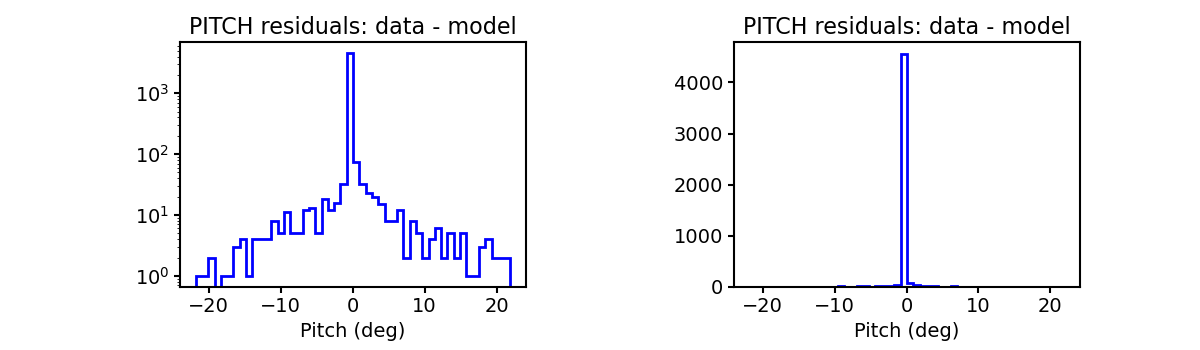

PITCH

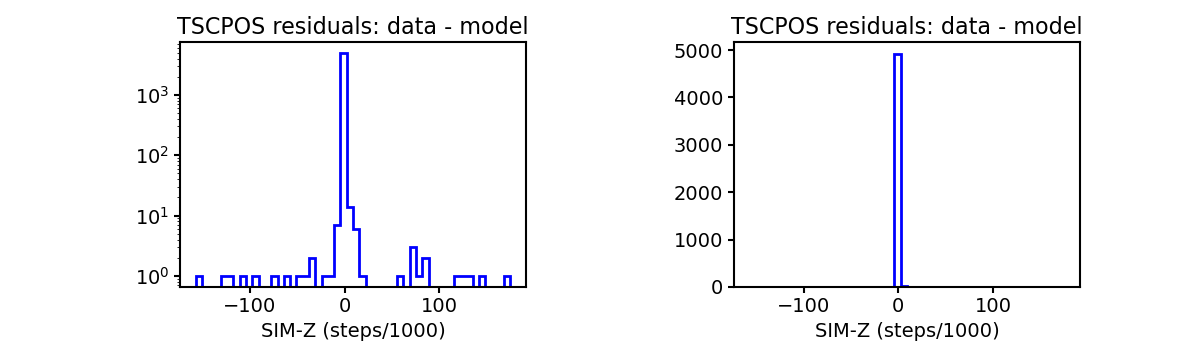

TSCPOS

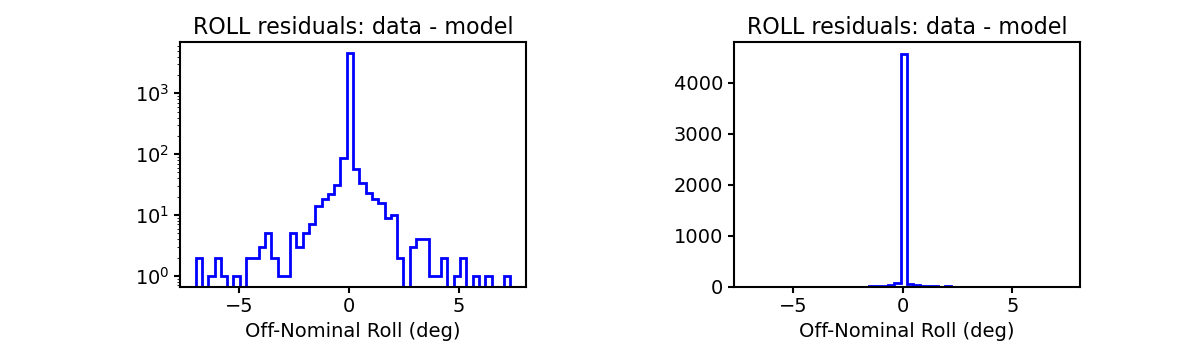

ROLL

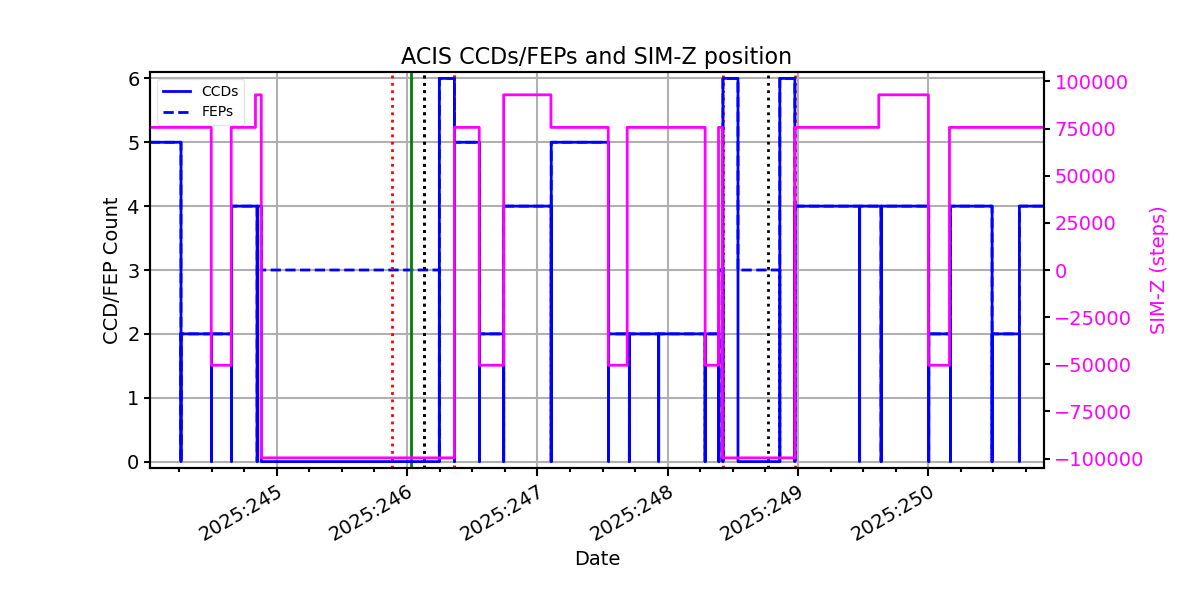

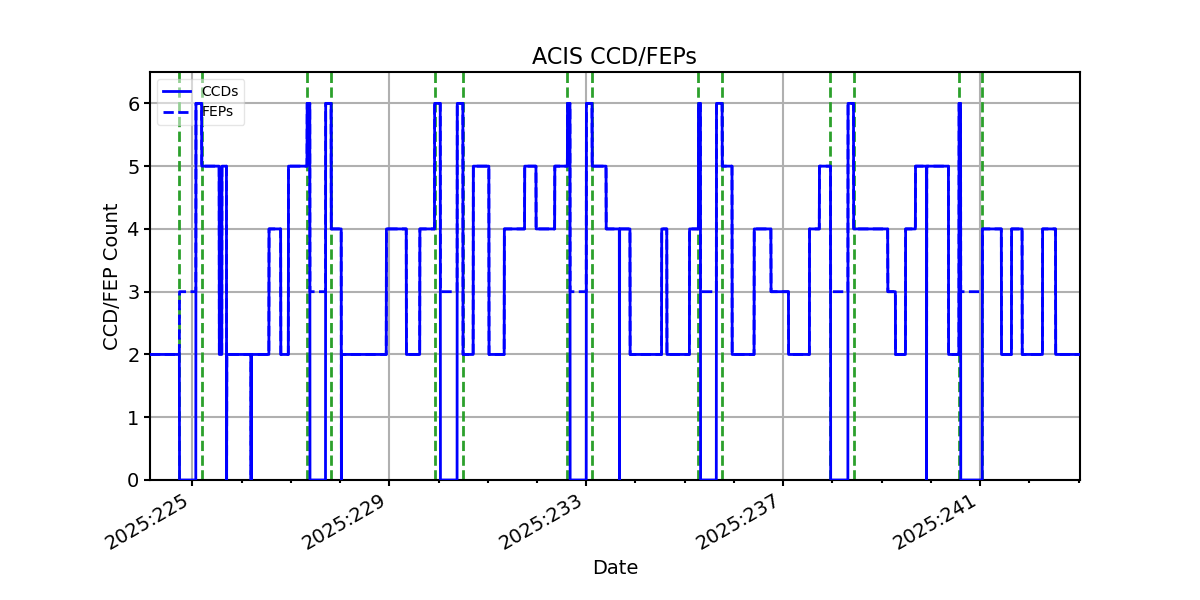

ACIS CCD/FEP Count
