DEA Temperatures Check
Summary
| Date start | 2026:250:02:14:56.816 |
| Date stop | 2026:257:02:09:19.916 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/SEP0726/oflsa |
| Run time | Thu Sep 3 09:54:11 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

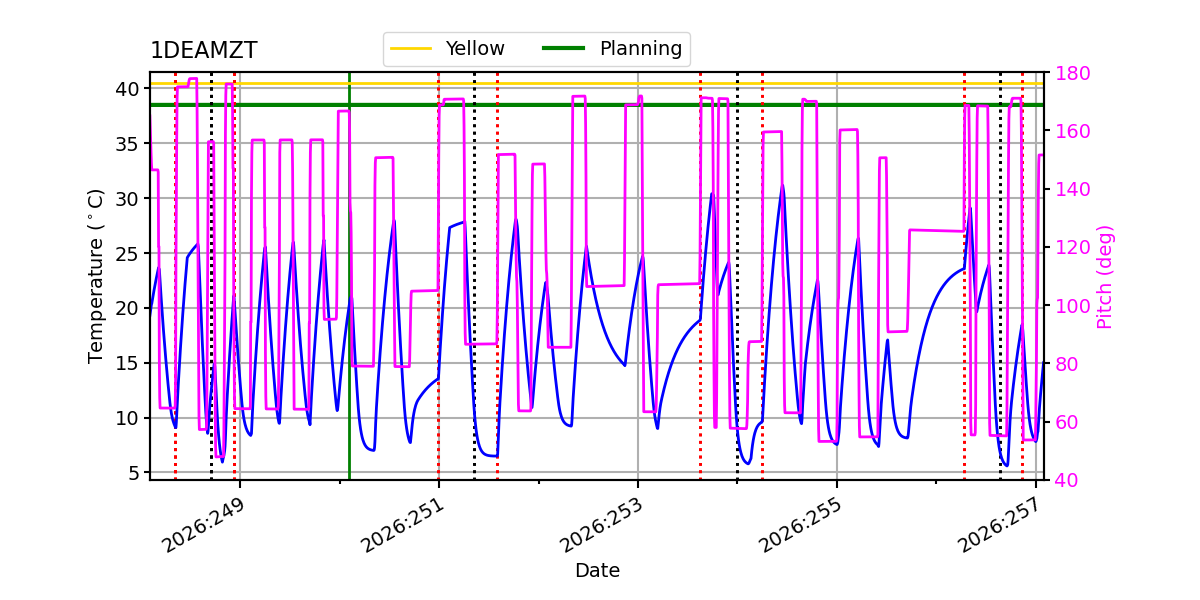

No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -1.19 | -0.87 | -0.41 | 0.22 | 1.15 | 1.78 | 2.63 |
| pitch | -9.464 | -0.298 | -0.004 | 0.000 | 0.004 | 0.476 | 9.000 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 0 |
| roll | -1.873 | -0.119 | -0.005 | -0.000 | 0.004 | 0.104 | 1.616 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 99 | 2.63 | 2.00 |
| PITCH | 1 | -9.464 | 3.00 |
| PITCH | 99 | 9.0 | 3.00 |

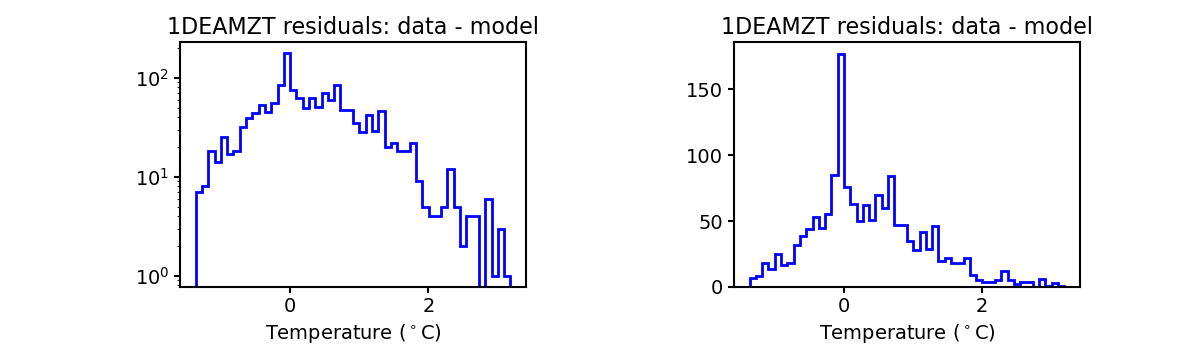

1DEAMZT
Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

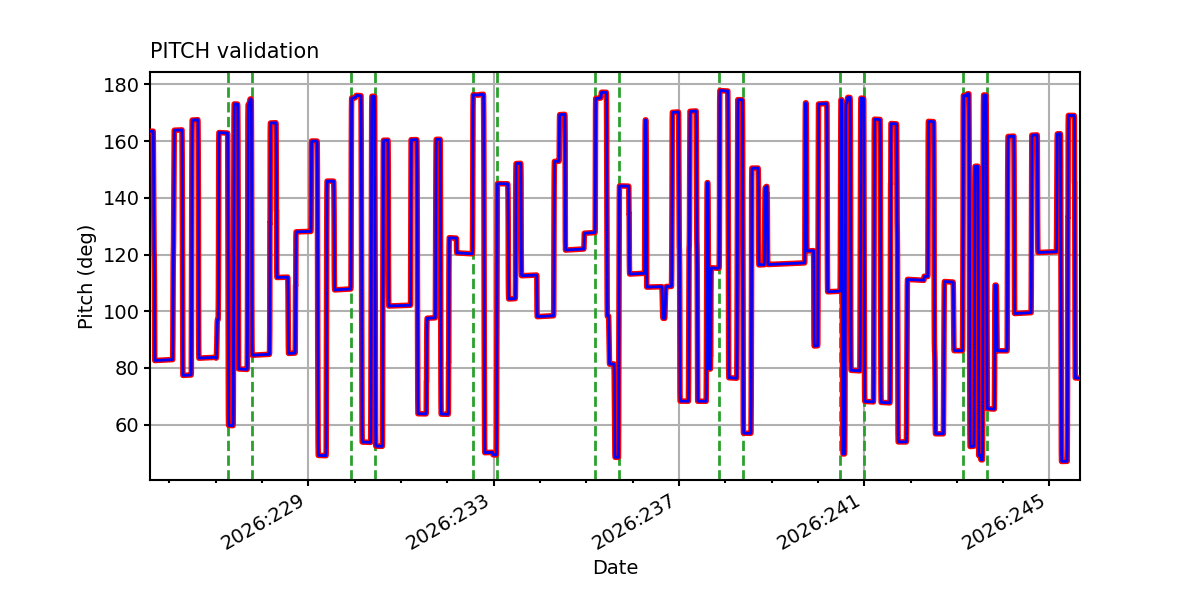

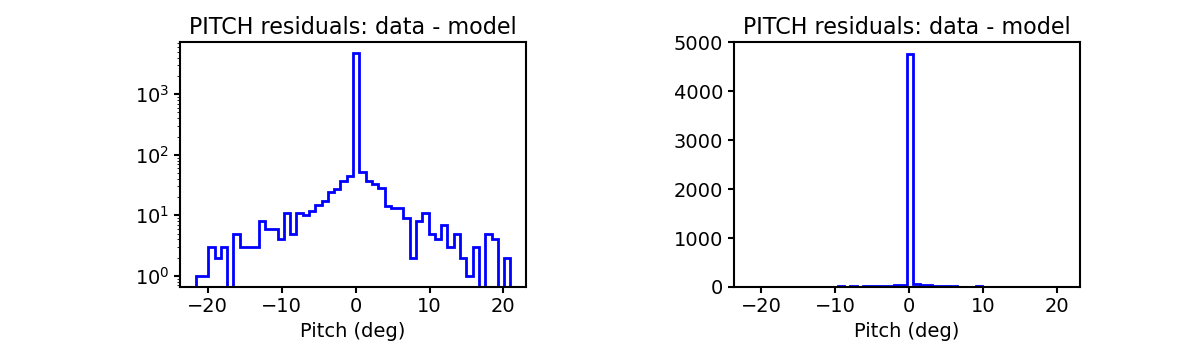

PITCH

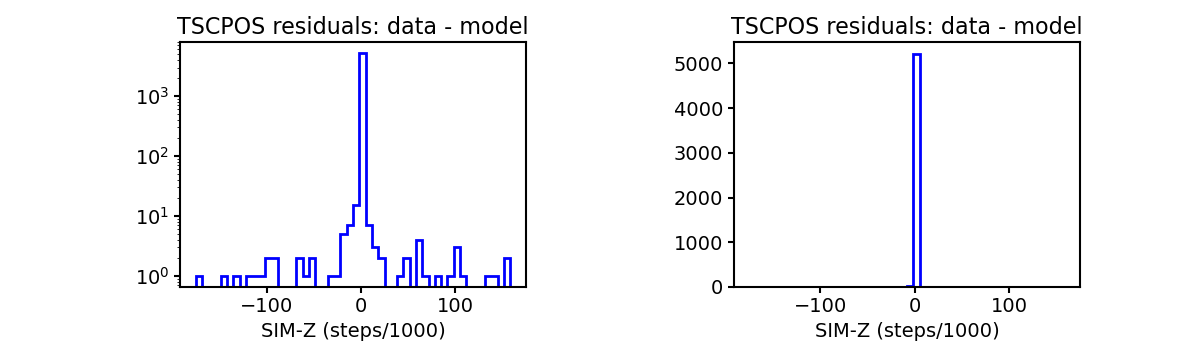

TSCPOS

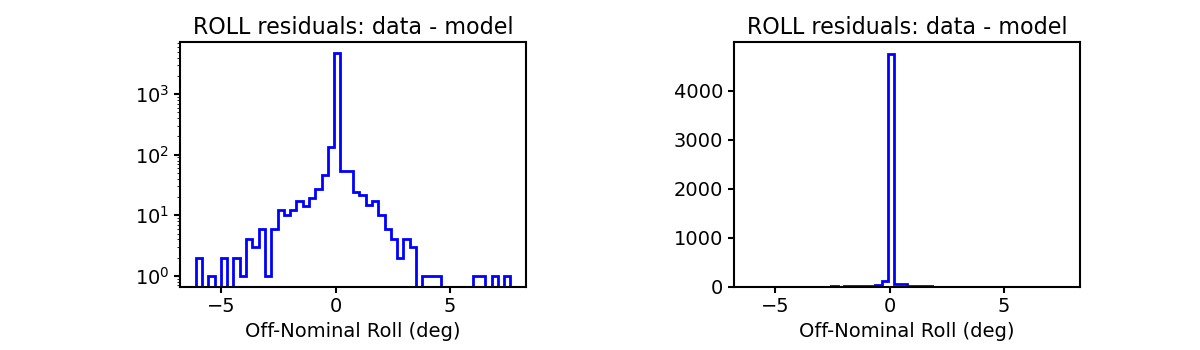

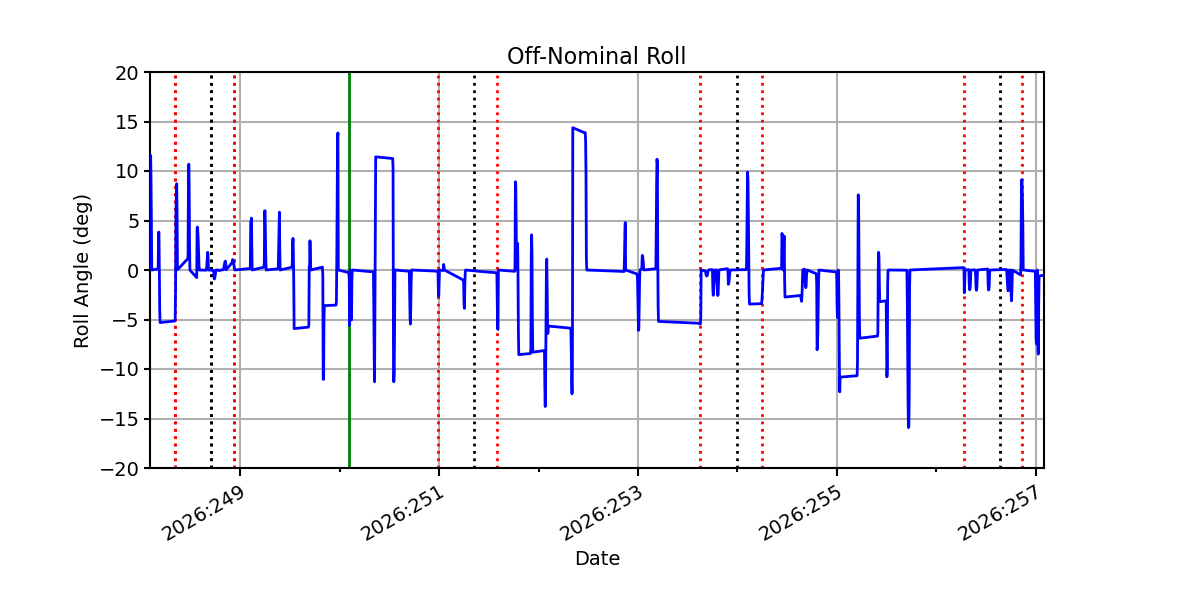

ROLL

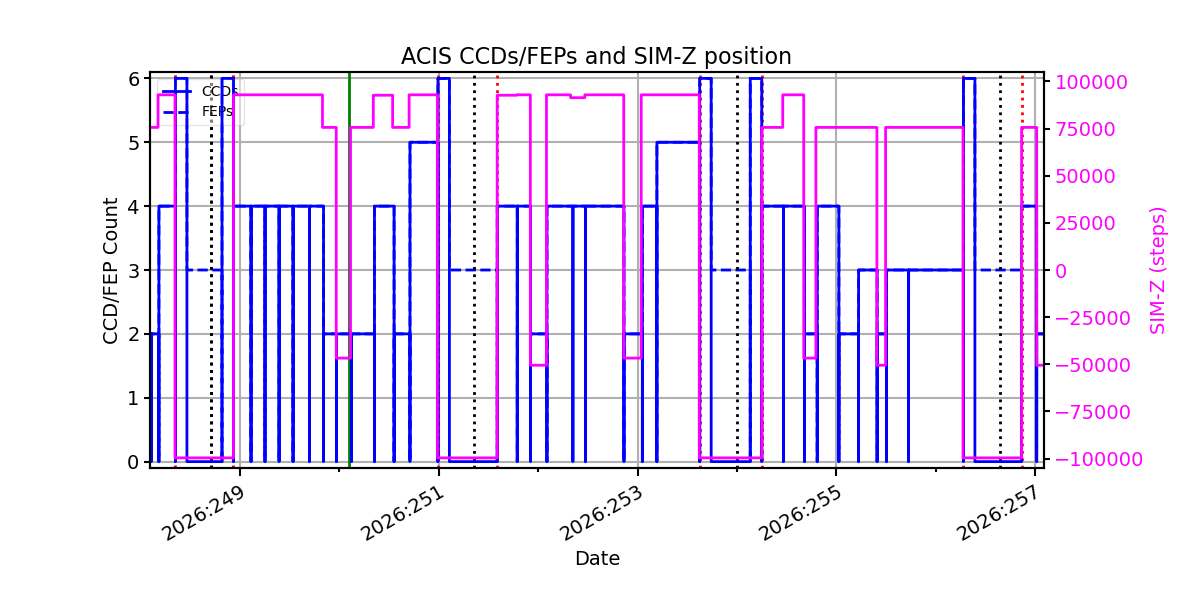

ACIS CCD/FEP Count
