DEA Temperatures Check
Summary
| Date start | 2025:250:21:15:18.716 |
| Date stop | 2025:257:23:00:15.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/SEP0825/oflsa |
| Run time | Thu Sep 4 14:08:02 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -2.14 | -1.74 | -1.11 | -0.05 | 1.27 | 1.66 | 1.92 |
| pitch | -8.628 | -0.073 | -0.004 | -0.000 | 0.004 | 0.085 | 9.248 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.430 | -0.041 | -0.005 | -0.000 | 0.005 | 0.046 | 1.578 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 1 | -2.14 | 2.00 |
| PITCH | 1 | -8.628 | 3.00 |
| PITCH | 99 | 9.248 | 3.00 |

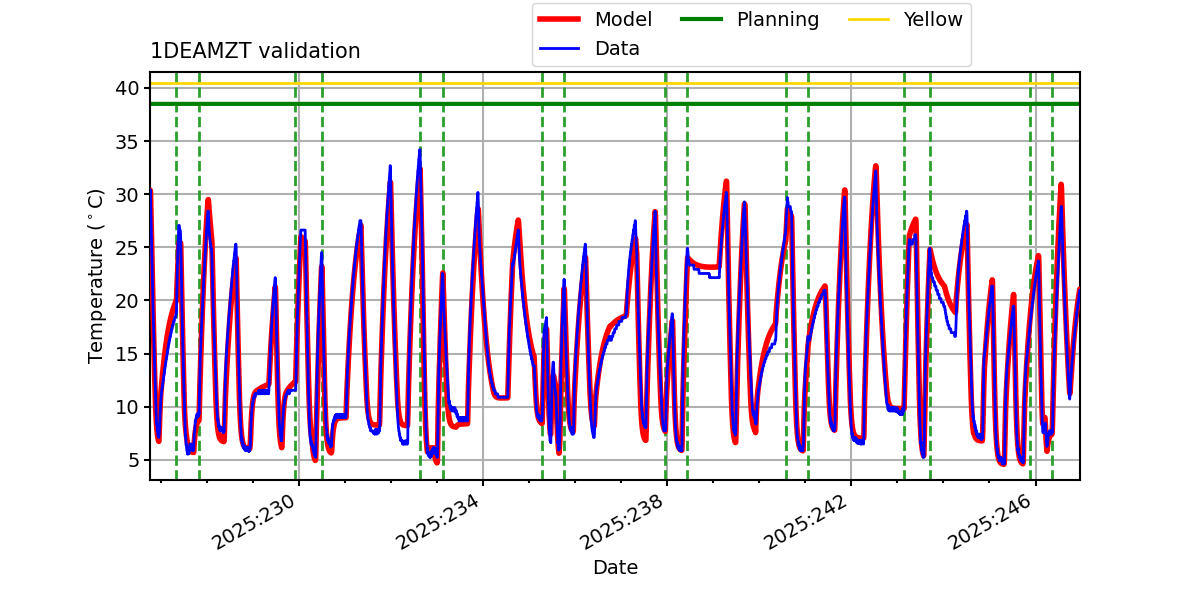

1DEAMZT

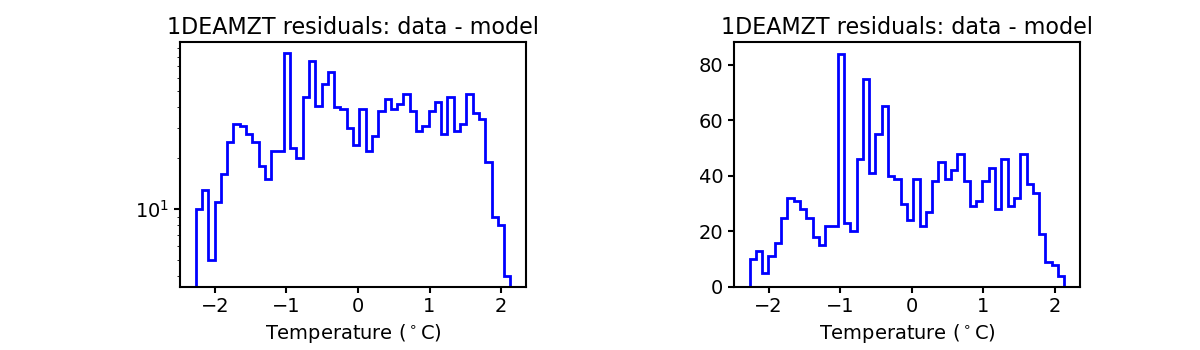

Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

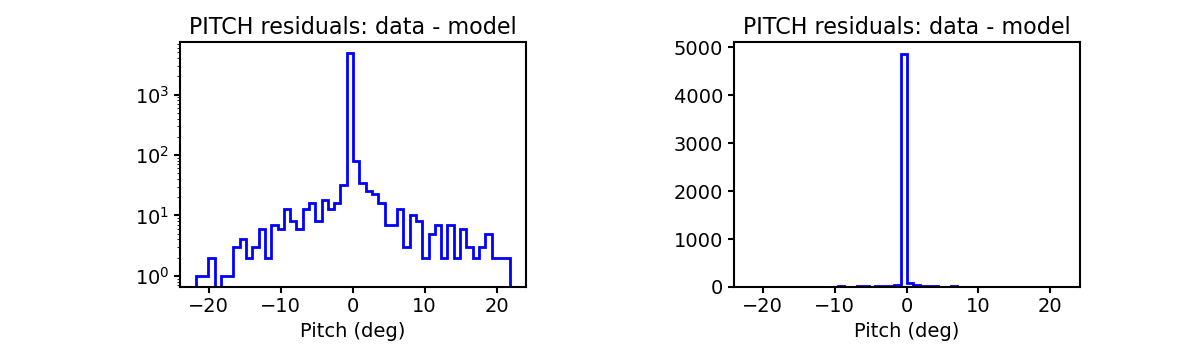

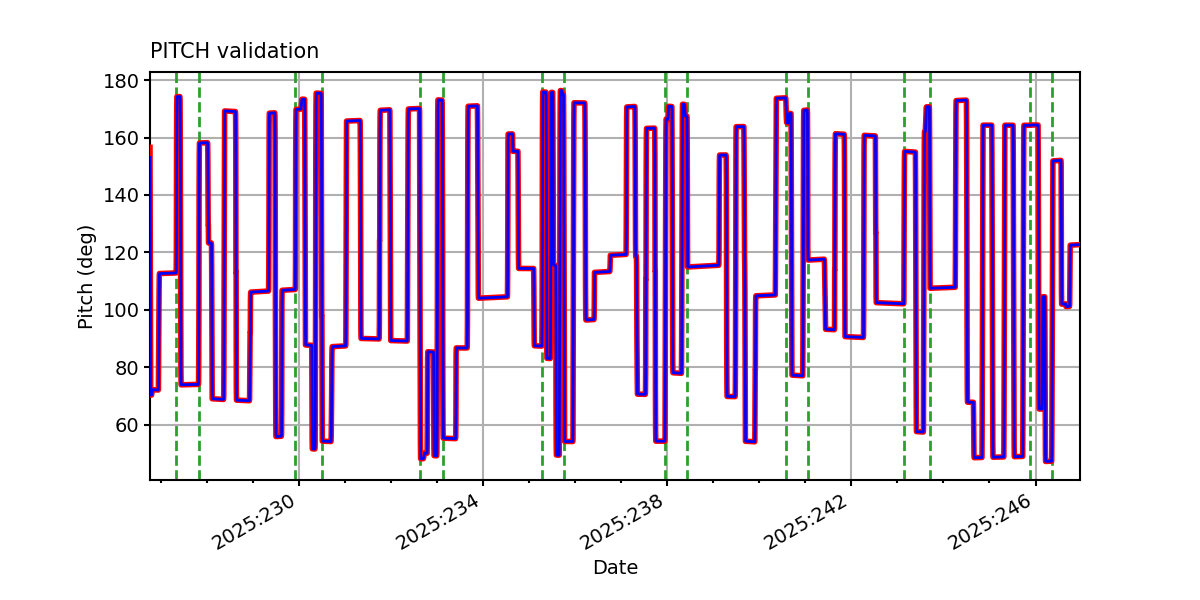

PITCH

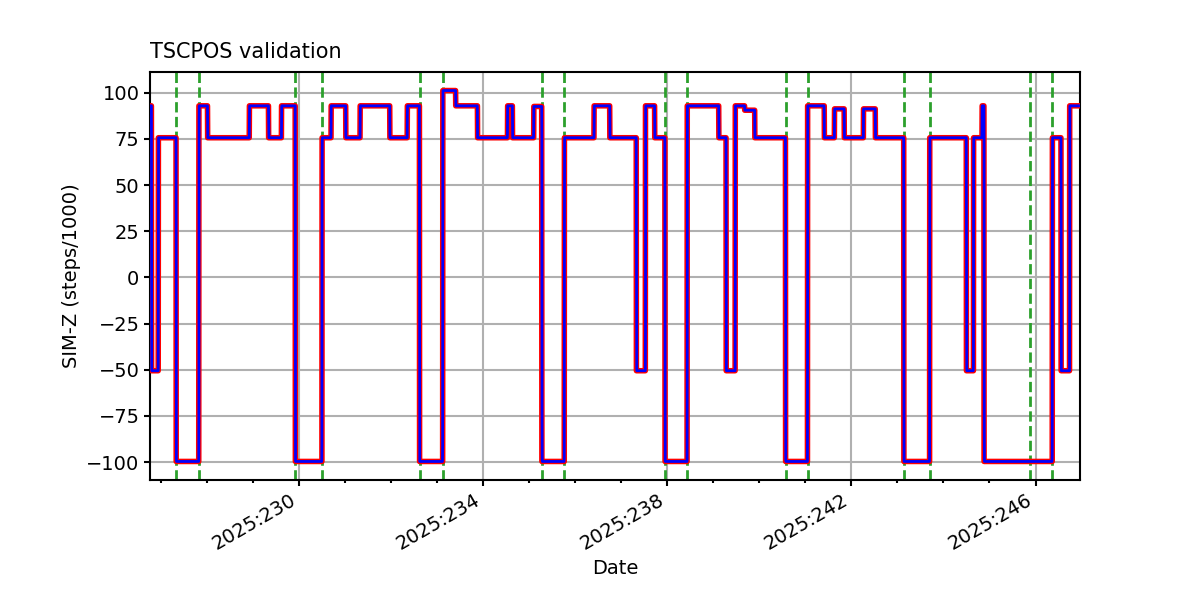

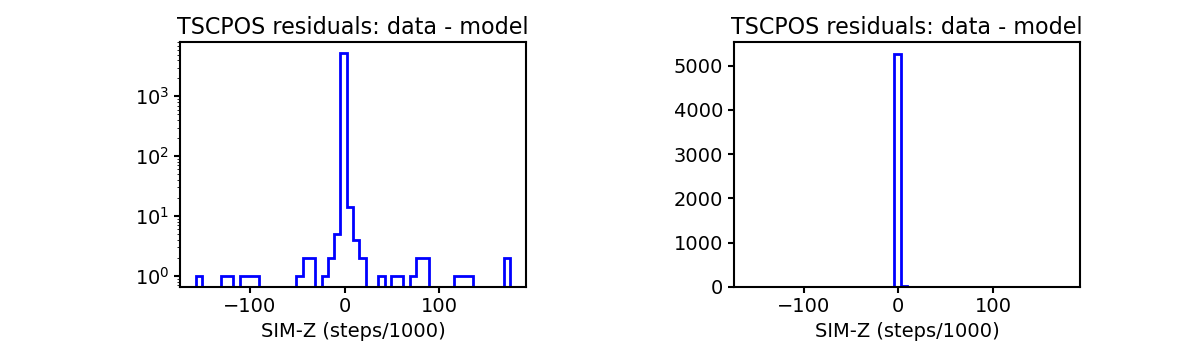

TSCPOS

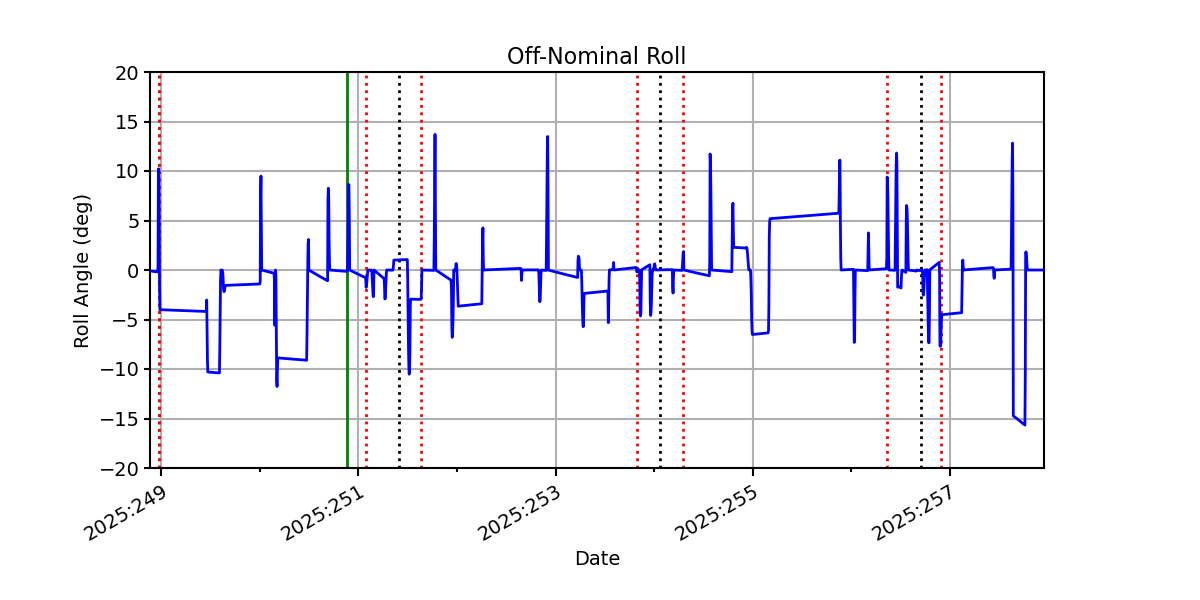

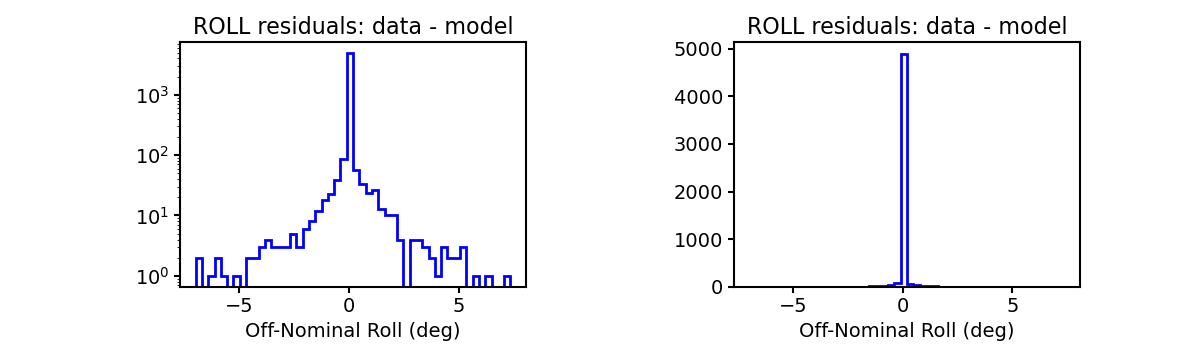

ROLL

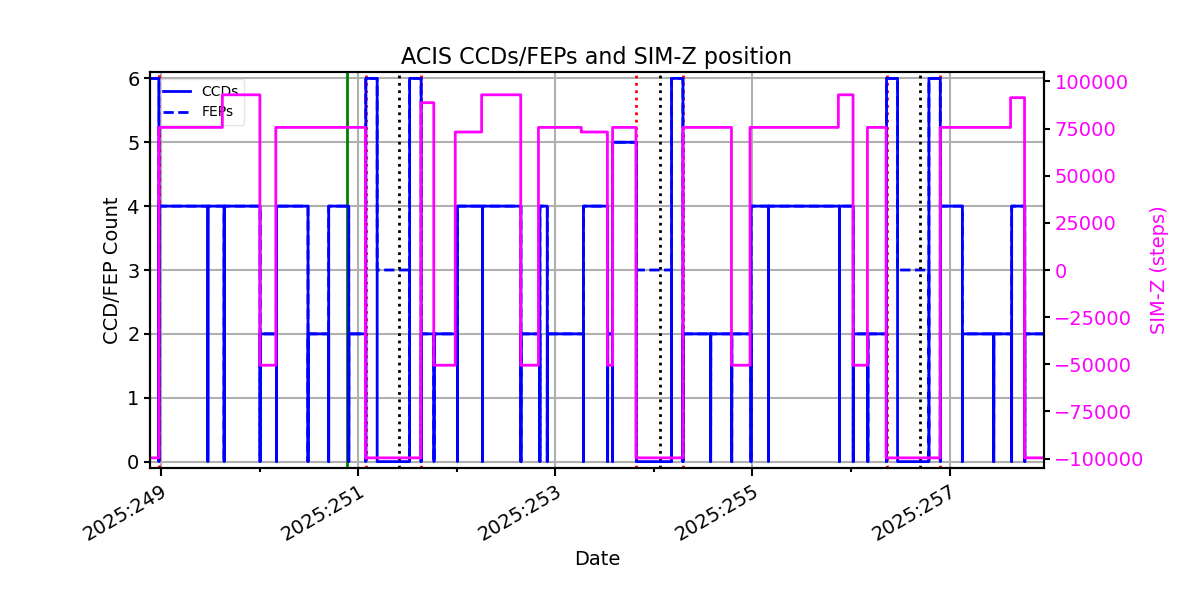

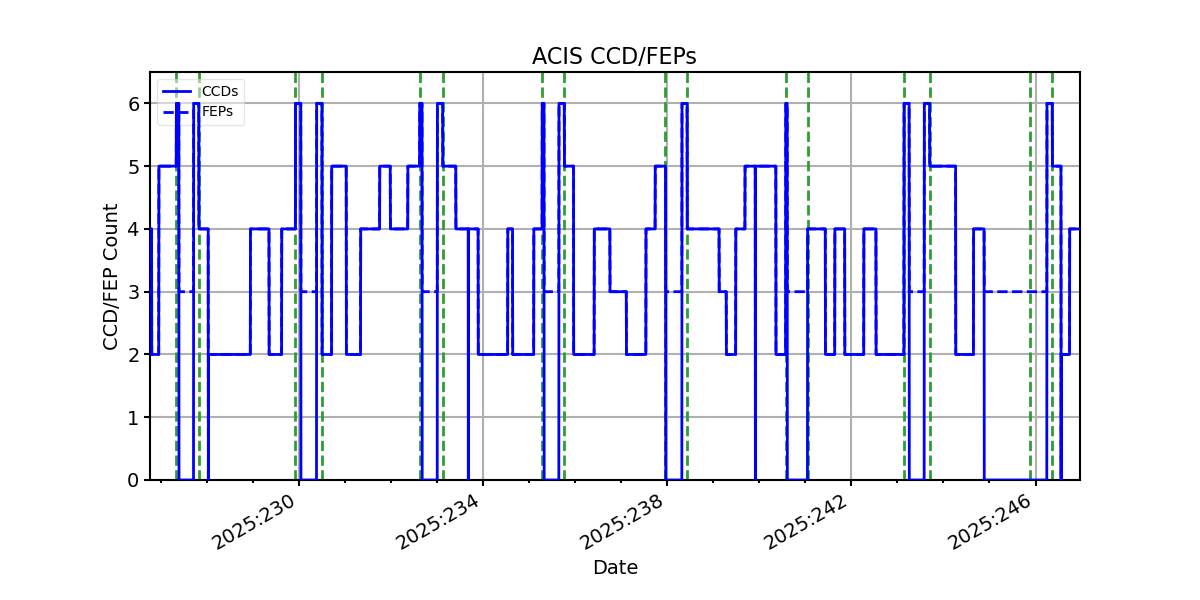

ACIS CCD/FEP Count
