DEA Temperatures Check
Summary
| Date start | 2026:264:01:02:49.516 |
| Date stop | 2026:271:01:24:07.416 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/SEP2126/oflsa |
| Run time | Wed Sep 16 11:13:29 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -1.66 | -0.92 | -0.38 | 0.21 | 1.06 | 1.67 | 2.12 |
| pitch | -11.697 | -1.341 | -0.004 | -0.000 | 0.004 | 1.014 | 11.528 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.913 | -0.147 | -0.007 | 0.000 | 0.007 | 0.180 | 1.662 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 99 | 2.12 | 2.00 |
| PITCH | 1 | -11.697 | 3.00 |
| PITCH | 99 | 11.528 | 3.00 |
1DEAMZT
Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

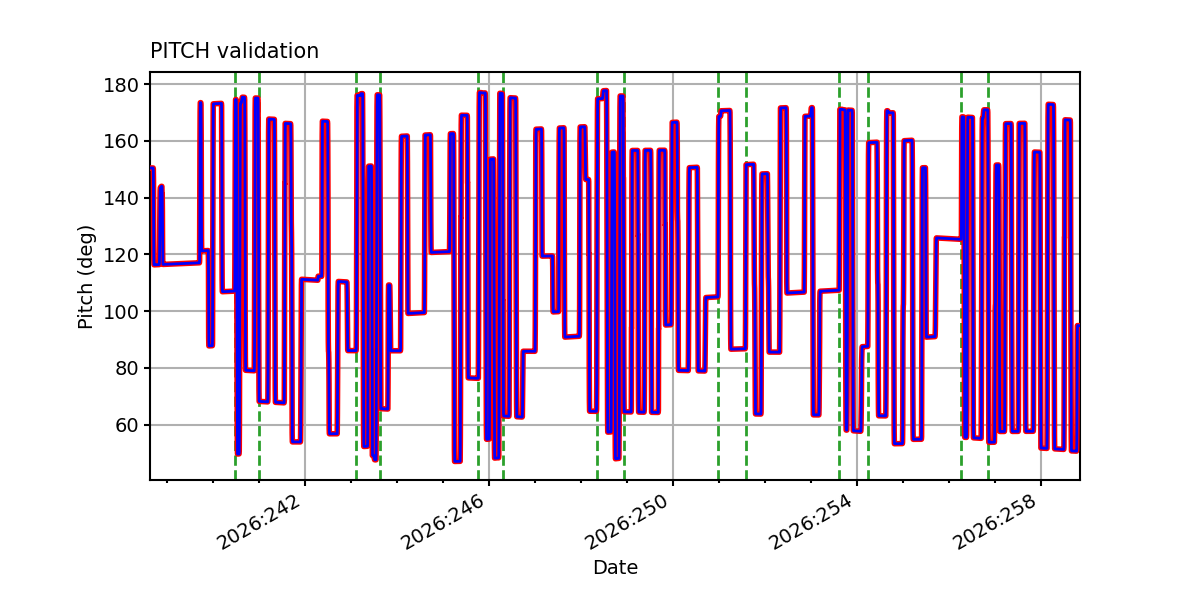

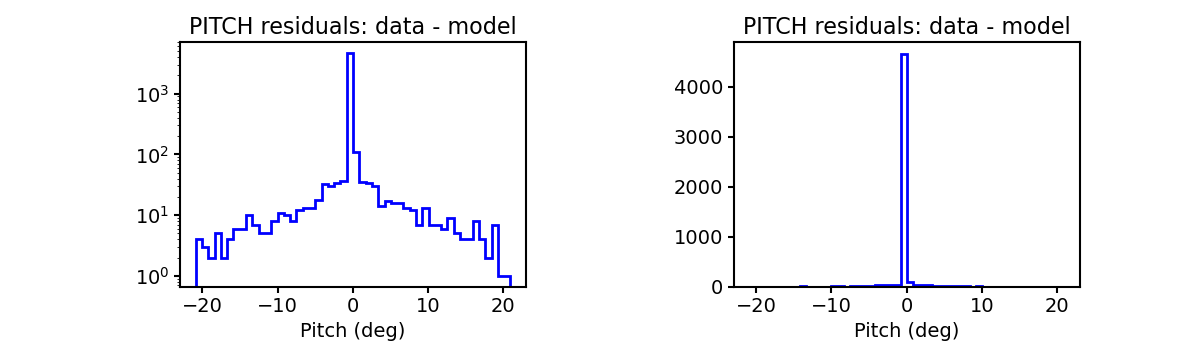

PITCH

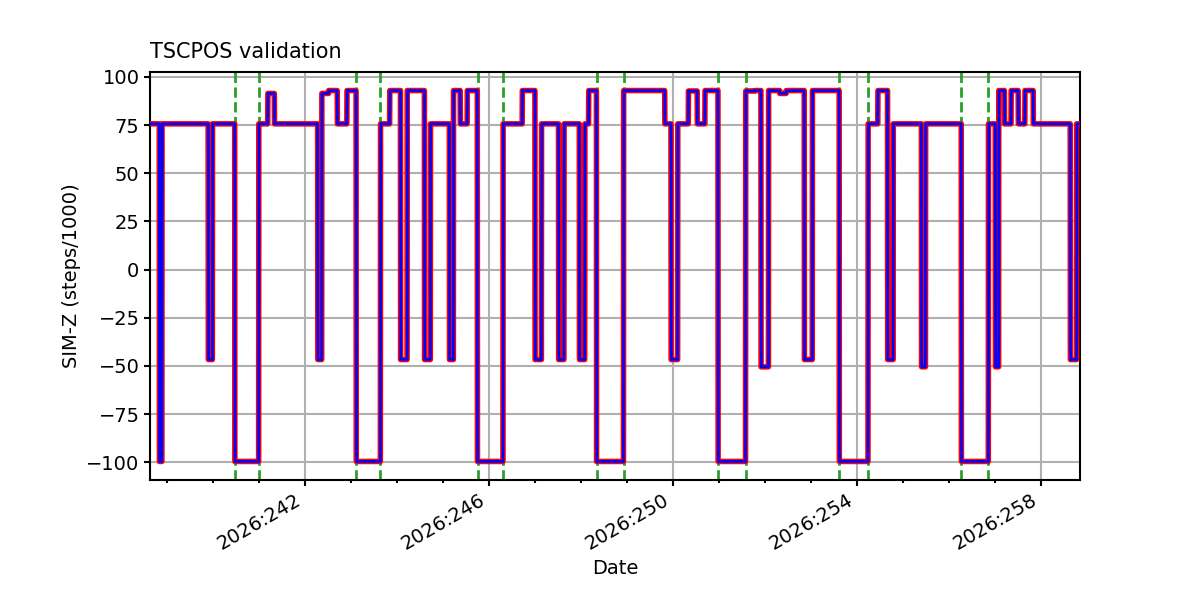

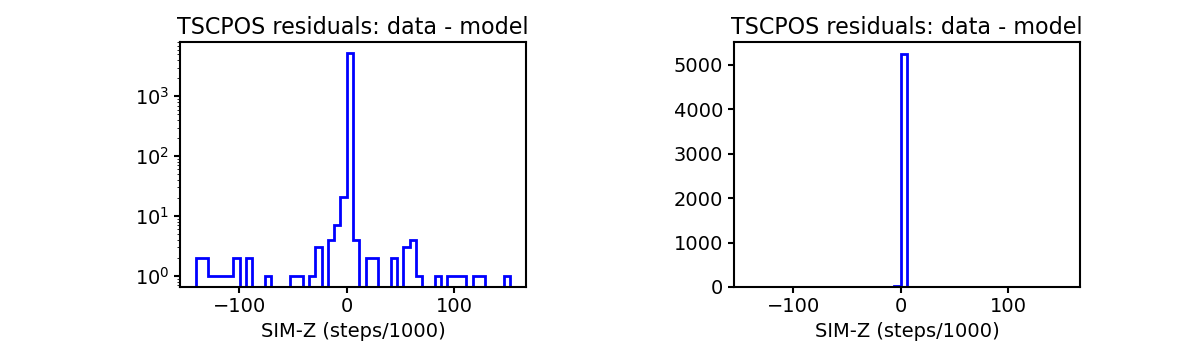

TSCPOS

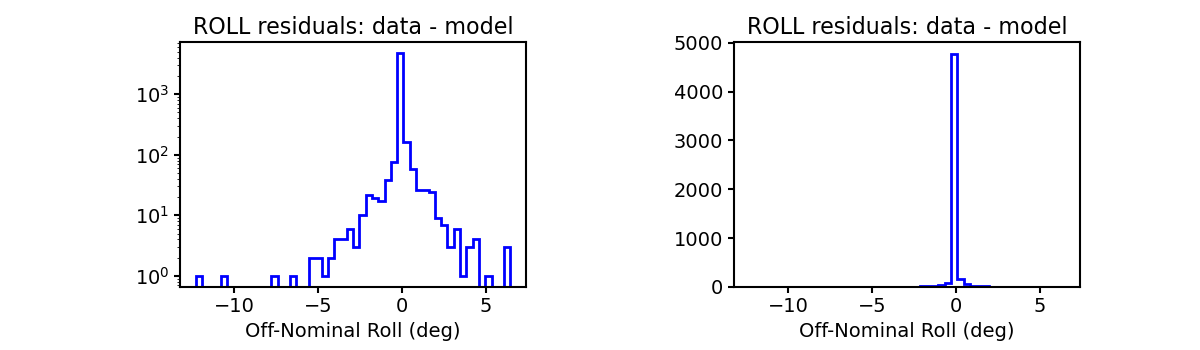

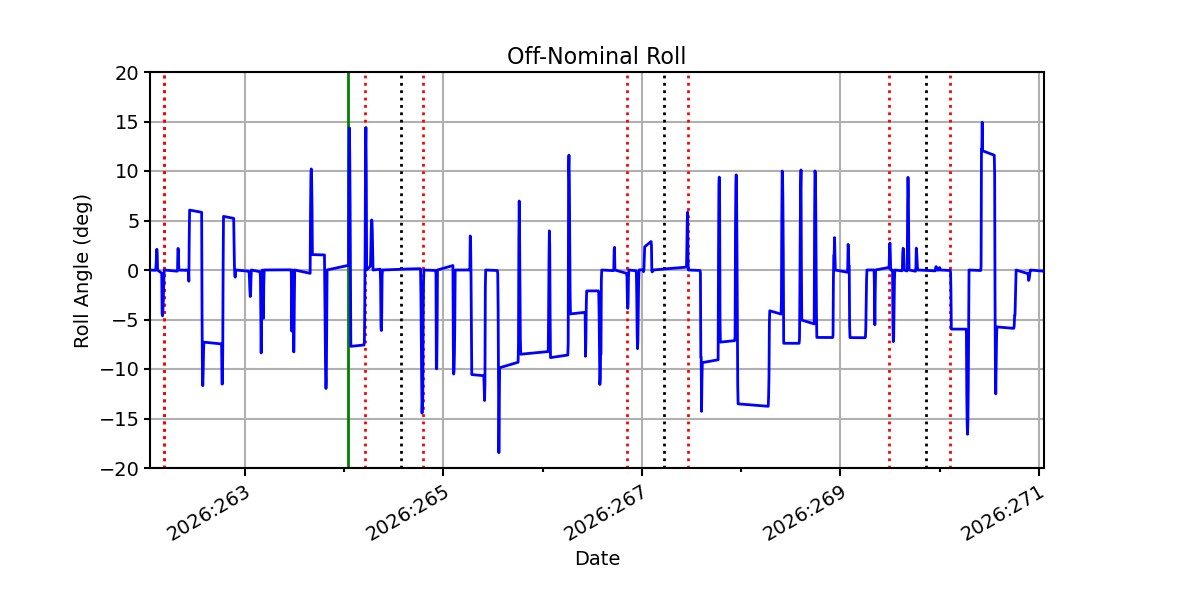

ROLL

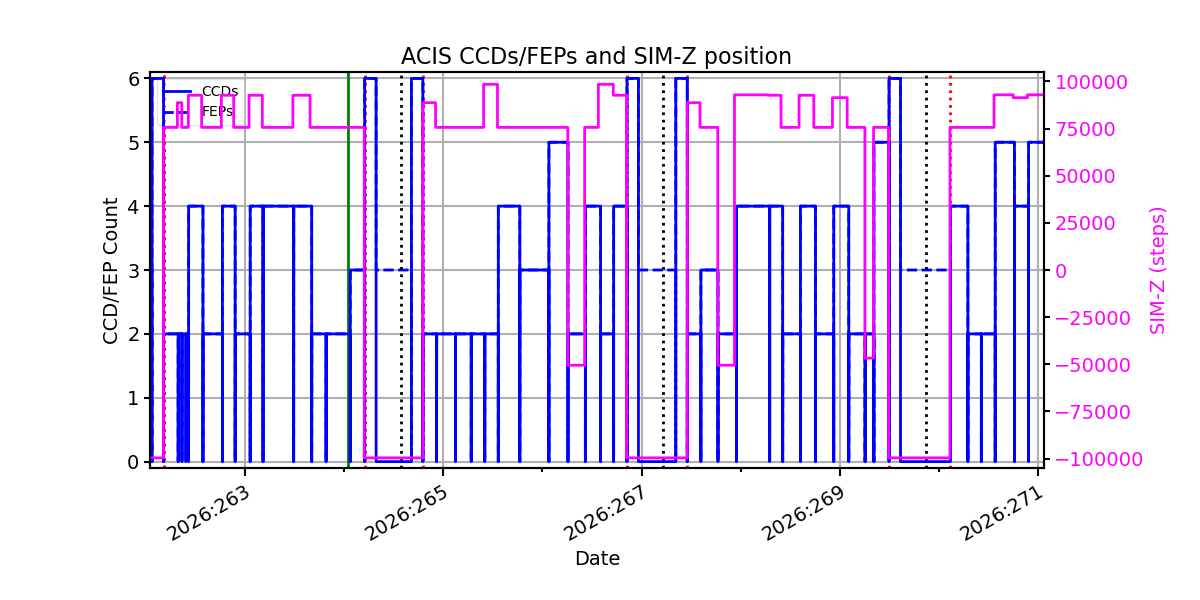

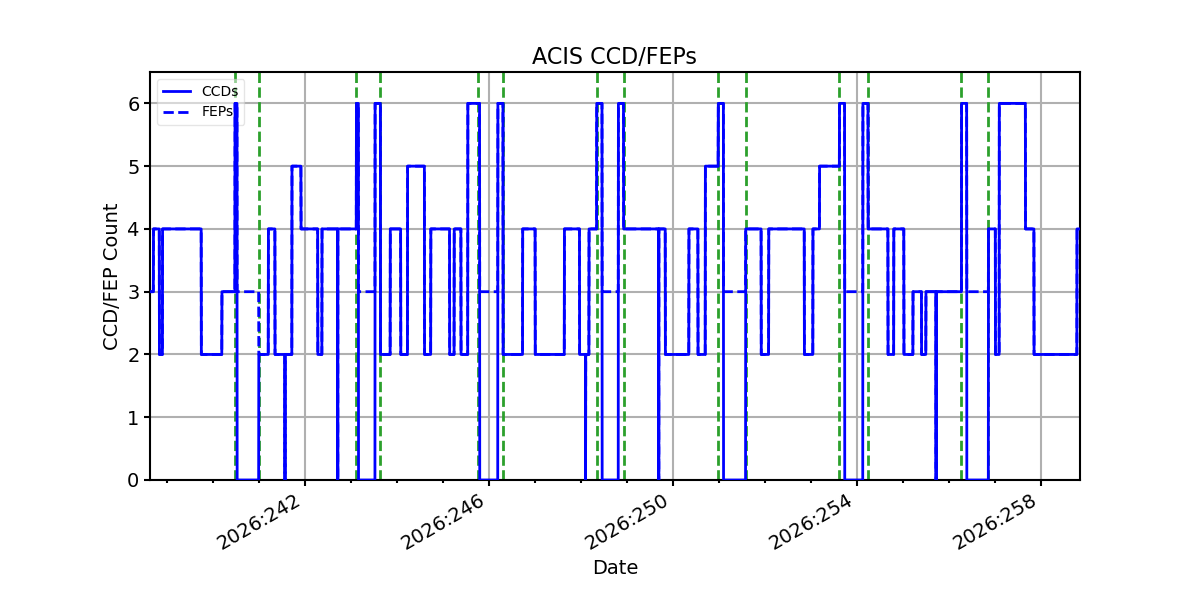

ACIS CCD/FEP Count
