DEA Temperatures Check
Summary
| Date start | 2025:265:00:04:59.816 |
| Date stop | 2025:272:00:17:23.616 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/SEP2225/oflsa |
| Run time | Thu Sep 18 20:54:12 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DEAMZT Upper Limit Violations
DEA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DEAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1deamzt | -2.13 | -1.70 | -1.20 | 0.27 | 1.36 | 1.72 | 2.13 |
| pitch | -8.013 | -0.141 | -0.004 | 0.000 | 0.004 | 0.221 | 11.491 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.554 | -0.080 | -0.006 | -0.000 | 0.007 | 0.086 | 1.399 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DEAMZT | 1 | -2.13 | 2.00 |
| 1DEAMZT | 99 | 2.13 | 2.00 |
| PITCH | 1 | -8.013 | 3.00 |
| PITCH | 99 | 11.491 | 3.00 |

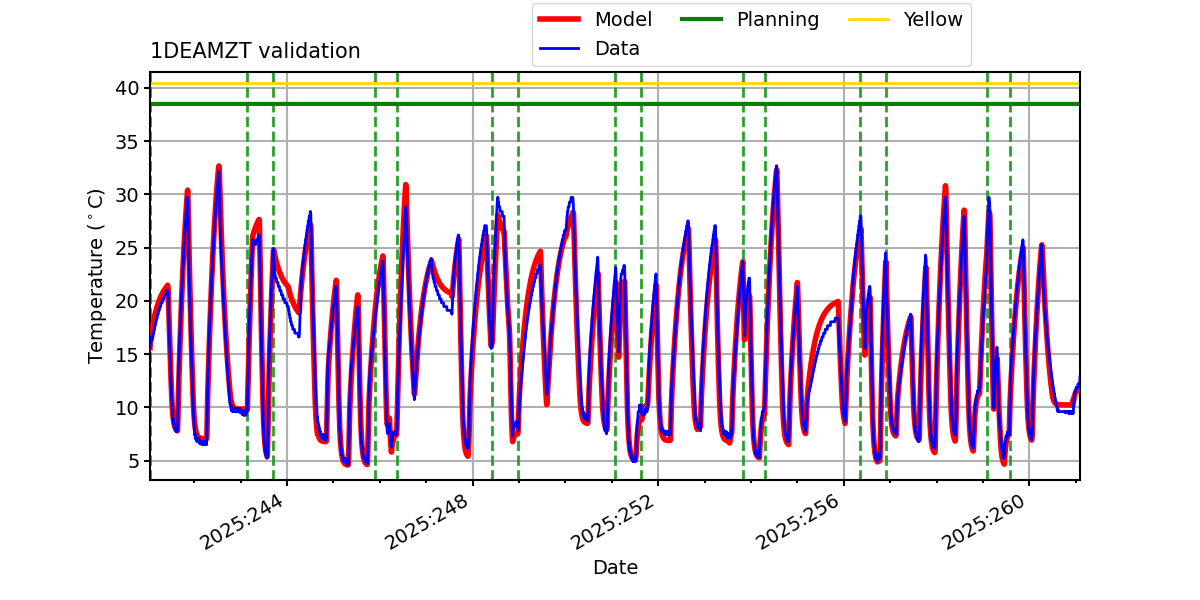

1DEAMZT

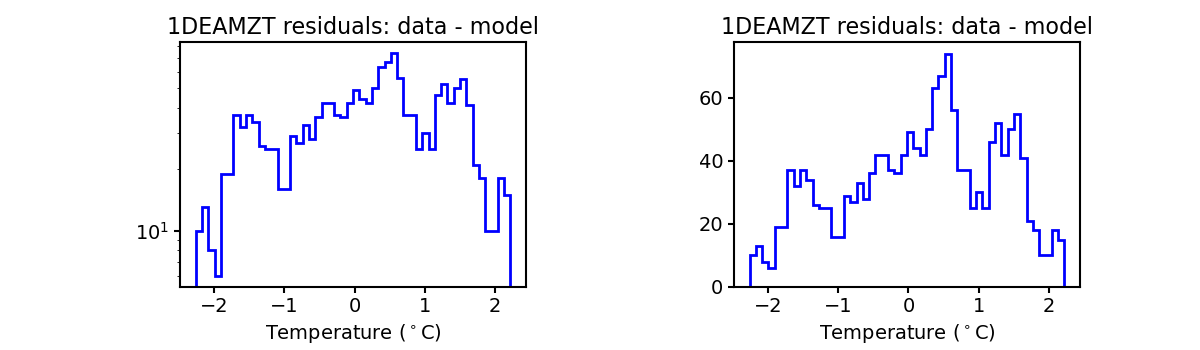

Note: 1DEAMZT residual histograms include only points where 1DEAMZT >= 20.0 C.

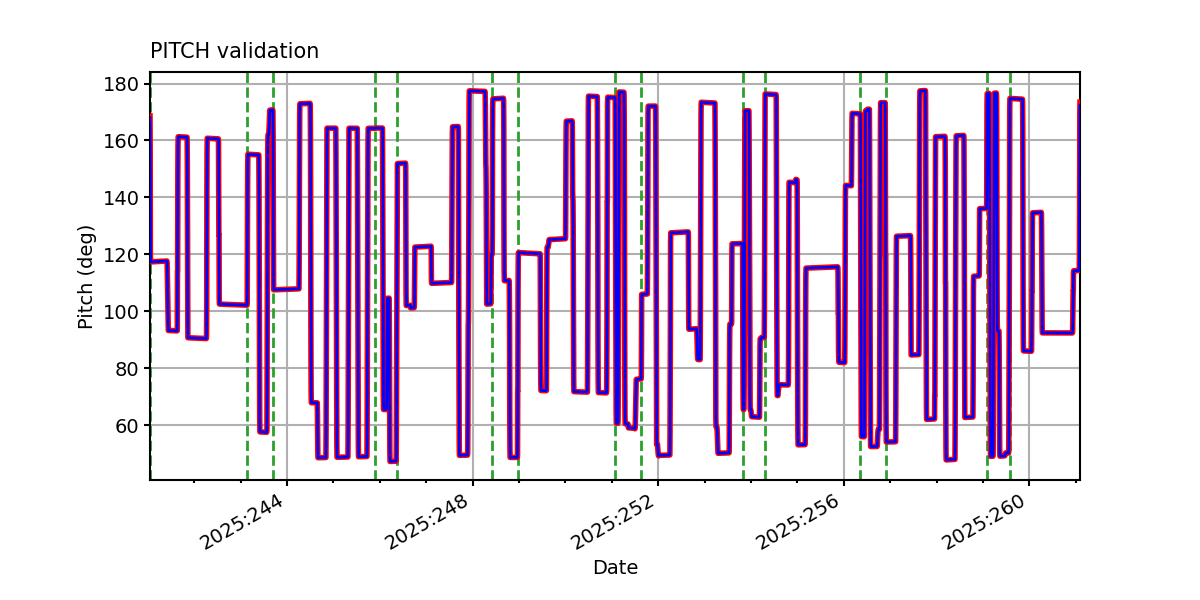

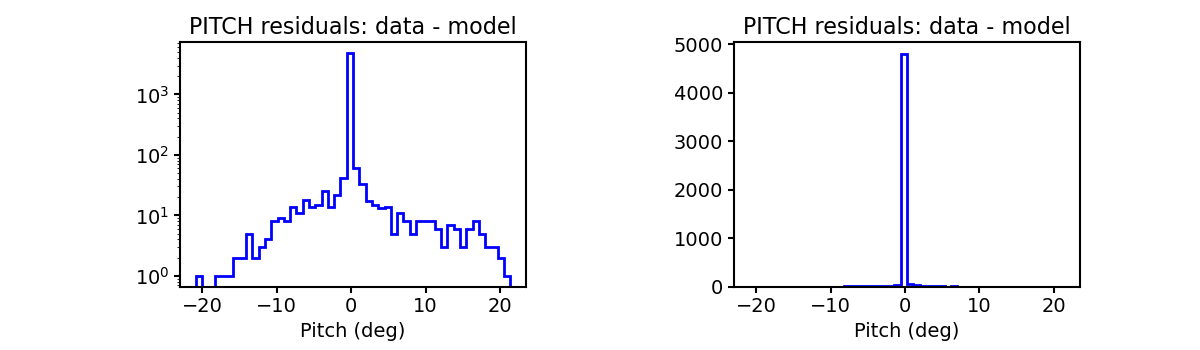

PITCH

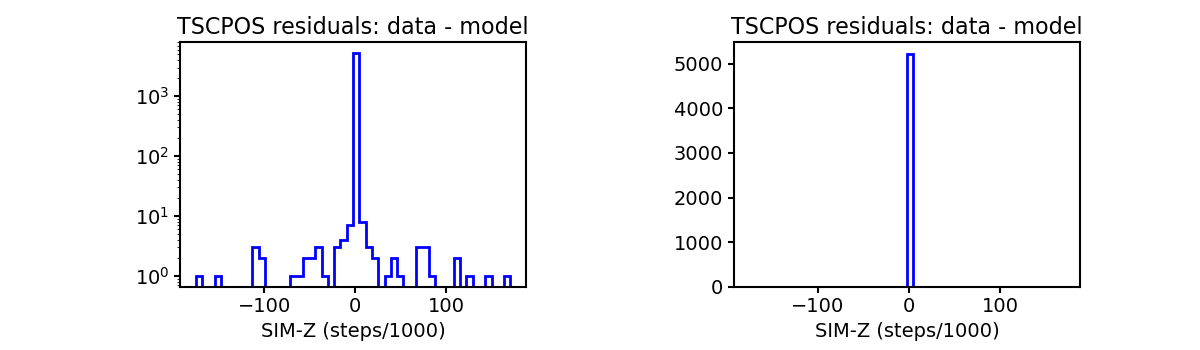

TSCPOS

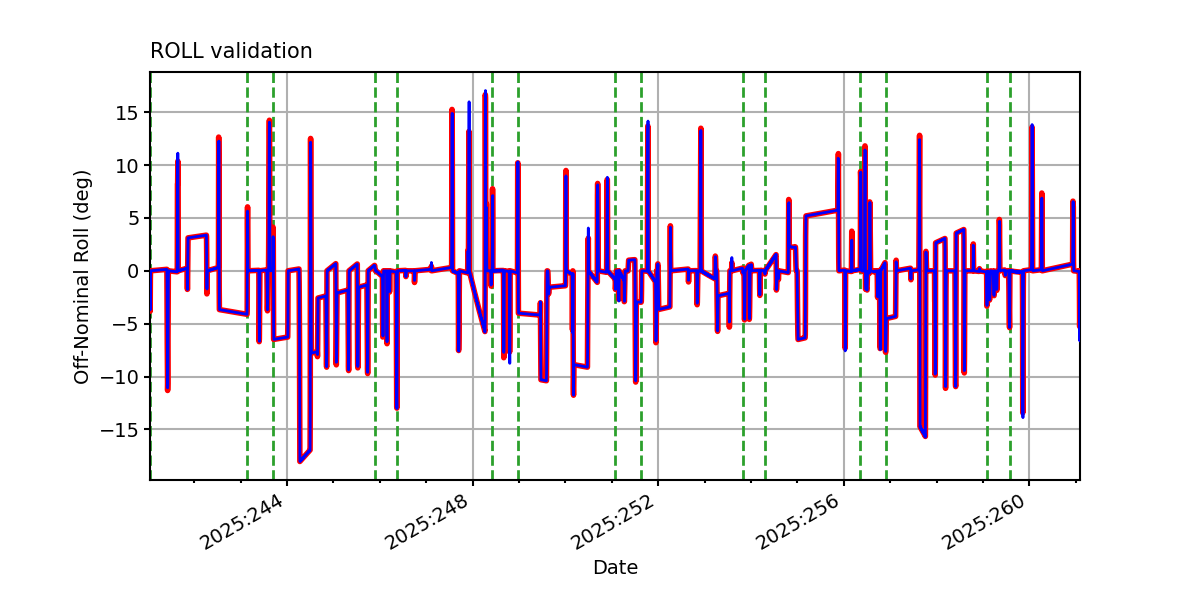

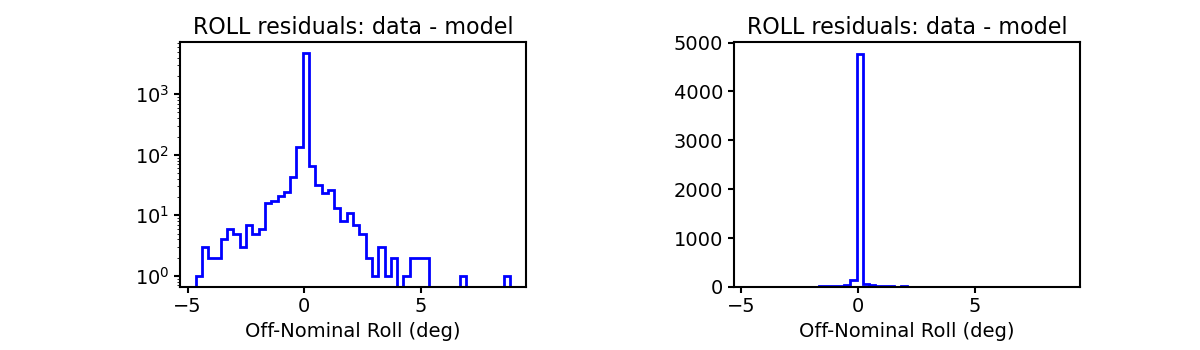

ROLL

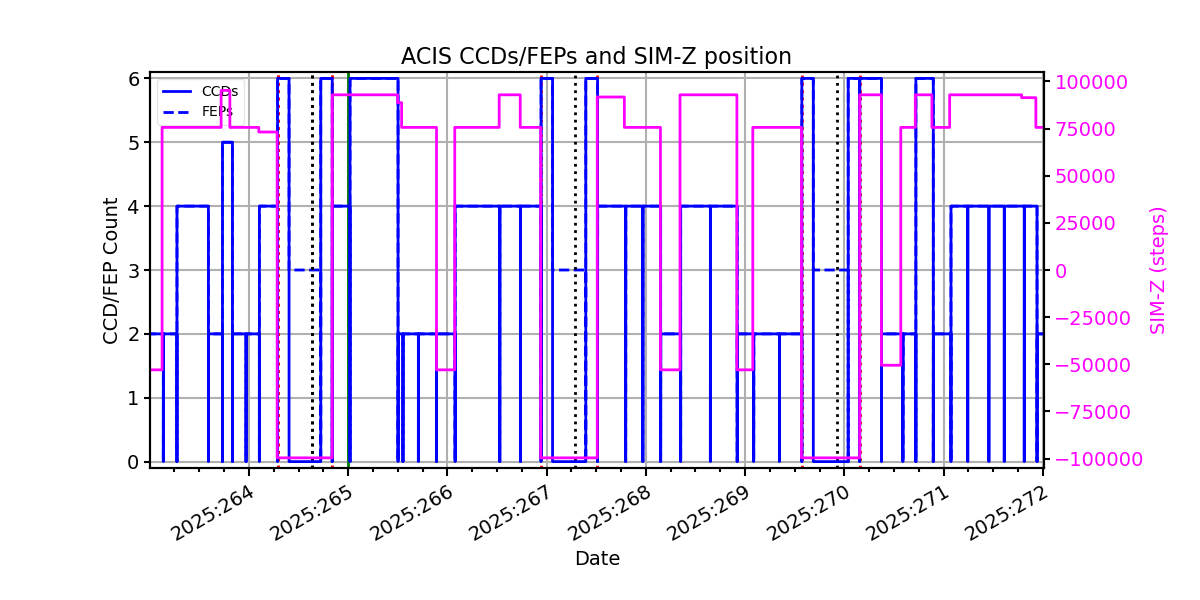

ACIS CCD/FEP Count
