DPAMYT Temperatures Check
Summary
| Date start | 2025:111:00:38:00.016 |
| Date stop | 2025:118:00:24:12.316 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/APR2125/ofls |
| Run time | Thu Apr 17 13:37:01 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMYT Upper Limit Violations
DPAMYT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMYT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamyt | -1.42 | -1.03 | -0.37 | 0.62 | 1.35 | 1.83 | 2.44 |
| pitch | -5.703 | -0.505 | -0.004 | 0.000 | 0.004 | 0.585 | 5.567 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.477 | -0.108 | -0.008 | 0.000 | 0.009 | 0.168 | 1.369 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMYT | 99 | 2.44 | 2.00 |
| PITCH | 1 | -5.703 | 3.00 |
| PITCH | 99 | 5.567 | 3.00 |
1DPAMYT

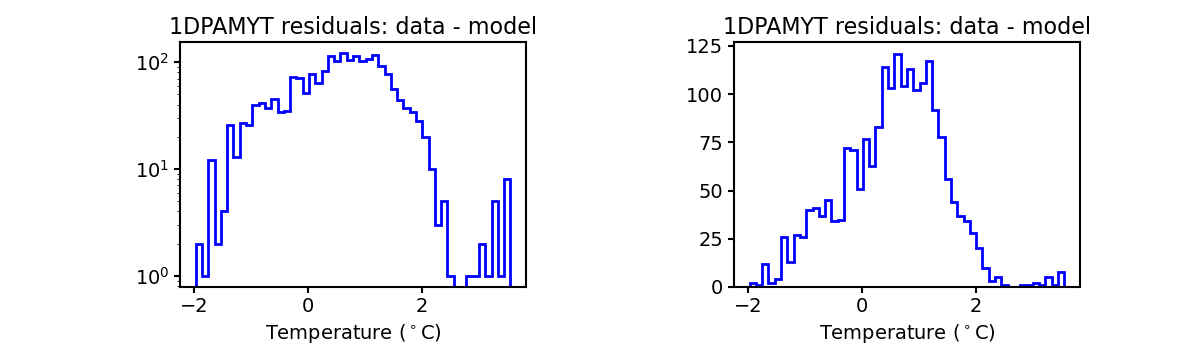

Note: 1DPAMYT residual histograms include only points where 1DPAMYT >= 20.0 C.
PITCH
TSCPOS
ROLL
ACIS CCD/FEP Count
