DPAMYT Temperatures Check
Summary
| Date start | 2026:222:00:50:00.016 |
| Date stop | 2026:229:01:19:21.916 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/AUG1026/oflsb |
| Run time | Wed Aug 5 10:54:29 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMYT Upper Limit Violations
DPAMYT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMYT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamyt | -0.14 | 0.16 | 0.57 | 1.01 | 1.49 | 1.72 | 2.06 |
| pitch | -12.462 | -1.186 | -0.004 | -0.000 | 0.004 | 1.072 | 12.800 |
| tscpos | -1 | -1 | -1 | 0 | 1 | 1 | 1 |
| roll | -2.057 | -0.193 | -0.009 | 0.000 | 0.010 | 0.281 | 1.894 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMYT | 50 | 1.01 | 1.00 |
| 1DPAMYT | 99 | 2.06 | 2.00 |
| PITCH | 1 | -12.462 | 3.00 |
| PITCH | 99 | 12.8 | 3.00 |

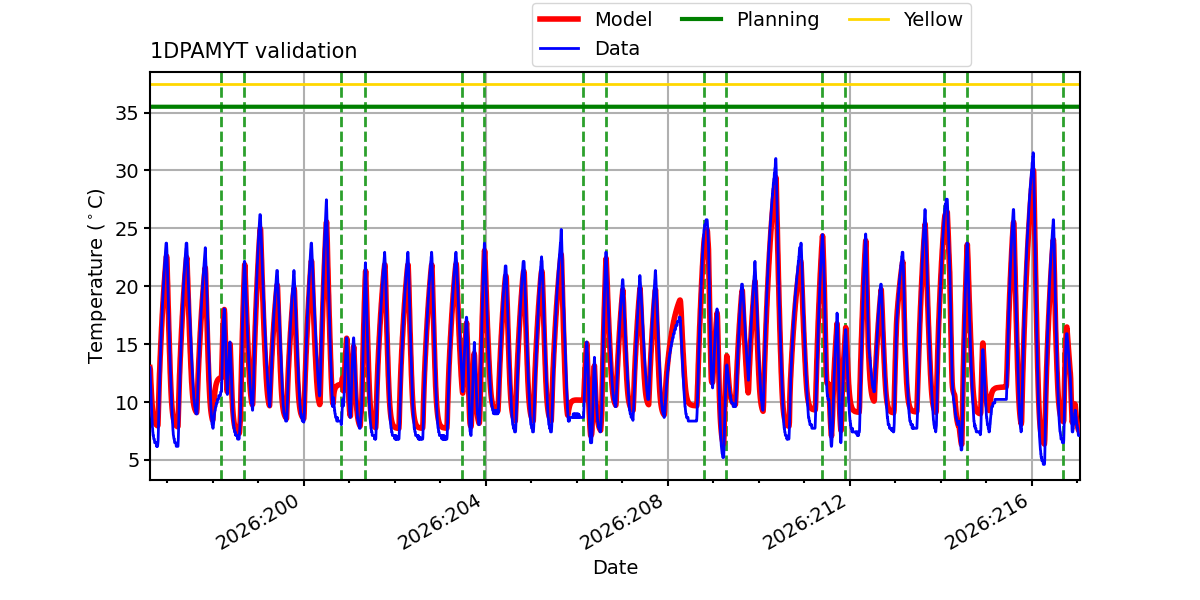

1DPAMYT

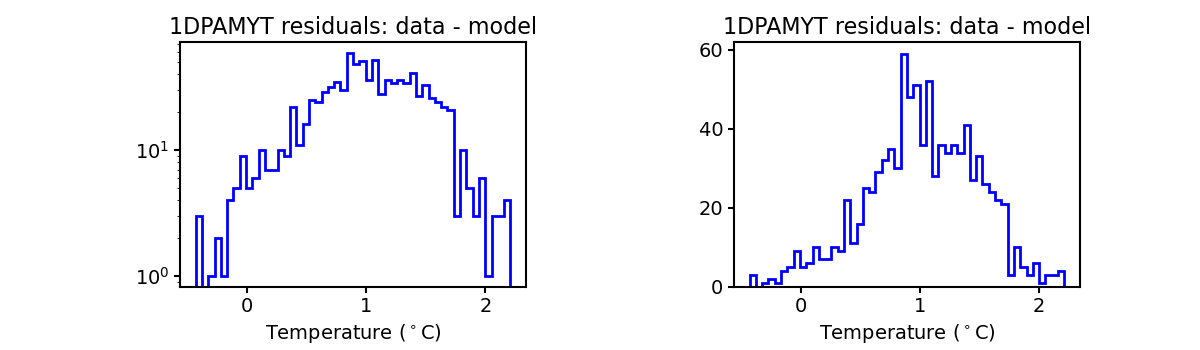

Note: 1DPAMYT residual histograms include only points where 1DPAMYT >= 20.0 C.

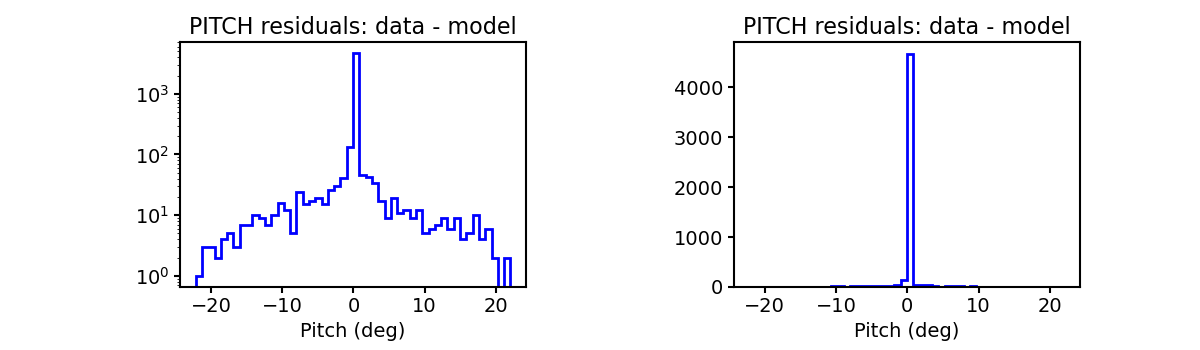

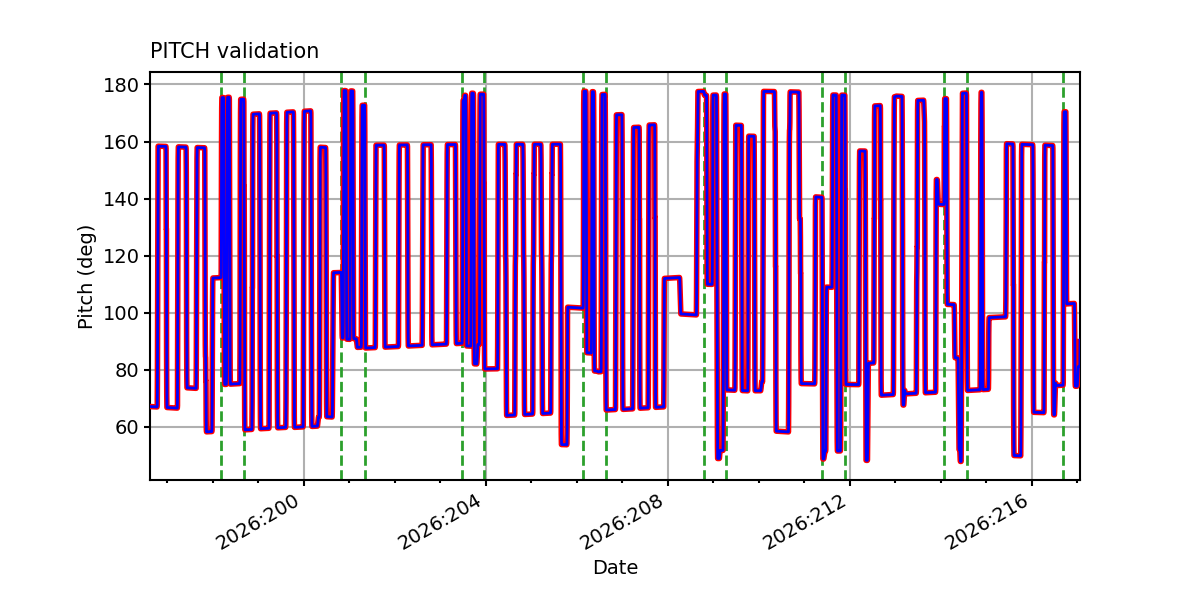

PITCH

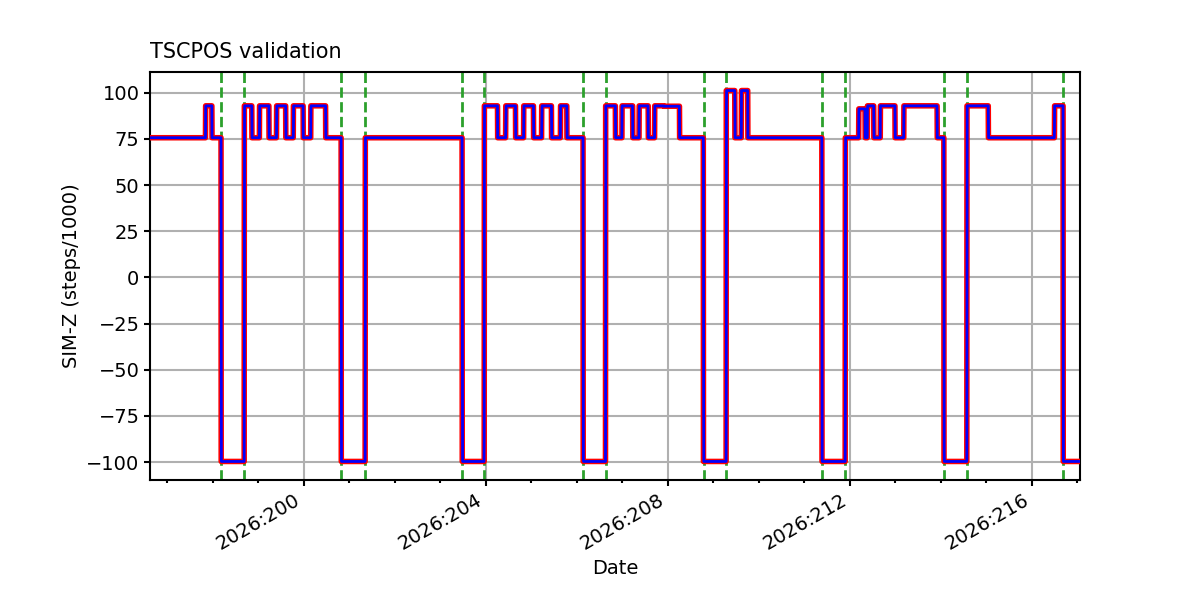

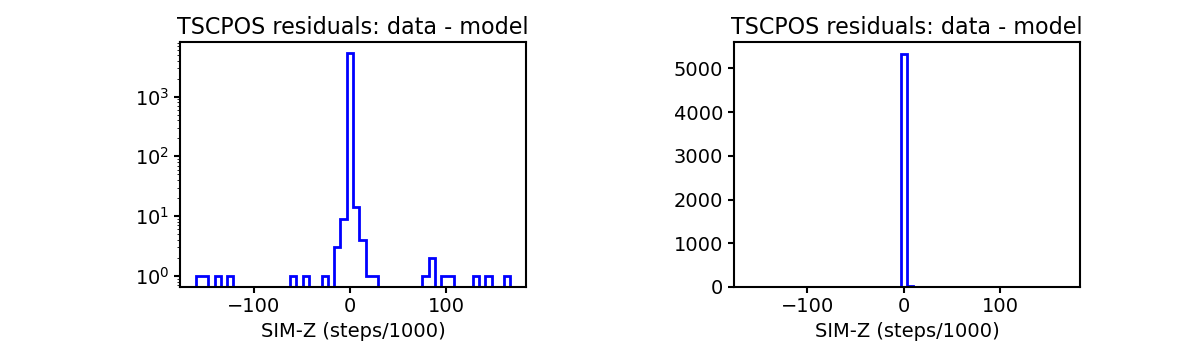

TSCPOS

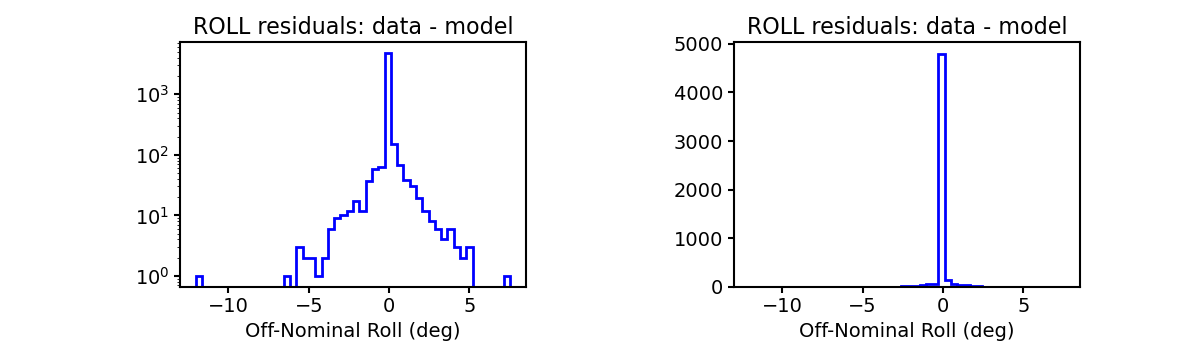

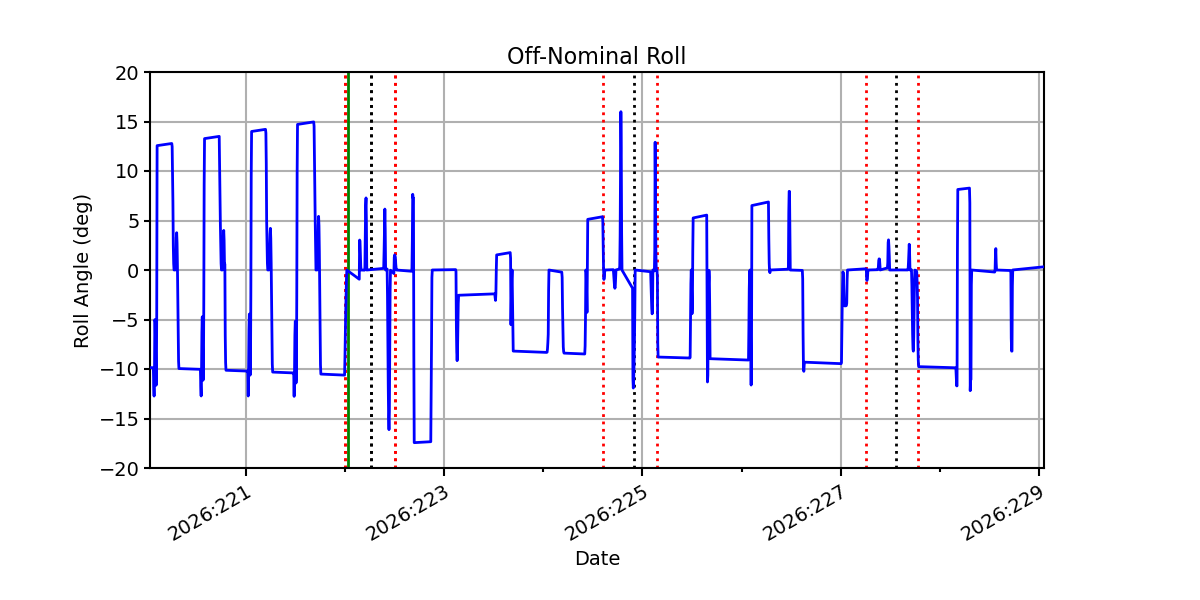

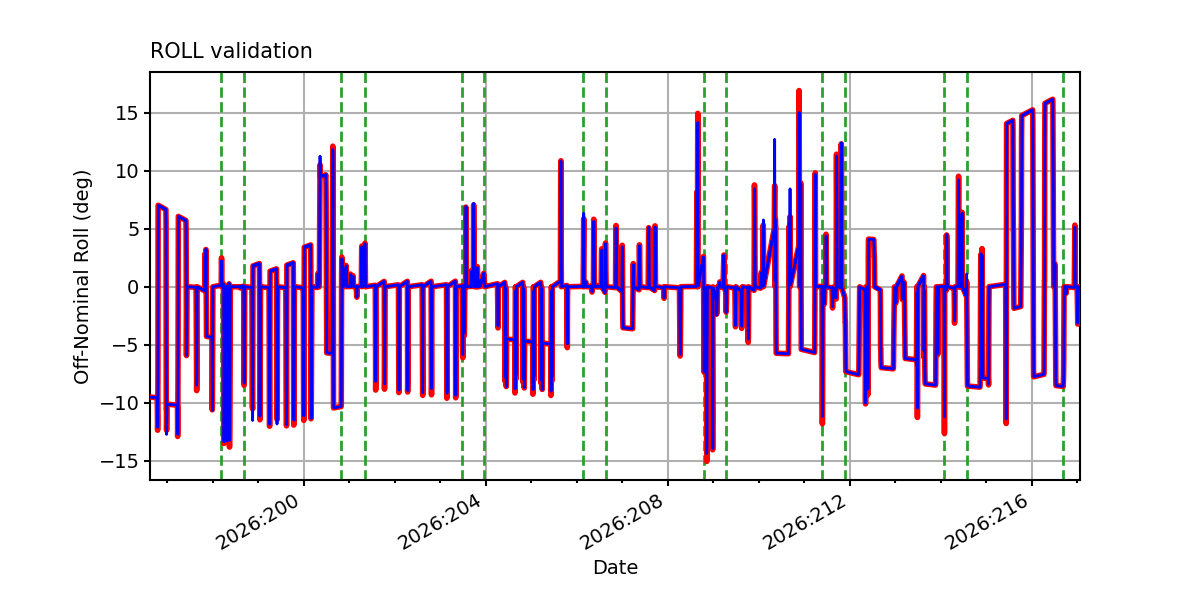

ROLL

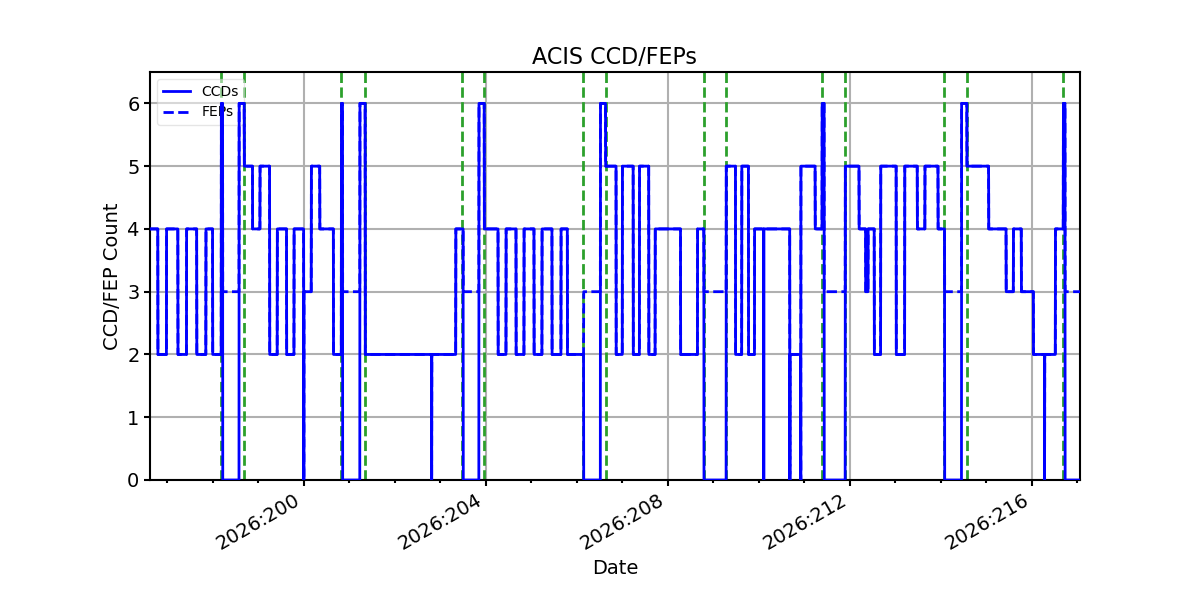

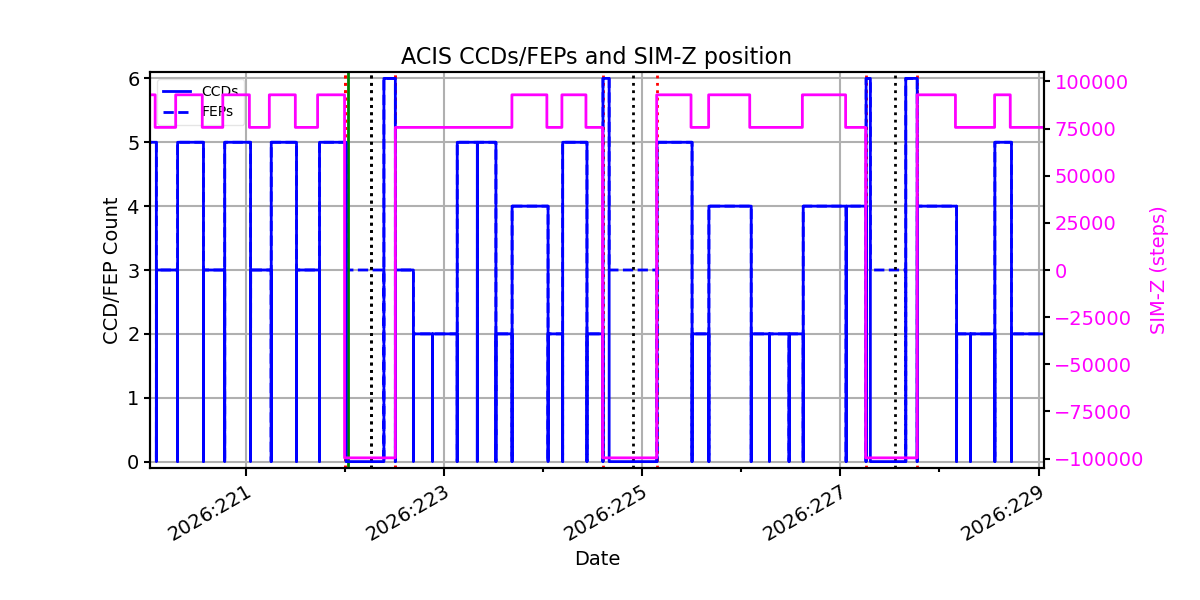

ACIS CCD/FEP Count
