DPAMYT Temperatures Check
Summary
| Date start | 2025:222:16:32:40.916 |
| Date stop | 2025:230:00:53:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/AUG1125/oflsa |
| Run time | Wed Aug 6 15:40:59 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

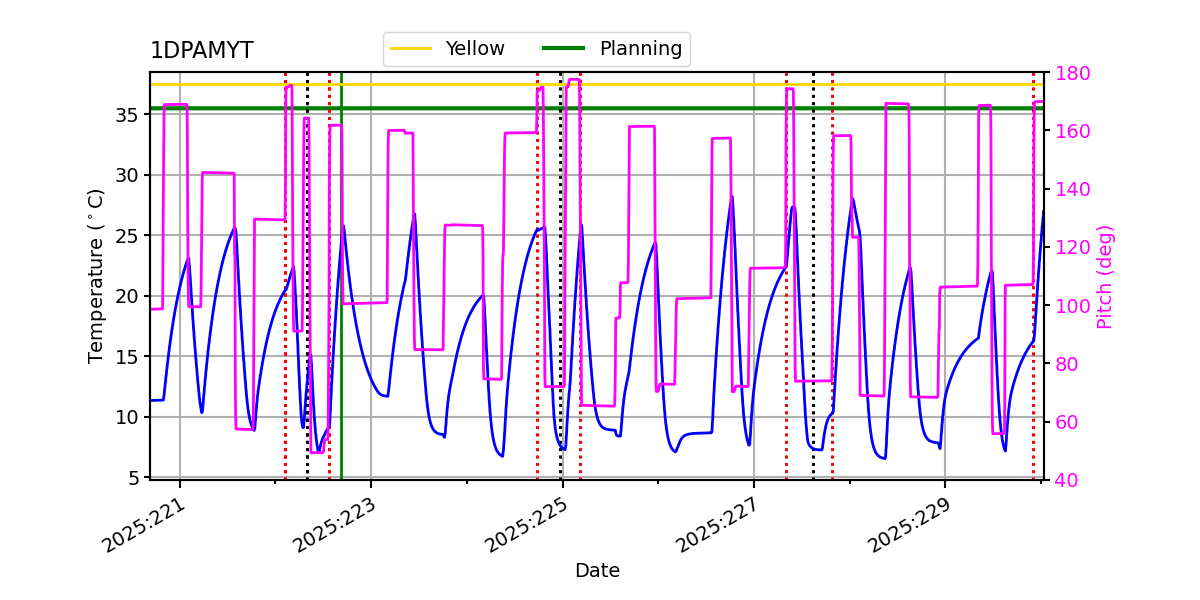

No 1DPAMYT Upper Limit Violations
DPAMYT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMYT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamyt | -0.67 | -0.48 | 0.25 | 0.87 | 1.47 | 1.72 | 2.04 |
| pitch | -10.967 | -0.326 | -0.004 | 0.000 | 0.004 | 0.541 | 9.724 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.780 | -0.112 | -0.006 | -0.000 | 0.005 | 0.121 | 1.591 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMYT | 99 | 2.04 | 2.00 |
| PITCH | 1 | -10.967 | 3.00 |
| PITCH | 99 | 9.724 | 3.00 |

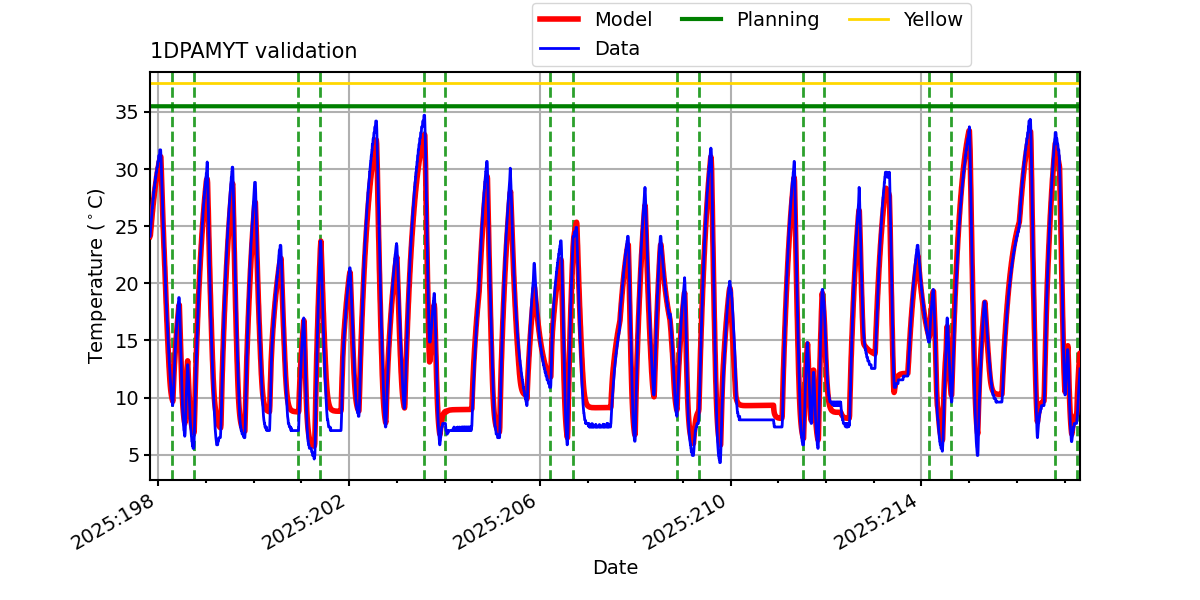

1DPAMYT
Note: 1DPAMYT residual histograms include only points where 1DPAMYT >= 20.0 C.

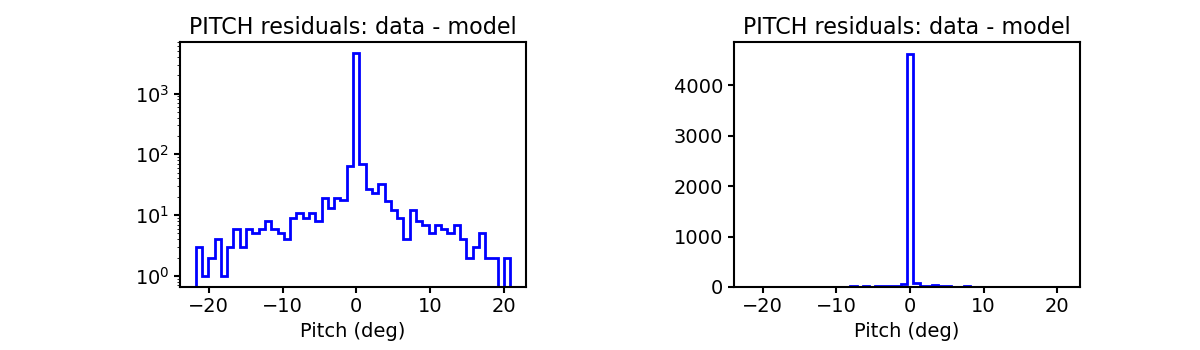

PITCH

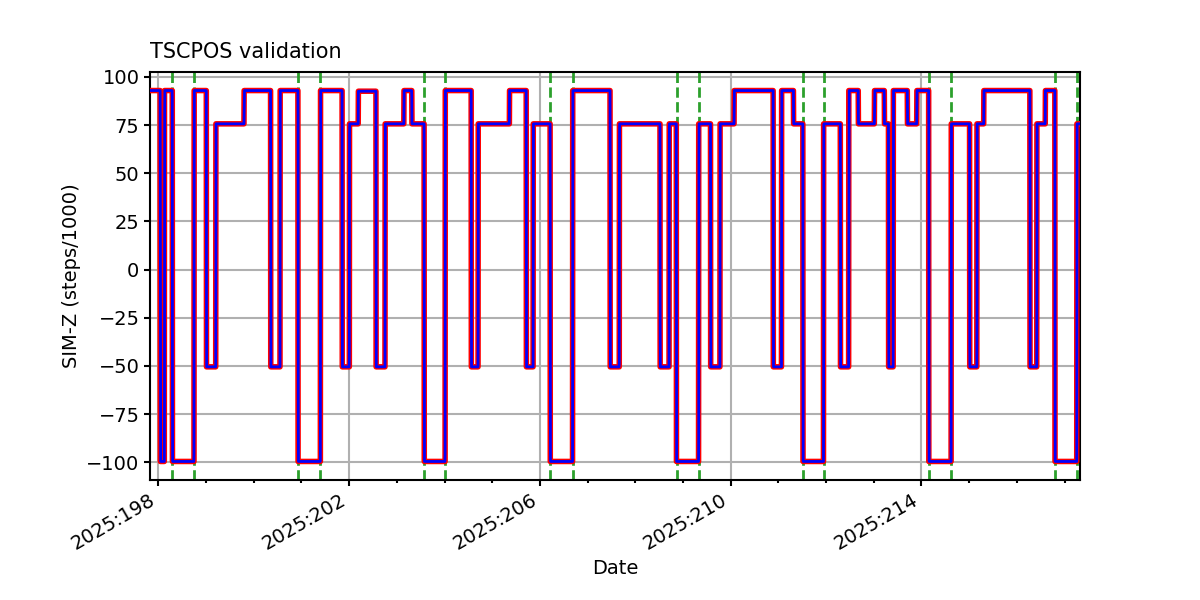

TSCPOS

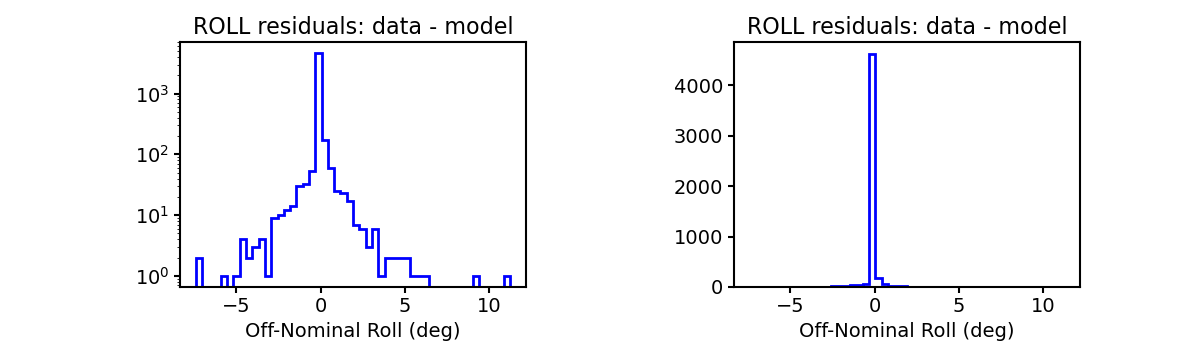

ROLL

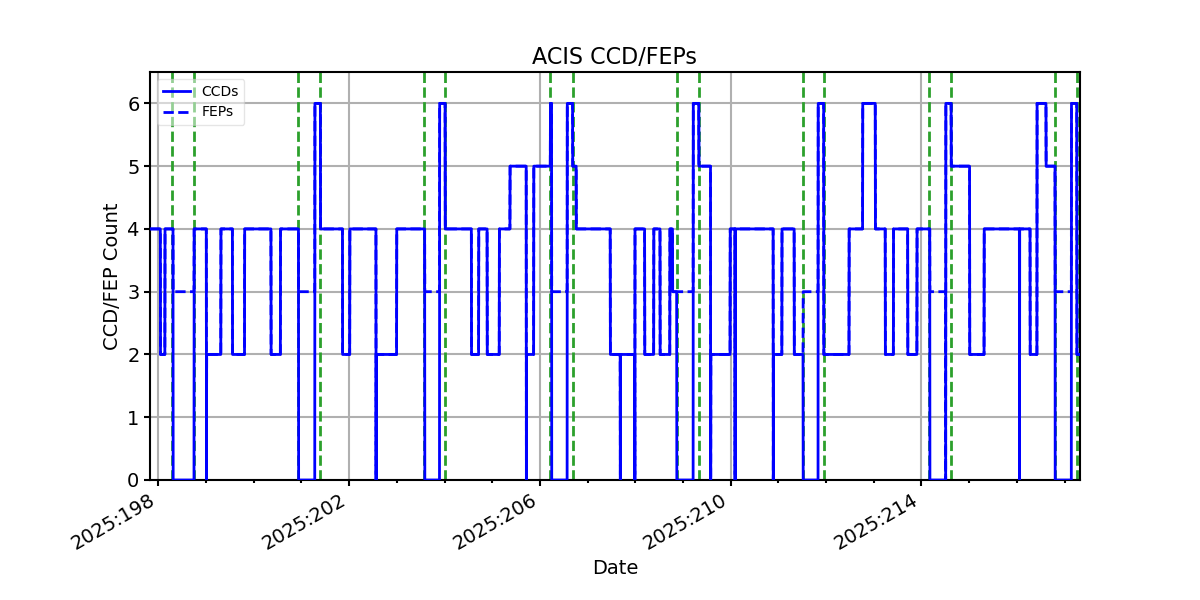

ACIS CCD/FEP Count
