DPAMYT Temperatures Check
Summary
| Date start | 2026:242:22:03:33.816 |
| Date stop | 2026:250:02:17:56.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/AUG3126/oflsa |
| Run time | Thu Aug 27 09:14:23 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMYT Upper Limit Violations
DPAMYT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMYT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamyt | -1.49 | -1.13 | -0.52 | 0.44 | 1.31 | 1.73 | 1.99 |
| pitch | -8.664 | -0.599 | -0.004 | 0.000 | 0.004 | 0.541 | 8.419 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 0 |
| roll | -1.786 | -0.155 | -0.006 | -0.000 | 0.006 | 0.196 | 1.747 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -8.664 | 3.00 |
| PITCH | 99 | 8.419 | 3.00 |

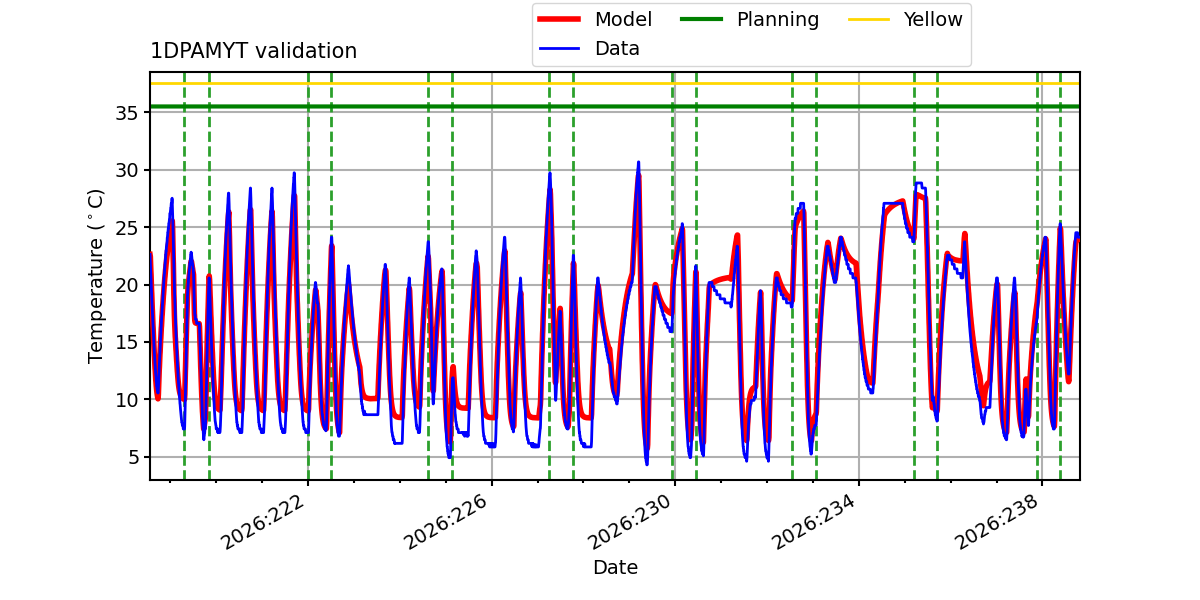

1DPAMYT

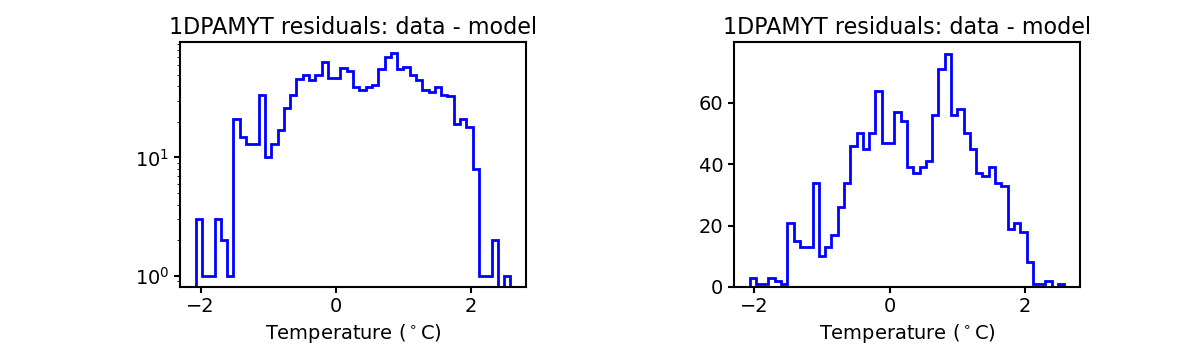

Note: 1DPAMYT residual histograms include only points where 1DPAMYT >= 20.0 C.

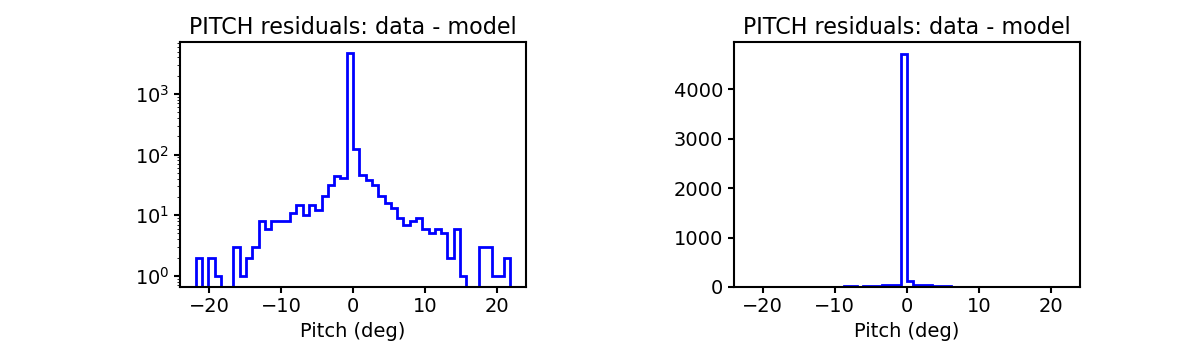

PITCH

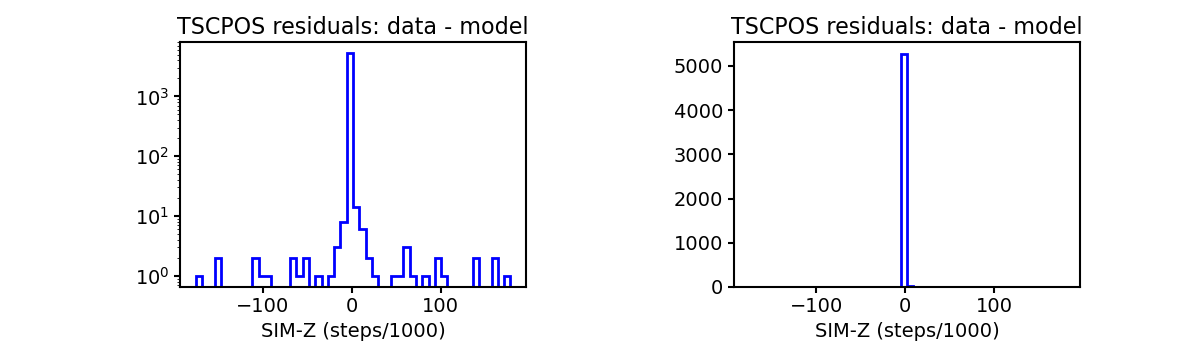

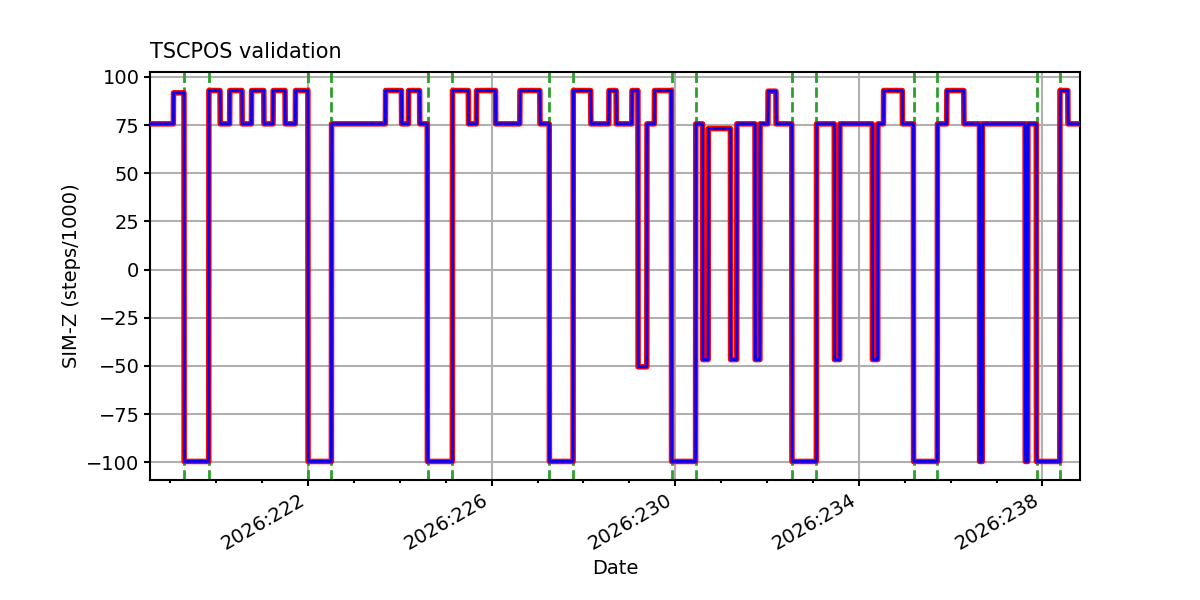

TSCPOS

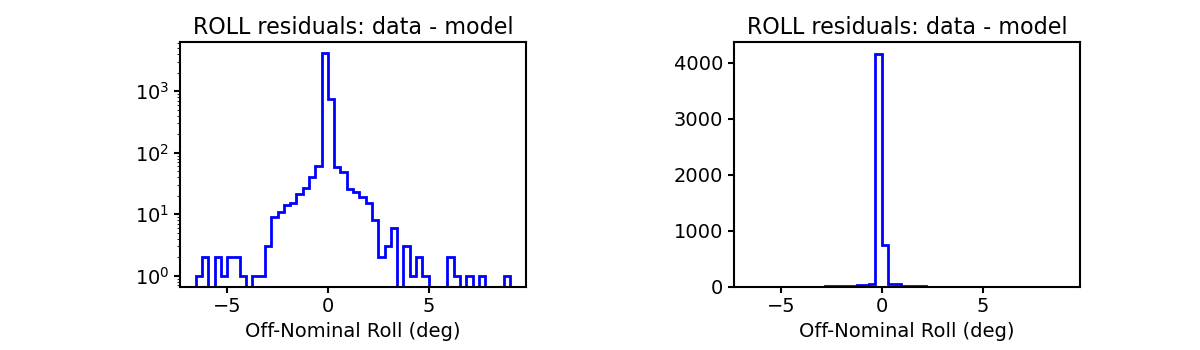

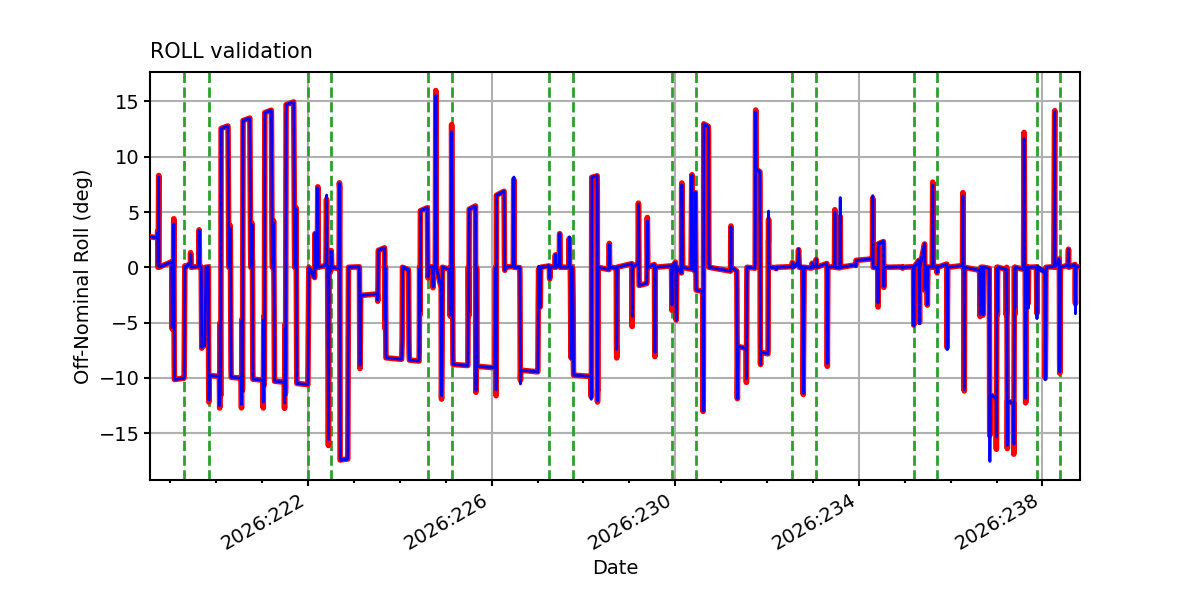

ROLL

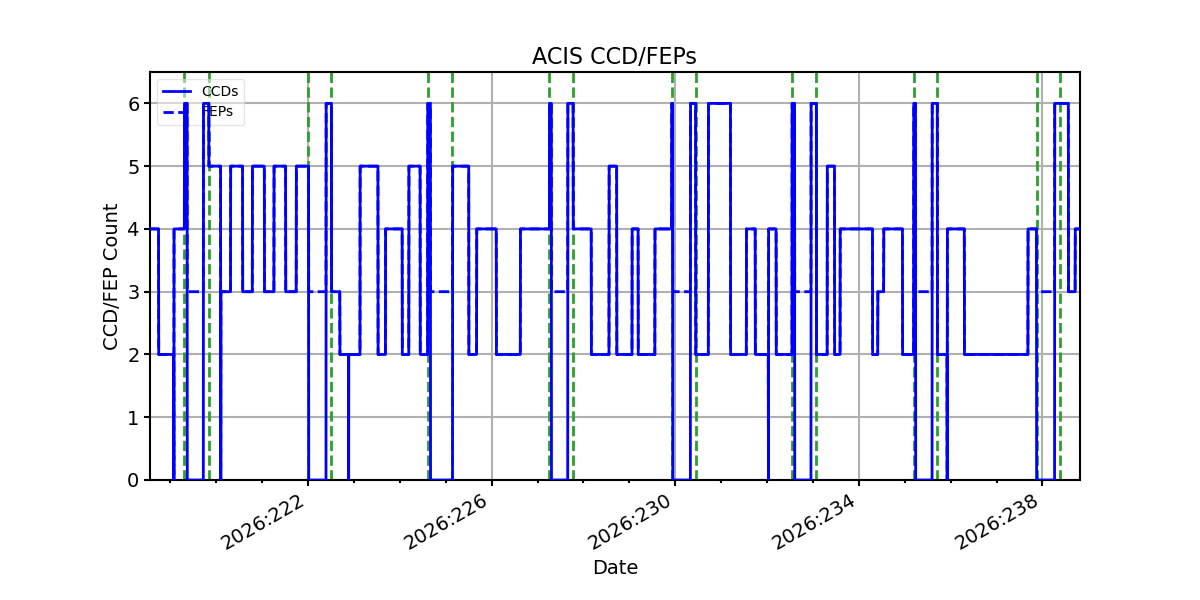

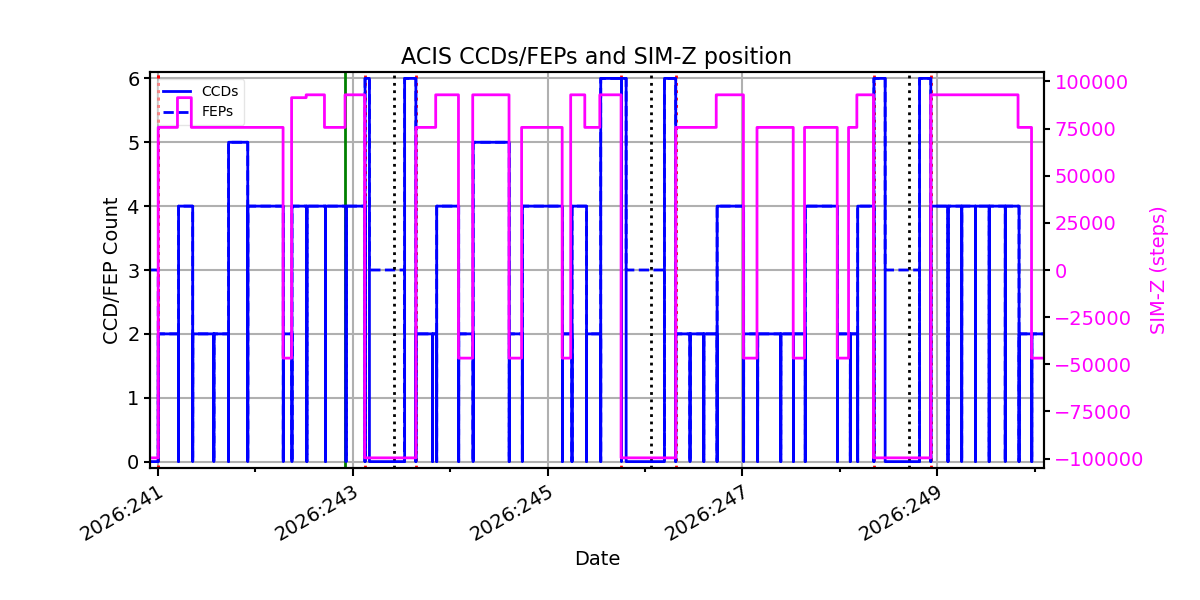

ACIS CCD/FEP Count
