DPAMYT Temperatures Check
Summary
| Date start | 2025:342:00:58:51.816 |
| Date stop | 2025:349:00:38:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/DEC0825/oflsa |
| Run time | Wed Dec 3 15:20:48 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMYT Upper Limit Violations
DPAMYT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMYT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamyt | -0.63 | -0.21 | 0.16 | 0.89 | 1.51 | 2.03 | 3.84 |
| pitch | -10.648 | -0.769 | -0.004 | 0.000 | 0.004 | 0.656 | 10.791 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.503 | -0.188 | -0.007 | -0.000 | 0.008 | 0.193 | 2.235 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMYT | 99 | 3.84 | 2.00 |
| PITCH | 1 | -10.648 | 3.00 |
| PITCH | 99 | 10.791 | 3.00 |

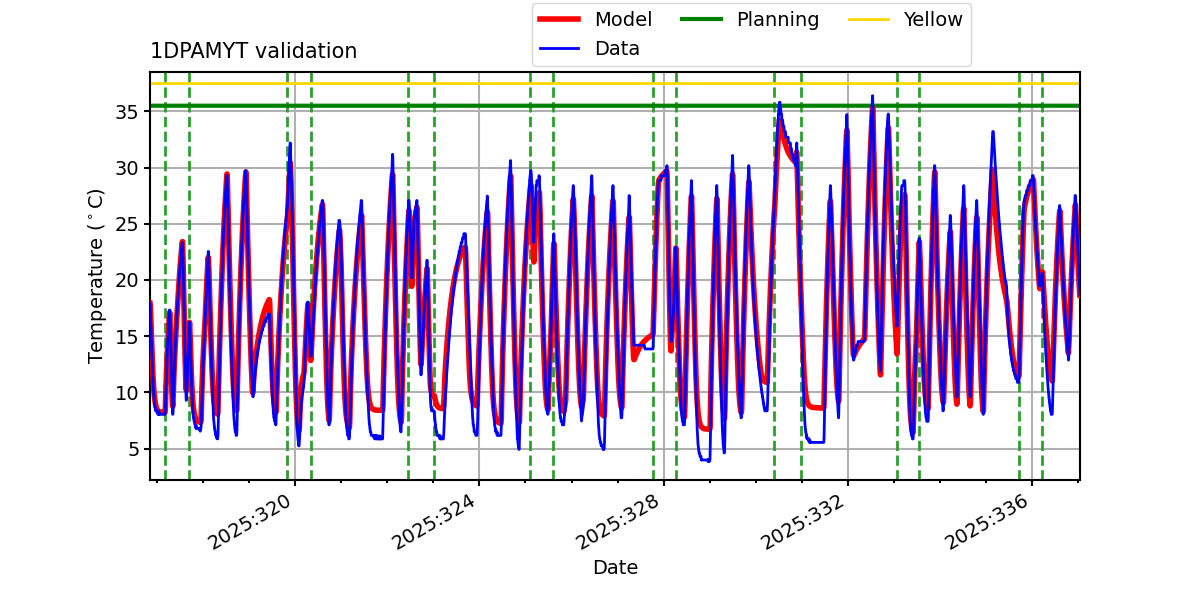

1DPAMYT

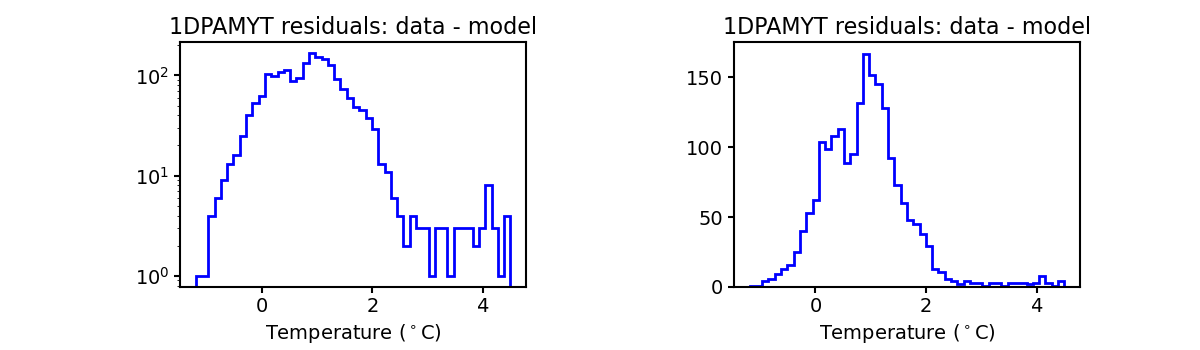

Note: 1DPAMYT residual histograms include only points where 1DPAMYT >= 20.0 C.

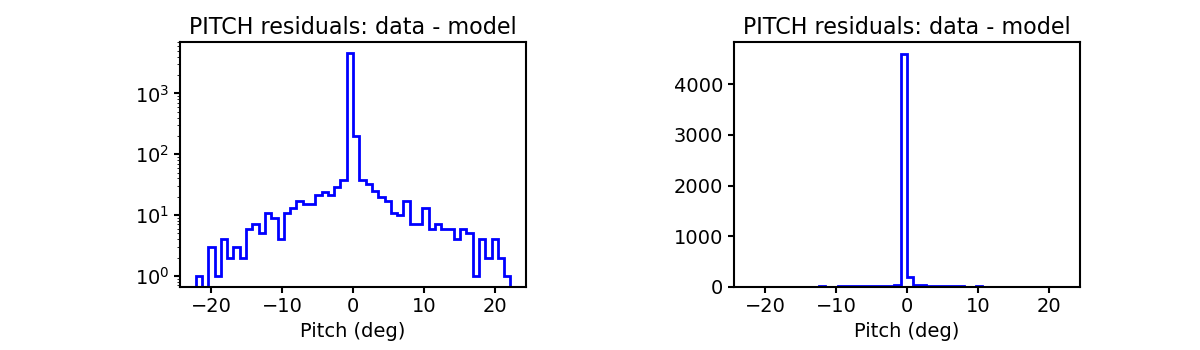

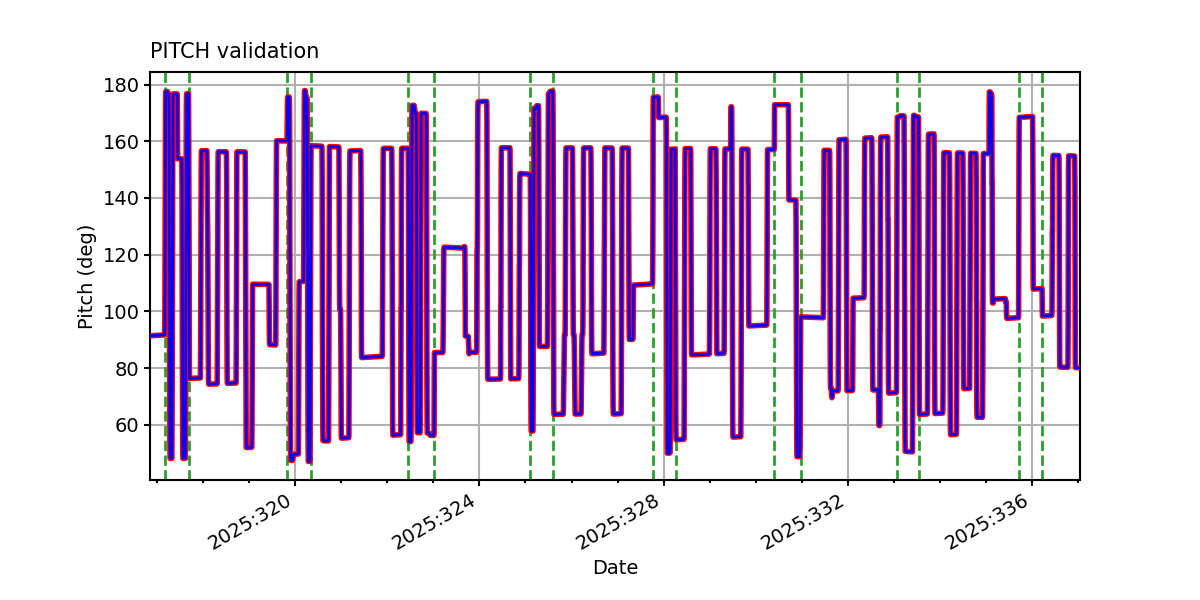

PITCH

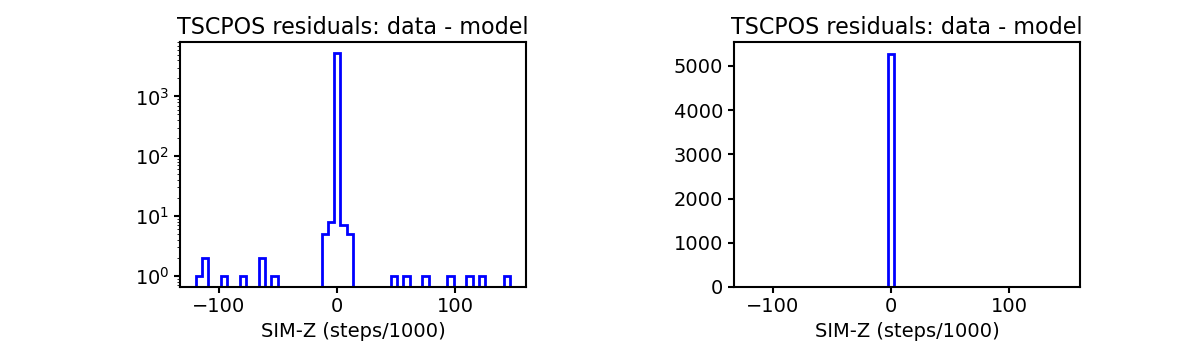

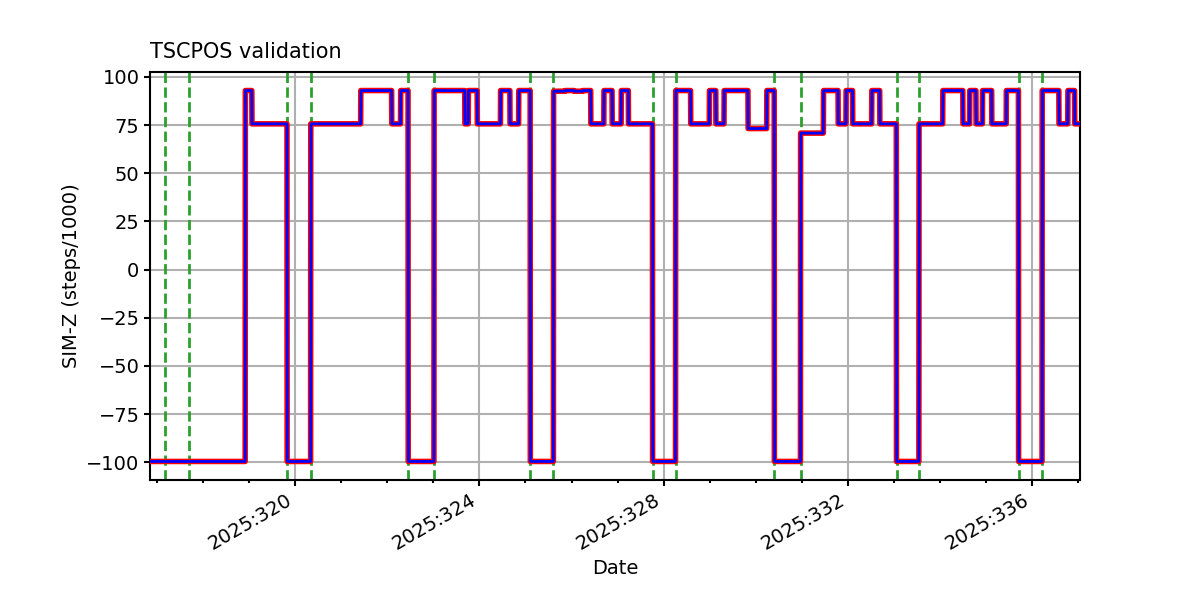

TSCPOS

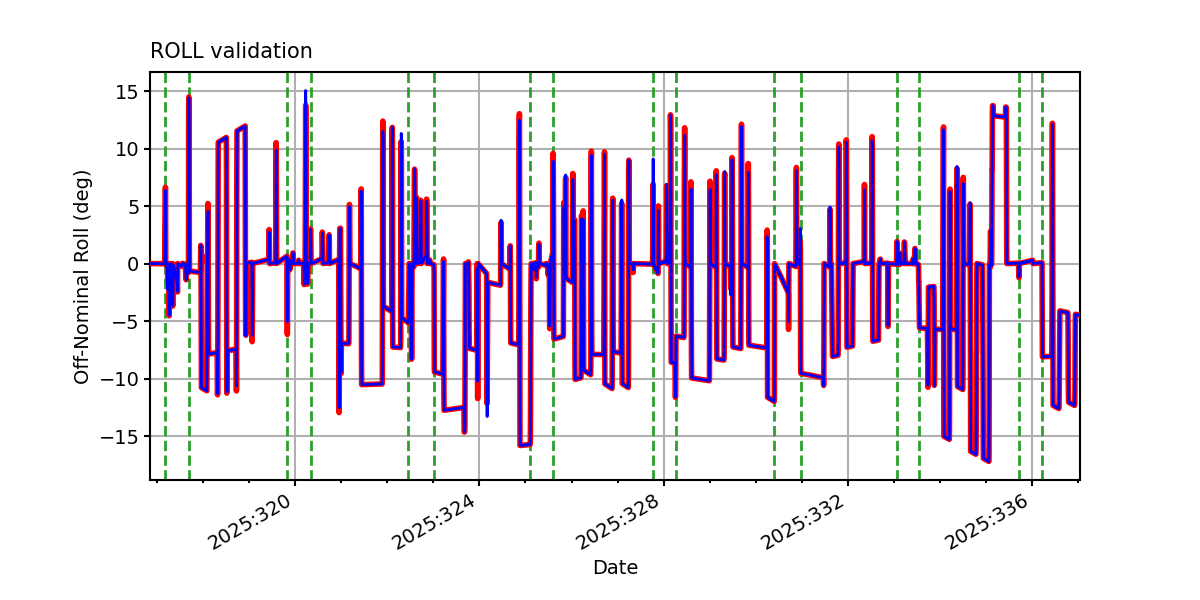

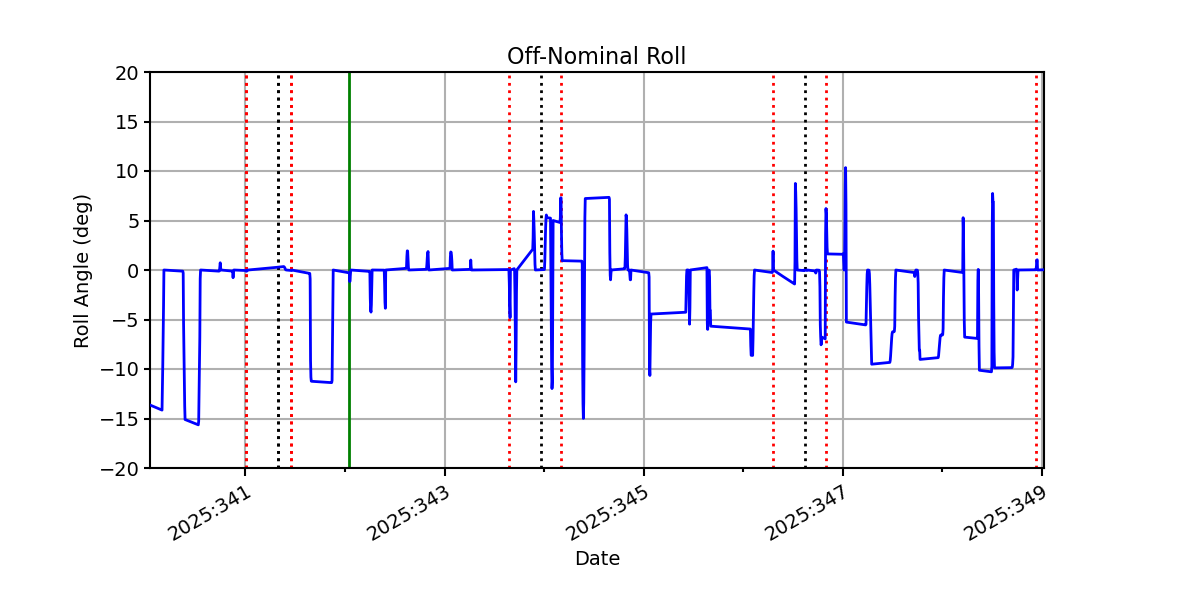

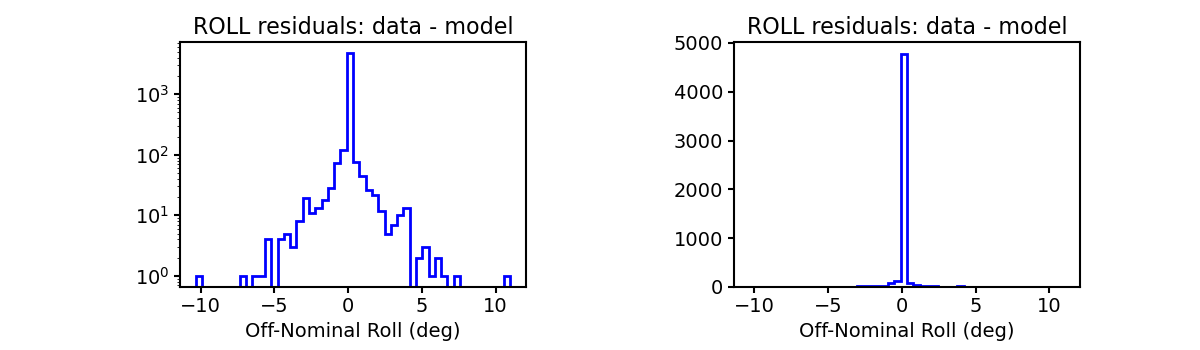

ROLL

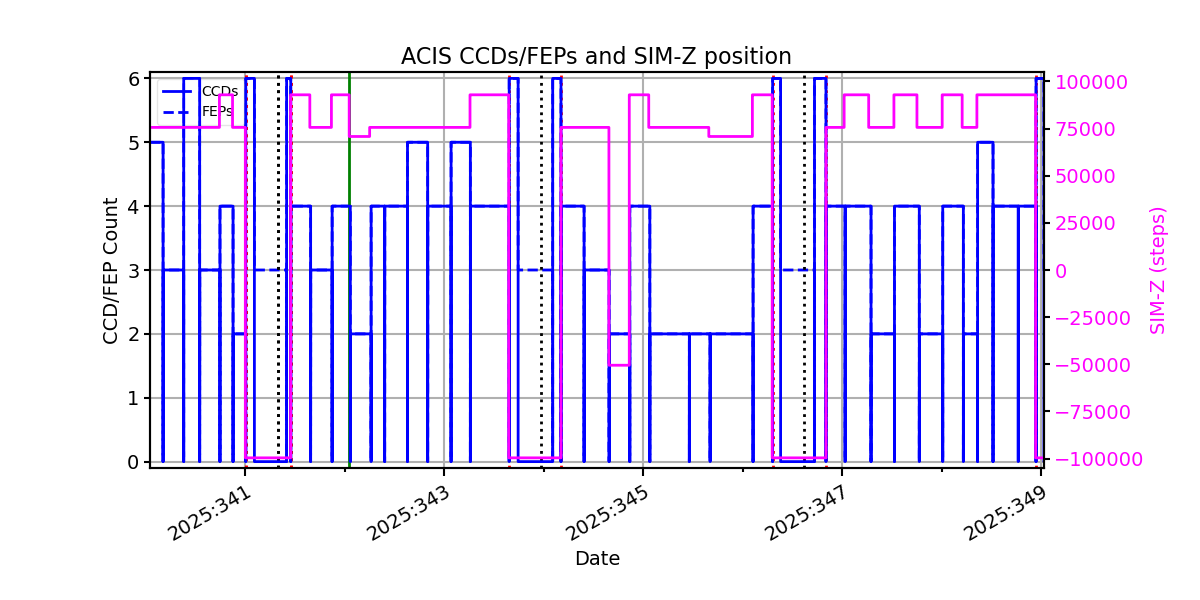

ACIS CCD/FEP Count
