DPAMYT Temperatures Check
Summary
| Date start | 2026:019:00:49:29.616 |
| Date stop | 2026:025:19:08:18.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JAN1926/oflsb |
| Run time | Thu Jan 15 22:01:25 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMYT Upper Limit Violations
DPAMYT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMYT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamyt | -1.77 | -1.29 | -0.55 | 0.64 | 1.52 | 2.27 | 3.21 |
| pitch | -11.776 | -0.584 | -0.004 | 0.000 | 0.004 | 0.646 | 11.568 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -1.950 | -0.244 | -0.009 | -0.000 | 0.007 | 0.172 | 1.844 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMYT | 99 | 3.21 | 2.00 |
| PITCH | 1 | -11.776 | 3.00 |
| PITCH | 99 | 11.568 | 3.00 |

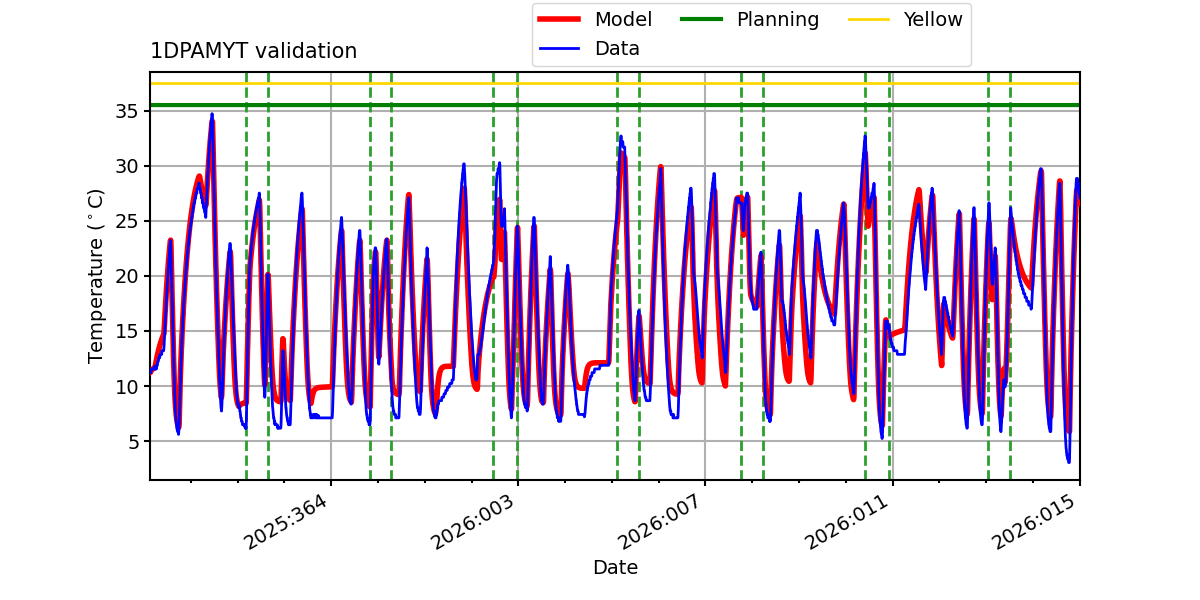

1DPAMYT

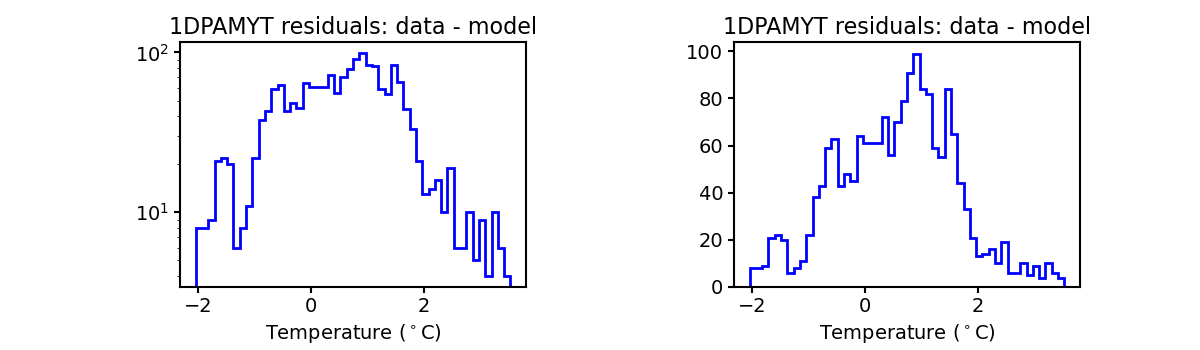

Note: 1DPAMYT residual histograms include only points where 1DPAMYT >= 20.0 C.

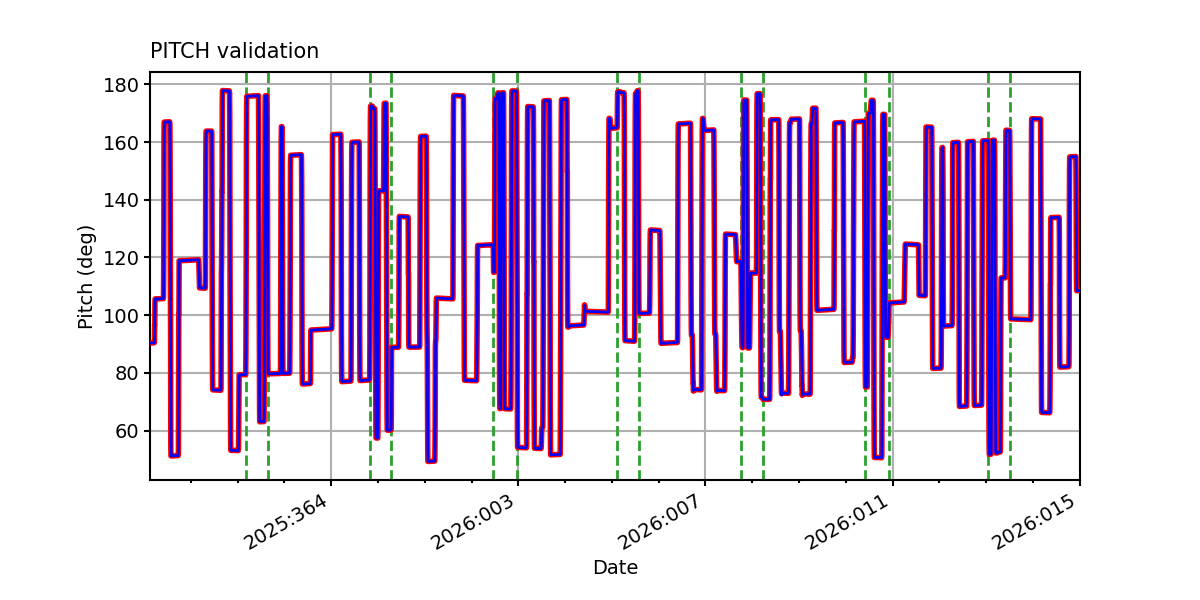

PITCH

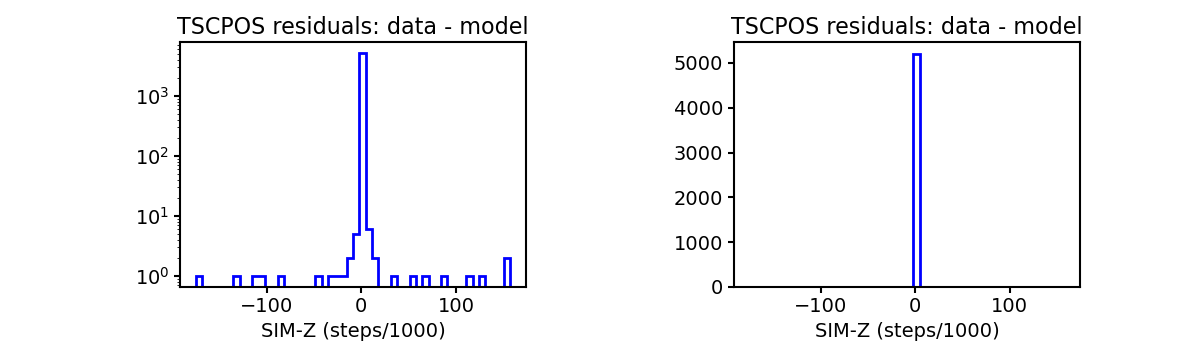

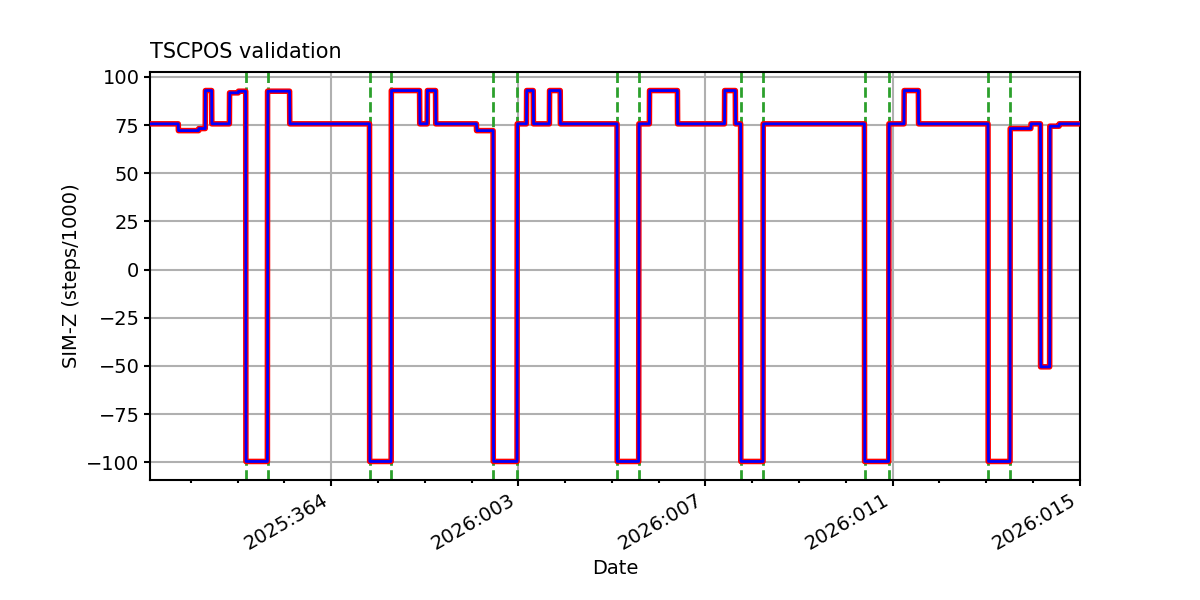

TSCPOS

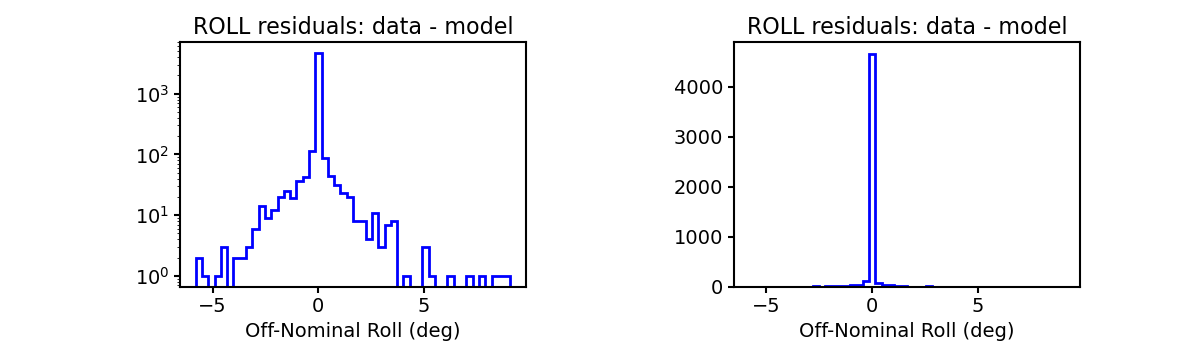

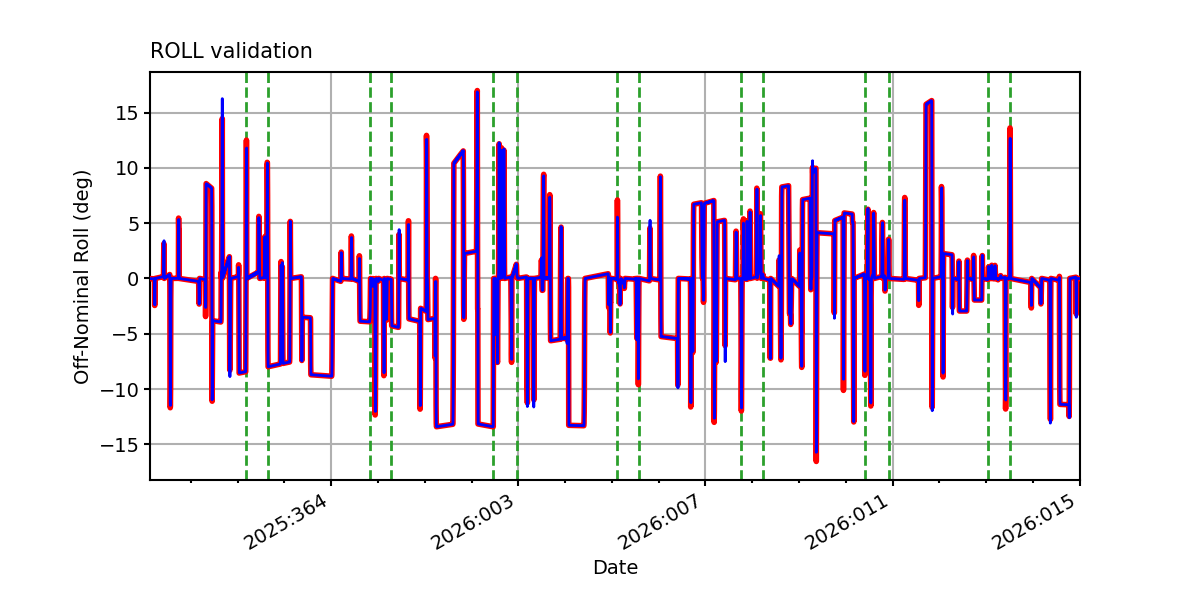

ROLL
ACIS CCD/FEP Count
