DPAMYT Temperatures Check
Summary
| Date start | 2025:153:19:50:00.016 |
| Date stop | 2025:159:23:43:43.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/JUN0225/ofls |
| Run time | Sun Jun 1 12:22:11 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMYT Upper Limit Violations
DPAMYT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMYT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamyt | -1.49 | -0.93 | -0.24 | 0.64 | 1.45 | 1.92 | 4.29 |
| pitch | -5.124 | -0.294 | -0.004 | -0.000 | 0.004 | 0.437 | 5.374 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.291 | -0.116 | -0.006 | -0.000 | 0.006 | 0.126 | 1.343 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMYT | 99 | 4.29 | 2.00 |
| PITCH | 1 | -5.124 | 3.00 |
| PITCH | 99 | 5.374 | 3.00 |

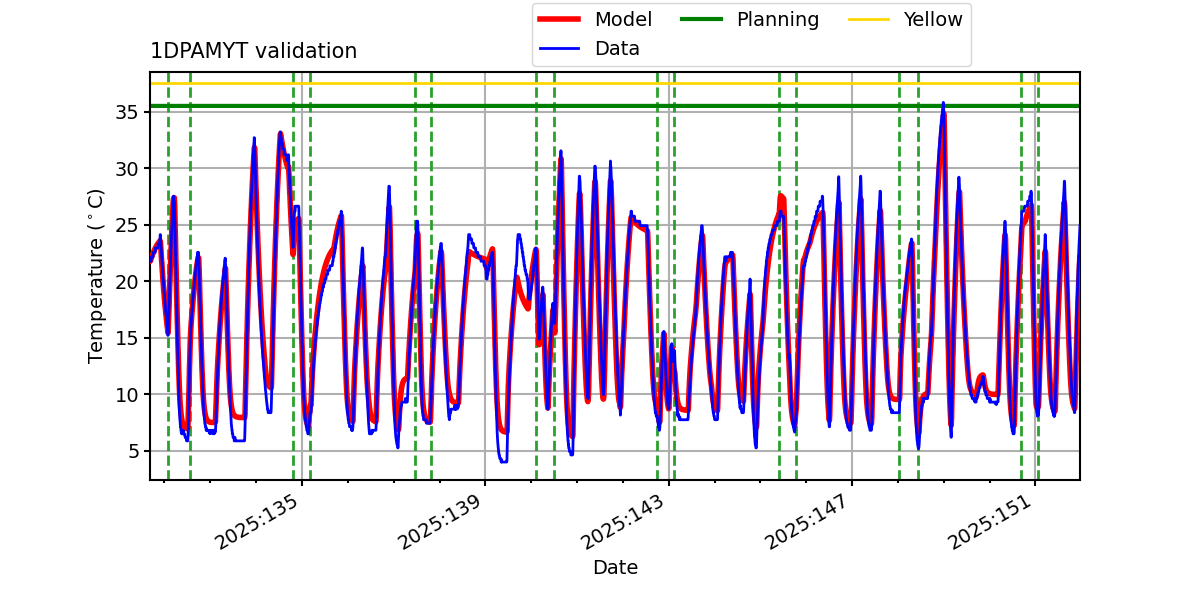

1DPAMYT

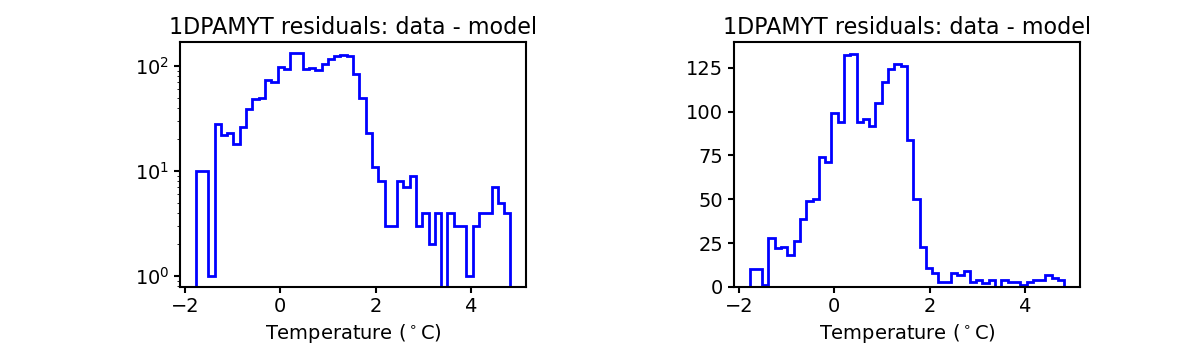

Note: 1DPAMYT residual histograms include only points where 1DPAMYT >= 20.0 C.

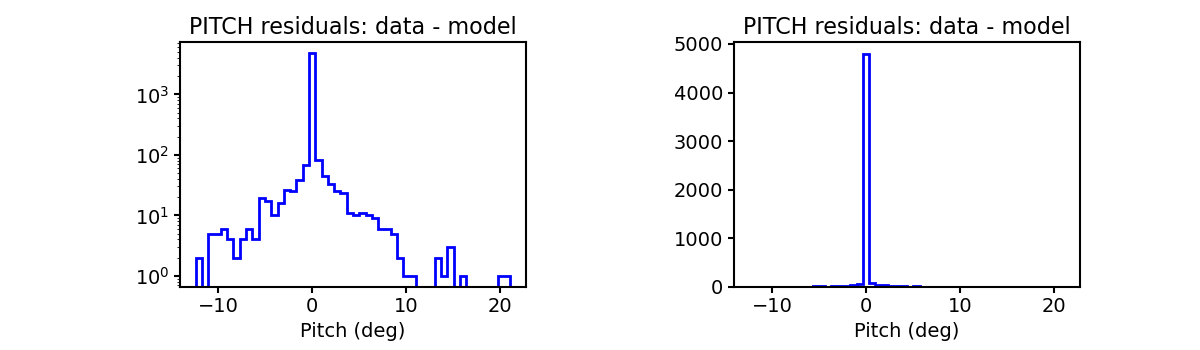

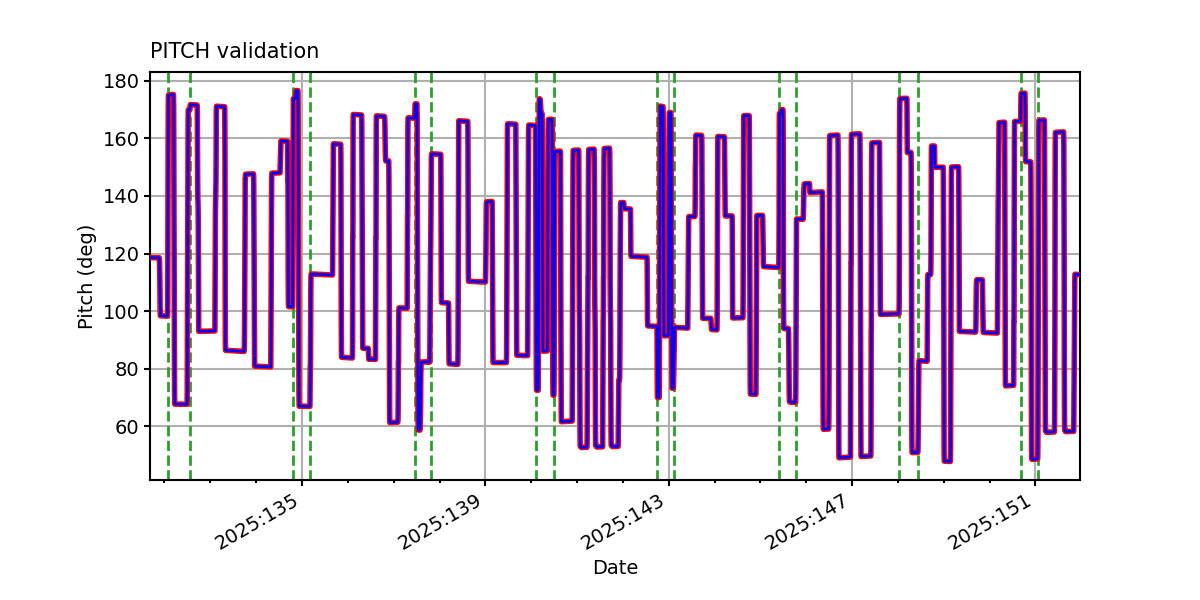

PITCH

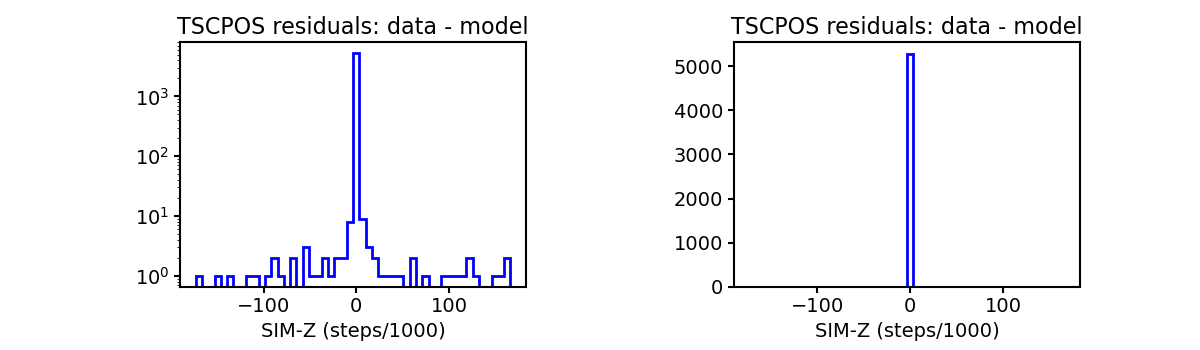

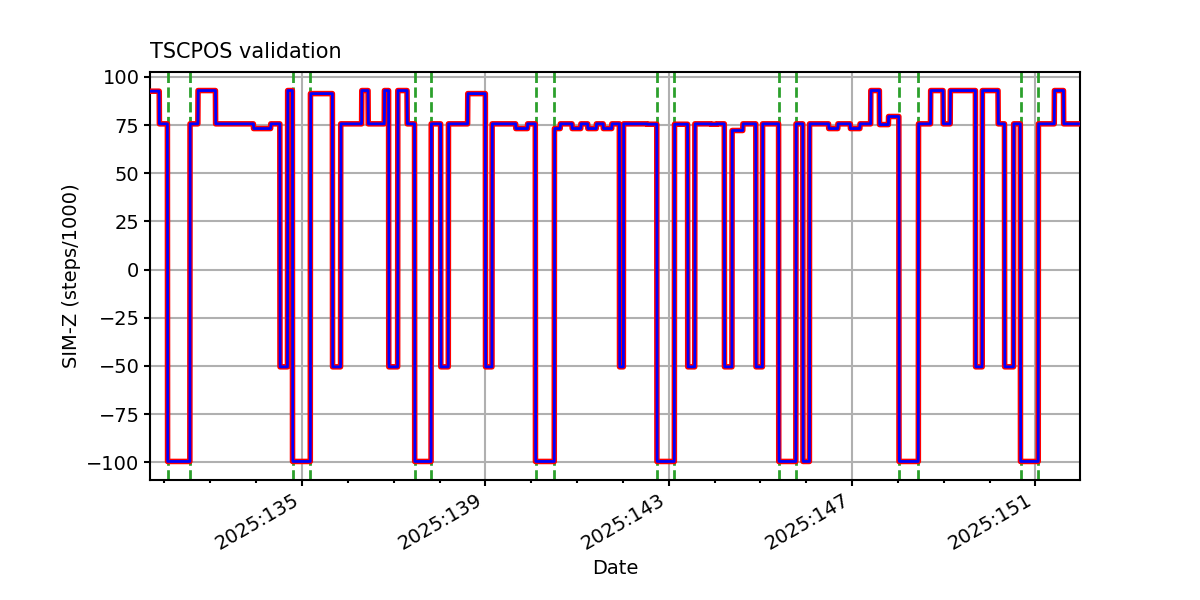

TSCPOS

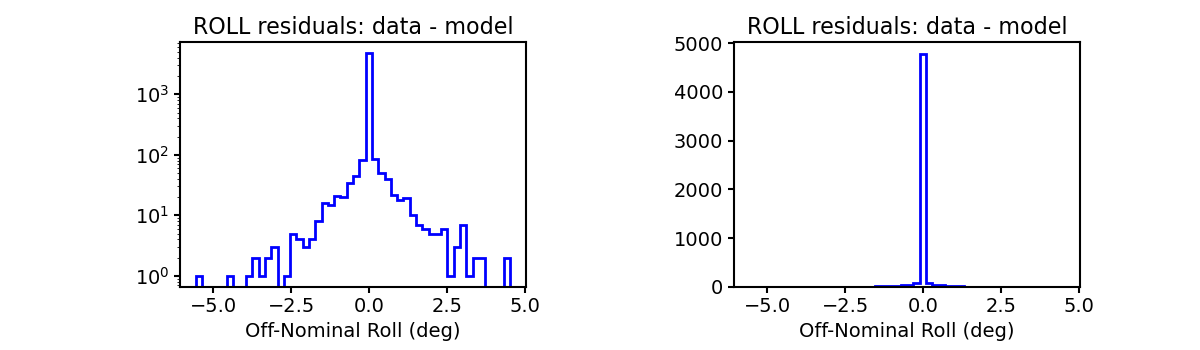

ROLL

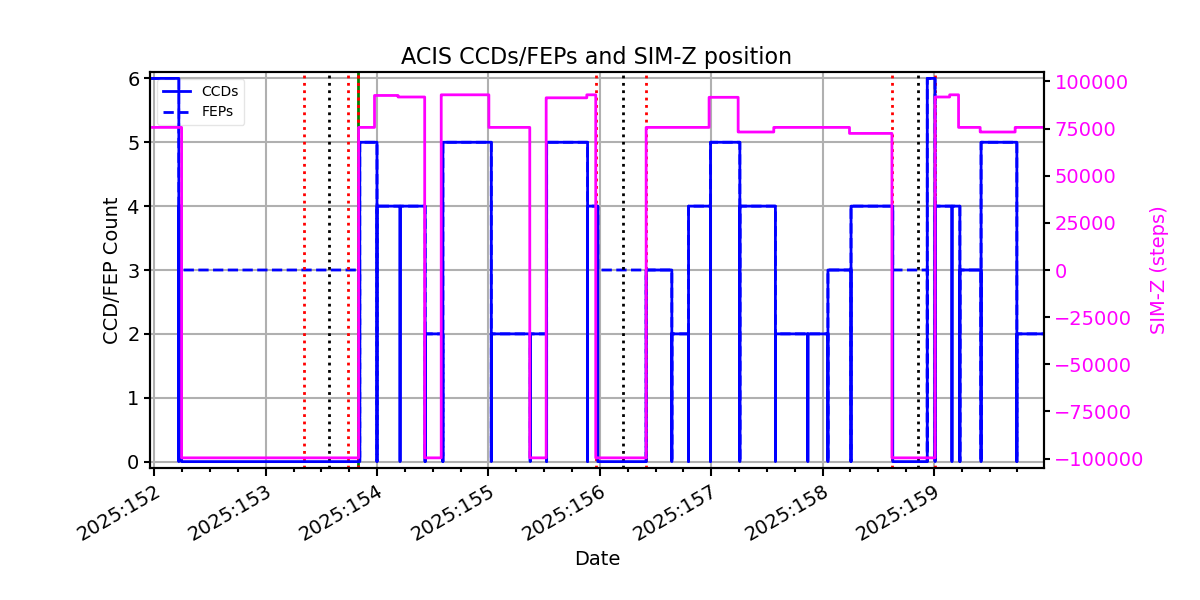

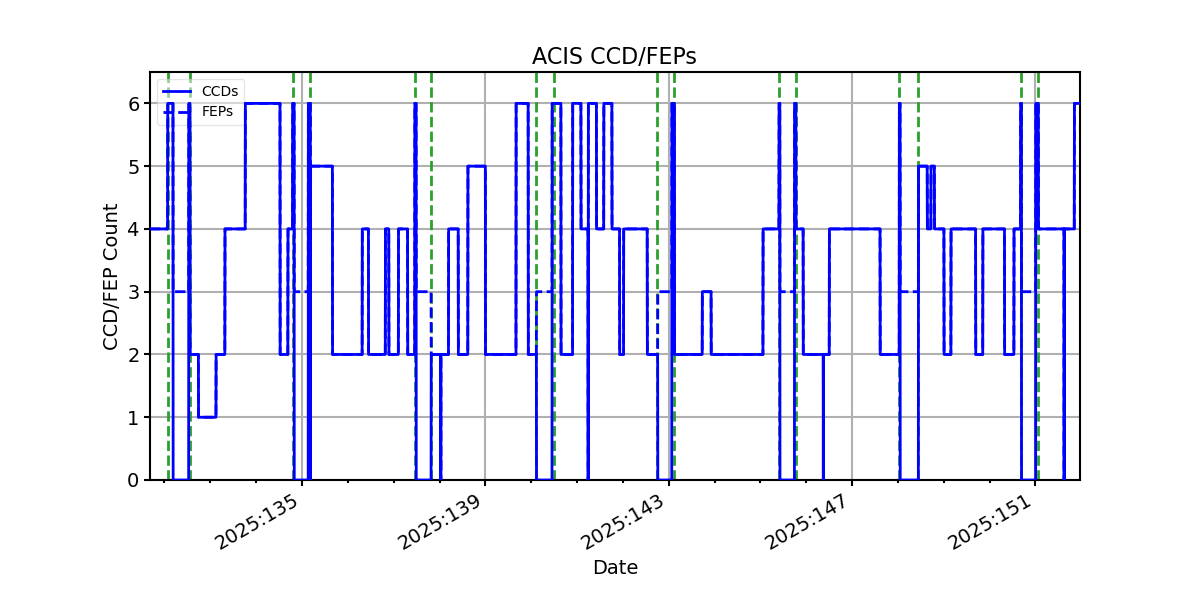

ACIS CCD/FEP Count
