DPAMYT Temperatures Check
Summary
| Date start | 2025:174:00:01:24.716 |
| Date stop | 2025:181:00:15:08.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/JUN2325/ofls |
| Run time | Wed Jun 18 08:06:50 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMYT Upper Limit Violations
DPAMYT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMYT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamyt | -3.90 | -1.77 | -0.04 | 0.98 | 1.57 | 1.89 | 2.35 |
| pitch | -25.946 | -2.542 | -0.004 | -0.000 | 0.004 | 0.285 | 5.593 |
| tscpos | -117867 | -1 | -1 | 0 | 0 | 0 | 126128 |
| roll | -3.857 | -0.251 | -0.007 | 0.000 | 0.008 | 0.377 | 9.211 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMYT | 1 | -3.9 | 2.00 |
| 1DPAMYT | 99 | 2.35 | 2.00 |
| PITCH | 1 | -25.946 | 3.00 |
| PITCH | 99 | 5.593 | 3.00 |
| TSCPOS | 1 | -117867.0 | 2.50 |
| TSCPOS | 99 | 126128.0 | 2.50 |

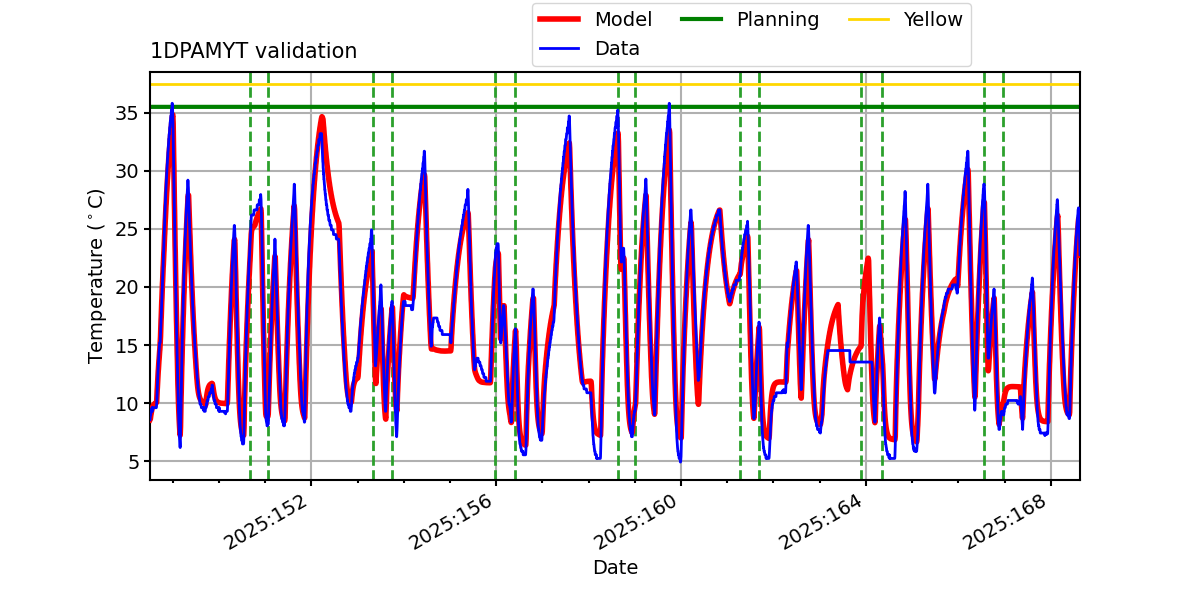

1DPAMYT
Note: 1DPAMYT residual histograms include only points where 1DPAMYT >= 20.0 C.

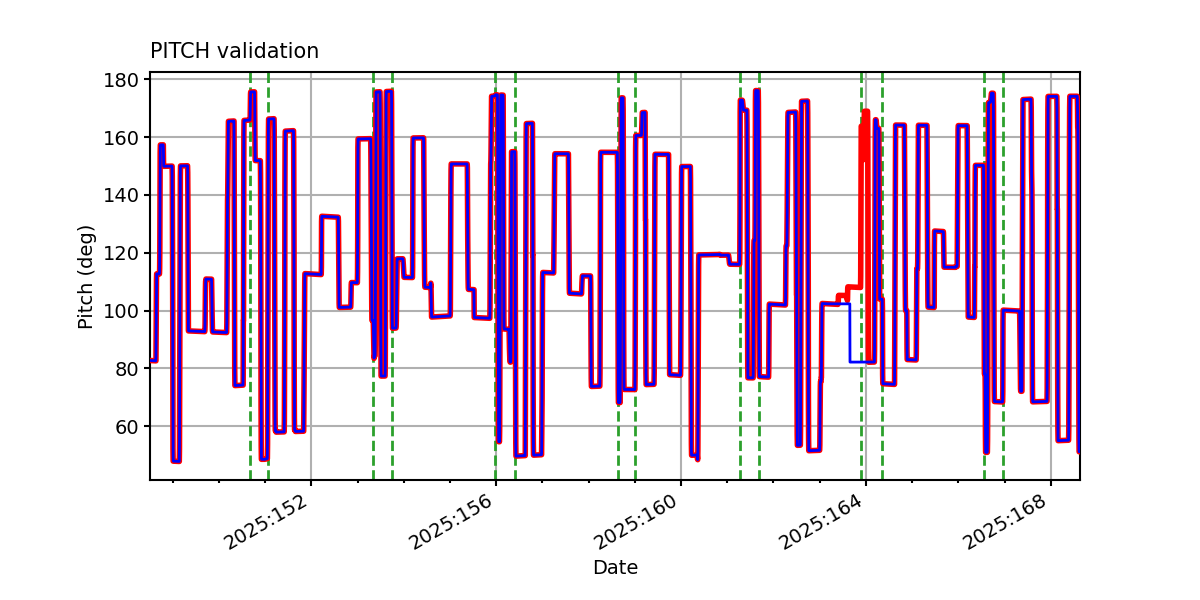

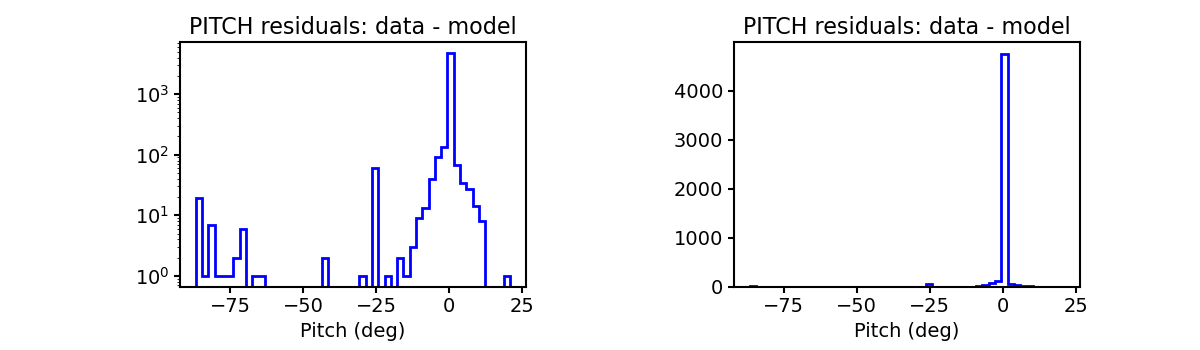

PITCH

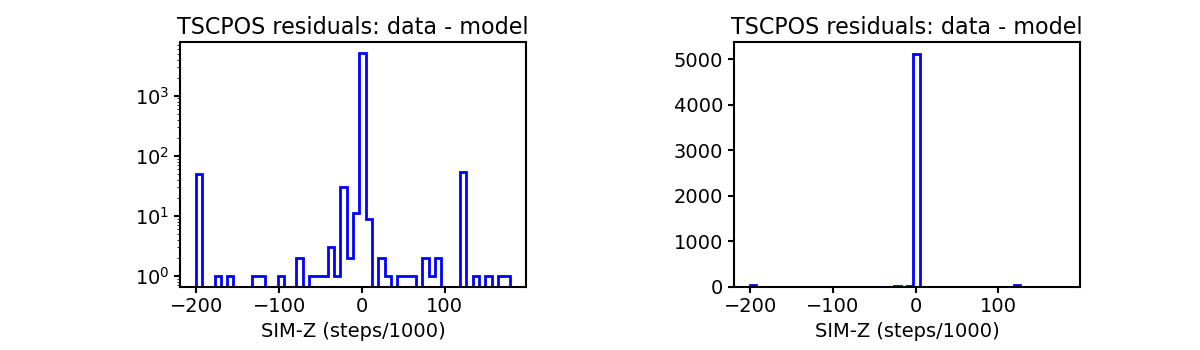

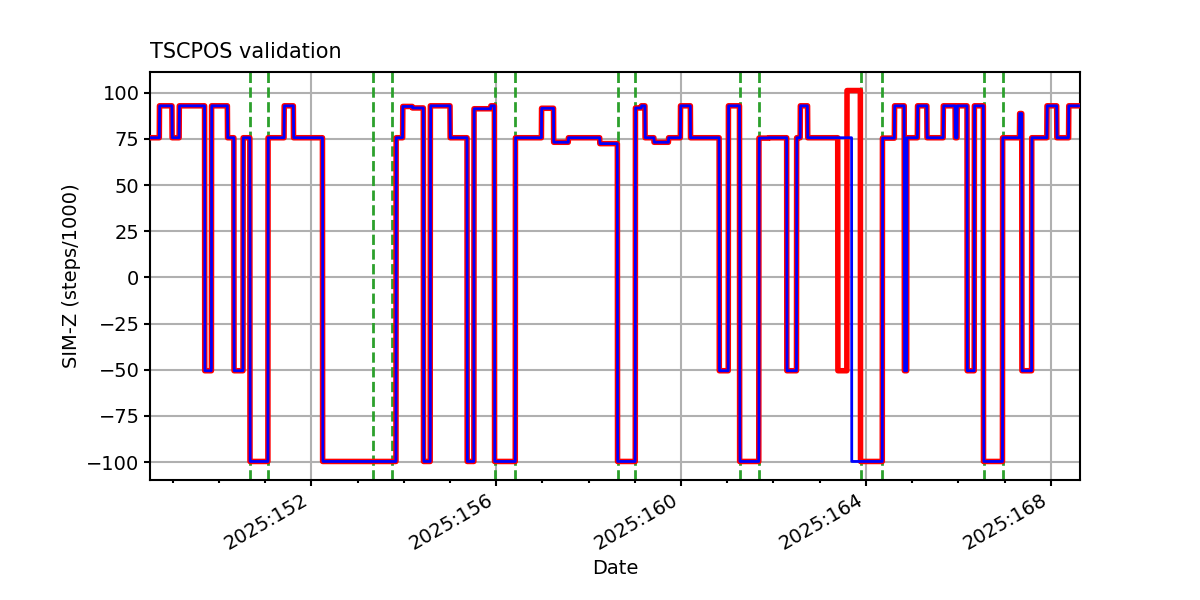

TSCPOS

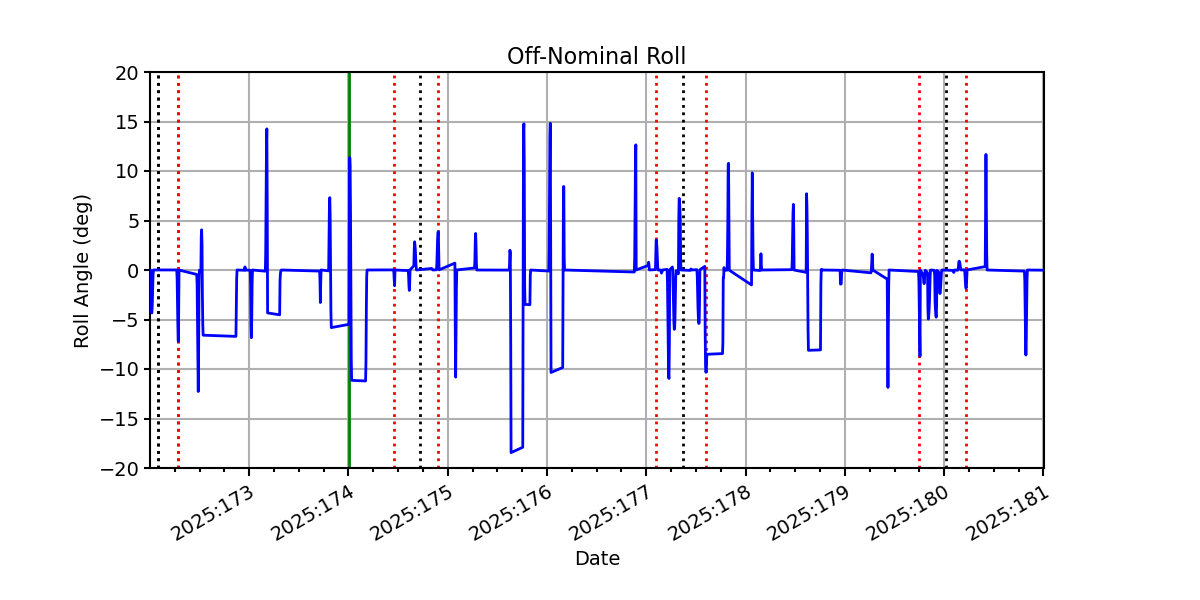

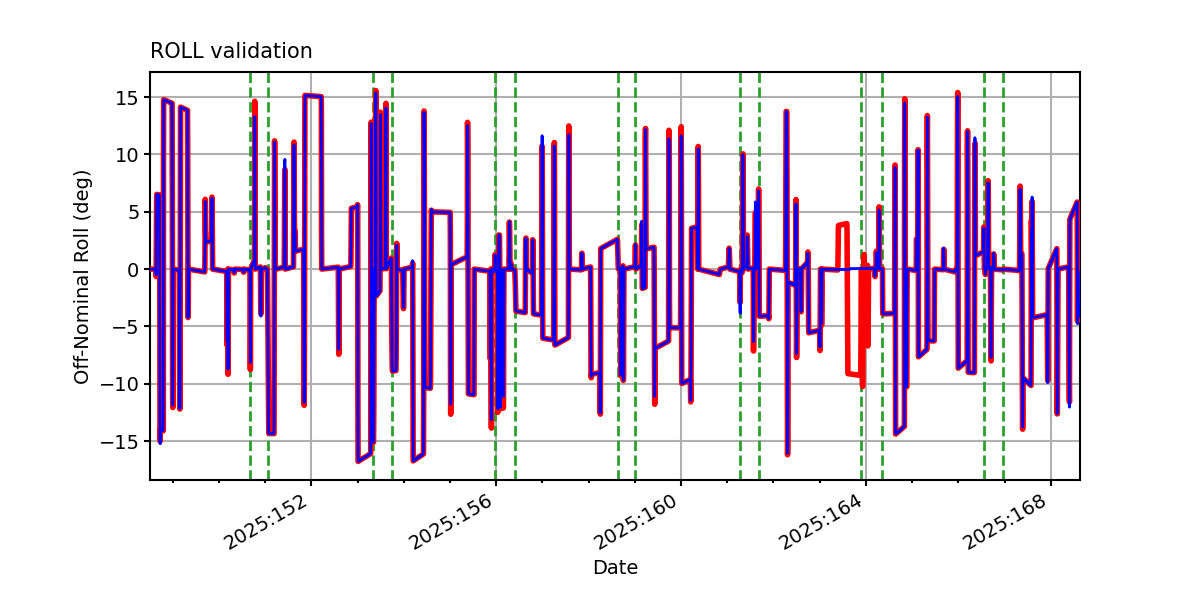

ROLL

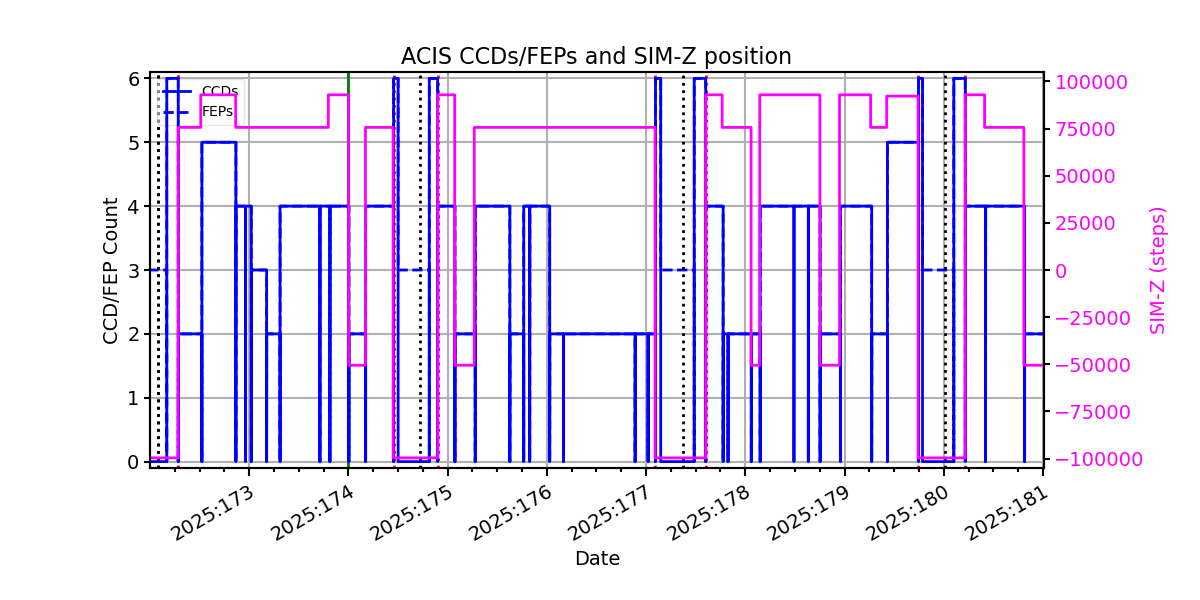

ACIS CCD/FEP Count
