DPAMYT Temperatures Check
Summary
| Date start | 2026:179:17:06:00.016 |
| Date stop | 2026:186:23:50:27.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JUN2926/oflsa |
| Run time | Thu Jun 25 11:01:44 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMYT Upper Limit Violations
DPAMYT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMYT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamyt | -1.07 | -0.44 | 0.26 | 0.96 | 1.60 | 1.89 | 2.10 |
| pitch | -11.254 | -0.365 | -0.004 | -0.000 | 0.004 | 0.370 | 8.611 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.976 | -0.089 | -0.007 | 0.000 | 0.008 | 0.089 | 1.794 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMYT | 99 | 2.1 | 2.00 |
| PITCH | 1 | -11.254 | 3.00 |
| PITCH | 99 | 8.611 | 3.00 |

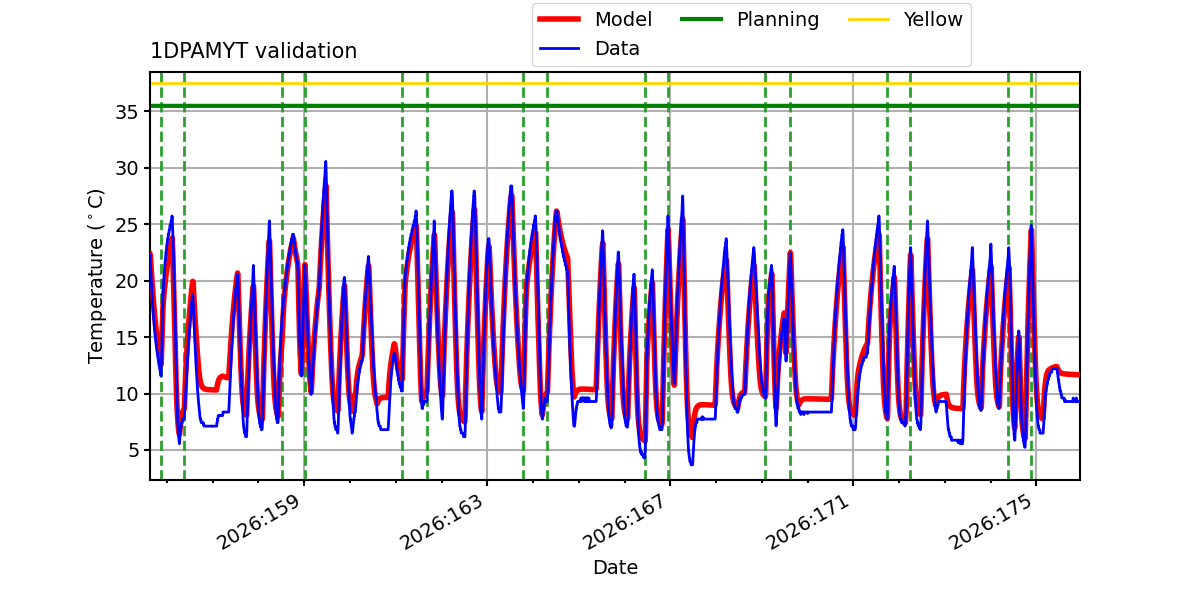

1DPAMYT

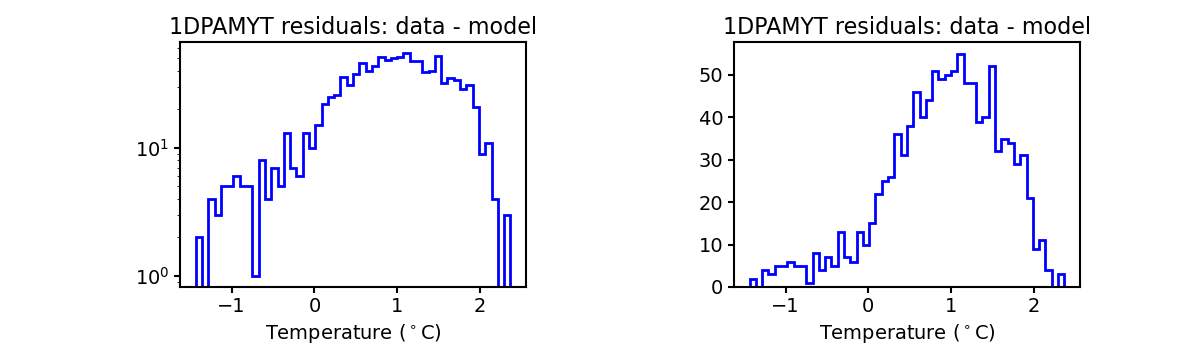

Note: 1DPAMYT residual histograms include only points where 1DPAMYT >= 20.0 C.

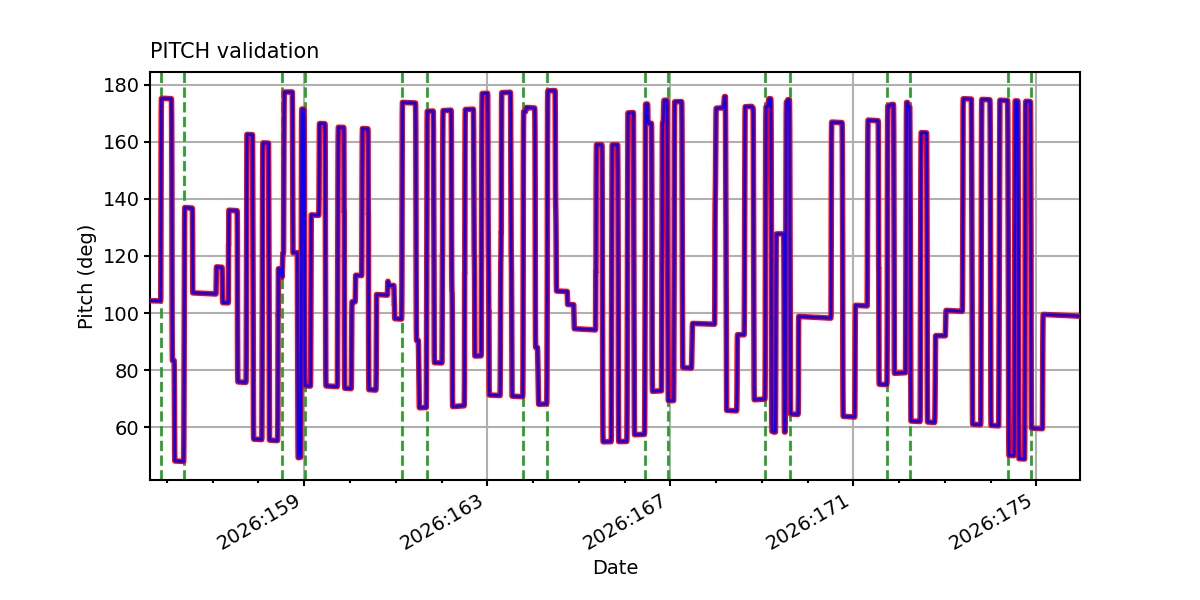

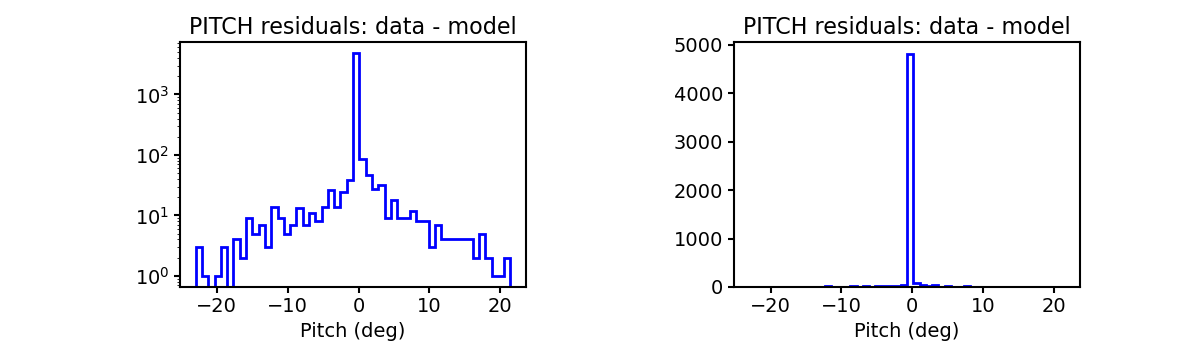

PITCH

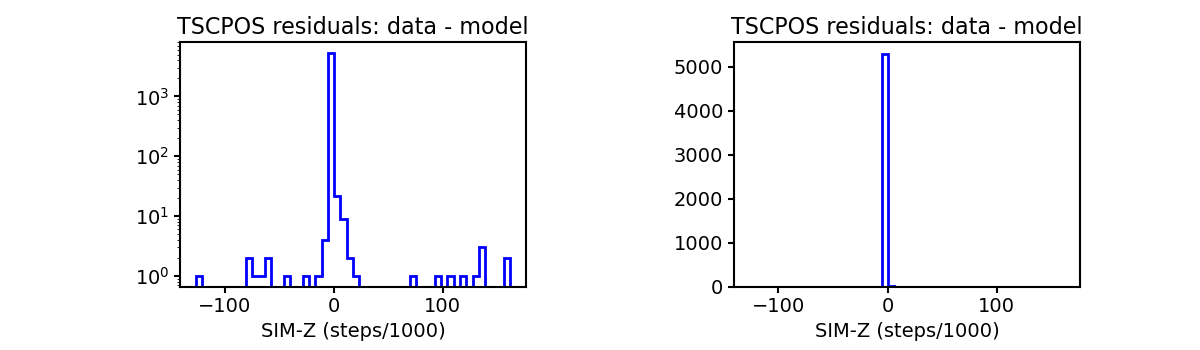

TSCPOS

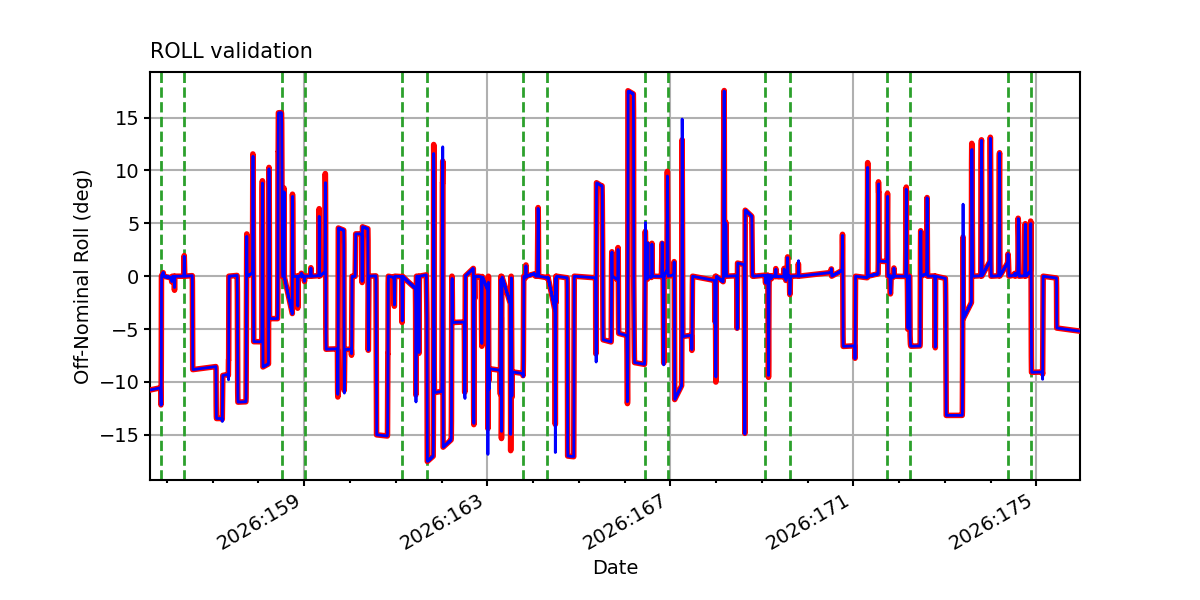

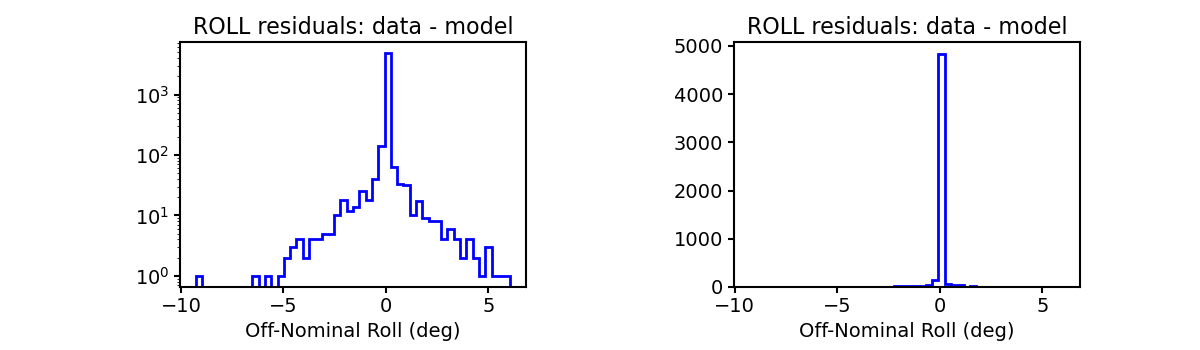

ROLL

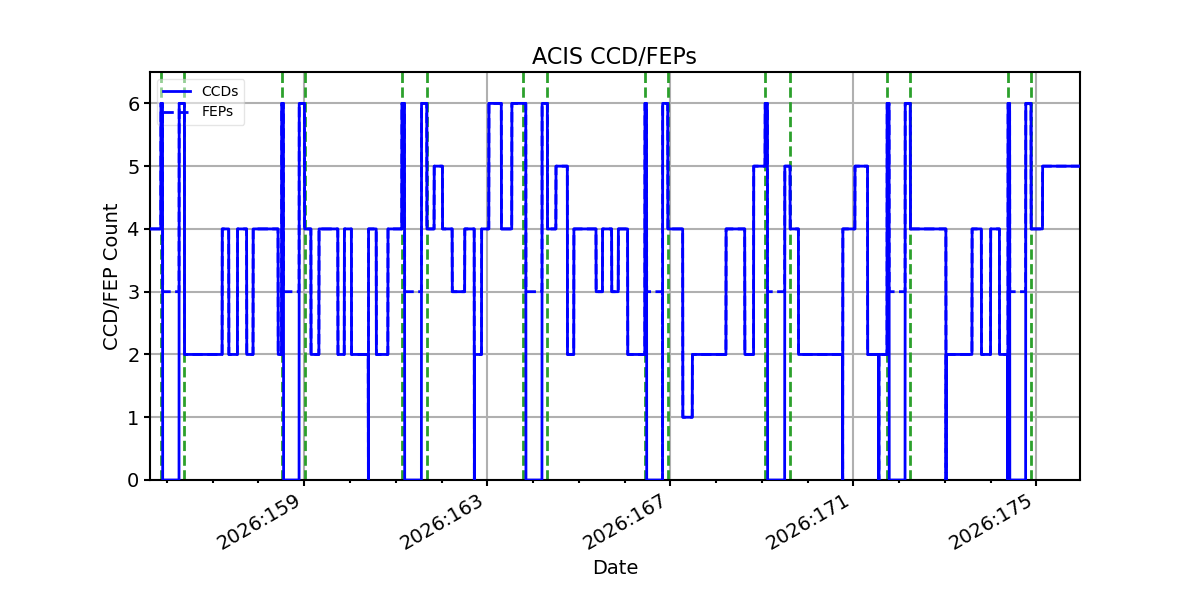

ACIS CCD/FEP Count
