DPAMYT Temperatures Check
Summary
| Date start | 2026:060:17:08:00.016 |
| Date stop | 2026:067:21:28:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/MAR0226/oflsa |
| Run time | Wed Feb 25 19:54:08 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMYT Upper Limit Violations
DPAMYT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMYT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamyt | -0.62 | -0.14 | 0.23 | 0.78 | 1.44 | 1.88 | 2.58 |
| pitch | -10.014 | -0.697 | -0.004 | -0.000 | 0.004 | 0.440 | 12.490 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.779 | -0.144 | -0.012 | -0.000 | 0.012 | 0.126 | 1.928 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMYT | 99 | 2.58 | 2.00 |
| PITCH | 1 | -10.014 | 3.00 |
| PITCH | 99 | 12.49 | 3.00 |

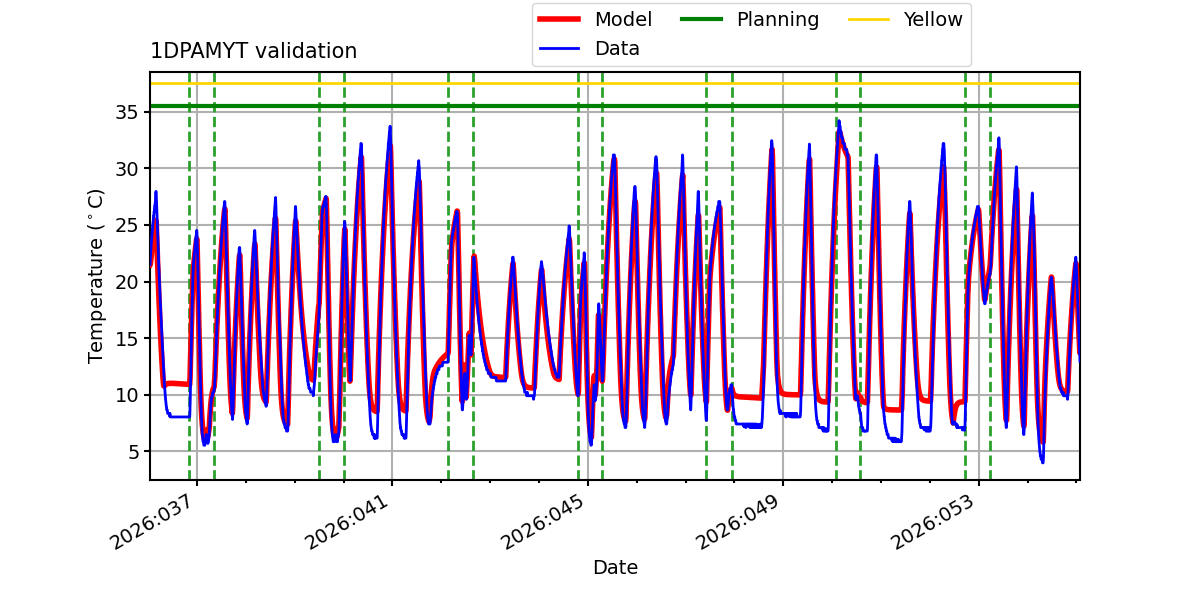

1DPAMYT
Note: 1DPAMYT residual histograms include only points where 1DPAMYT >= 20.0 C.
PITCH

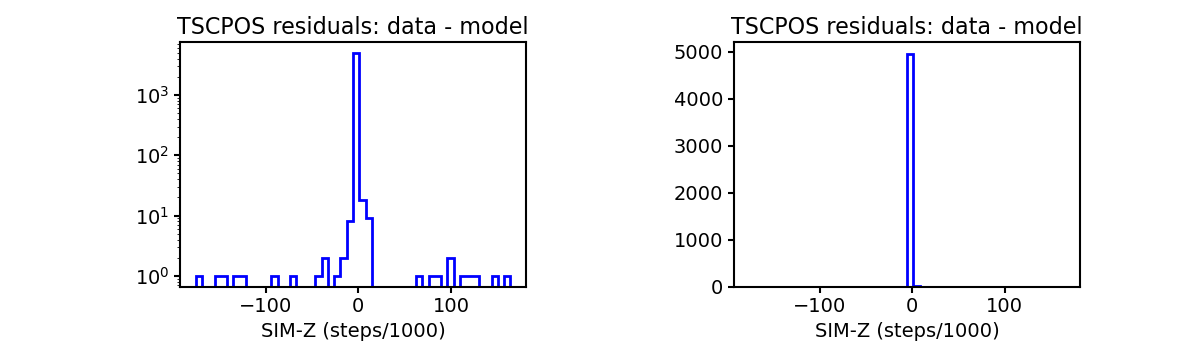

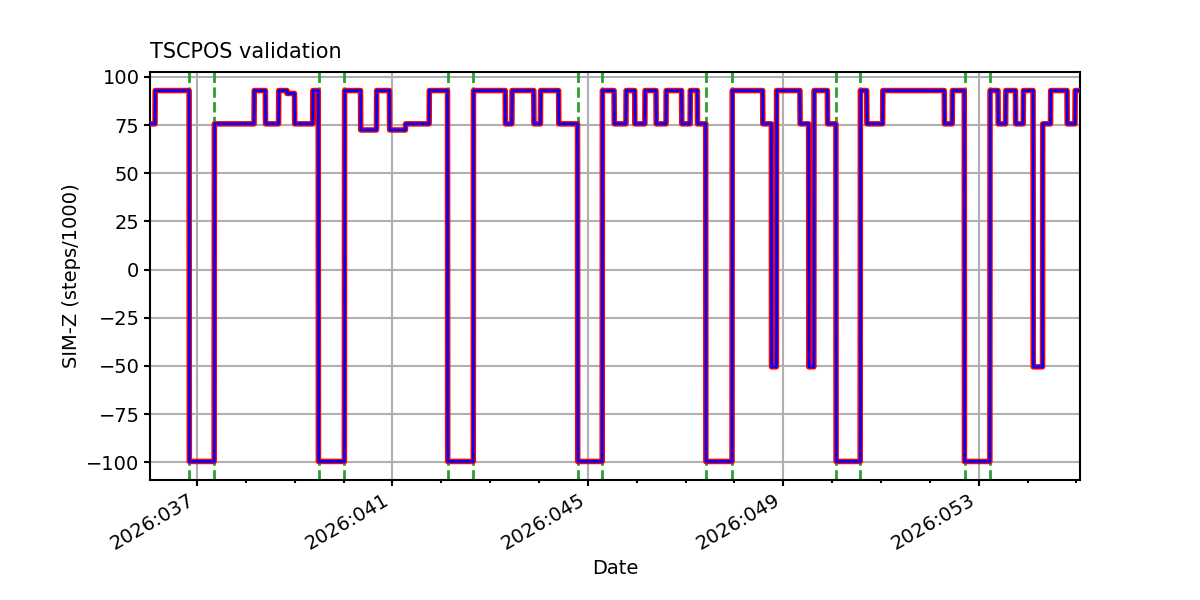

TSCPOS

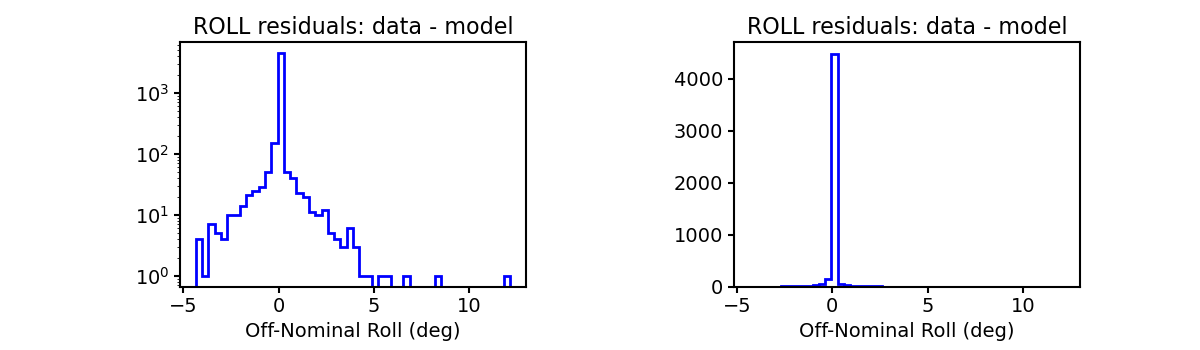

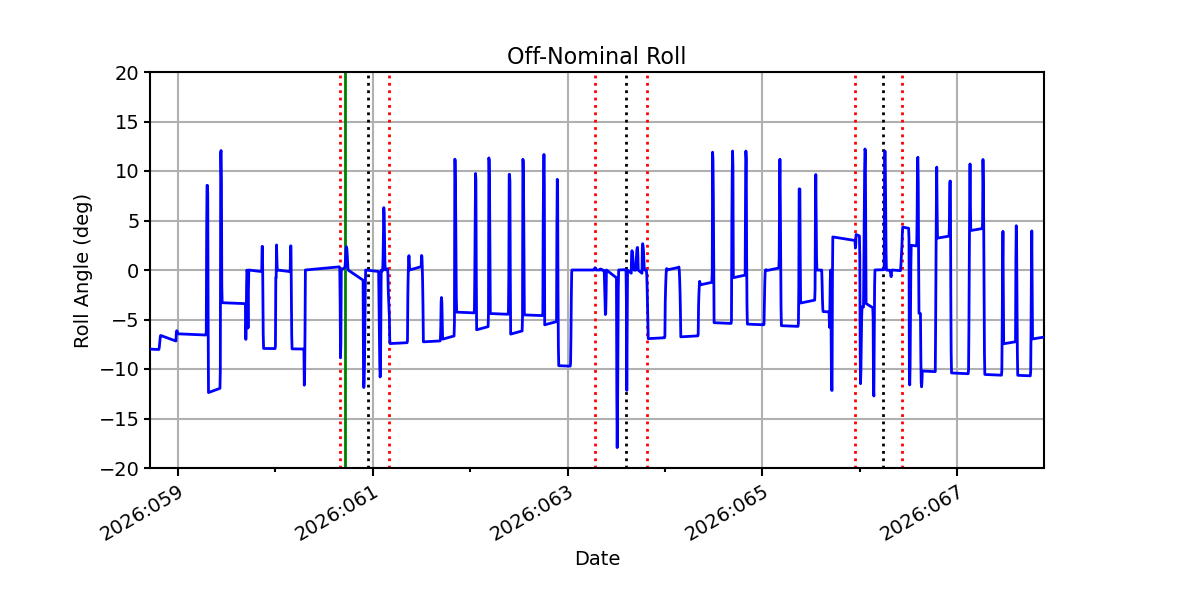

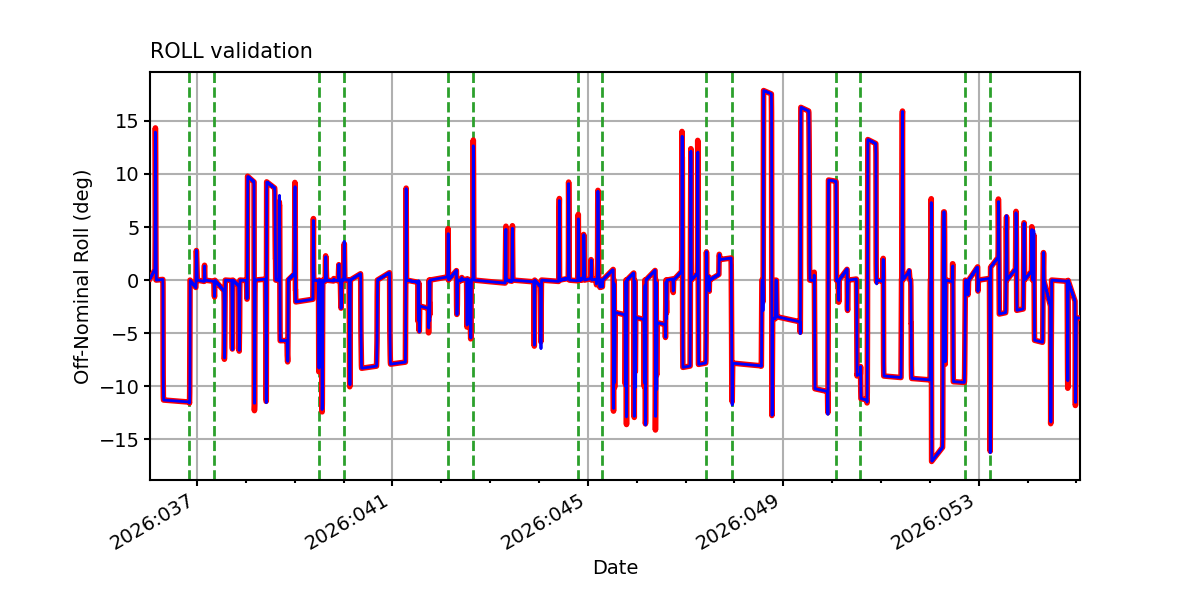

ROLL

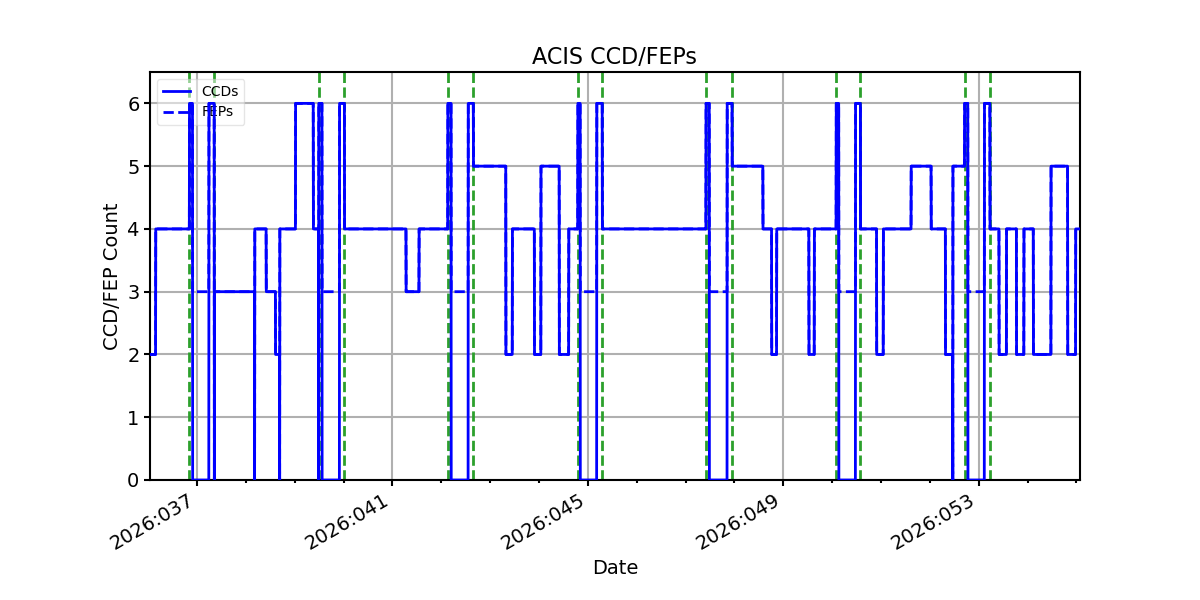

ACIS CCD/FEP Count
