DPAMYT Temperatures Check
Summary
| Date start | 2026:067:21:25:00.016 |
| Date stop | 2026:075:02:35:52.916 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/MAR0926/oflsa |
| Run time | Thu Mar 5 10:13:09 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMYT Upper Limit Violations
DPAMYT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMYT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamyt | -0.60 | -0.14 | 0.22 | 0.78 | 1.47 | 1.93 | 2.57 |
| pitch | -10.835 | -0.787 | -0.004 | -0.000 | 0.004 | 0.788 | 11.034 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.900 | -0.181 | -0.010 | -0.000 | 0.011 | 0.178 | 2.109 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMYT | 99 | 2.57 | 2.00 |
| PITCH | 1 | -10.835 | 3.00 |
| PITCH | 99 | 11.034 | 3.00 |

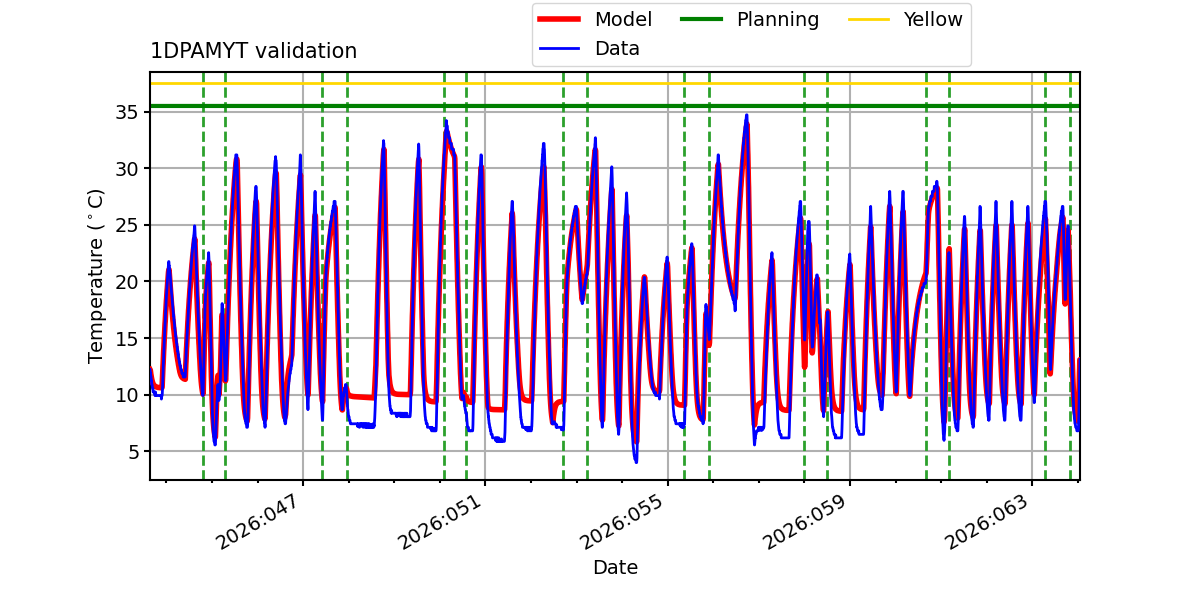

1DPAMYT

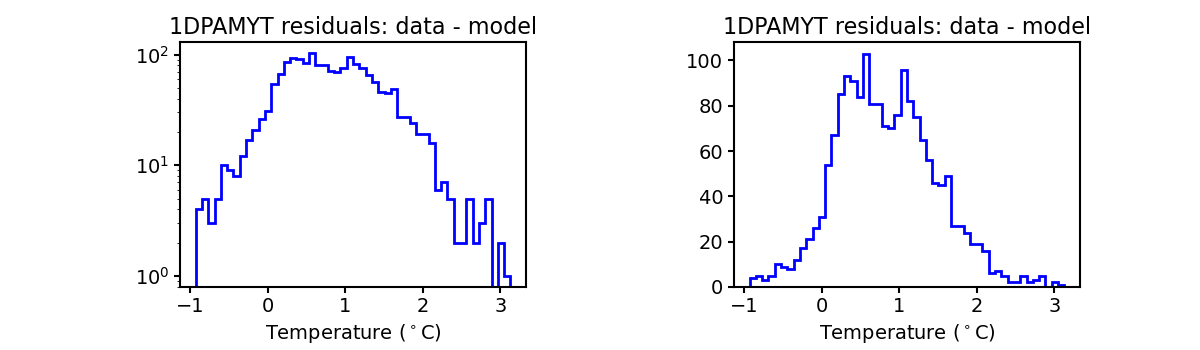

Note: 1DPAMYT residual histograms include only points where 1DPAMYT >= 20.0 C.

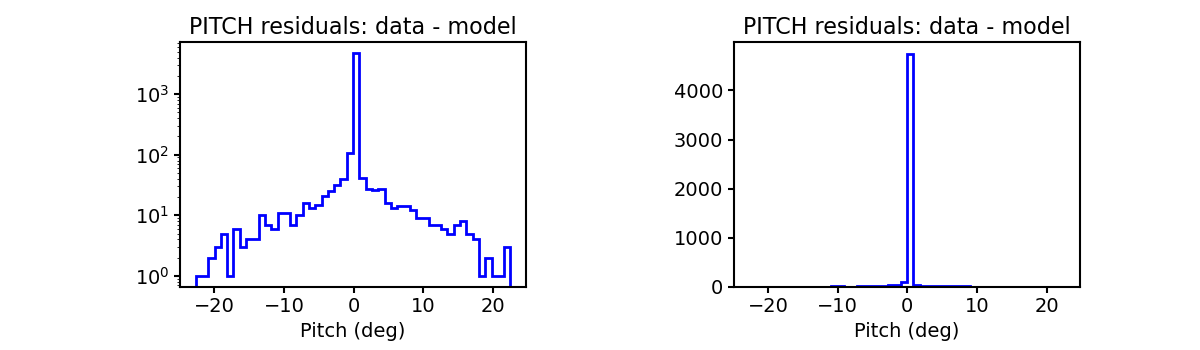

PITCH

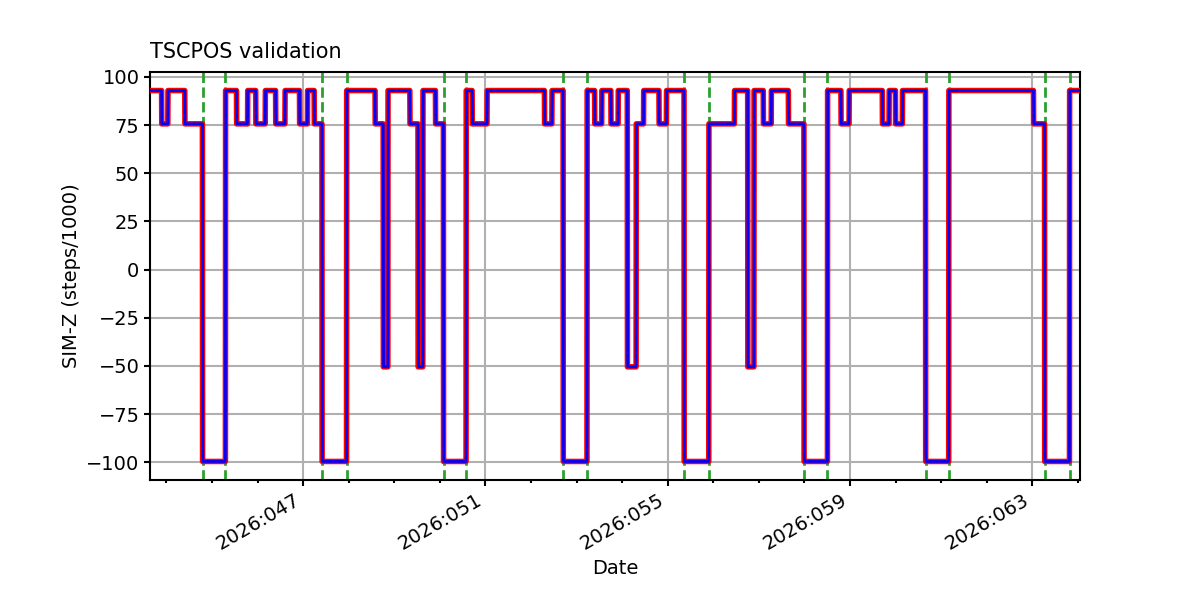

TSCPOS

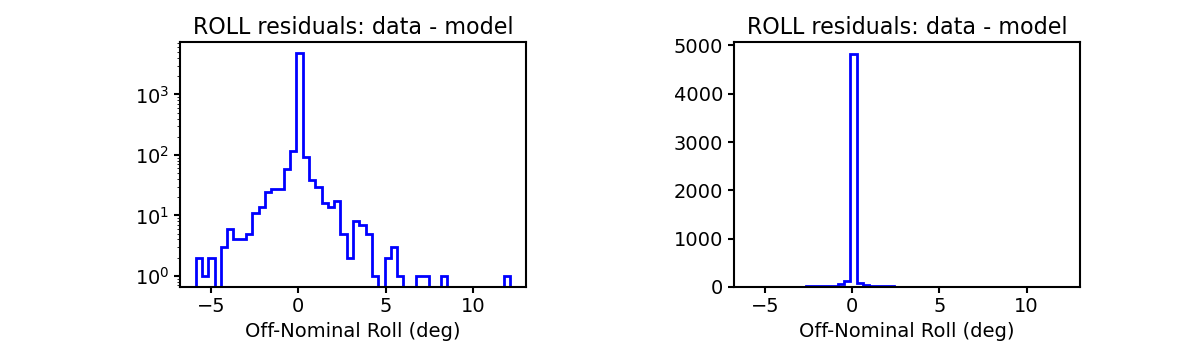

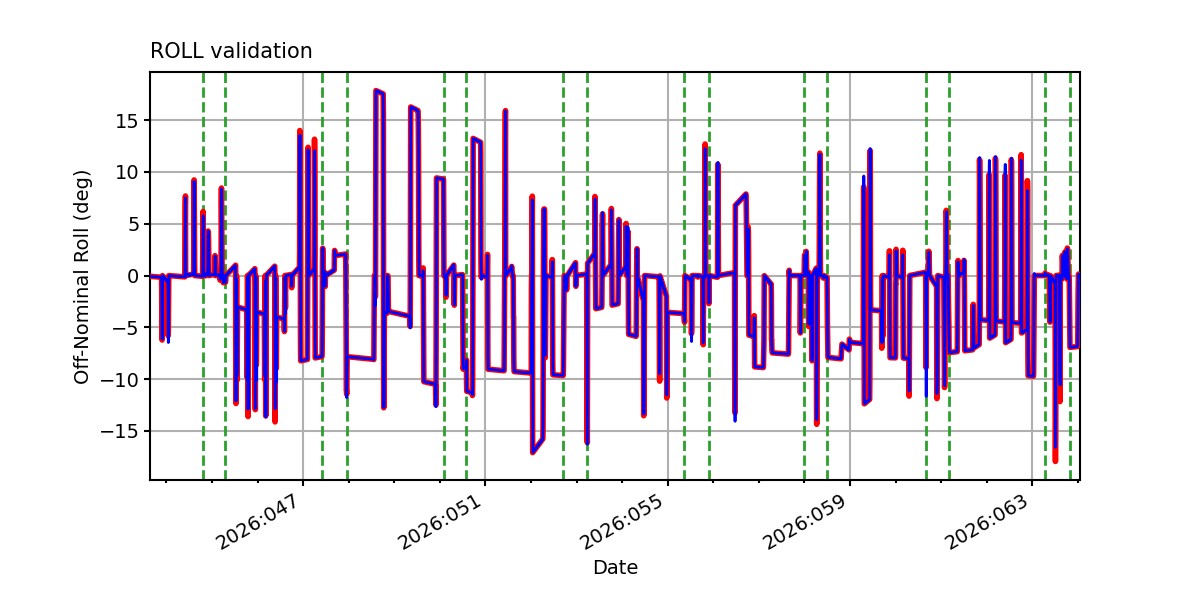

ROLL

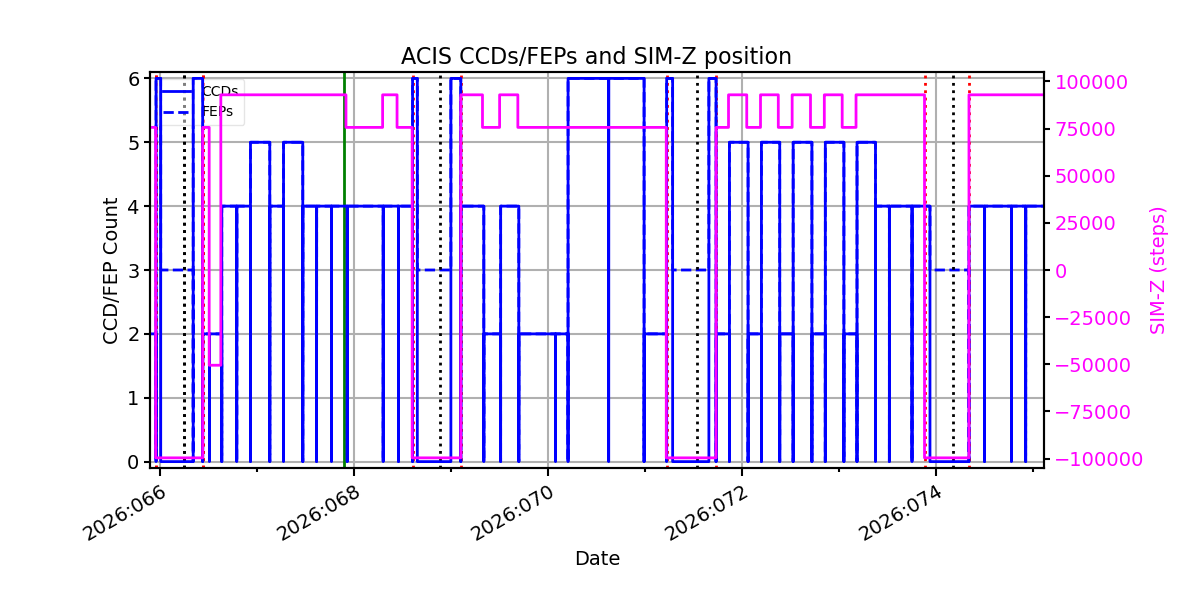

ACIS CCD/FEP Count
