DPAMYT Temperatures Check
Summary
| Date start | 2025:138:23:57:00.816 |
| Date stop | 2025:146:01:43:21.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/MAY1925/ofls |
| Run time | Thu May 15 11:29:52 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

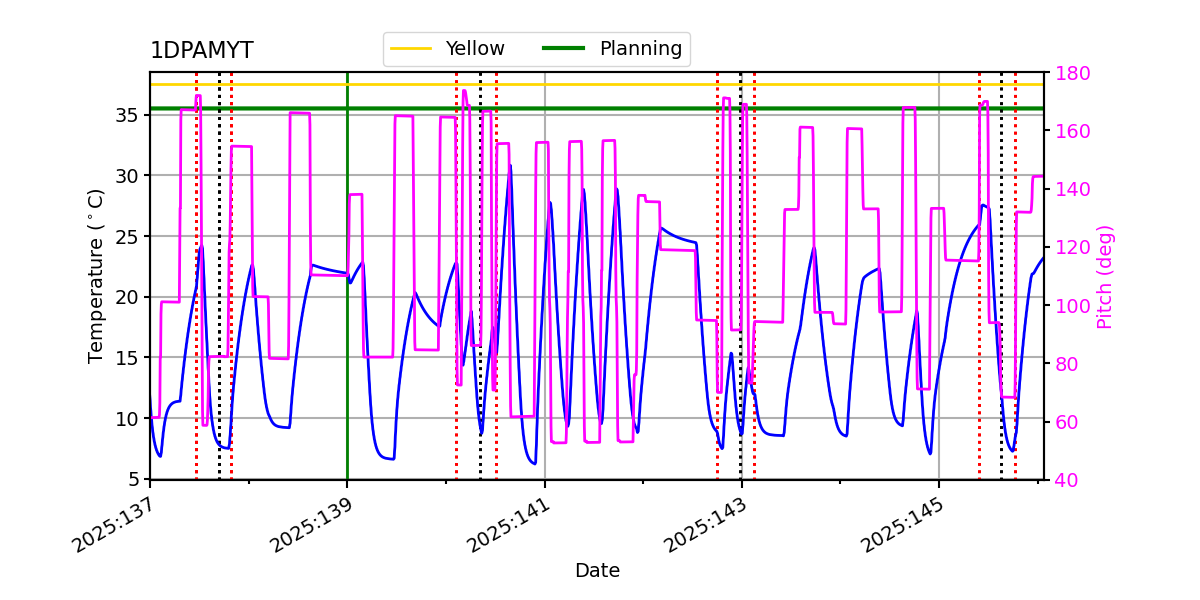

No 1DPAMYT Upper Limit Violations

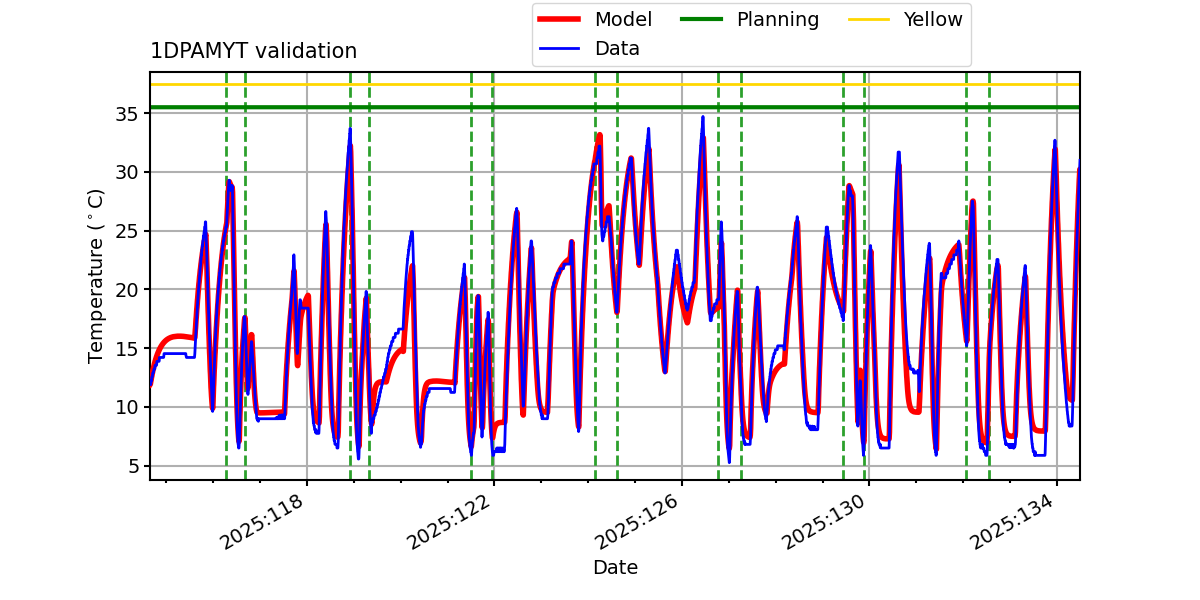

DPAMYT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMYT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamyt | -1.25 | -0.87 | -0.38 | 0.36 | 1.50 | 2.08 | 3.36 |
| pitch | -5.715 | -0.223 | -0.004 | -0.000 | 0.004 | 0.128 | 5.227 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.648 | -0.077 | -0.004 | -0.000 | 0.003 | 0.060 | 1.164 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMYT | 99 | 3.36 | 2.00 |
| PITCH | 1 | -5.715 | 3.00 |
| PITCH | 99 | 5.227 | 3.00 |
1DPAMYT

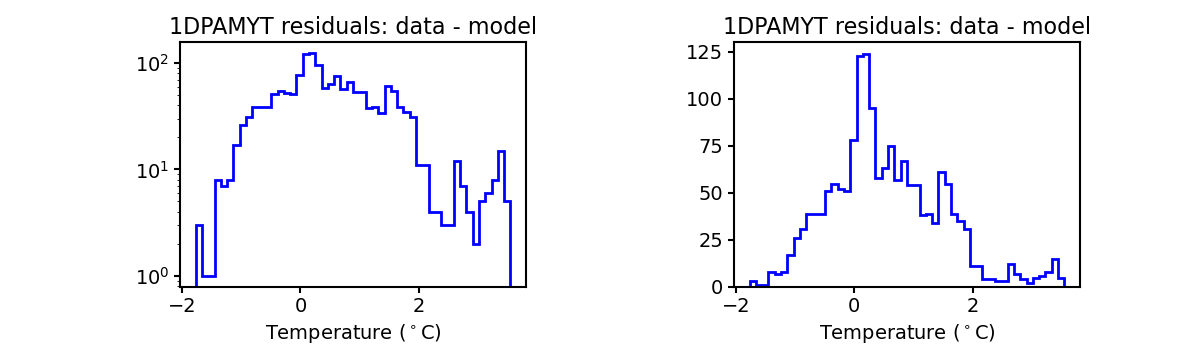

Note: 1DPAMYT residual histograms include only points where 1DPAMYT >= 20.0 C.

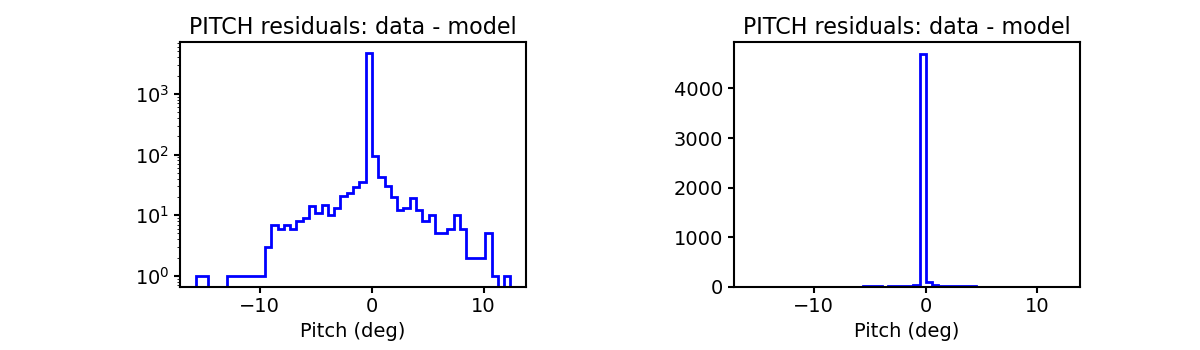

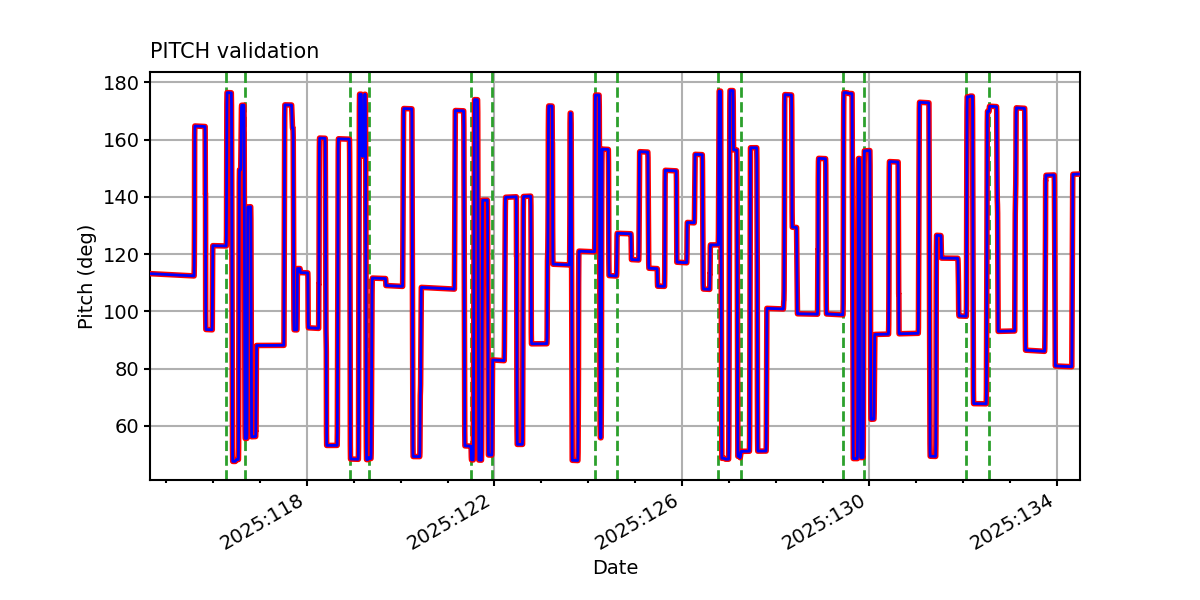

PITCH

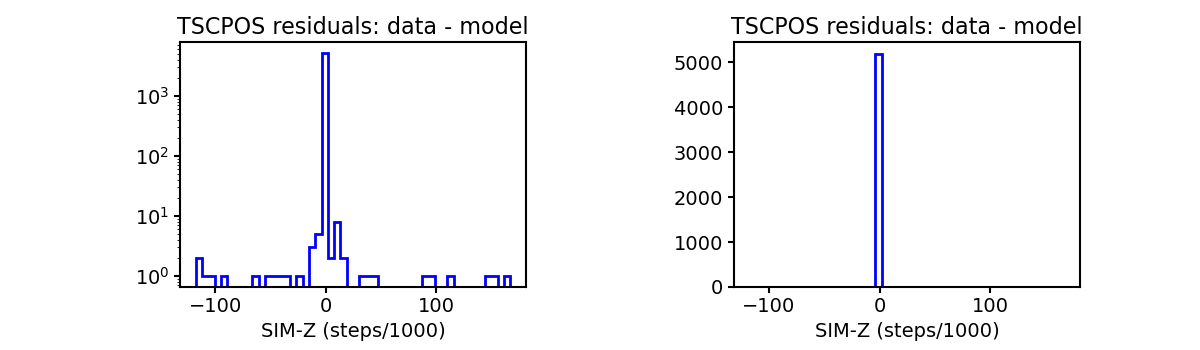

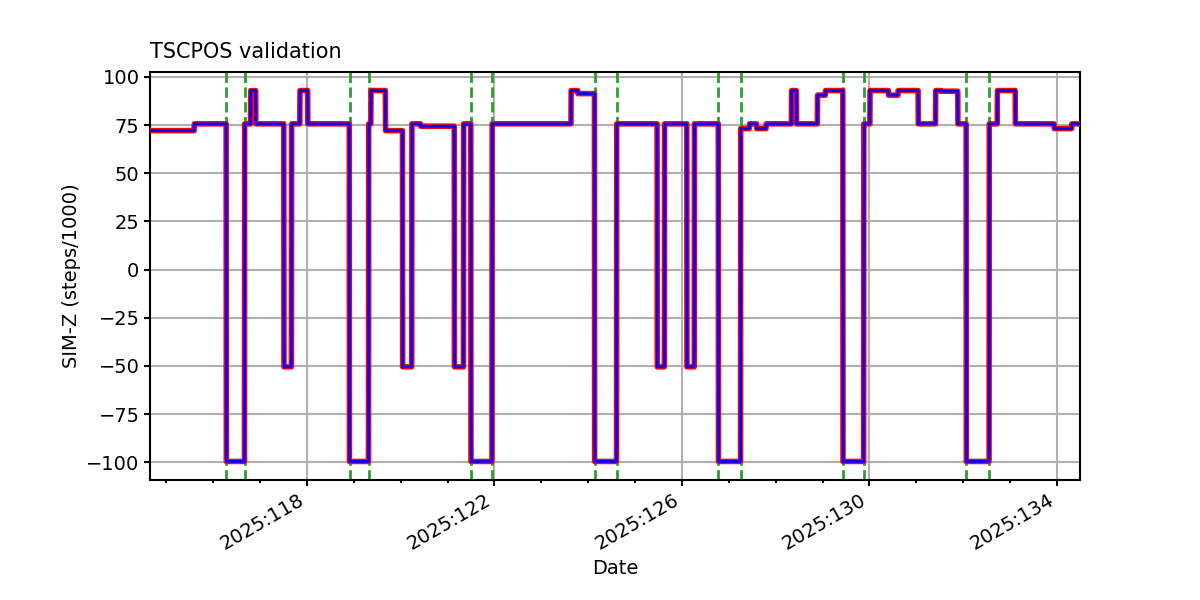

TSCPOS

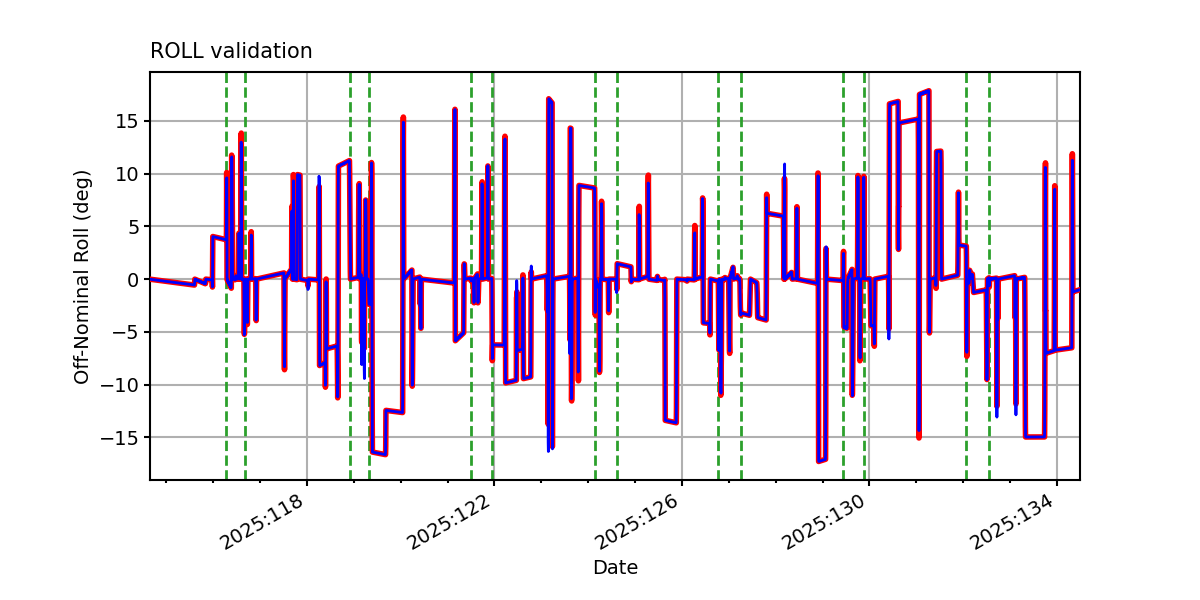

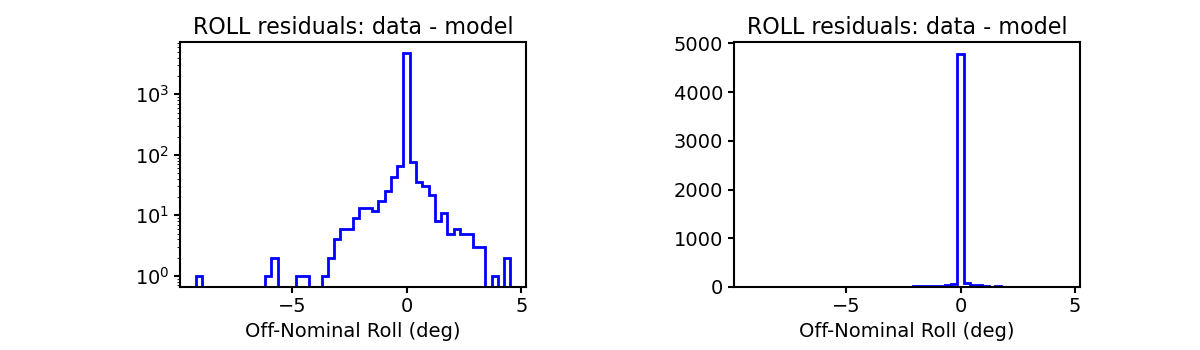

ROLL

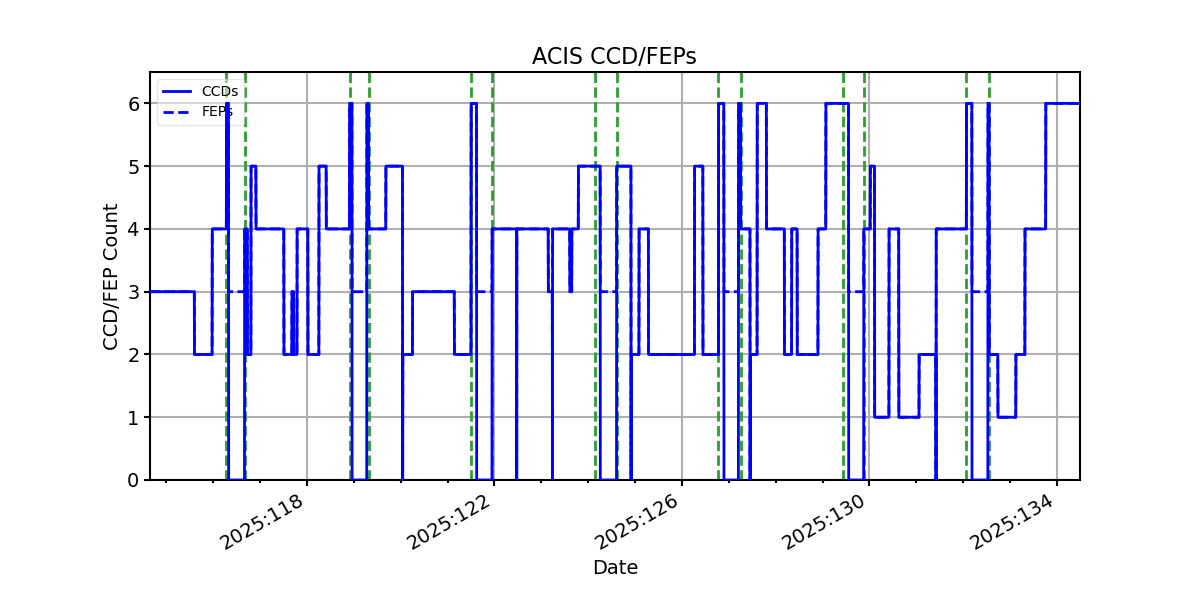

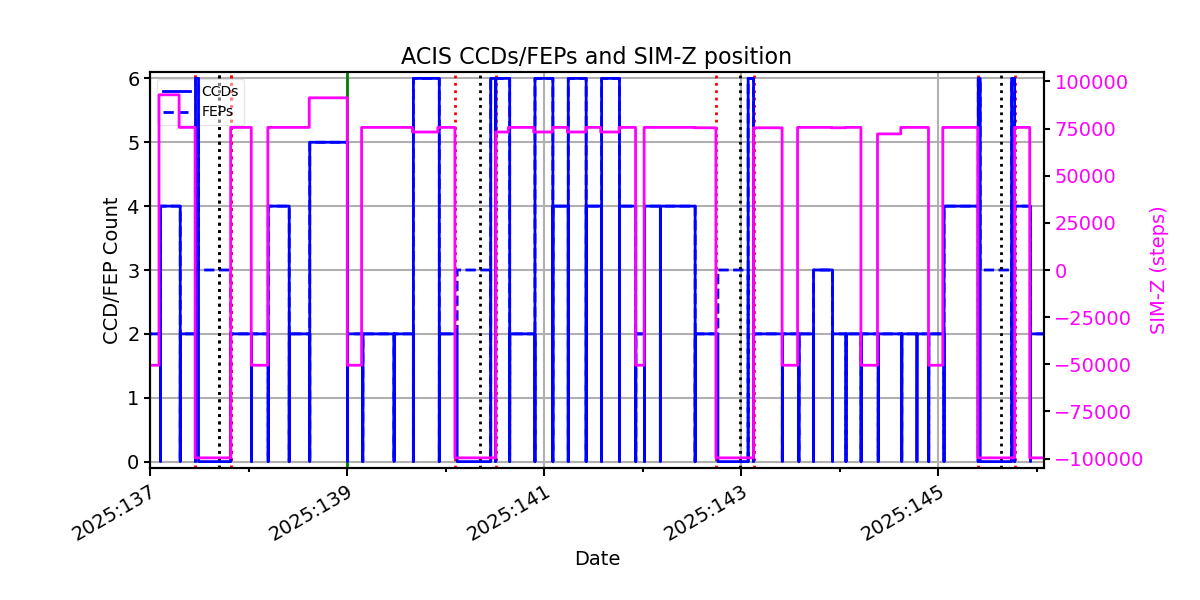

ACIS CCD/FEP Count
