DPAMYT Temperatures Check
Summary
| Date start | 2026:144:21:49:00.916 |
| Date stop | 2026:151:22:30:10.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/MAY2526/oflsa |
| Run time | Thu May 21 07:07:57 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMYT Upper Limit Violations
DPAMYT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMYT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamyt | -1.05 | -0.86 | -0.60 | 0.51 | 1.40 | 2.06 | 2.46 |
| pitch | -8.282 | -0.443 | -0.004 | -0.000 | 0.004 | 0.190 | 11.205 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -1.968 | -0.096 | -0.005 | -0.000 | 0.005 | 0.103 | 1.894 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMYT | 99 | 2.46 | 2.00 |
| PITCH | 1 | -8.282 | 3.00 |
| PITCH | 99 | 11.205 | 3.00 |

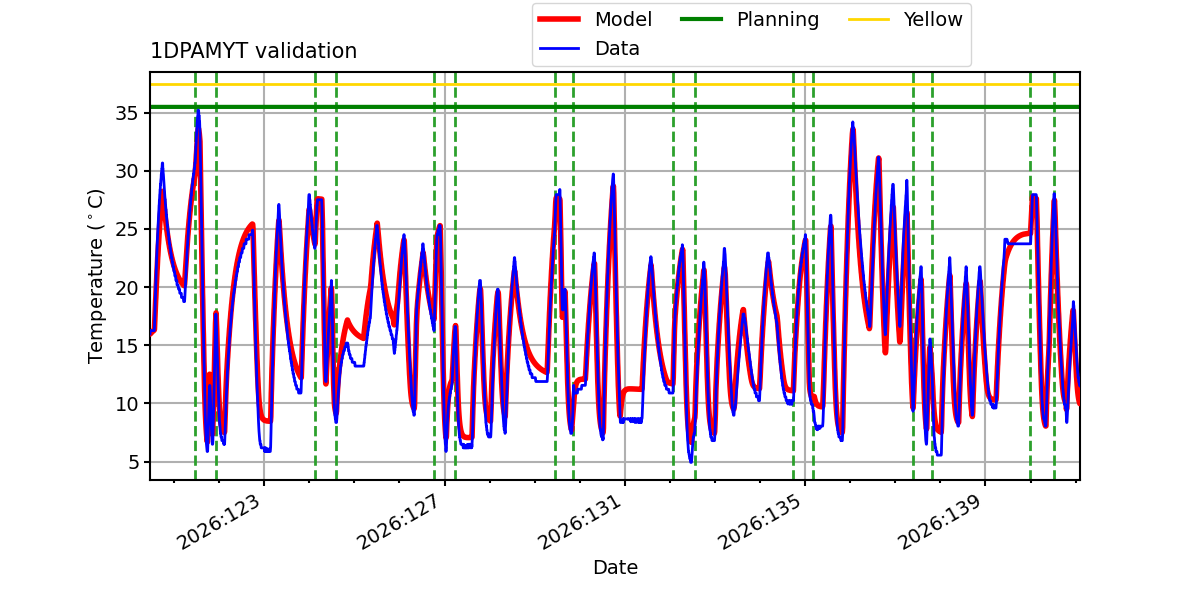

1DPAMYT

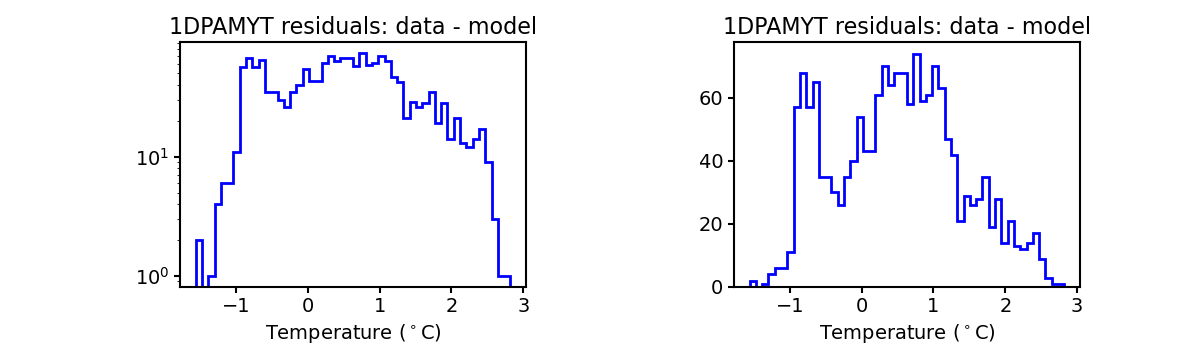

Note: 1DPAMYT residual histograms include only points where 1DPAMYT >= 20.0 C.

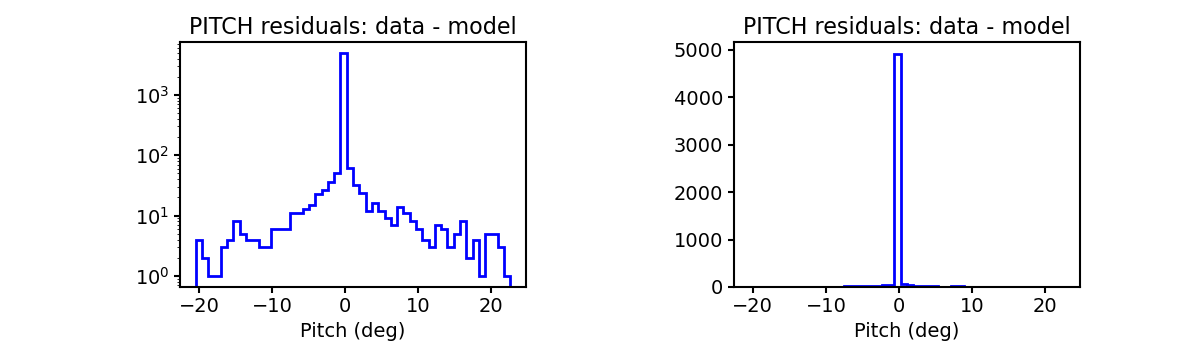

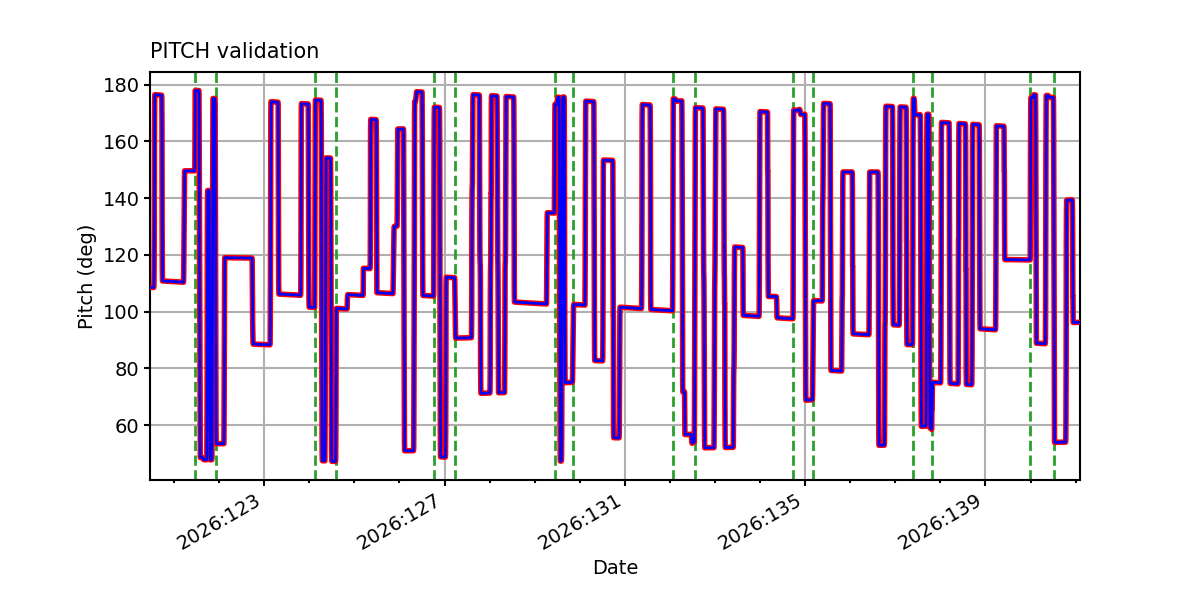

PITCH

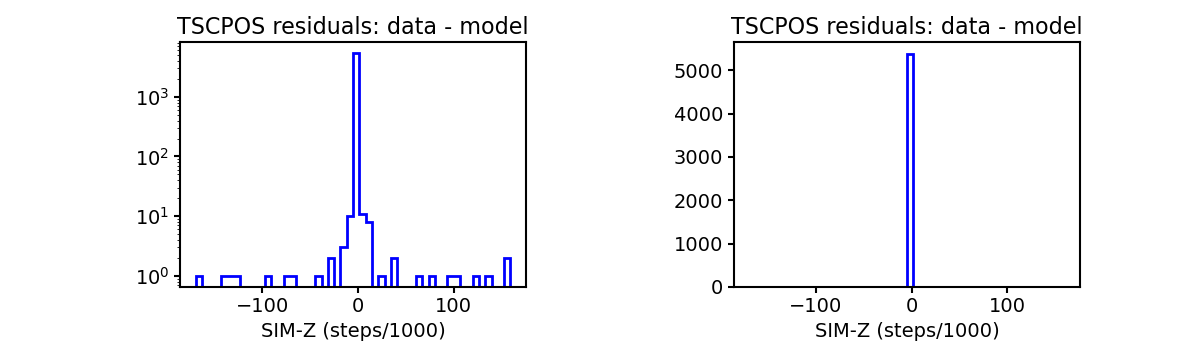

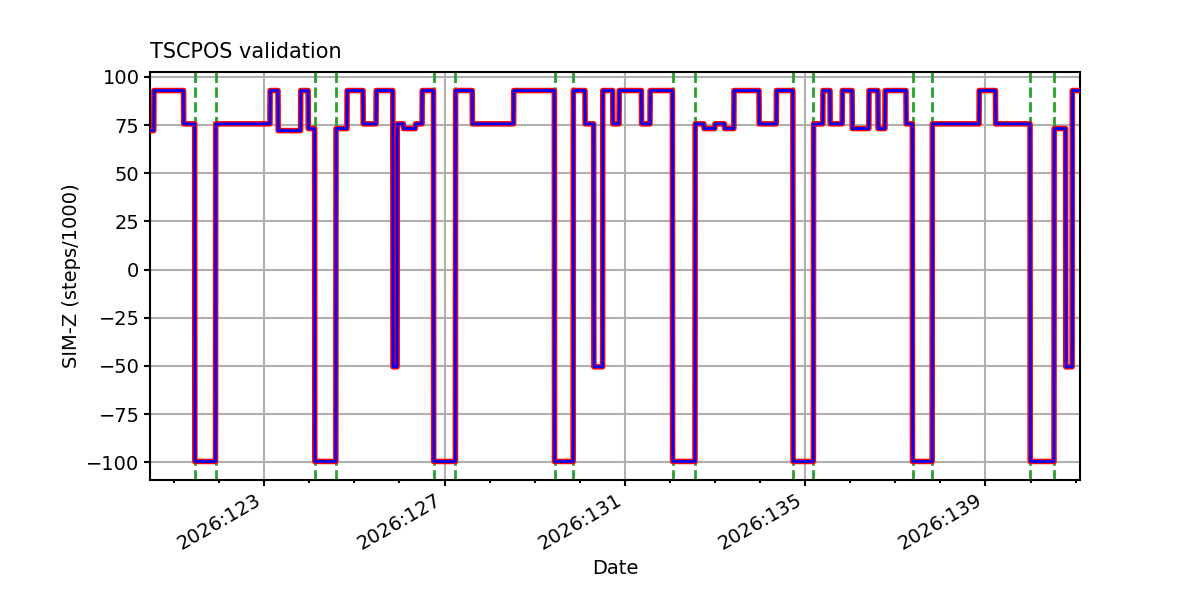

TSCPOS

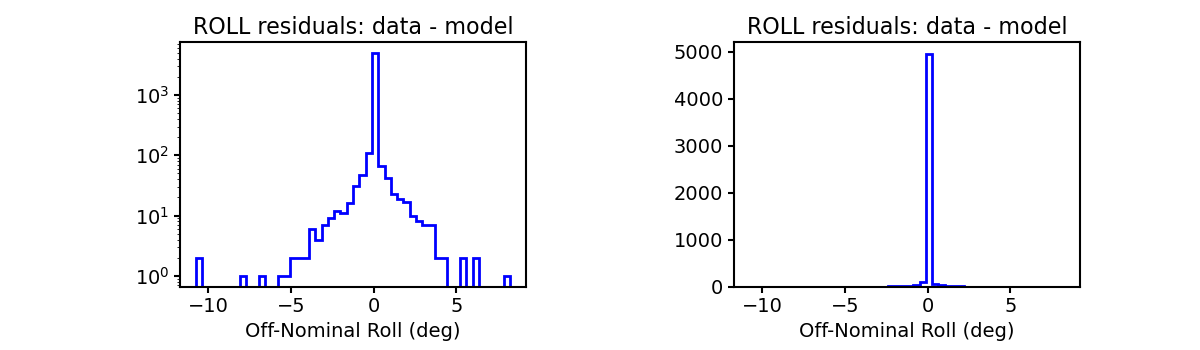

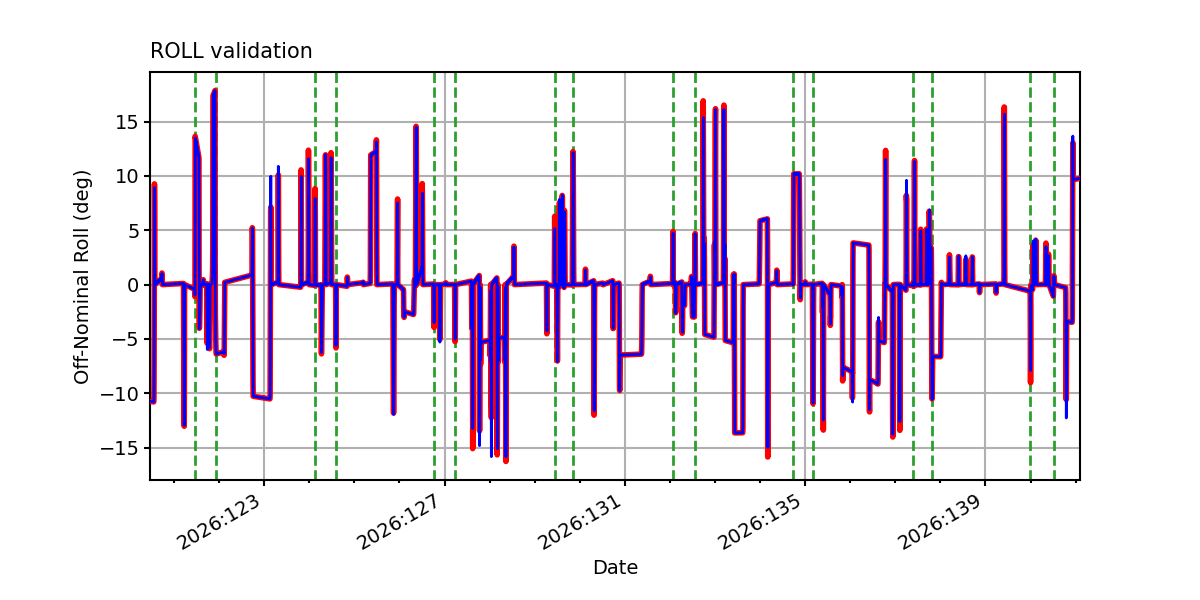

ROLL
ACIS CCD/FEP Count
