DPAMYT Temperatures Check
Summary
| Date start | 2025:309:16:43:00.016 |
| Date stop | 2025:314:01:32:52.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/NOV0525/oflsa |
| Run time | Mon Nov 3 18:50:53 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMYT Upper Limit Violations
DPAMYT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMYT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamyt | -0.97 | -0.69 | -0.45 | 0.33 | 1.05 | 1.46 | 1.85 |
| pitch | -12.599 | -0.915 | -0.004 | 0.000 | 0.004 | 0.813 | 11.277 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.909 | -0.151 | -0.008 | -0.000 | 0.008 | 0.143 | 1.781 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -12.599 | 3.00 |
| PITCH | 99 | 11.277 | 3.00 |

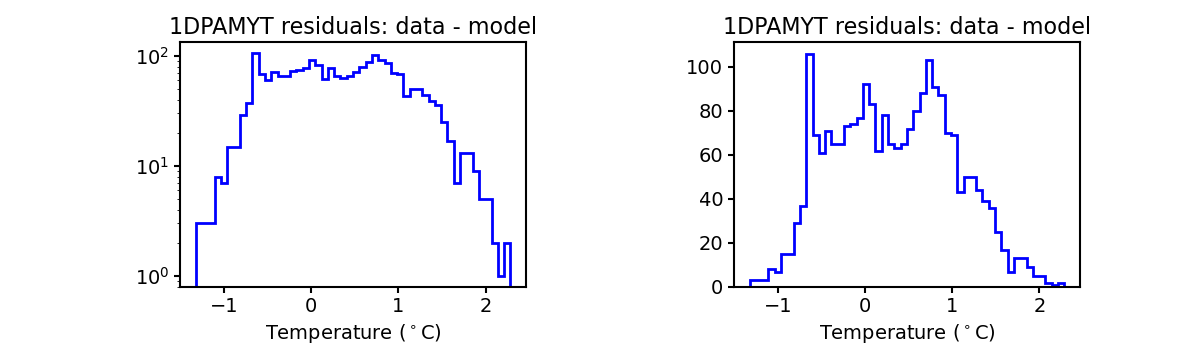

1DPAMYT
Note: 1DPAMYT residual histograms include only points where 1DPAMYT >= 20.0 C.

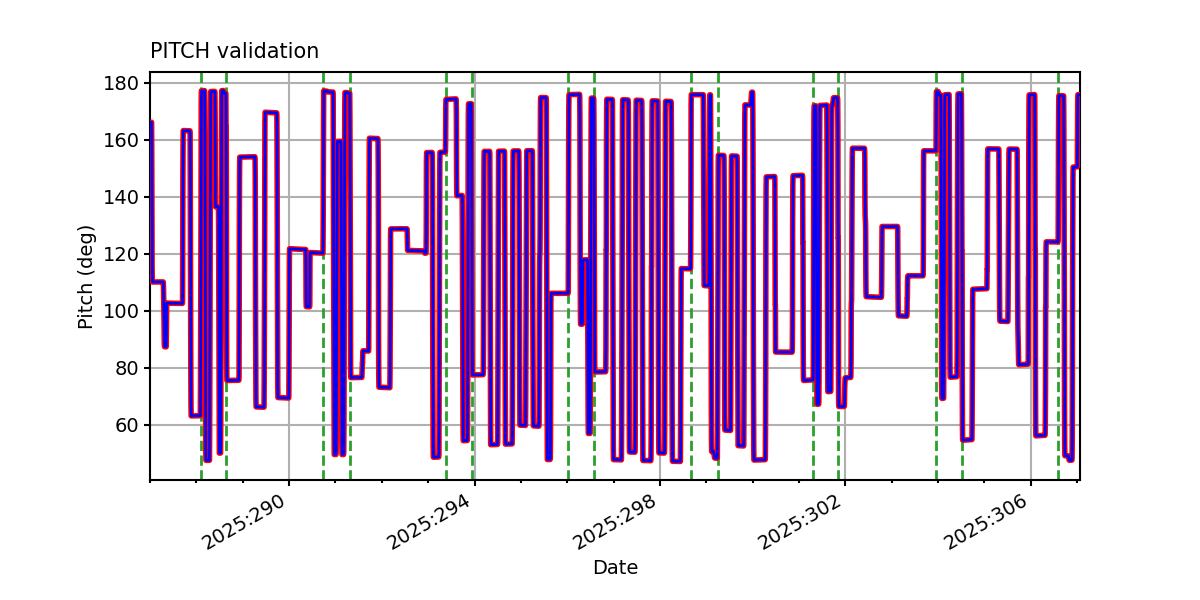

PITCH

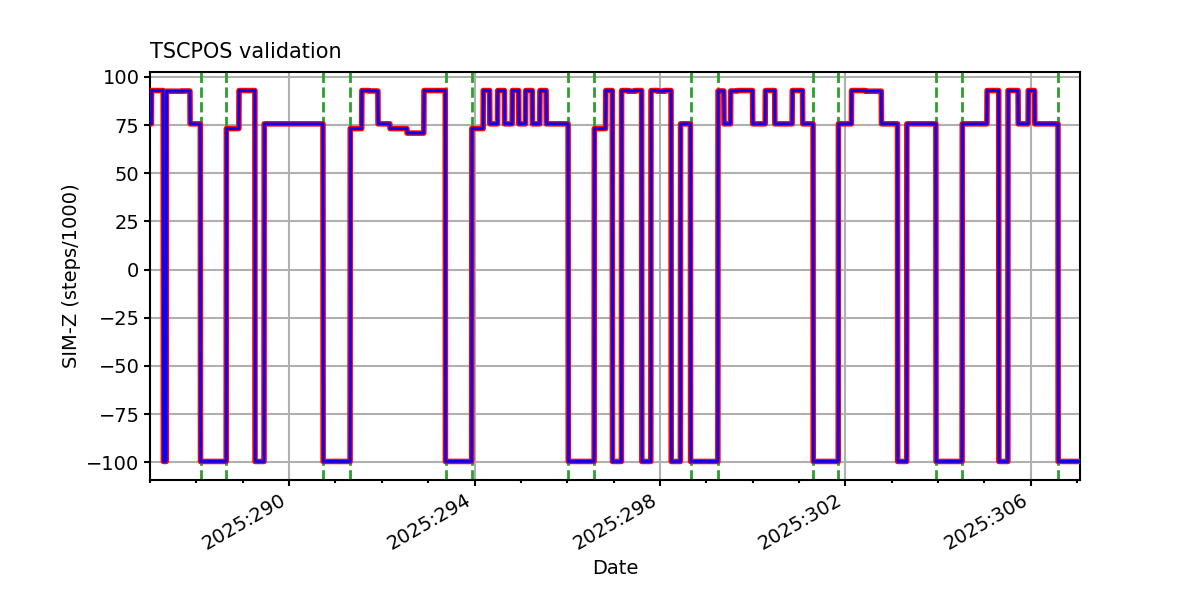

TSCPOS

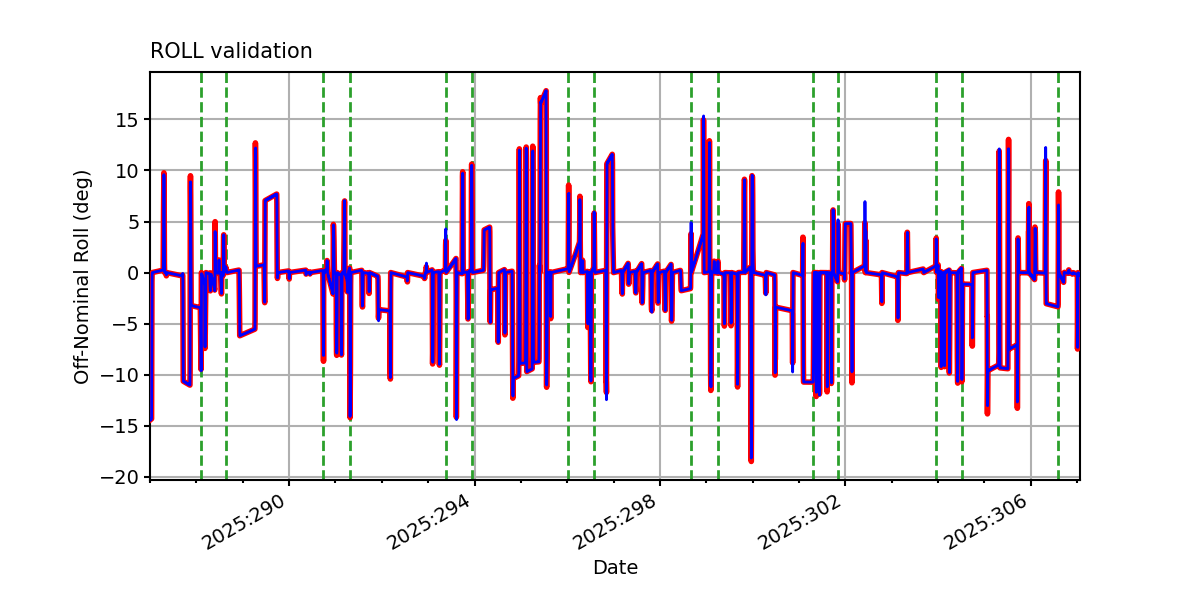

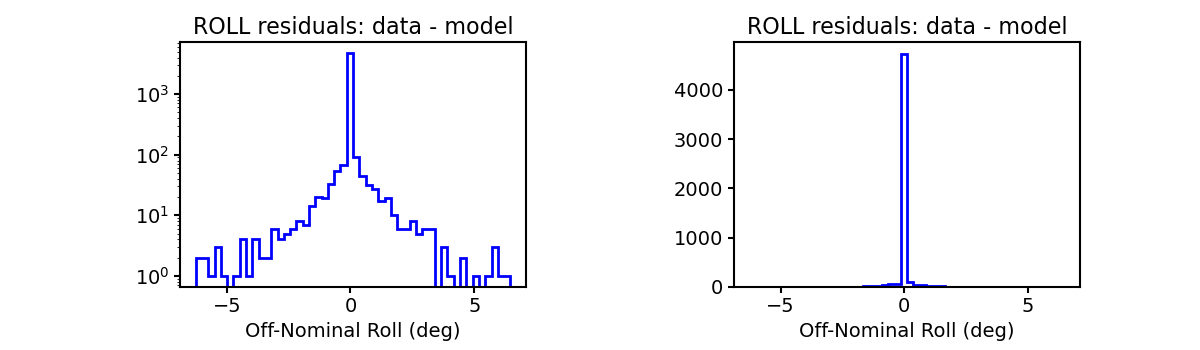

ROLL

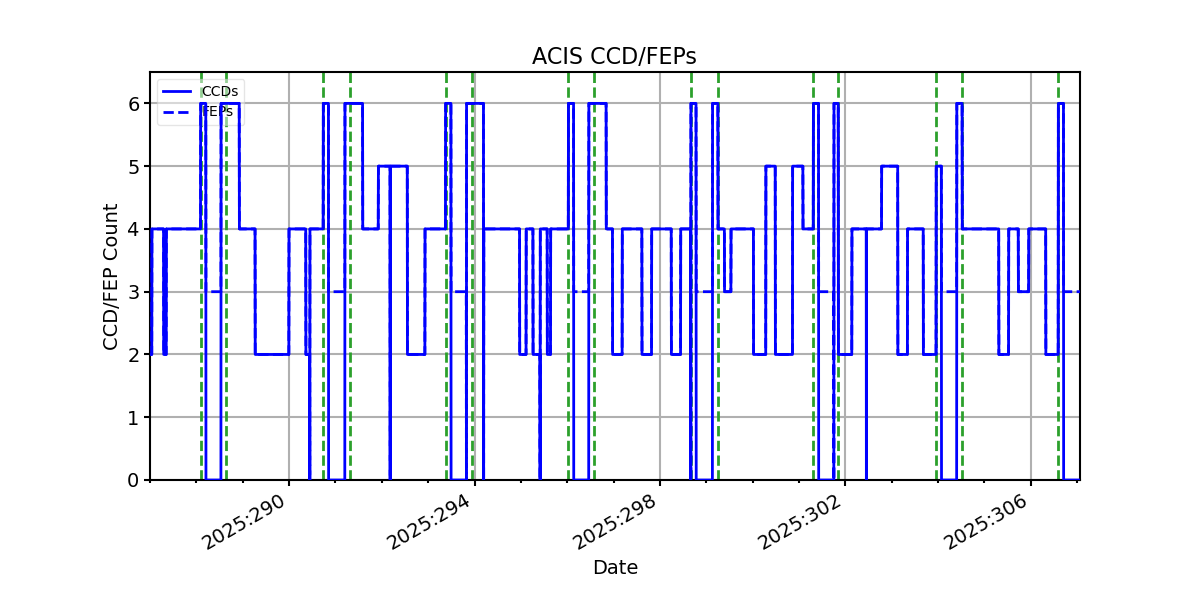

ACIS CCD/FEP Count
