DPAMYT Temperatures Check
Summary
| Date start | 2025:244:00:20:40.116 |
| Date stop | 2025:250:21:18:18.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/SEP0125/oflsa |
| Run time | Thu Aug 28 10:24:30 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMYT Upper Limit Violations
DPAMYT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMYT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamyt | -1.78 | -1.08 | -0.37 | 0.79 | 1.46 | 1.97 | 3.36 |
| pitch | -8.642 | -0.195 | -0.004 | -0.000 | 0.004 | 0.035 | 9.308 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.290 | -0.058 | -0.005 | 0.000 | 0.005 | 0.066 | 1.640 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMYT | 99 | 3.36 | 2.00 |
| PITCH | 1 | -8.642 | 3.00 |
| PITCH | 99 | 9.308 | 3.00 |

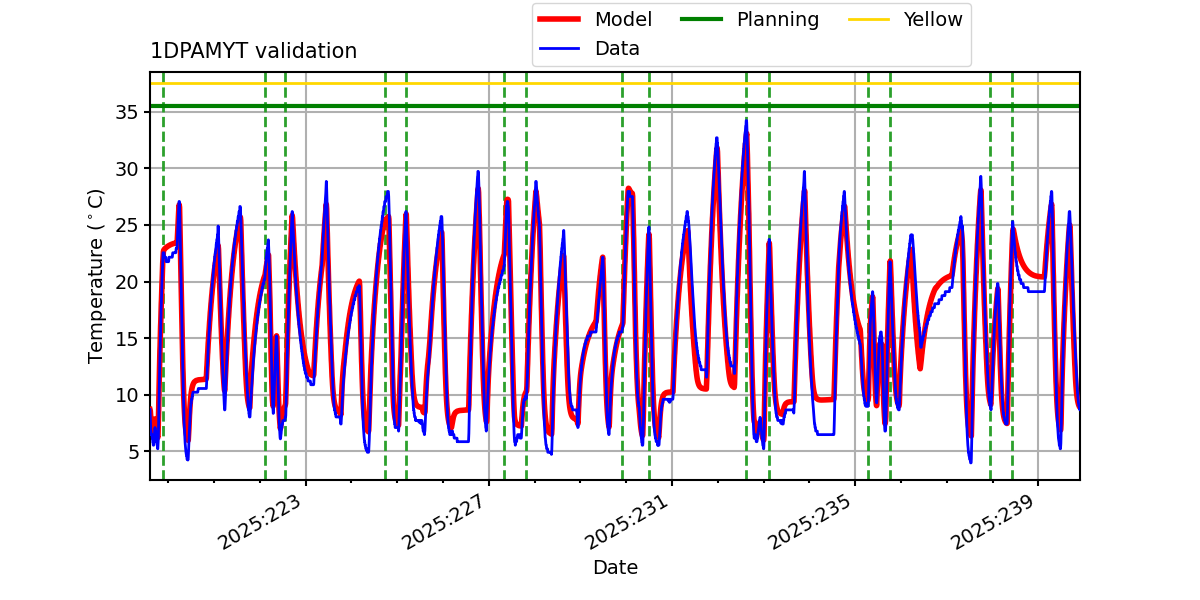

1DPAMYT

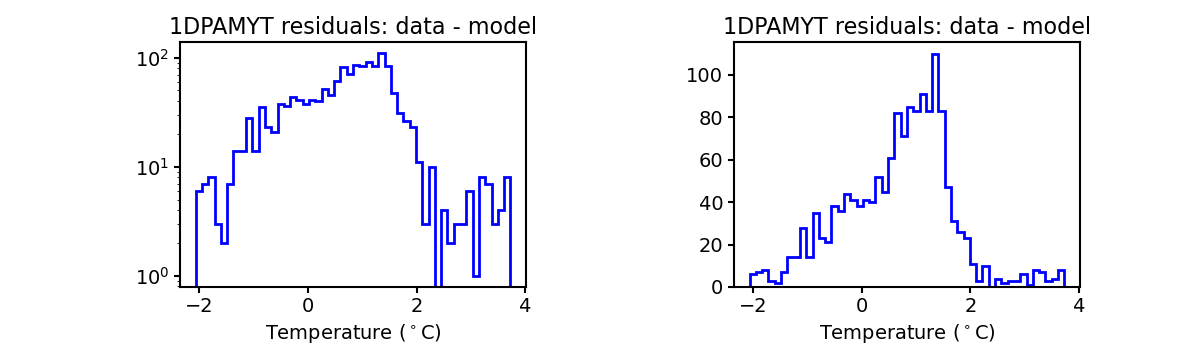

Note: 1DPAMYT residual histograms include only points where 1DPAMYT >= 20.0 C.

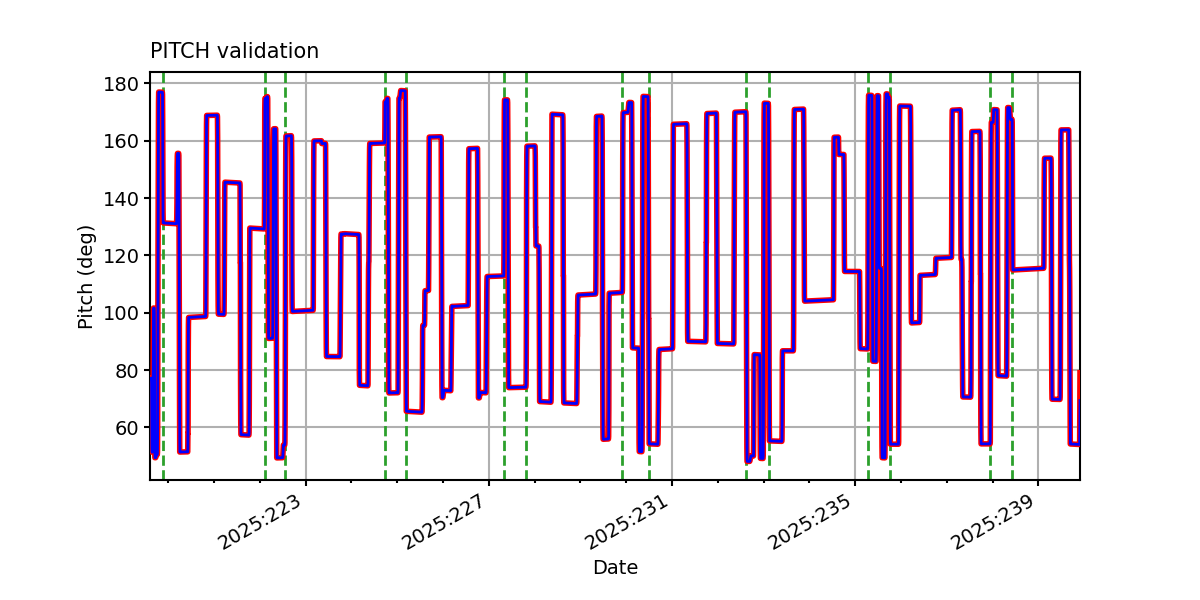

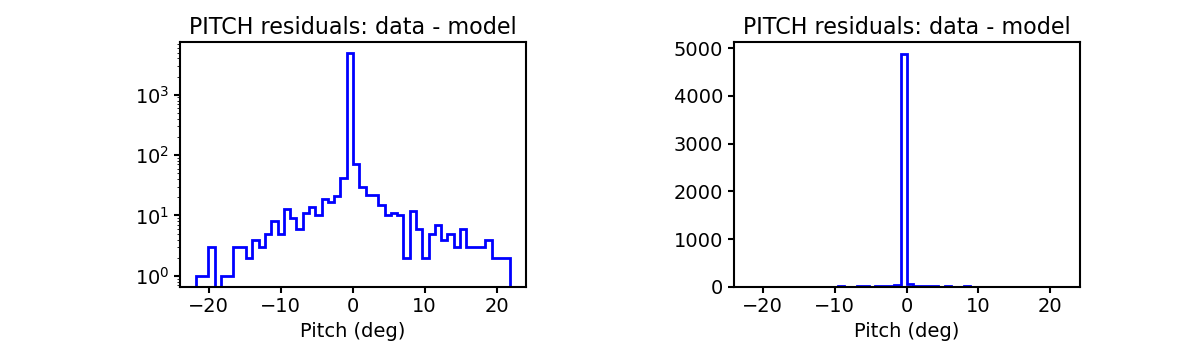

PITCH

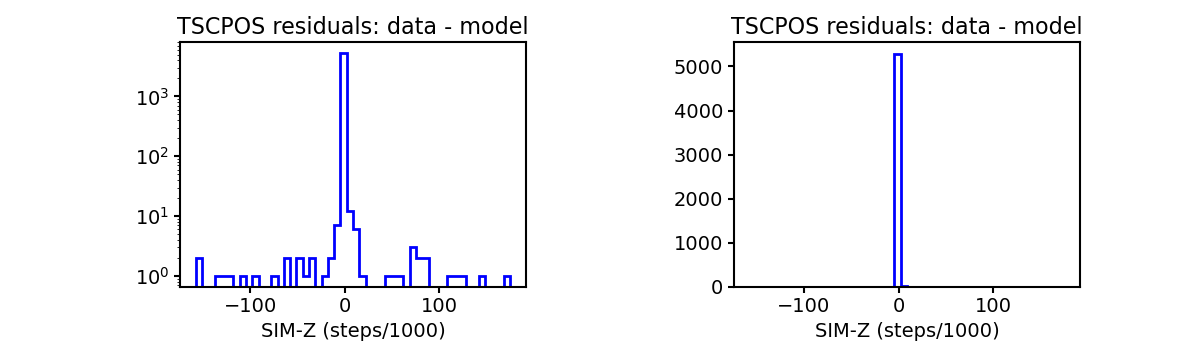

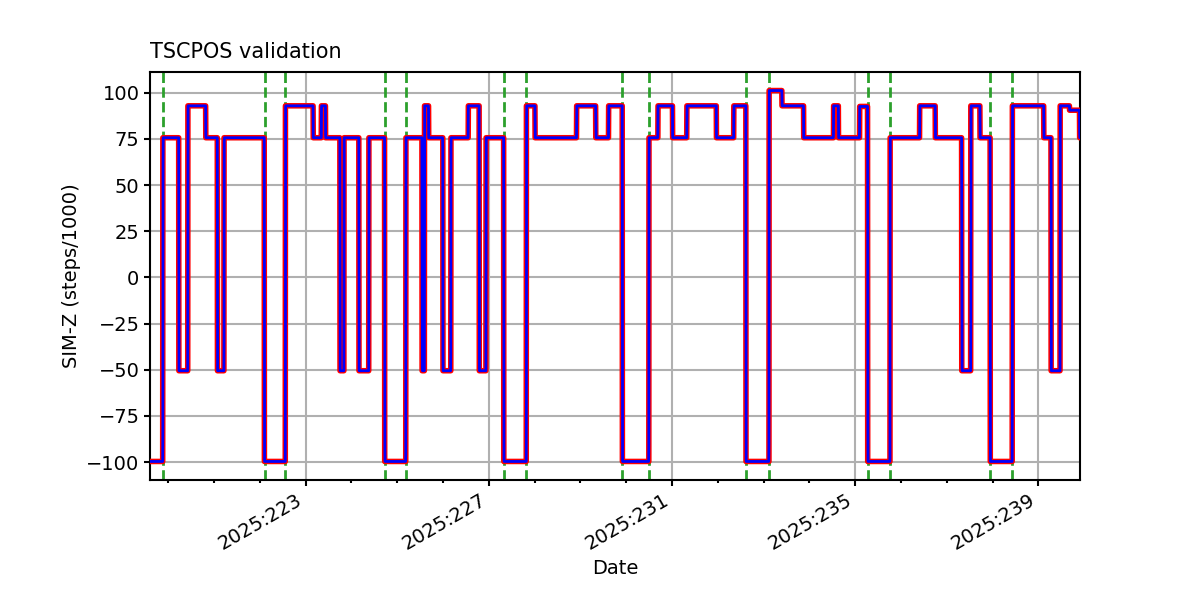

TSCPOS

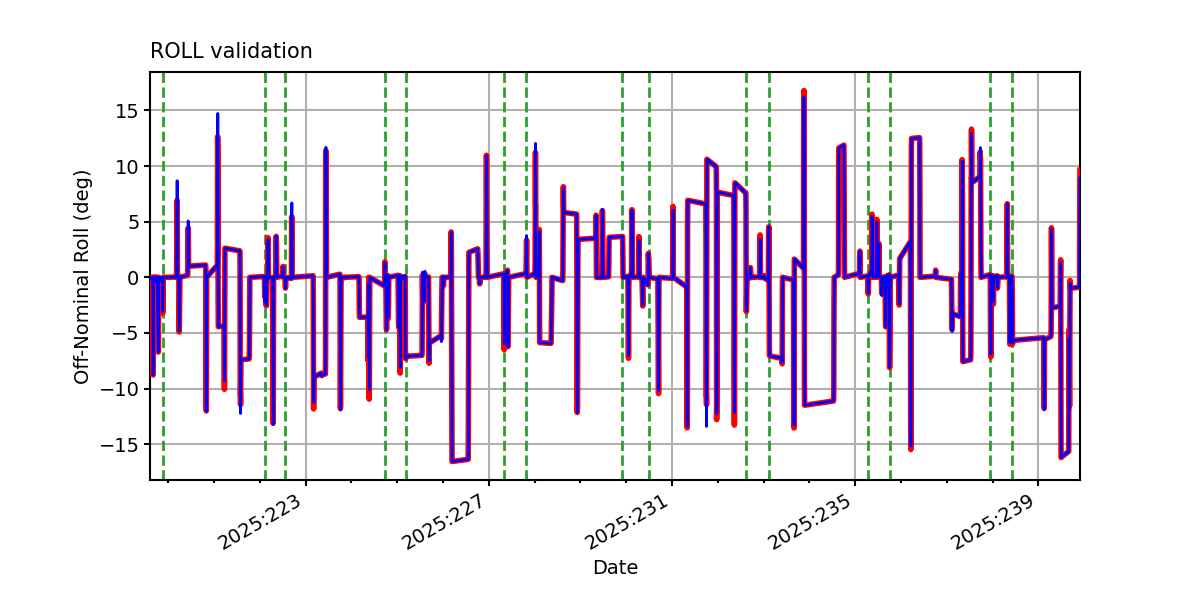

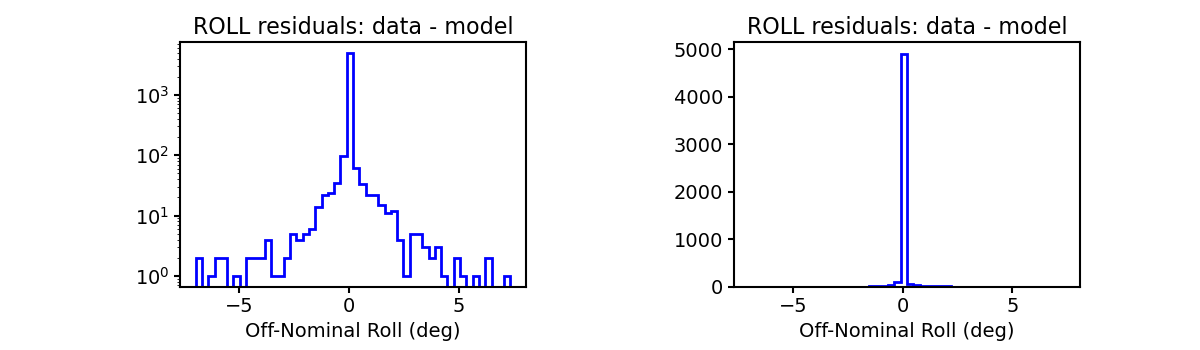

ROLL

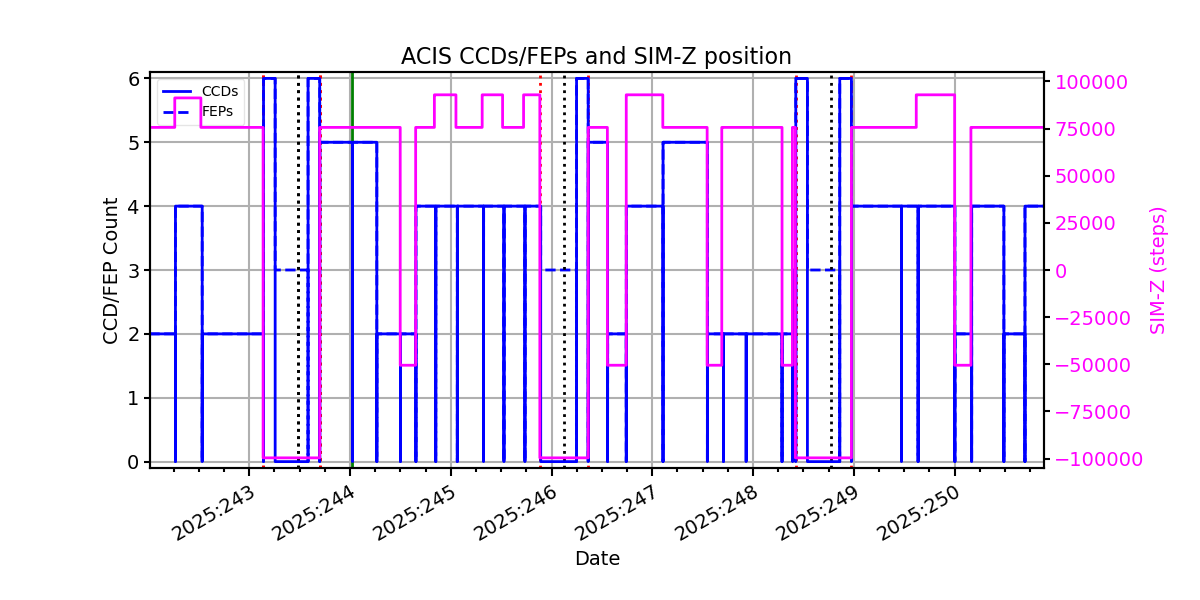

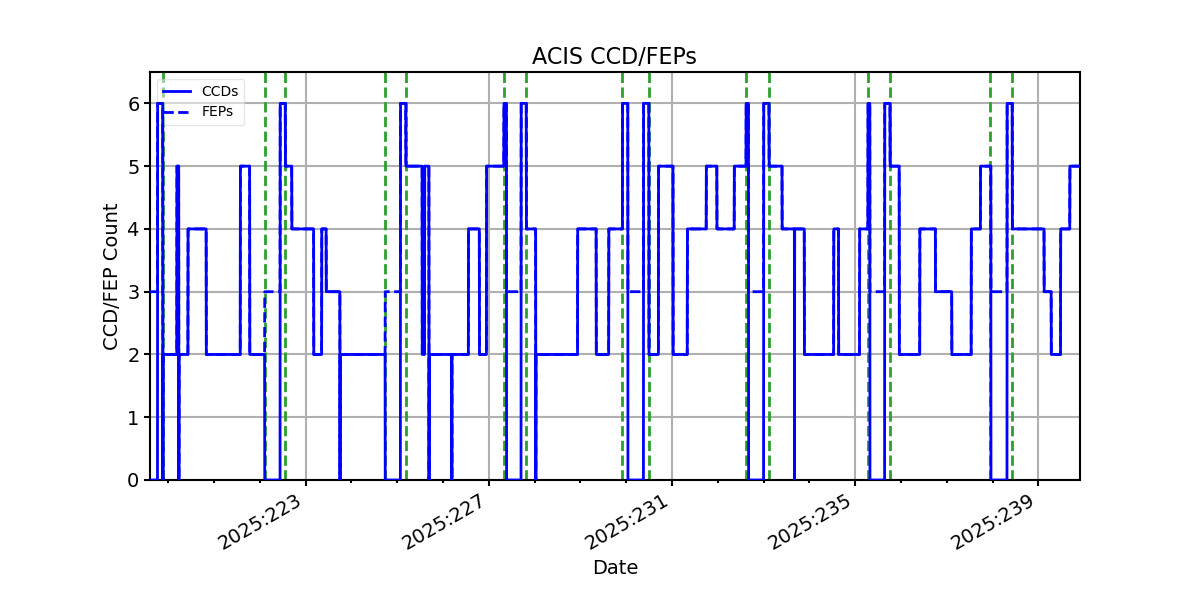

ACIS CCD/FEP Count
