DPAMYT Temperatures Check
Summary
| Date start | 2025:250:21:15:18.716 |
| Date stop | 2025:257:23:00:15.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/SEP0825/oflsa |
| Run time | Thu Sep 4 14:07:37 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMYT Upper Limit Violations
DPAMYT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMYT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamyt | -1.90 | -1.21 | -0.50 | 0.63 | 1.41 | 1.88 | 3.44 |
| pitch | -8.628 | -0.073 | -0.004 | -0.000 | 0.004 | 0.085 | 9.248 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.430 | -0.041 | -0.005 | -0.000 | 0.005 | 0.046 | 1.578 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMYT | 99 | 3.44 | 2.00 |
| PITCH | 1 | -8.628 | 3.00 |
| PITCH | 99 | 9.248 | 3.00 |

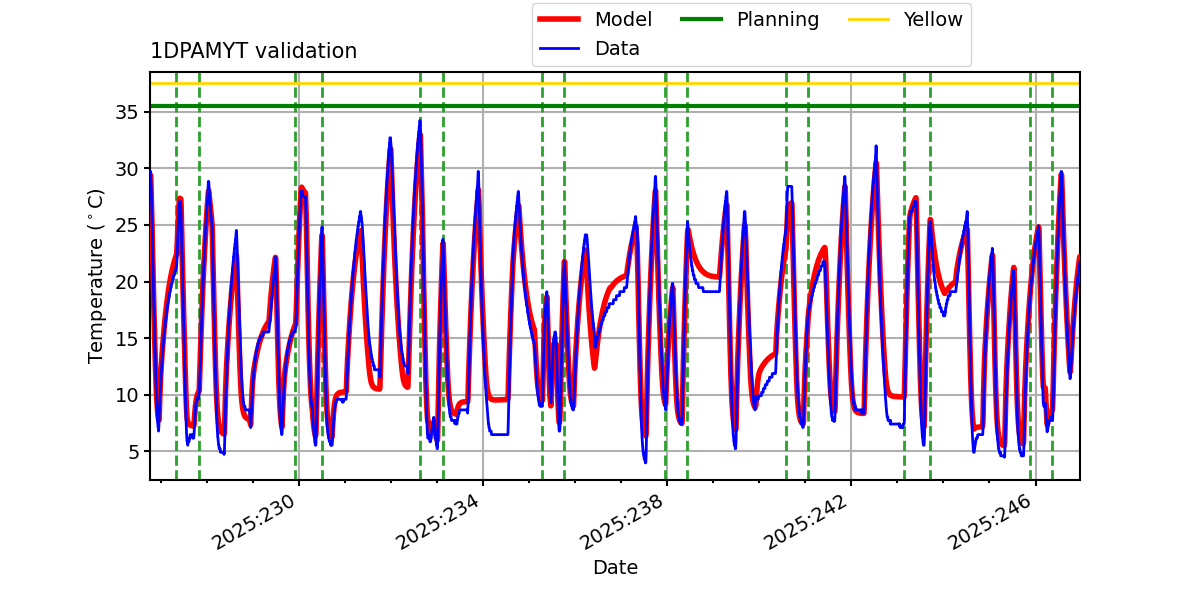

1DPAMYT

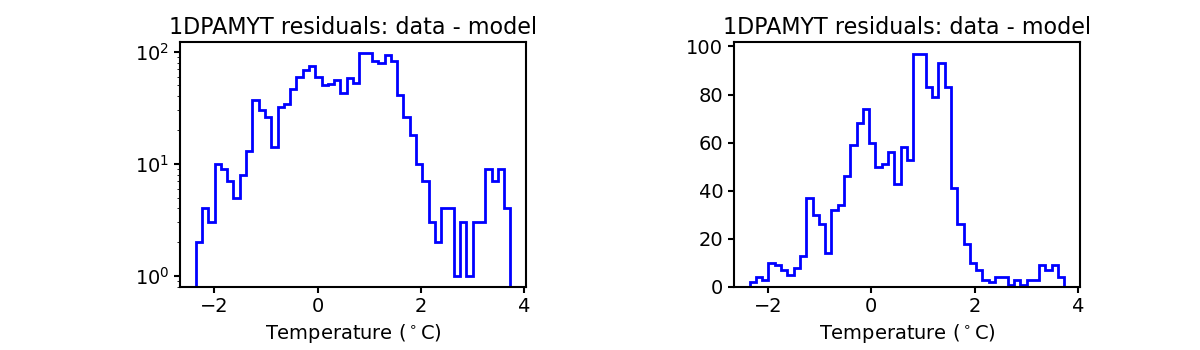

Note: 1DPAMYT residual histograms include only points where 1DPAMYT >= 20.0 C.

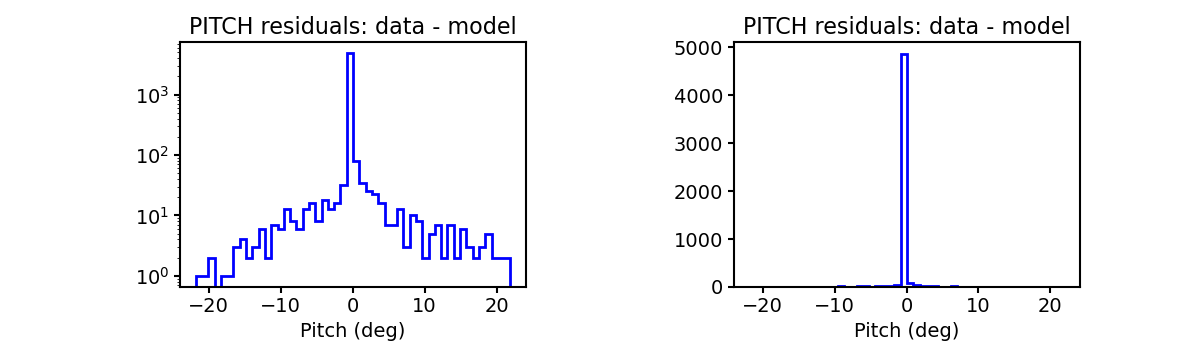

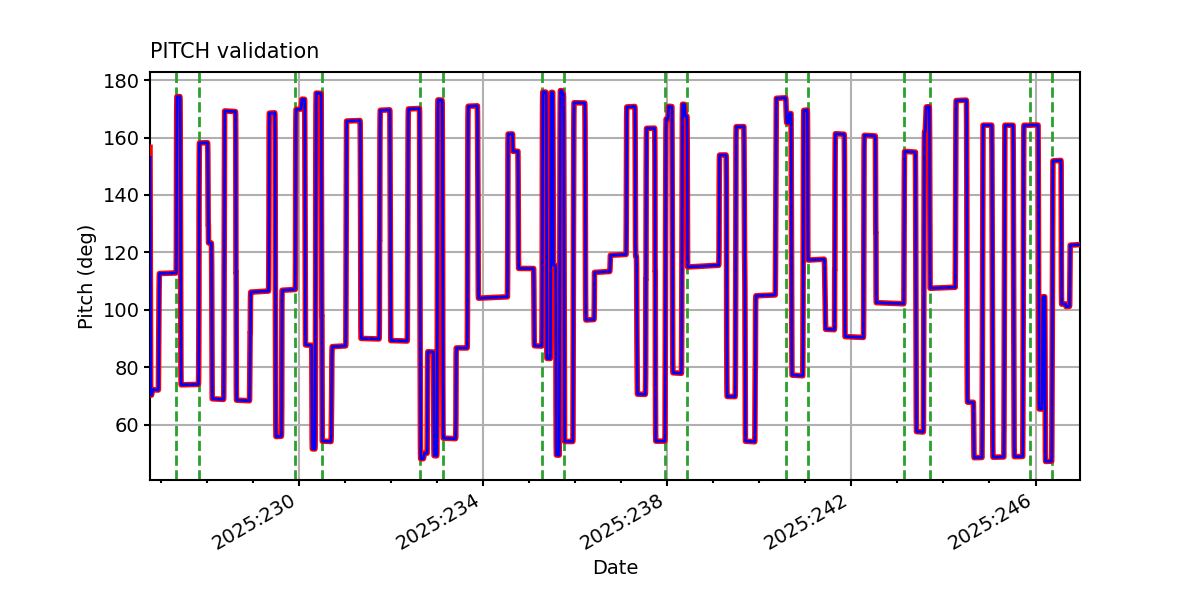

PITCH

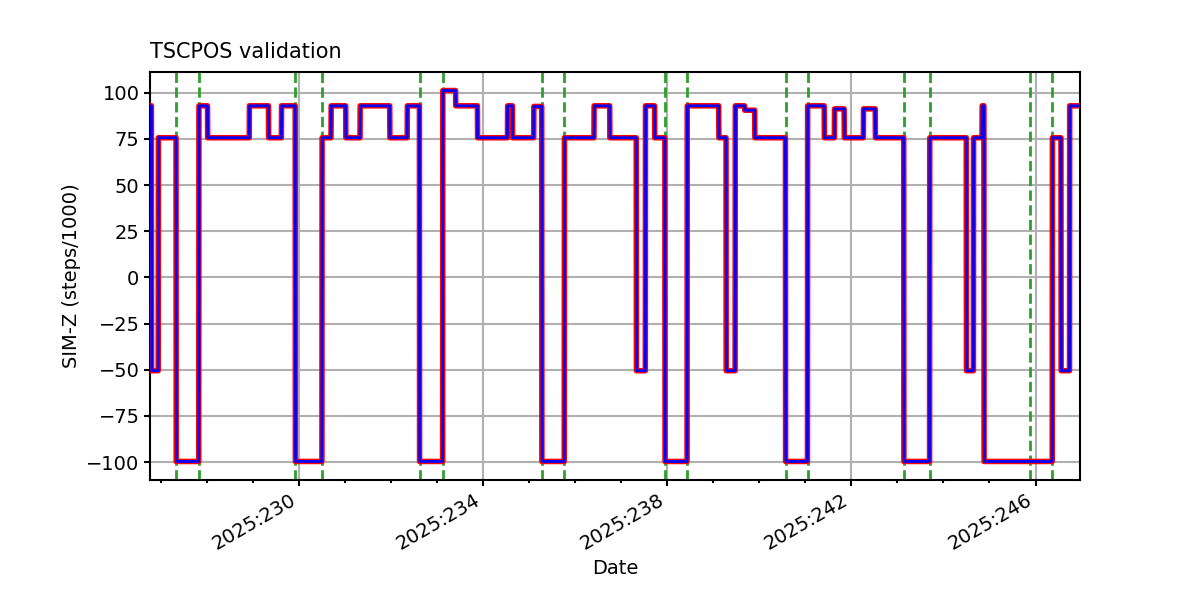

TSCPOS

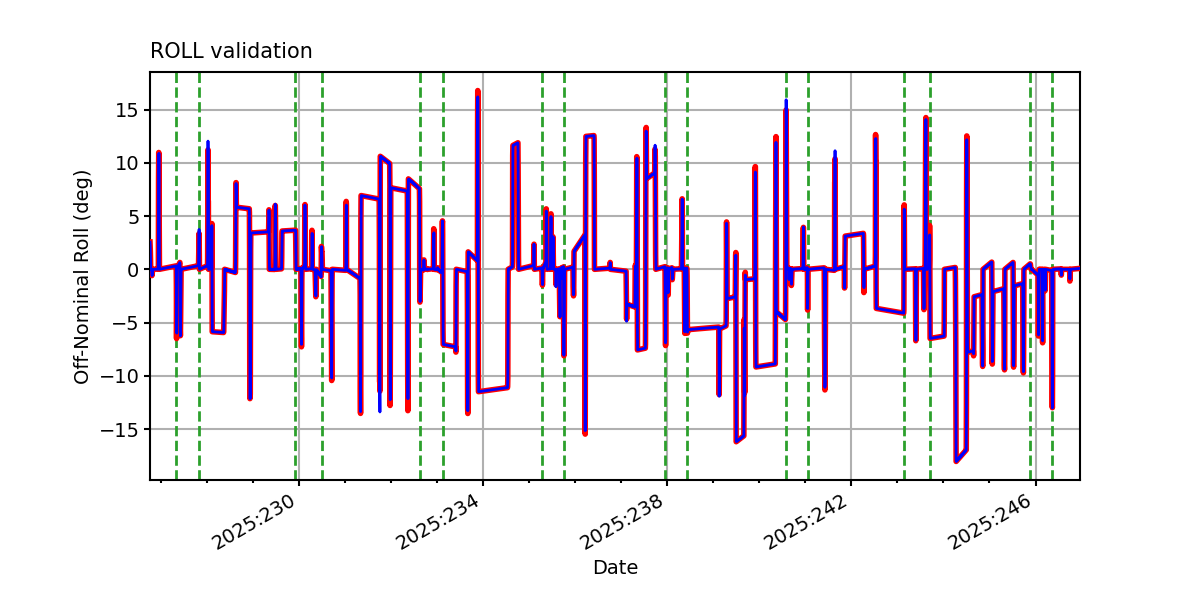

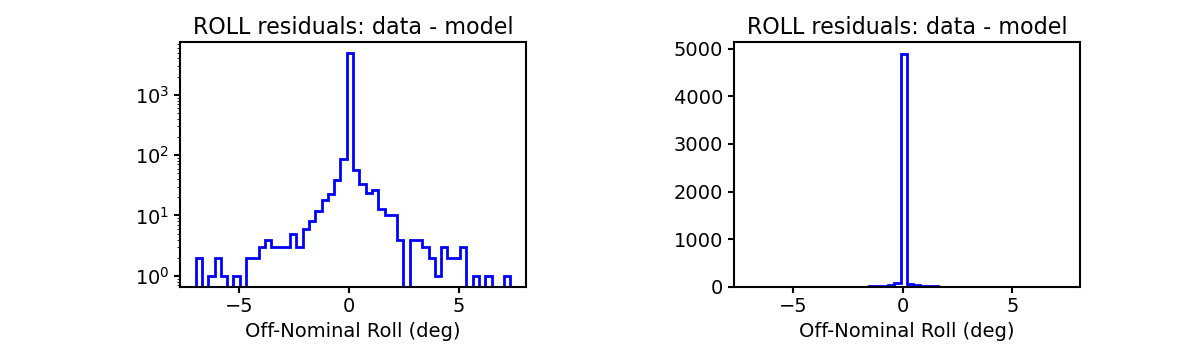

ROLL

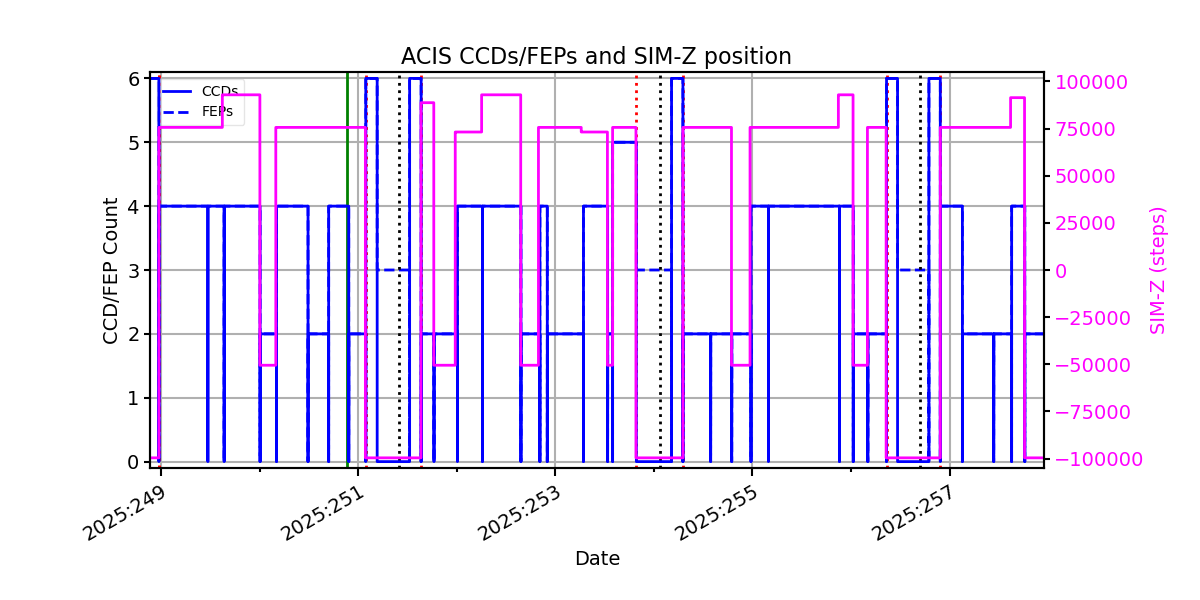

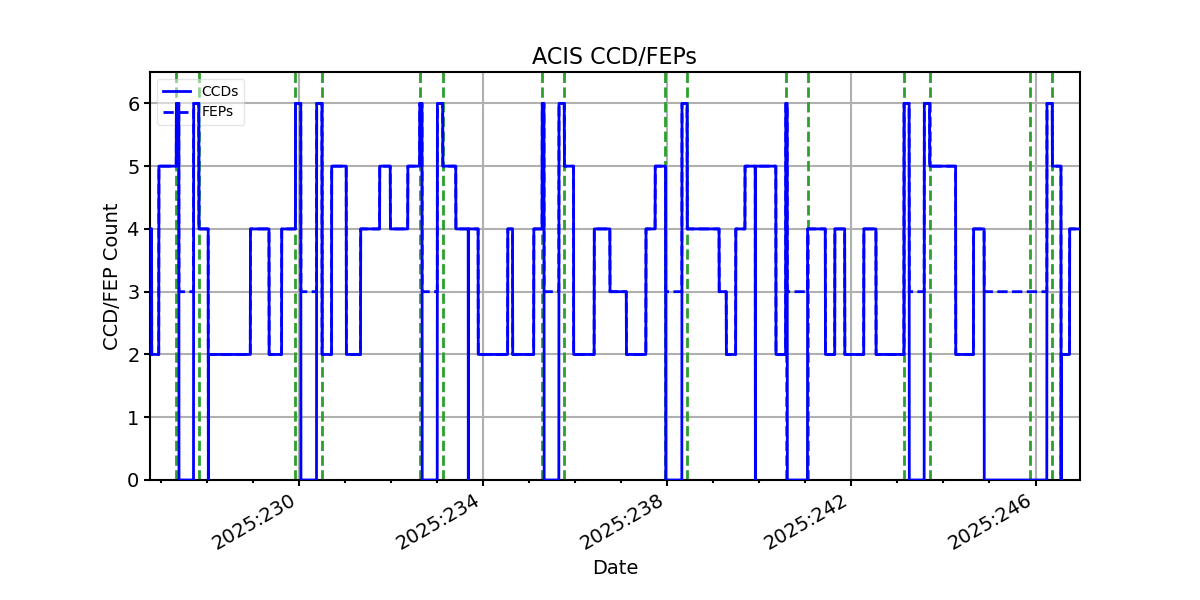

ACIS CCD/FEP Count
