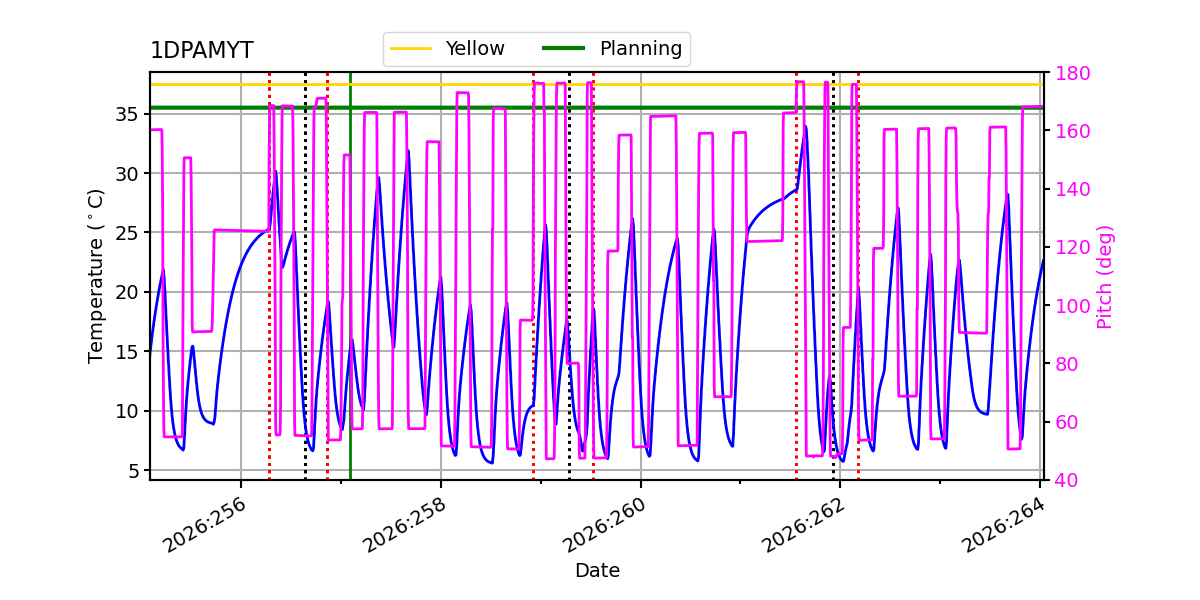

DPAMYT Temperatures Check
Summary
| Date start | 2026:257:02:06:19.916 |
| Date stop | 2026:264:01:05:49.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/SEP1426/oflsa |
| Run time | Thu Sep 10 10:40:27 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMYT Upper Limit Violations
DPAMYT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMYT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamyt | -1.43 | -1.30 | -0.82 | 0.01 | 0.94 | 1.34 | 1.74 |
| pitch | -10.330 | -0.618 | -0.004 | -0.000 | 0.004 | 0.652 | 9.757 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -2.048 | -0.130 | -0.006 | -0.000 | 0.006 | 0.129 | 1.645 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -10.33 | 3.00 |
| PITCH | 99 | 9.757 | 3.00 |

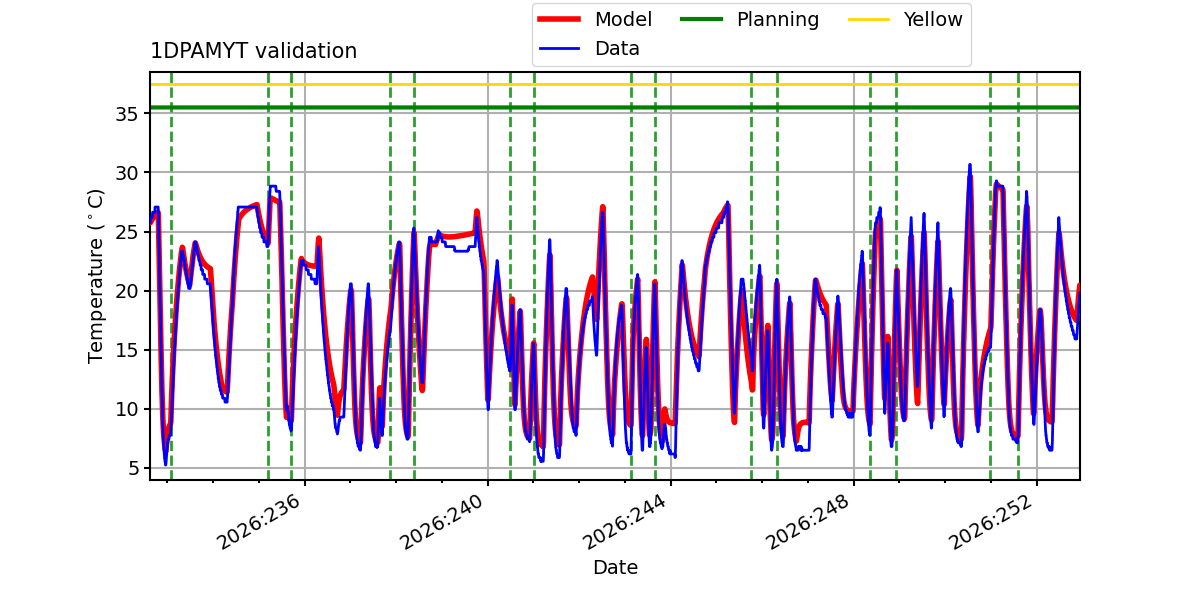

1DPAMYT

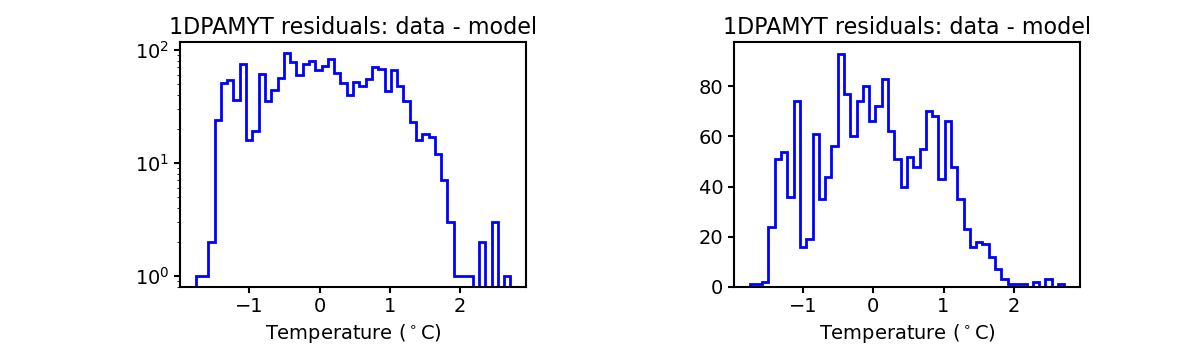

Note: 1DPAMYT residual histograms include only points where 1DPAMYT >= 20.0 C.

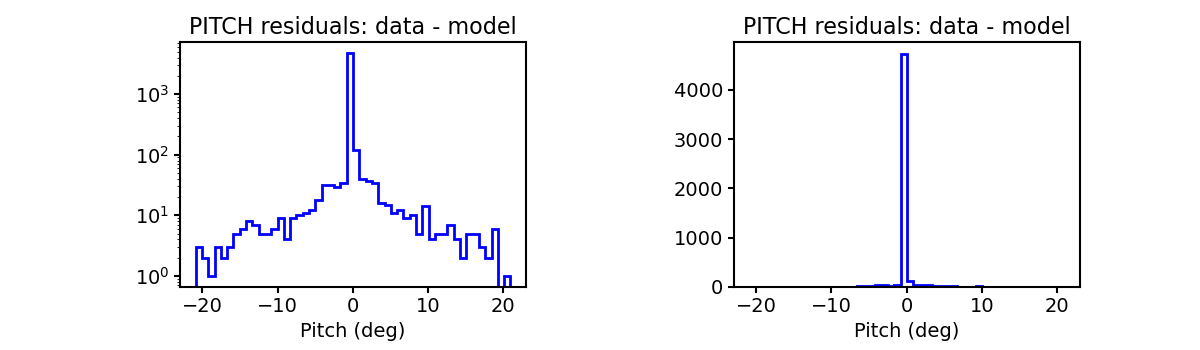

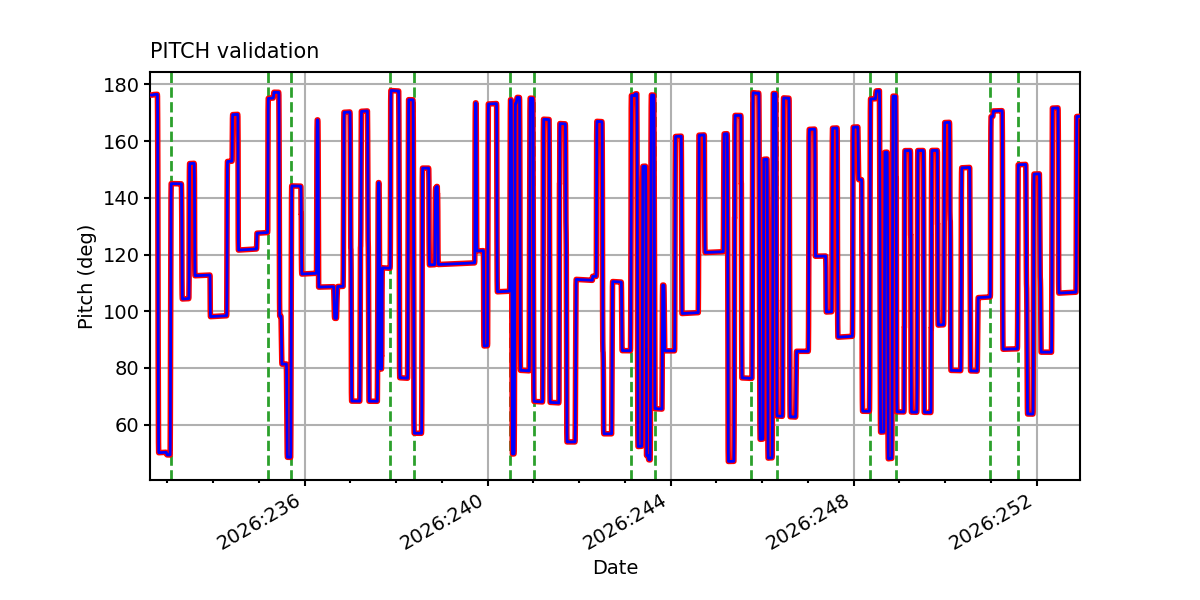

PITCH

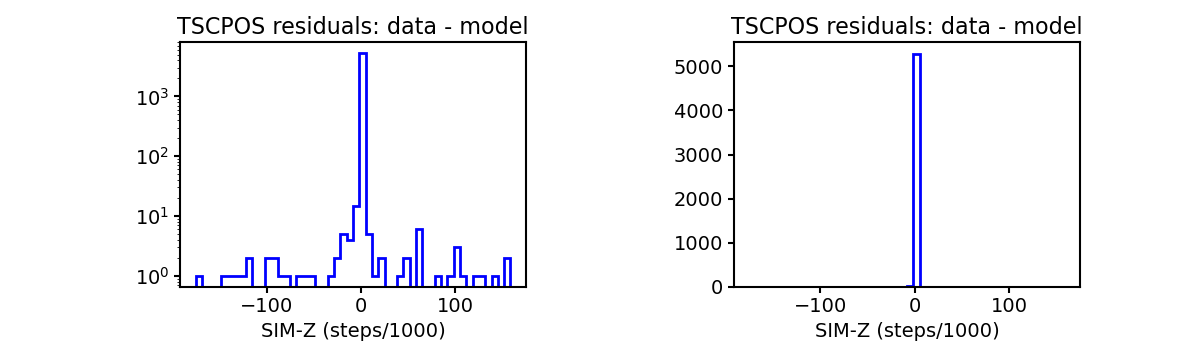

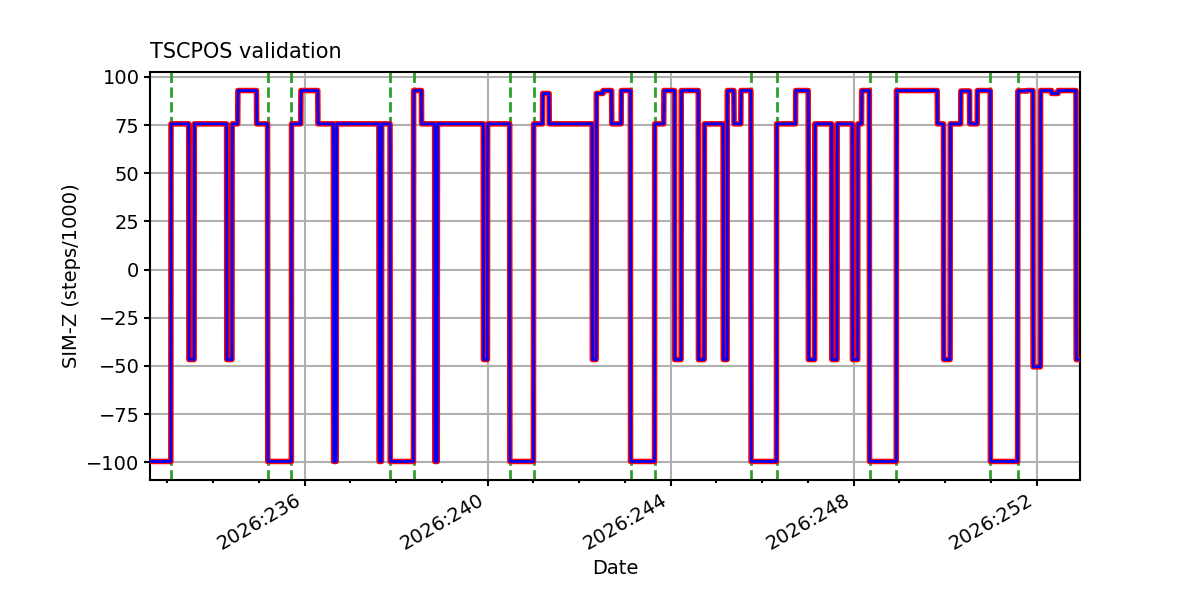

TSCPOS

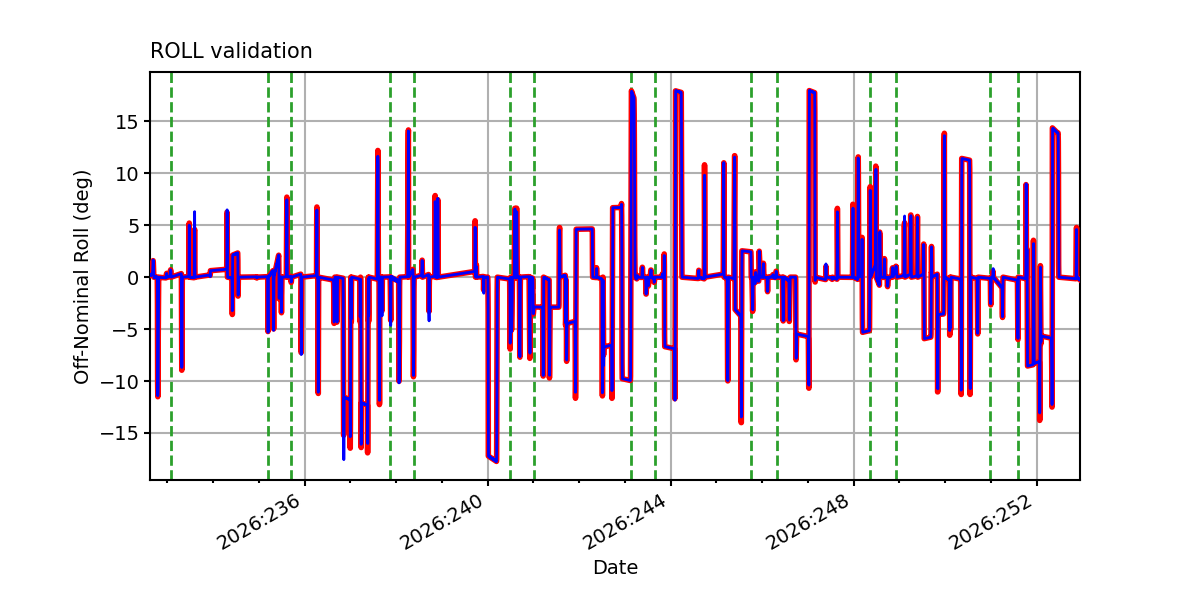

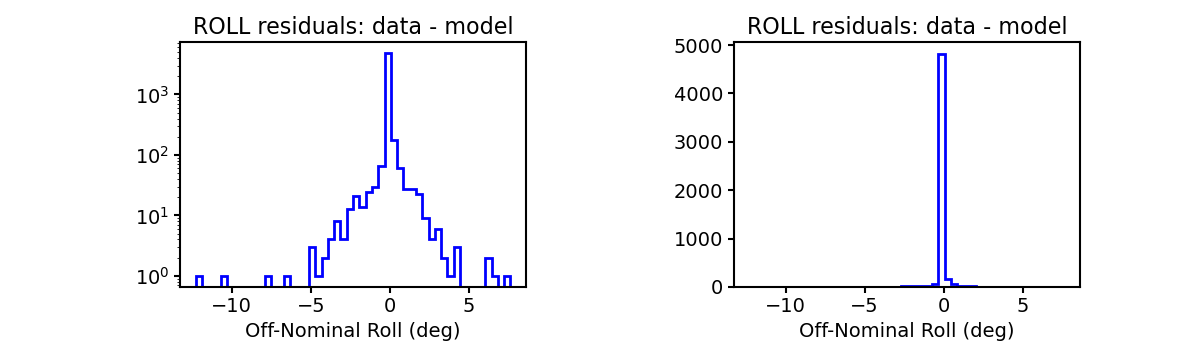

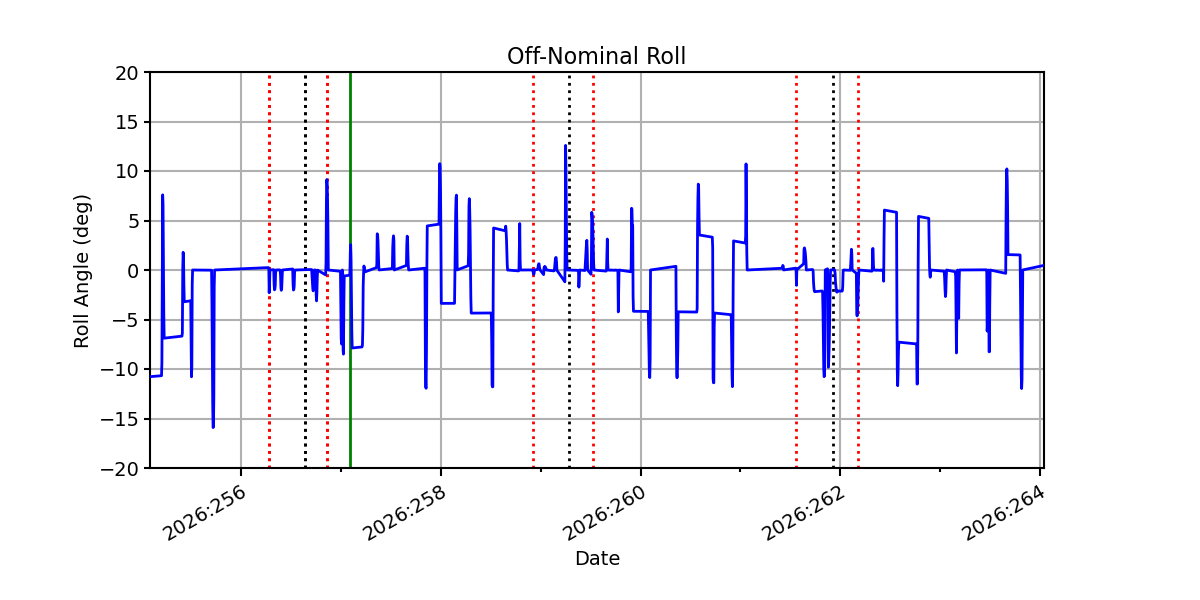

ROLL

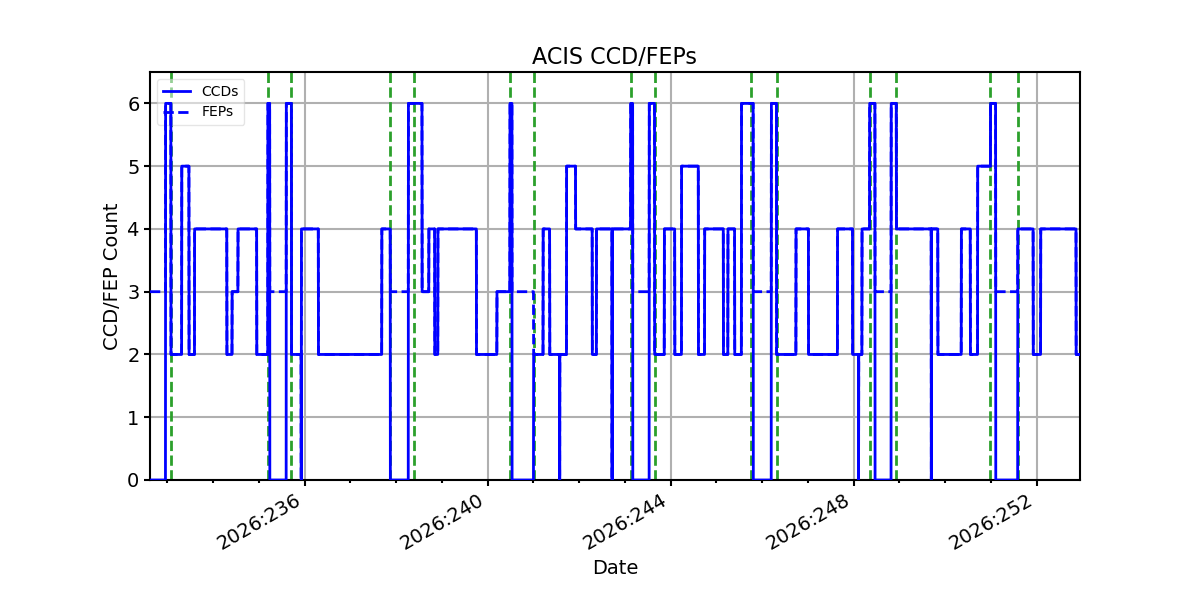

ACIS CCD/FEP Count
