DPAMYT Temperatures Check
Summary
| Date start | 2025:257:22:57:15.016 |
| Date stop | 2025:265:00:07:59.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/SEP1525/oflsa |
| Run time | Thu Sep 11 09:36:49 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMYT Upper Limit Violations
DPAMYT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMYT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamyt | -1.92 | -1.34 | -0.76 | 0.27 | 1.13 | 1.52 | 3.17 |
| pitch | -8.255 | -0.056 | -0.004 | 0.000 | 0.004 | 0.170 | 9.071 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -1.475 | -0.074 | -0.006 | -0.000 | 0.007 | 0.082 | 1.516 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMYT | 99 | 3.17 | 2.00 |
| PITCH | 1 | -8.255 | 3.00 |
| PITCH | 99 | 9.071 | 3.00 |

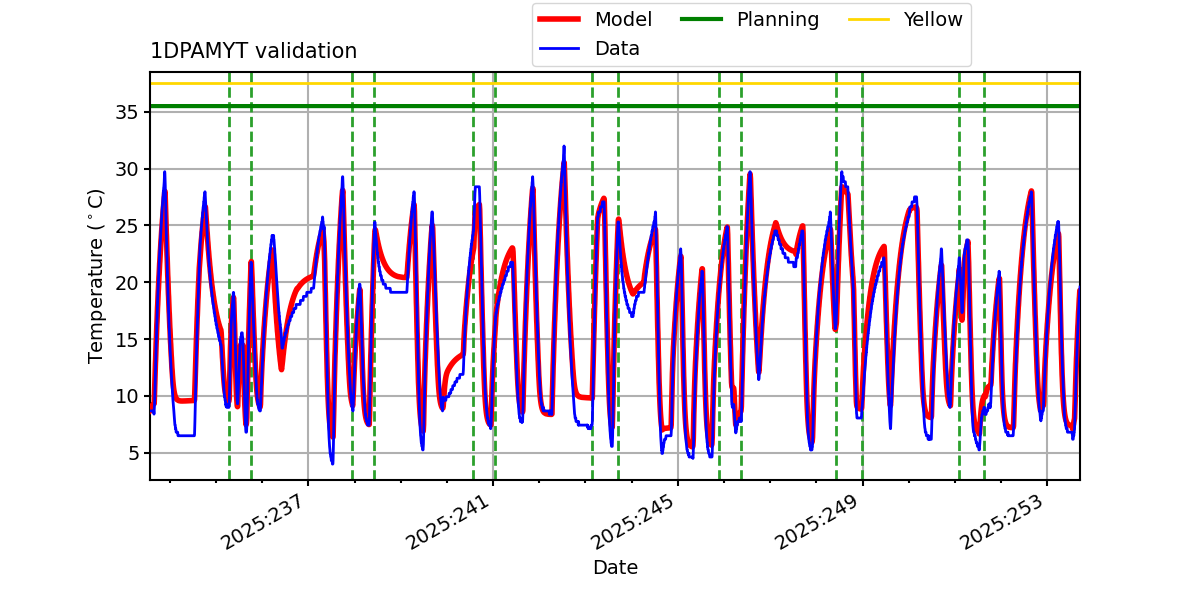

1DPAMYT

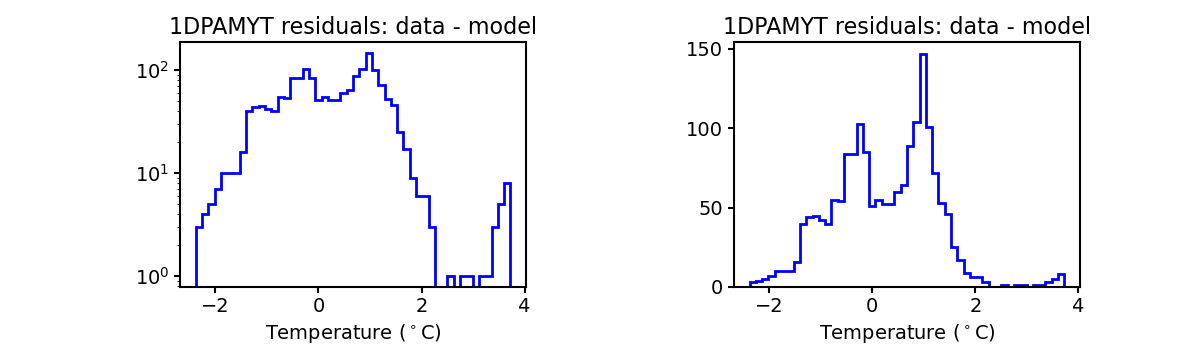

Note: 1DPAMYT residual histograms include only points where 1DPAMYT >= 20.0 C.

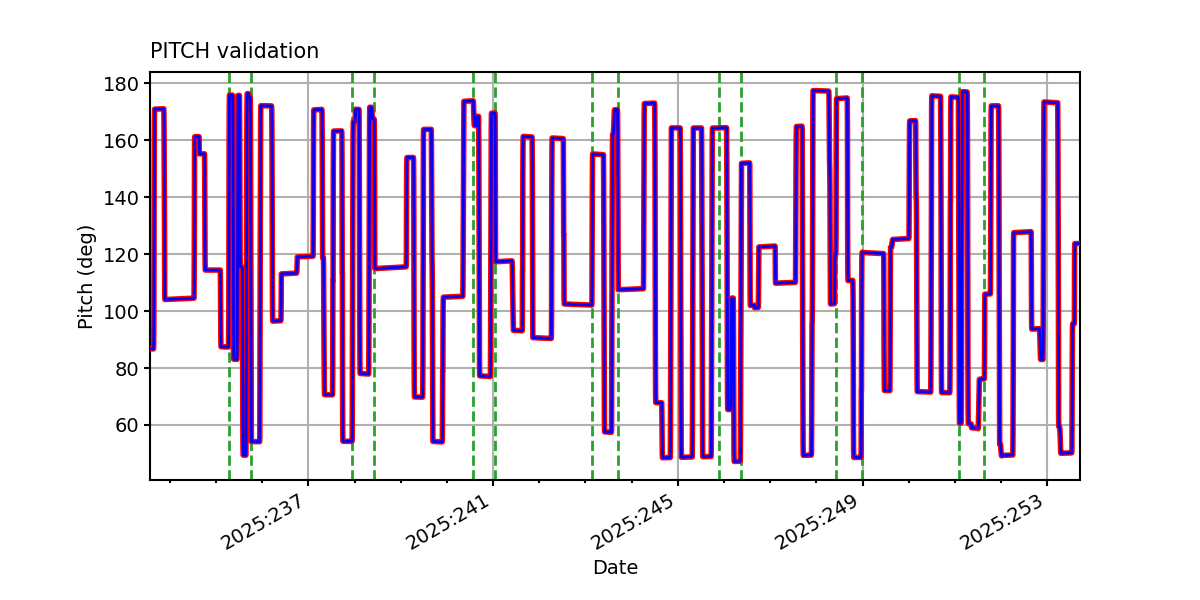

PITCH

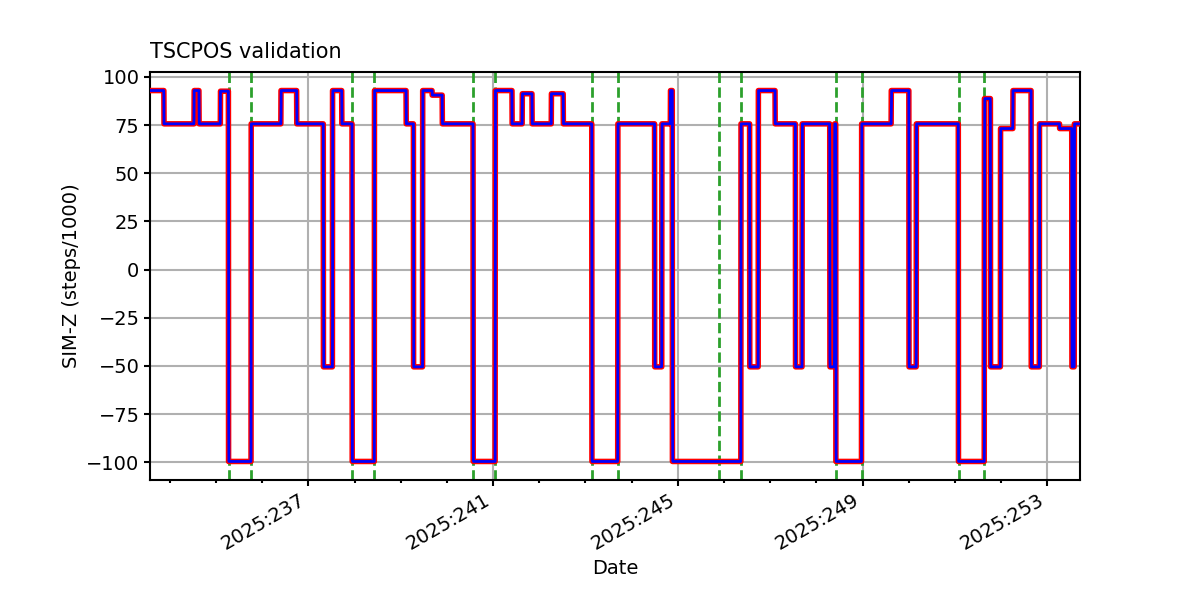

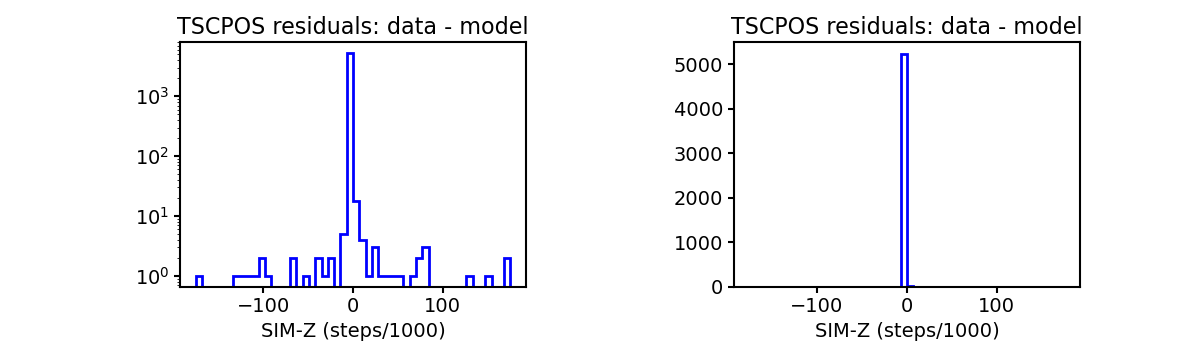

TSCPOS

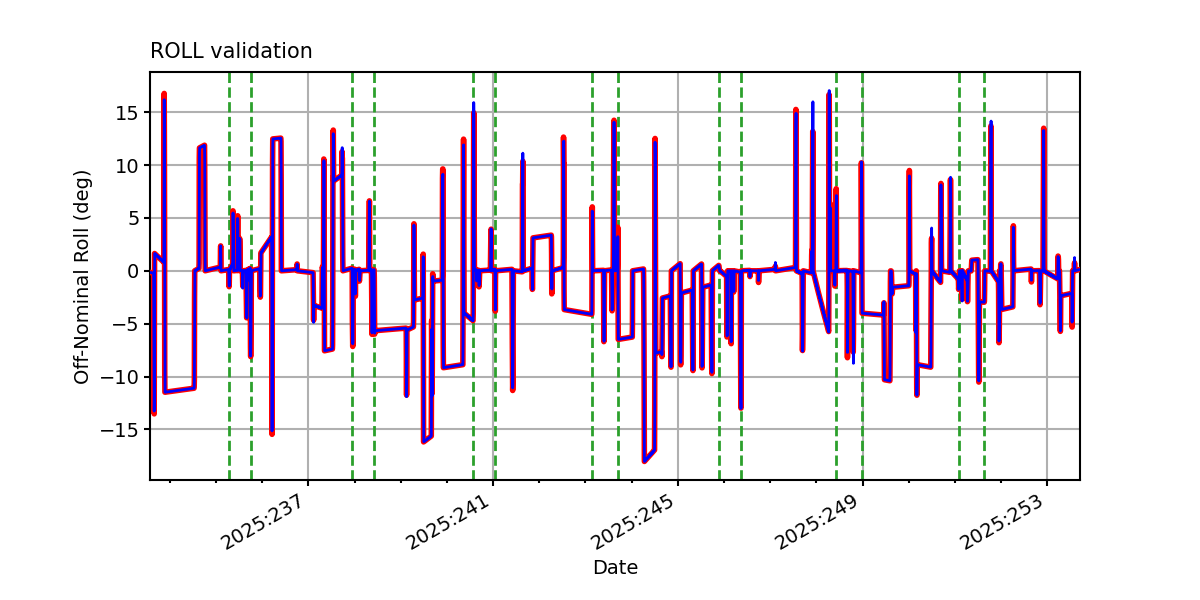

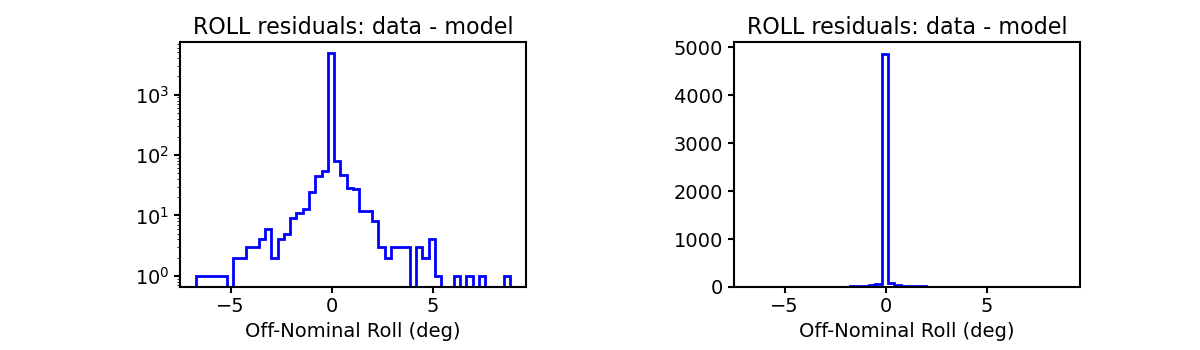

ROLL

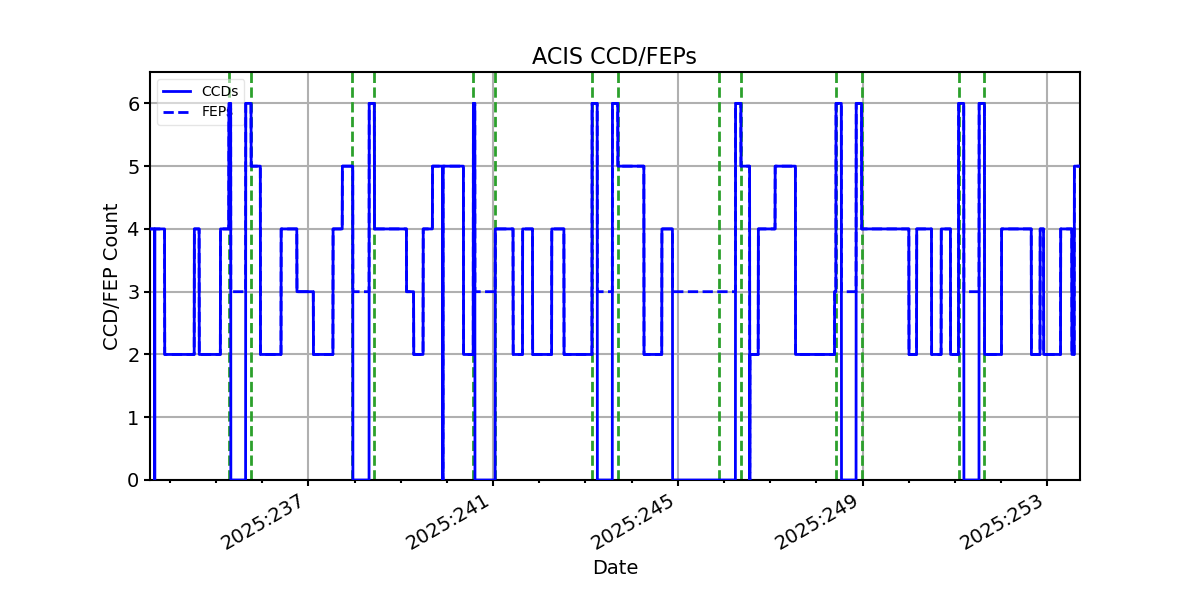

ACIS CCD/FEP Count
