DPAMYT Temperatures Check
Summary
| Date start | 2026:271:01:21:07.416 |
| Date stop | 2026:277:13:13:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/SEP2826/oflst |
| Run time | Fri Oct 9 14:03:56 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMYT Upper Limit Violations
DPAMYT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMYT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamyt | -0.58 | -0.30 | -0.02 | 0.74 | 1.46 | 1.82 | 2.19 |
| pitch | -11.469 | -1.293 | -0.004 | -0.000 | 0.004 | 1.252 | 11.528 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.003 | -0.229 | -0.008 | 0.000 | 0.009 | 0.231 | 1.777 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMYT | 99 | 2.19 | 2.00 |
| PITCH | 1 | -11.469 | 3.00 |
| PITCH | 99 | 11.528 | 3.00 |

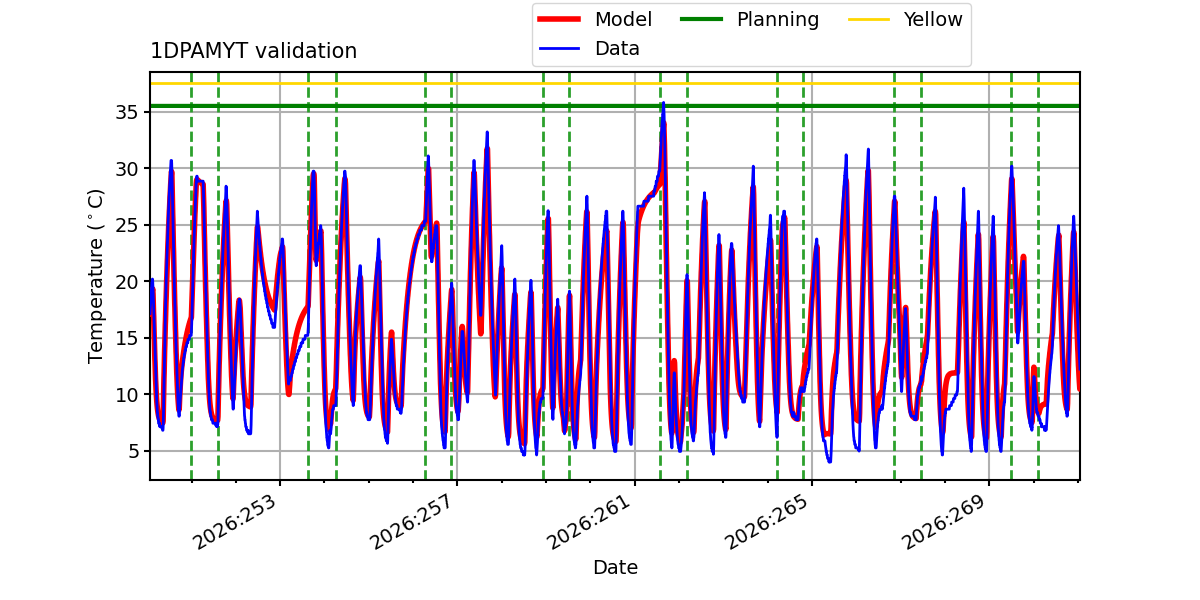

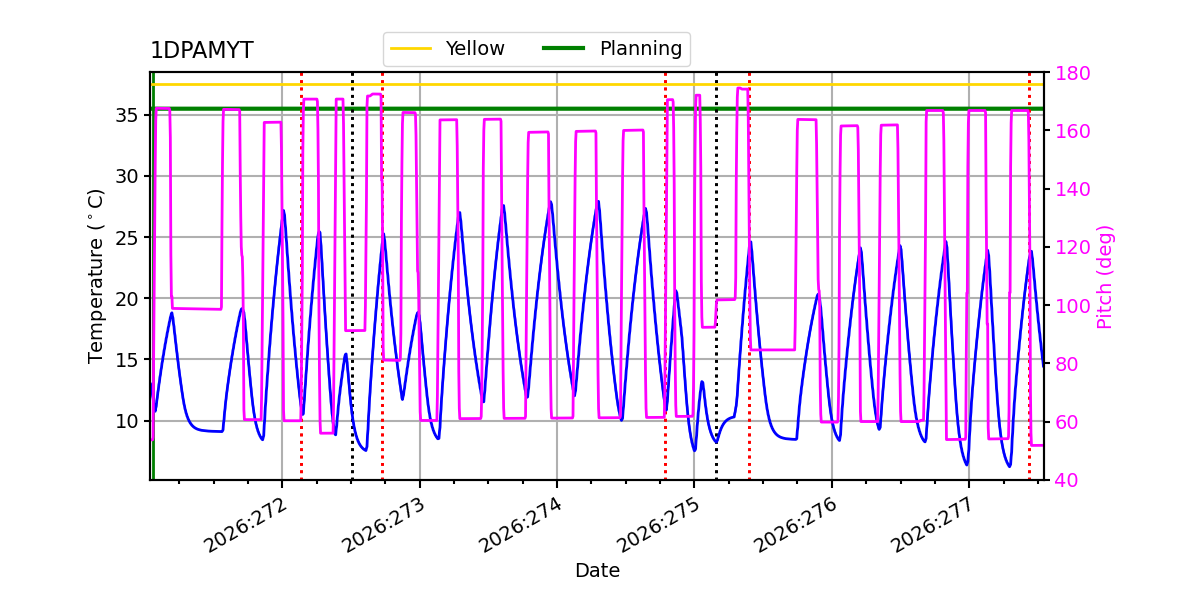

1DPAMYT

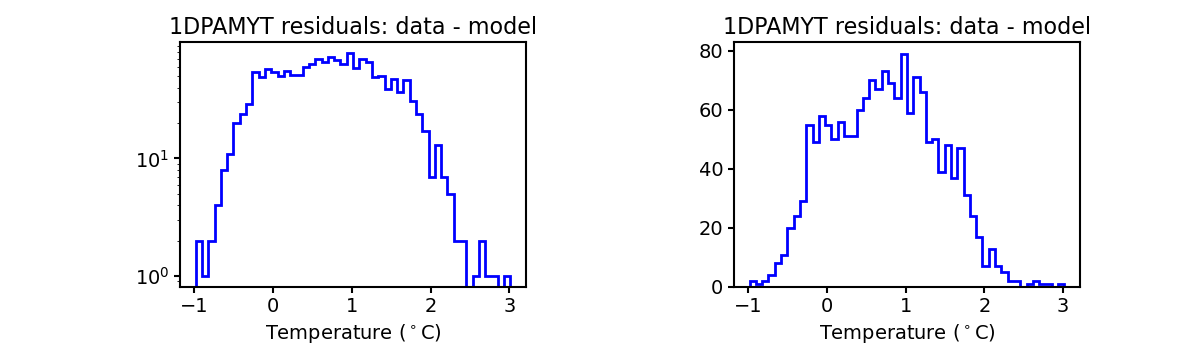

Note: 1DPAMYT residual histograms include only points where 1DPAMYT >= 20.0 C.

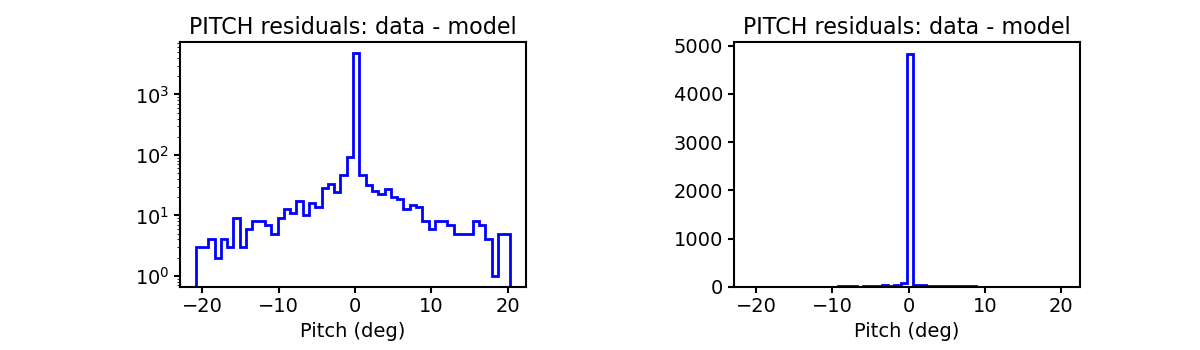

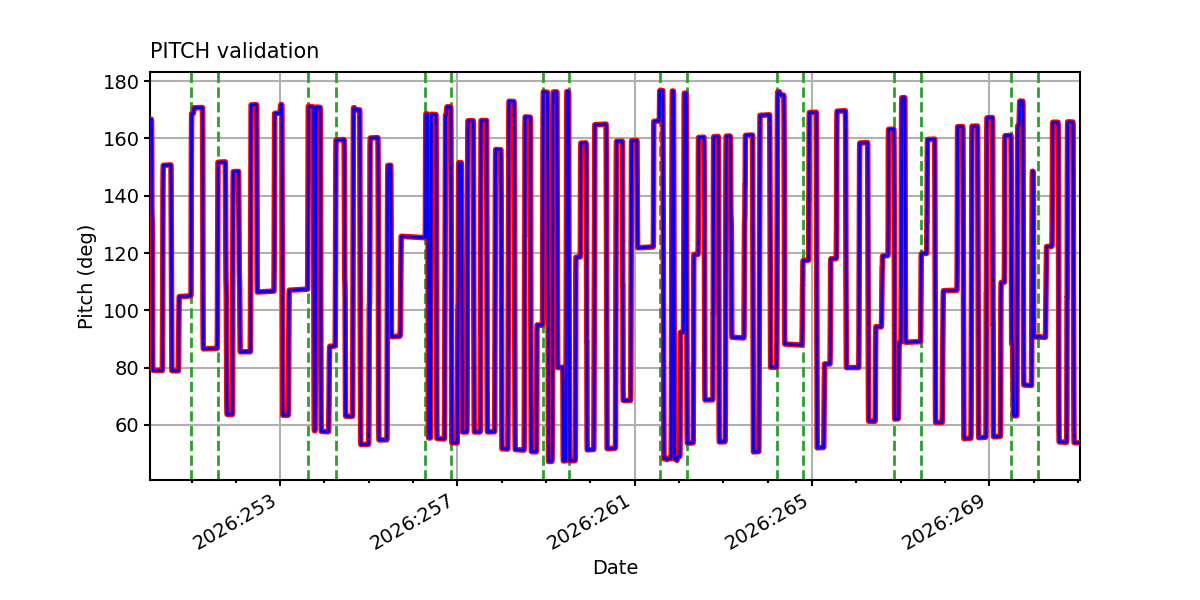

PITCH

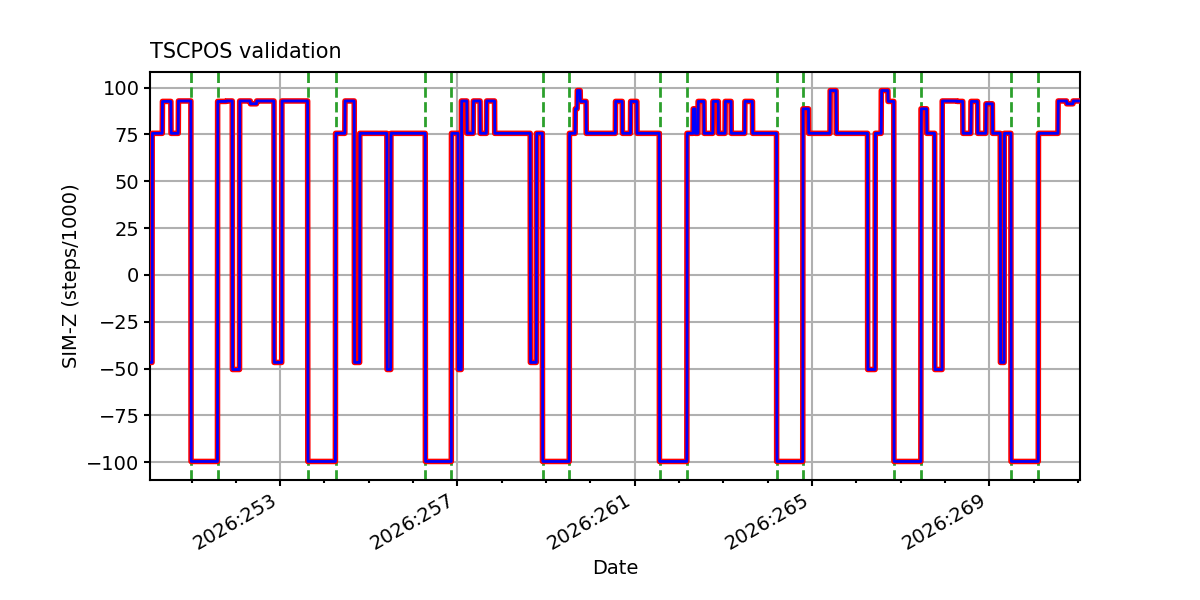

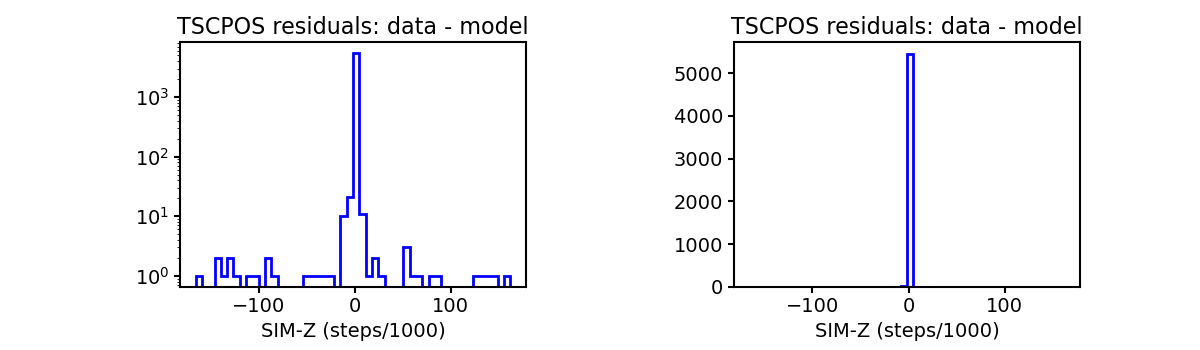

TSCPOS

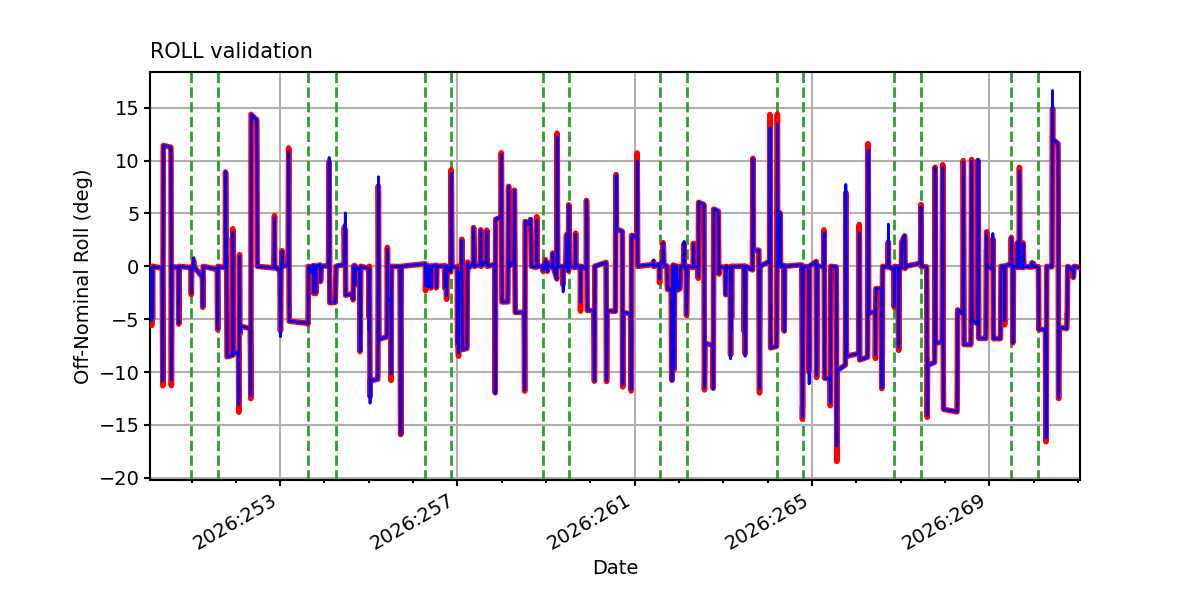

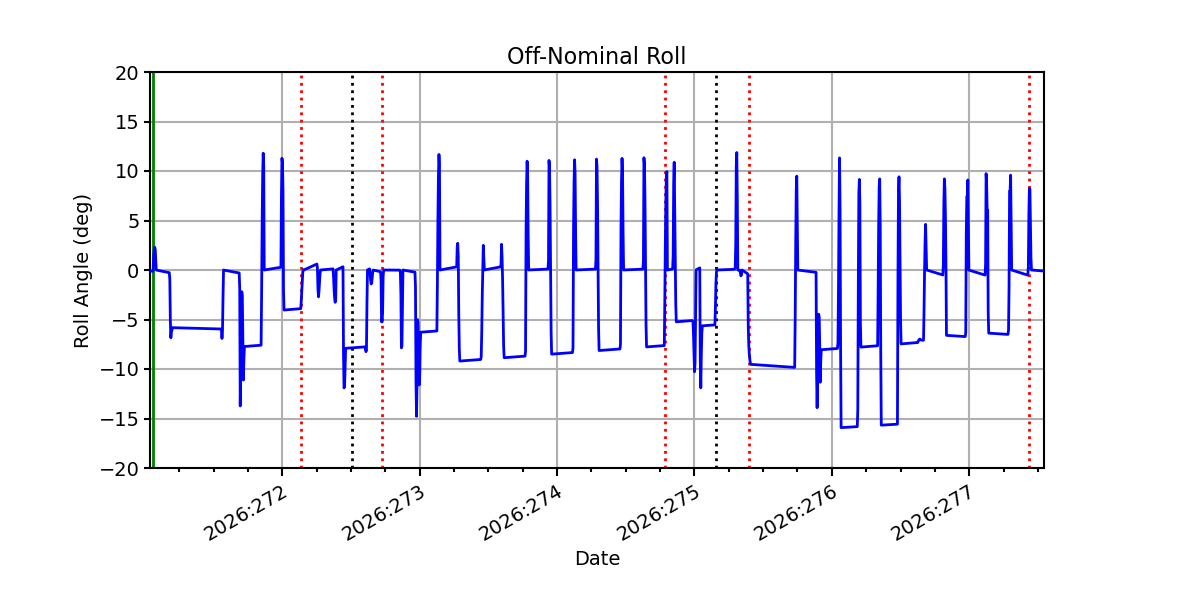

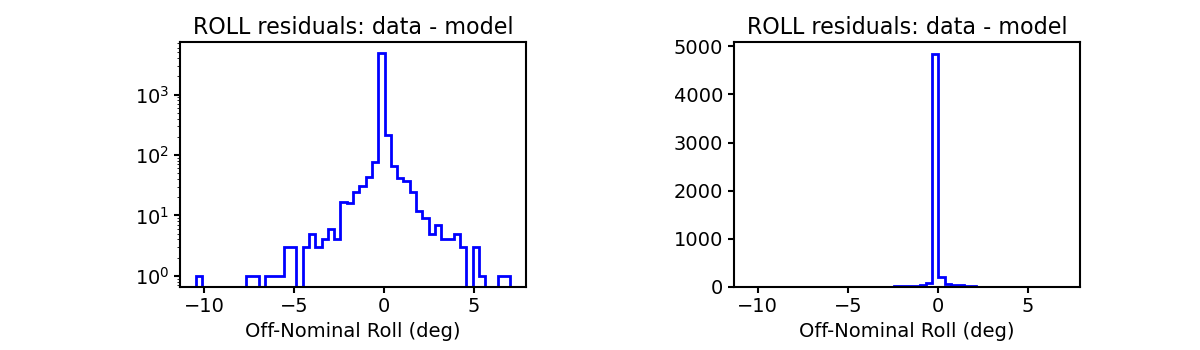

ROLL

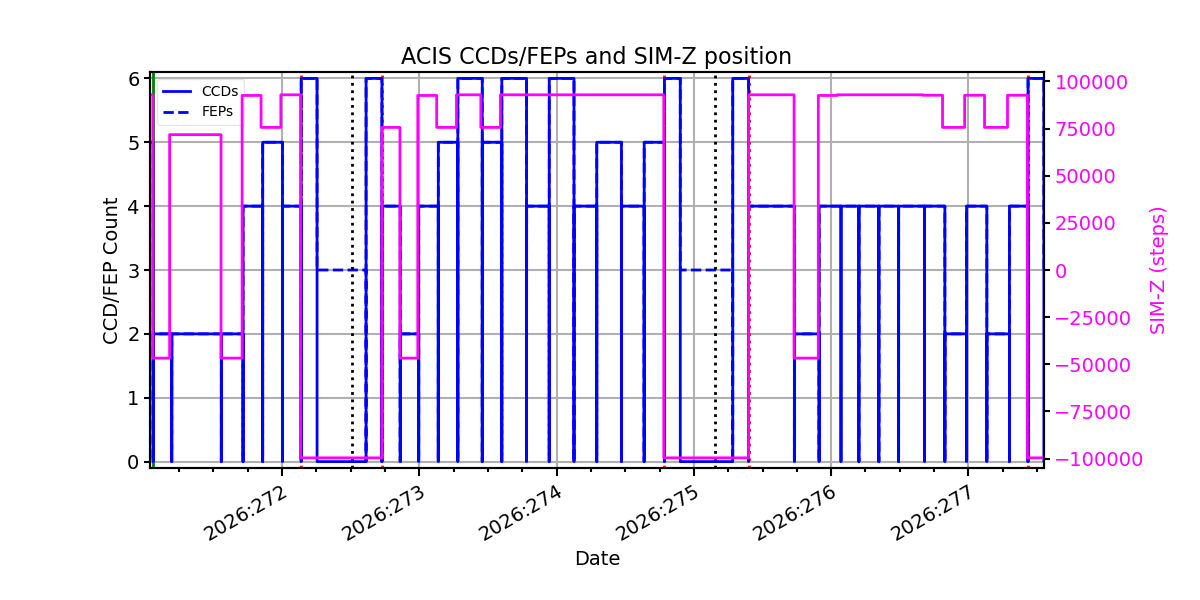

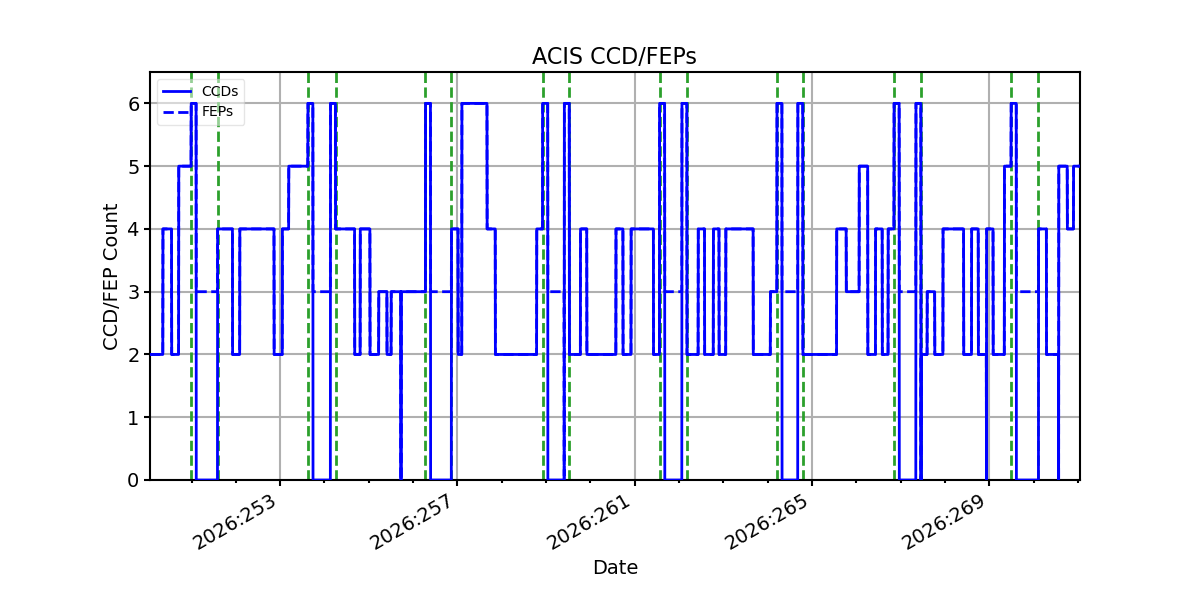

ACIS CCD/FEP Count
