DPAMYT Temperatures Check
Summary
| Date start | 2025:272:00:14:23.616 |
| Date stop | 2025:278:23:13:04.316 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/SEP2925/oflsa |
| Run time | Thu Sep 25 09:53:31 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMYT Upper Limit Violations

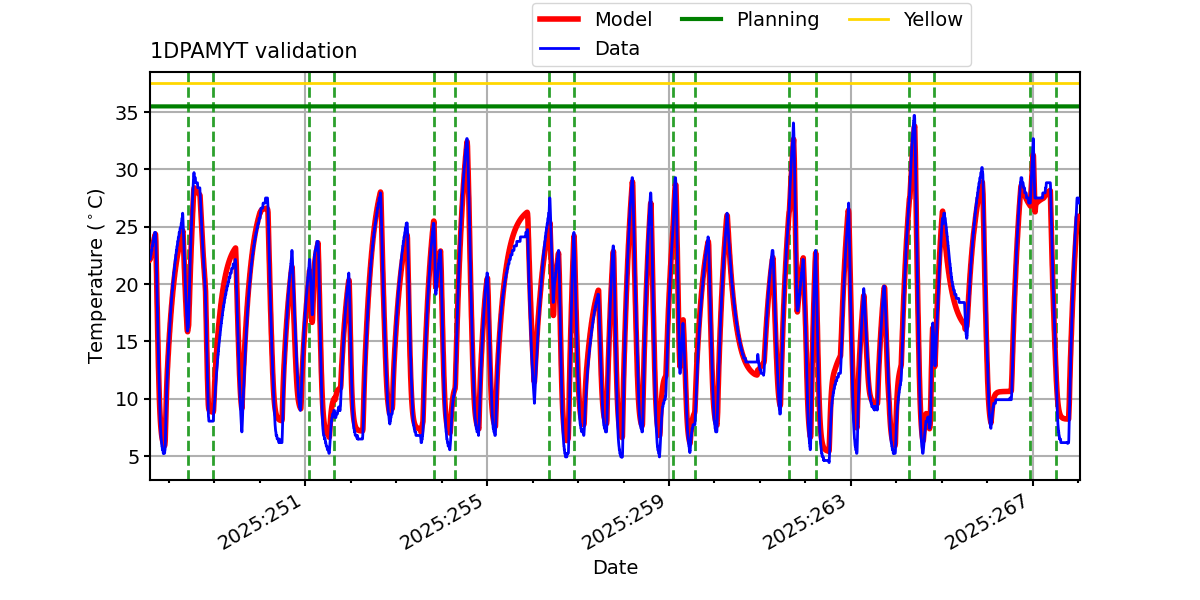

DPAMYT Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMYT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamyt | -1.87 | -1.42 | -0.37 | 0.37 | 1.04 | 1.44 | 2.00 |
| pitch | -9.068 | -0.402 | -0.004 | 0.000 | 0.004 | 0.477 | 12.748 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.596 | -0.151 | -0.008 | -0.000 | 0.007 | 0.109 | 1.567 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -9.068 | 3.00 |
| PITCH | 99 | 12.748 | 3.00 |

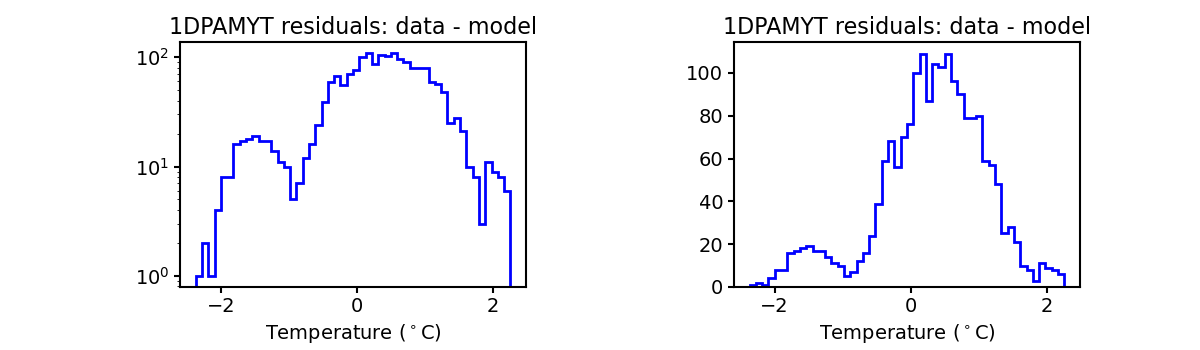

1DPAMYT
Note: 1DPAMYT residual histograms include only points where 1DPAMYT >= 20.0 C.

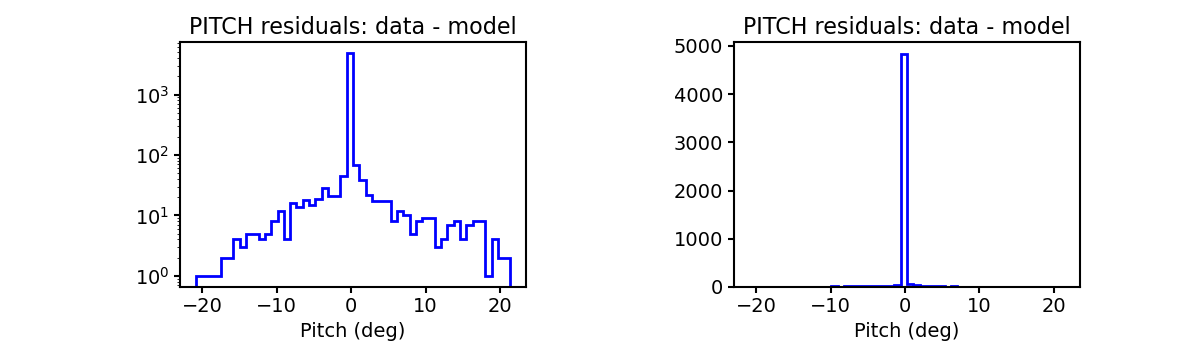

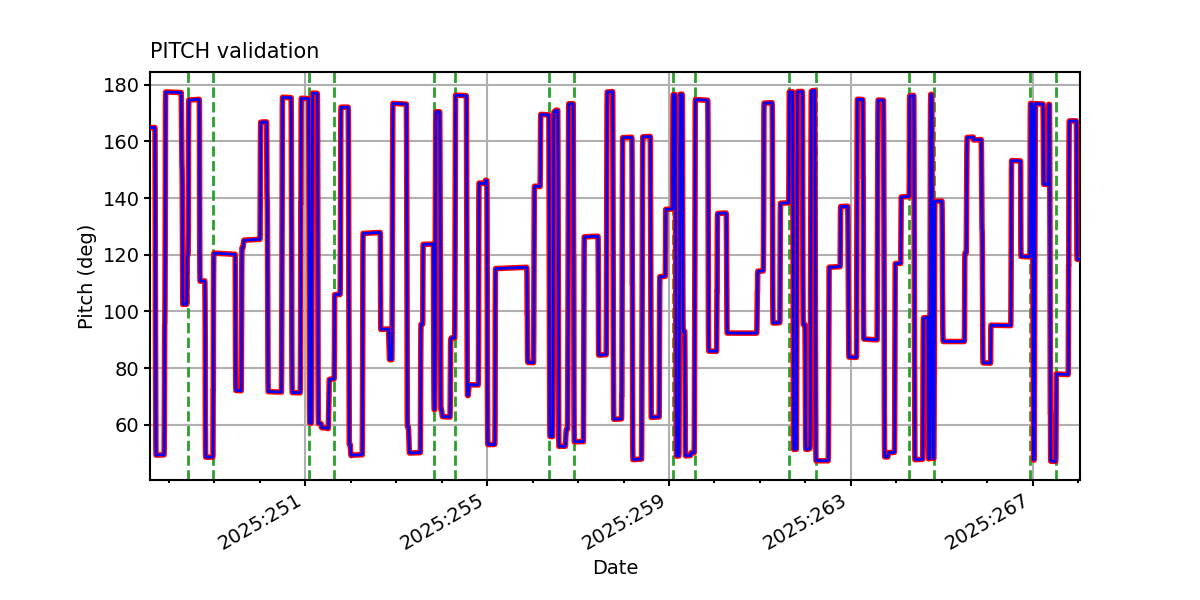

PITCH

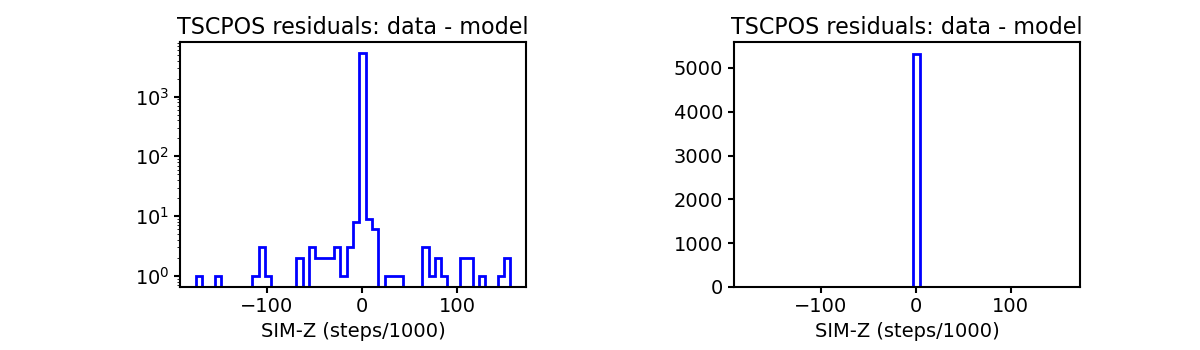

TSCPOS

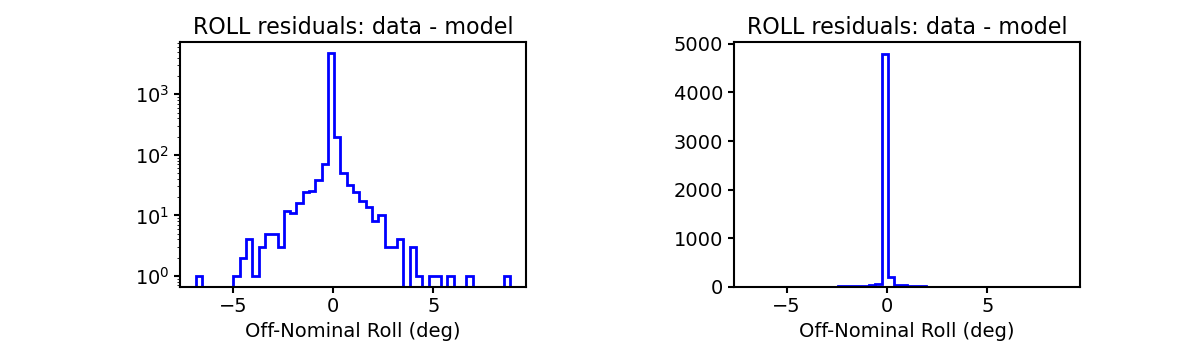

ROLL

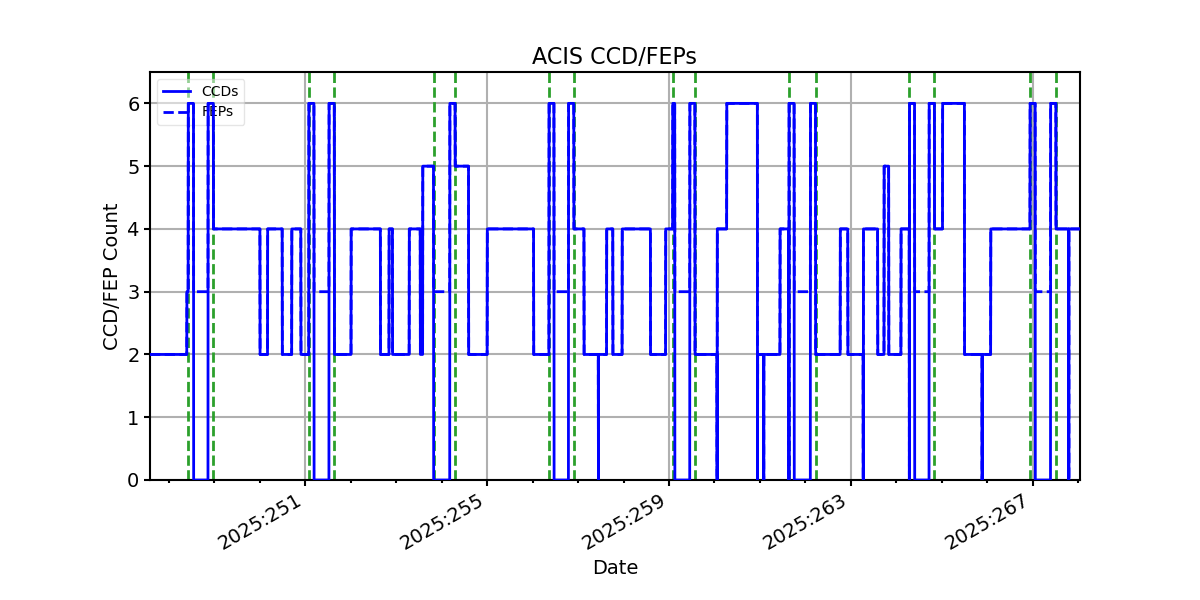

ACIS CCD/FEP Count
