DPA Temperatures Check
Summary
| Date start | 2026:095:21:40:32.216 |
| Date stop | 2026:103:00:29:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/APR0626/oflsa |
| Run time | Thu Apr 2 10:43:28 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

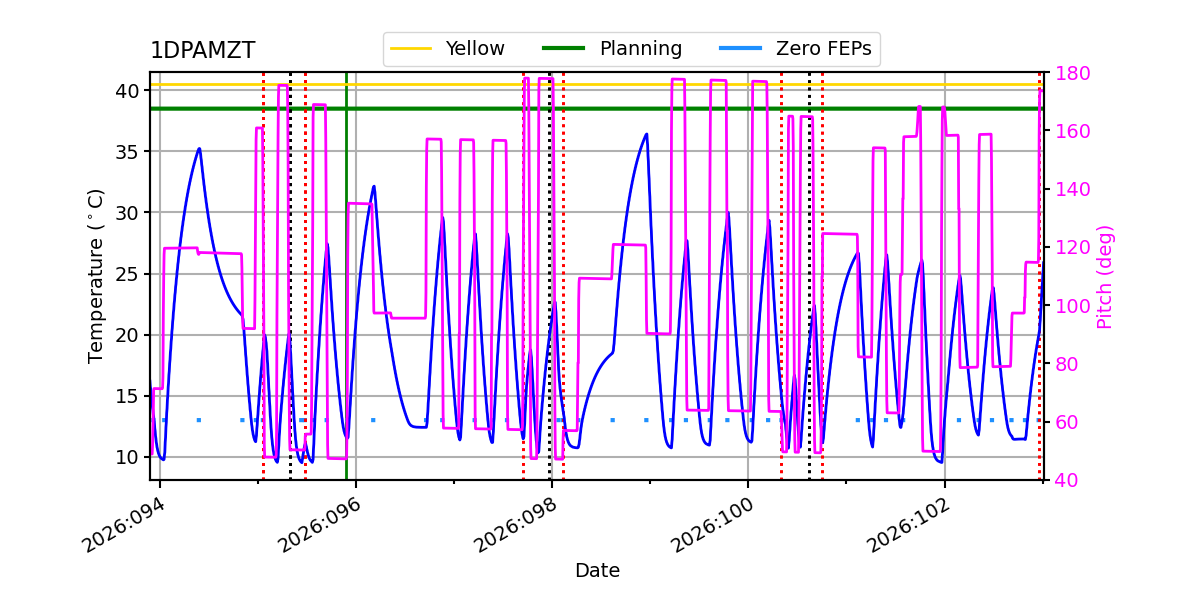

No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2026:095:21:58:29.993 | 2026:095:21:58:45.581 | 0.02 | 11.52 / 13.00 |
| 2026:097:01:23:07.875 | 2026:097:01:23:09.949 | 0.00 | 11.41 / 13.00 |
| 2026:097:09:18:11.671 | 2026:097:09:18:13.747 | 0.00 | 11.17 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -1.96 | -1.51 | -0.37 | 0.44 | 1.05 | 1.35 | 1.53 |
| pitch | -12.422 | -1.468 | -0.004 | -0.000 | 0.004 | 1.815 | 13.037 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.473 | -0.317 | -0.010 | -0.000 | 0.010 | 0.239 | 2.113 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -12.422 | 3.00 |
| PITCH | 99 | 13.037 | 3.00 |

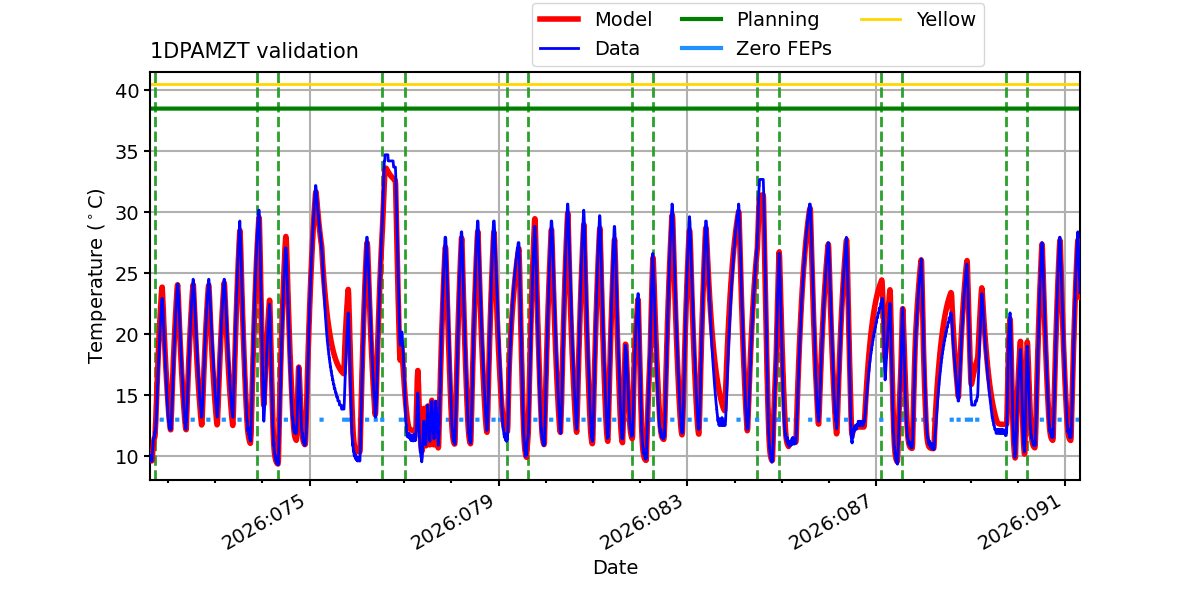

1DPAMZT

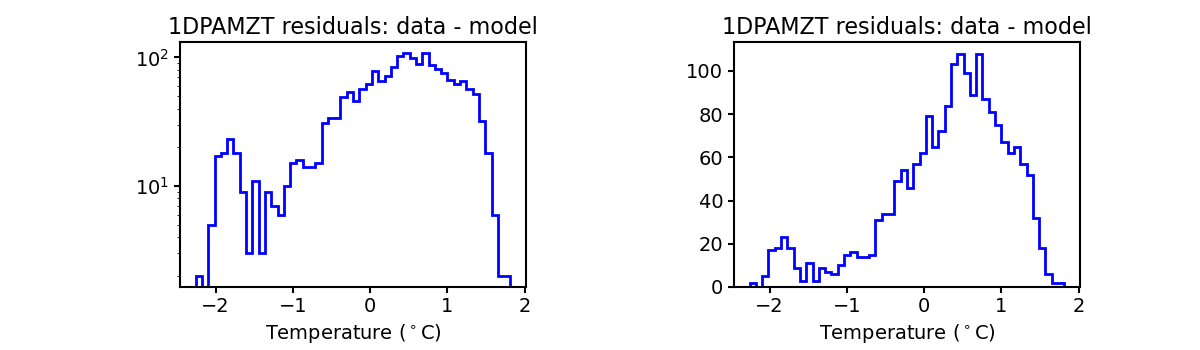

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

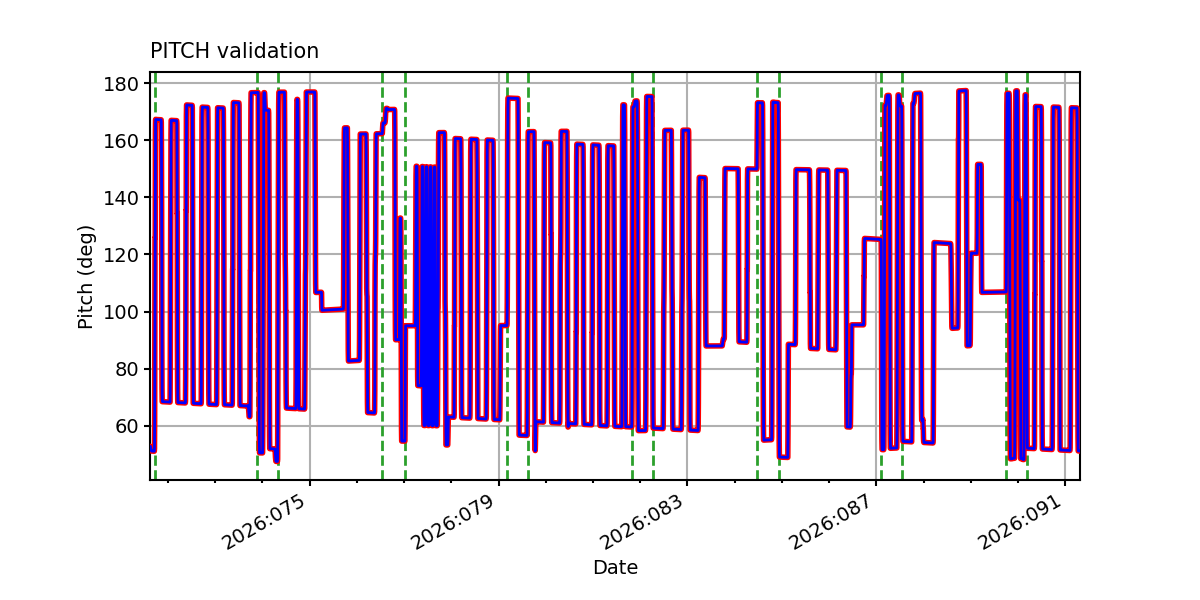

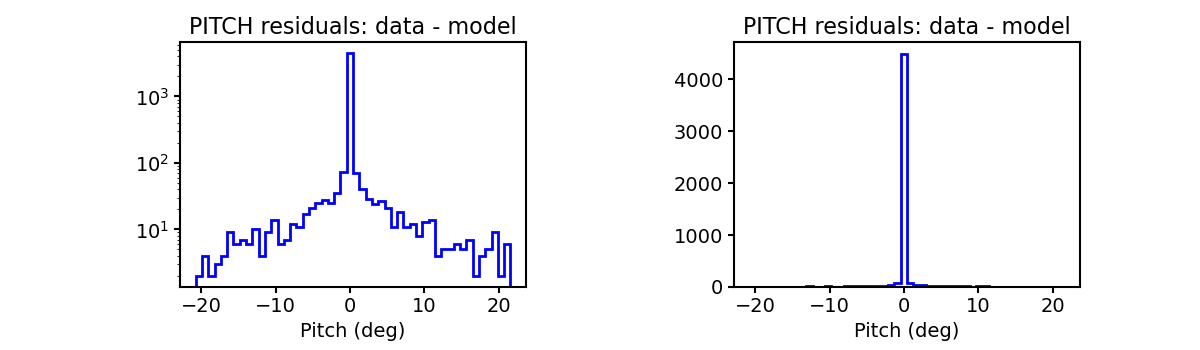

PITCH

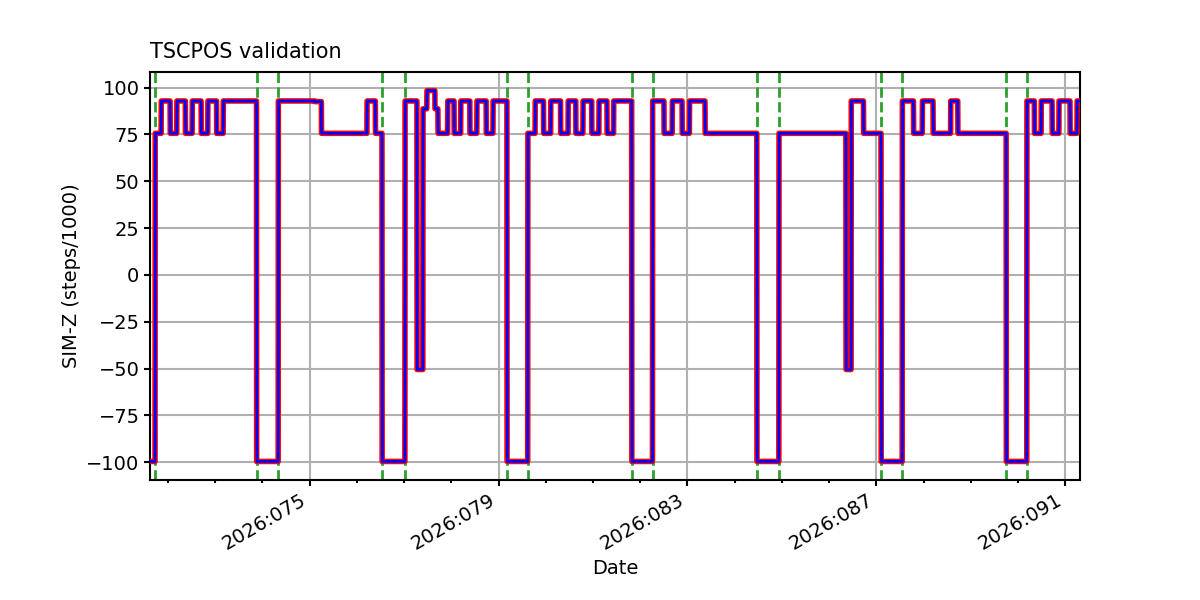

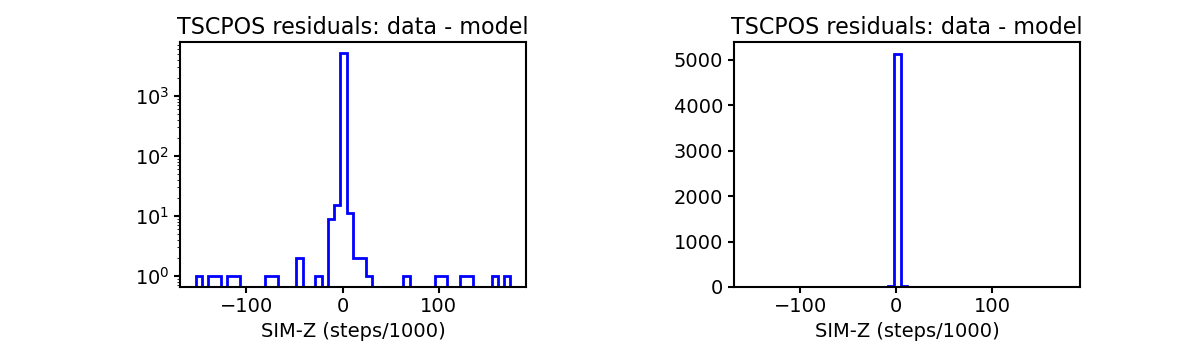

TSCPOS

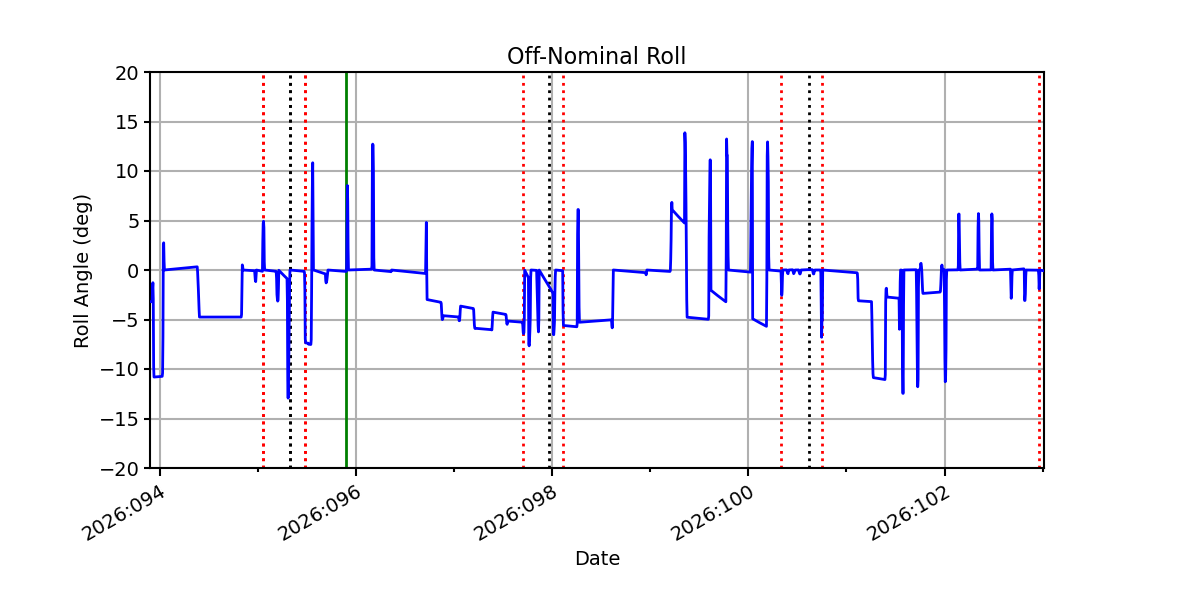

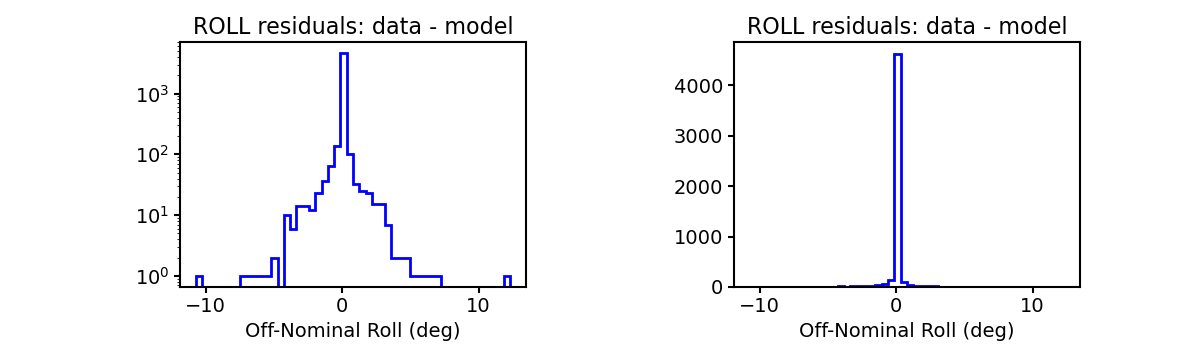

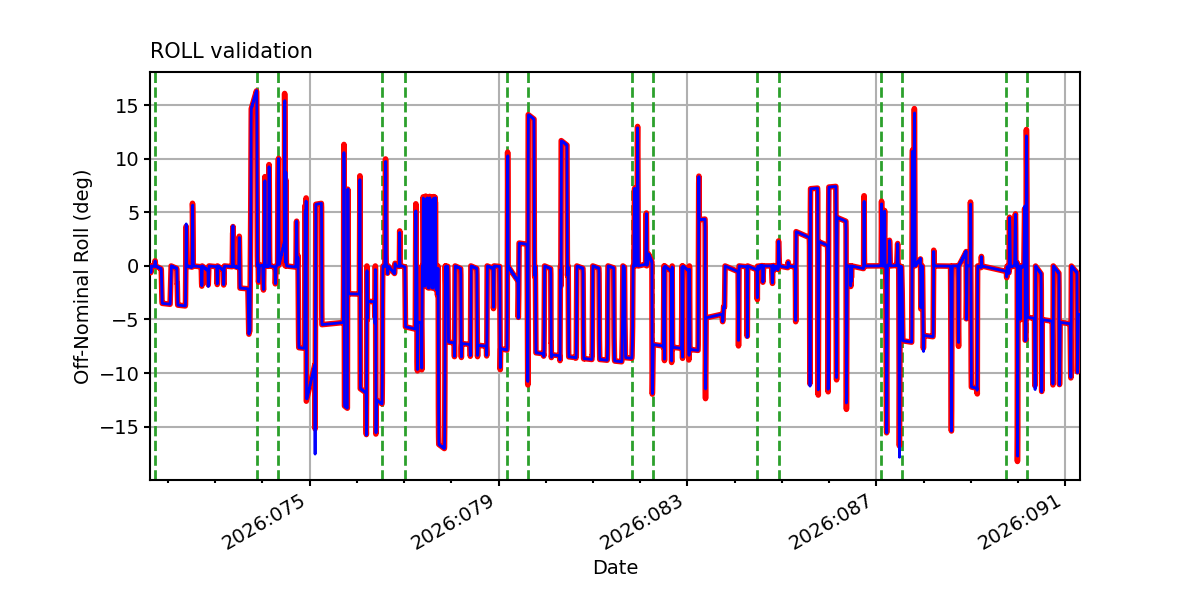

ROLL

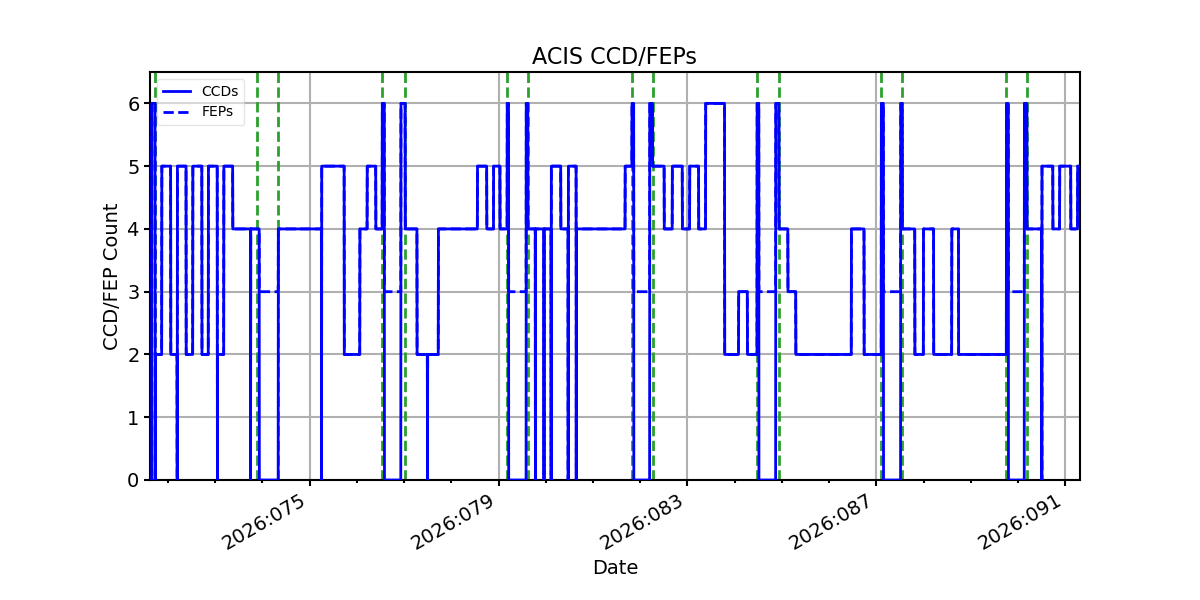

ACIS CCD/FEP Count
