DPA Temperatures Check
Summary
| Date start | 2026:103:00:26:00.016 |
| Date stop | 2026:110:01:32:52.116 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/APR1326/oflsa |
| Run time | Wed Apr 8 16:49:30 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2026:108:23:32:48.706 | 2026:108:23:32:54.816 | 0.01 | 11.82 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -3.36 | -1.93 | -0.67 | 0.35 | 0.92 | 1.26 | 1.48 |
| pitch | -12.422 | -1.106 | -0.004 | -0.000 | 0.004 | 1.635 | 12.106 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -2.210 | -0.185 | -0.007 | -0.000 | 0.007 | 0.164 | 2.112 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -3.36 | 2.00 |
| PITCH | 1 | -12.422 | 3.00 |
| PITCH | 99 | 12.106 | 3.00 |

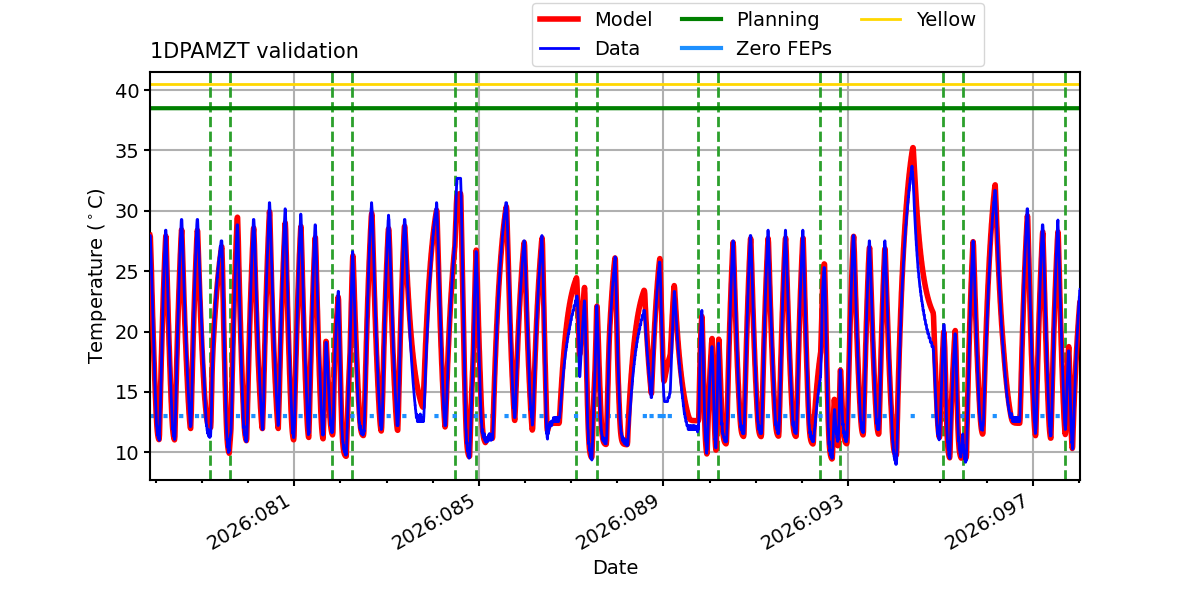

1DPAMZT

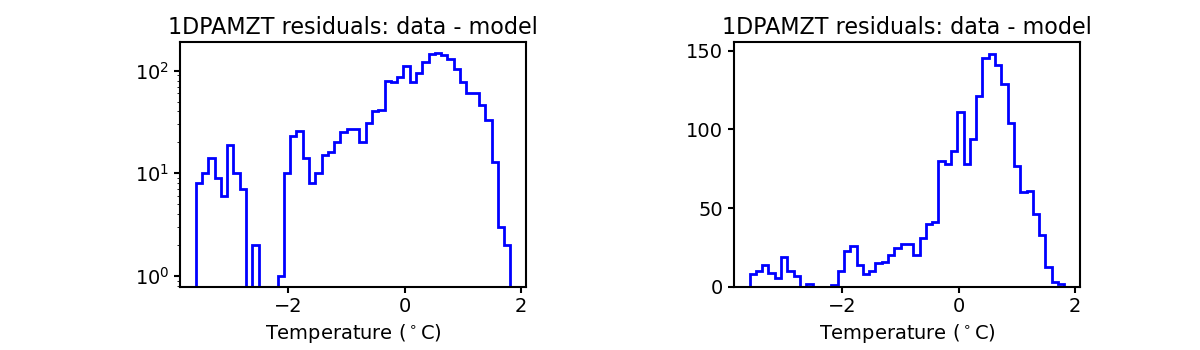

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

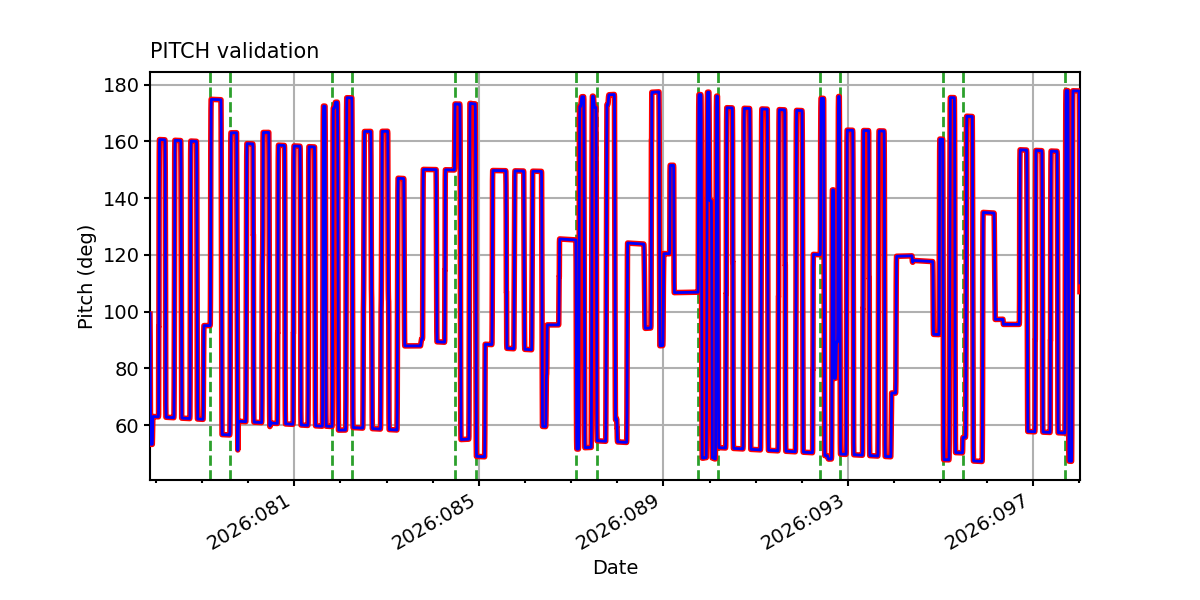

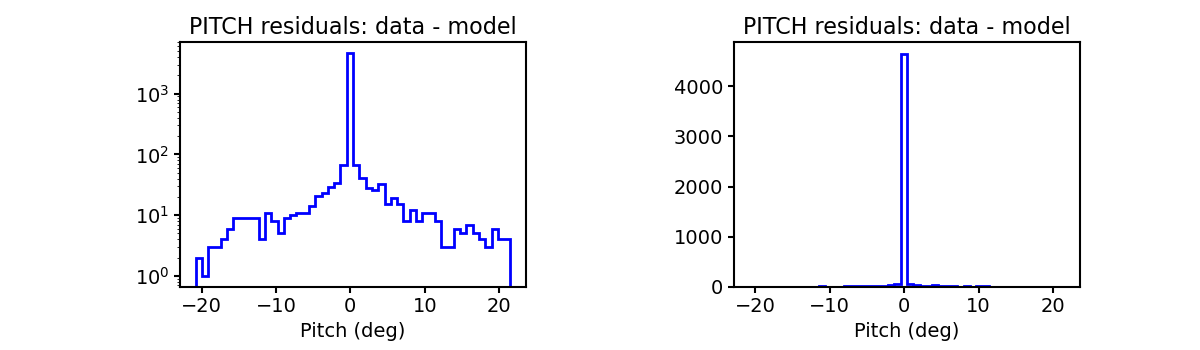

PITCH

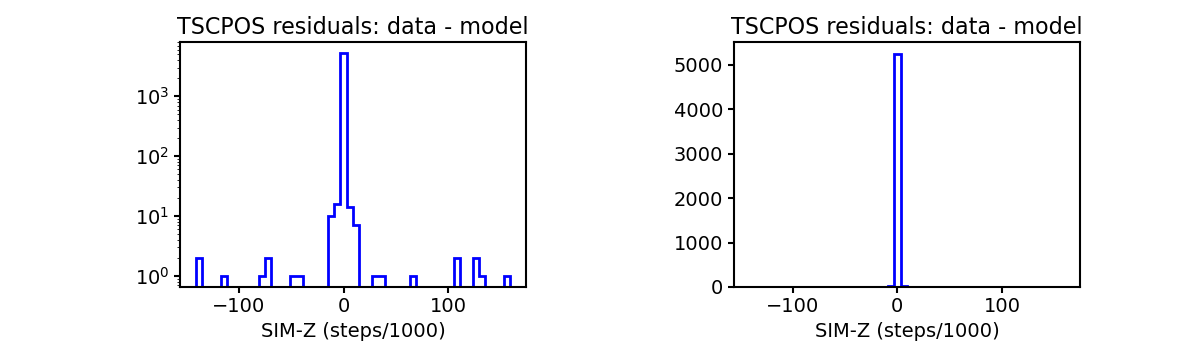

TSCPOS

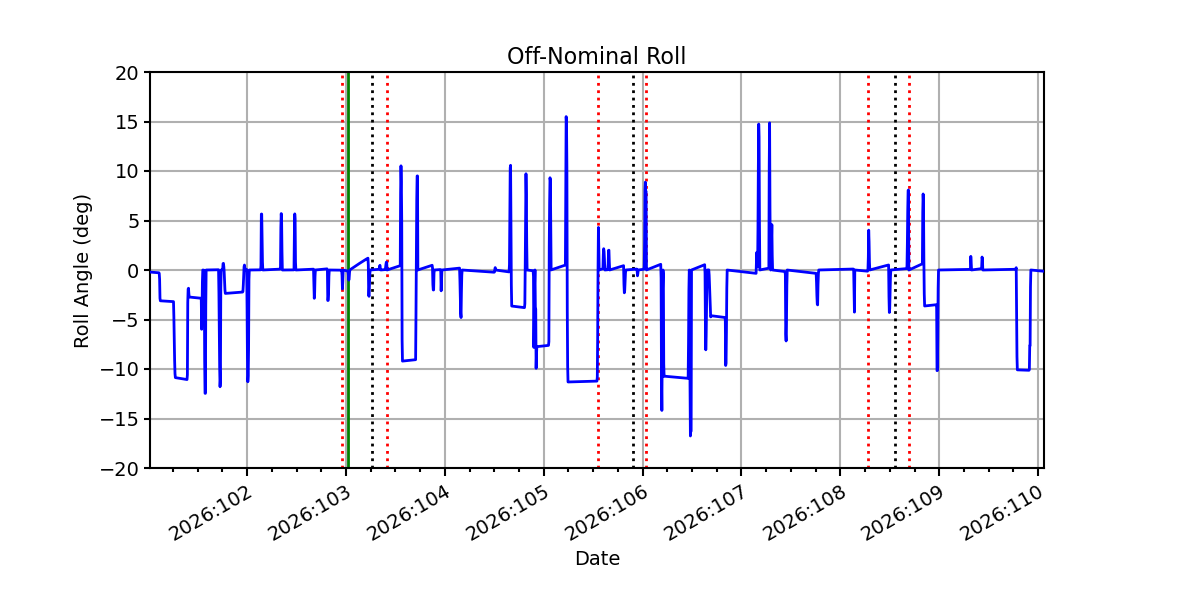

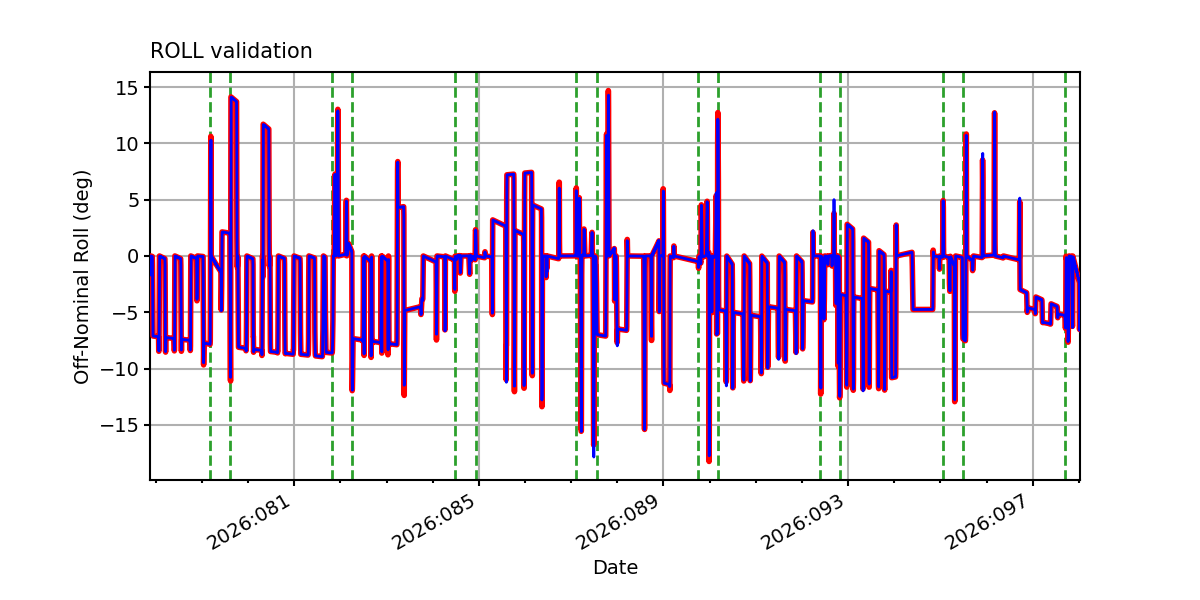

ROLL

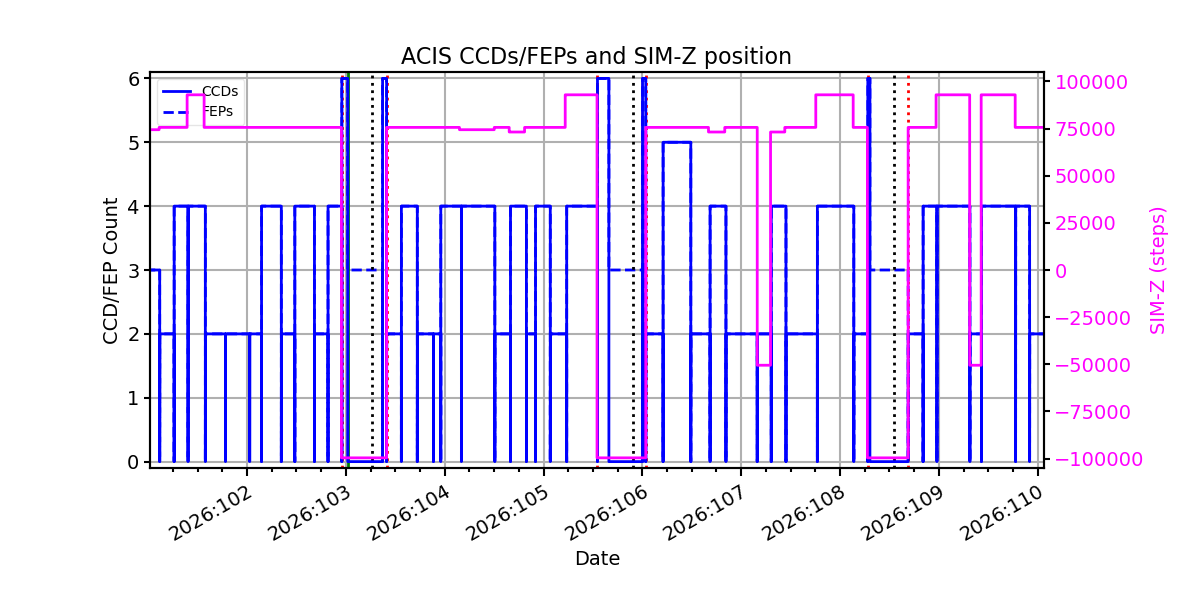

ACIS CCD/FEP Count
