DPA Temperatures Check
Summary
| Date start | 2026:110:01:29:52.116 |
| Date stop | 2026:117:01:19:40.316 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/APR2026/oflsa |
| Run time | Wed Apr 15 16:30:45 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2026:111:22:47:50.542 | 2026:111:22:47:50.816 | 0.00 | 12.42 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -3.36 | -2.20 | -1.72 | 0.06 | 0.69 | 0.91 | 1.35 |
| pitch | -11.191 | -0.929 | -0.004 | 0.000 | 0.004 | 1.401 | 12.106 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |

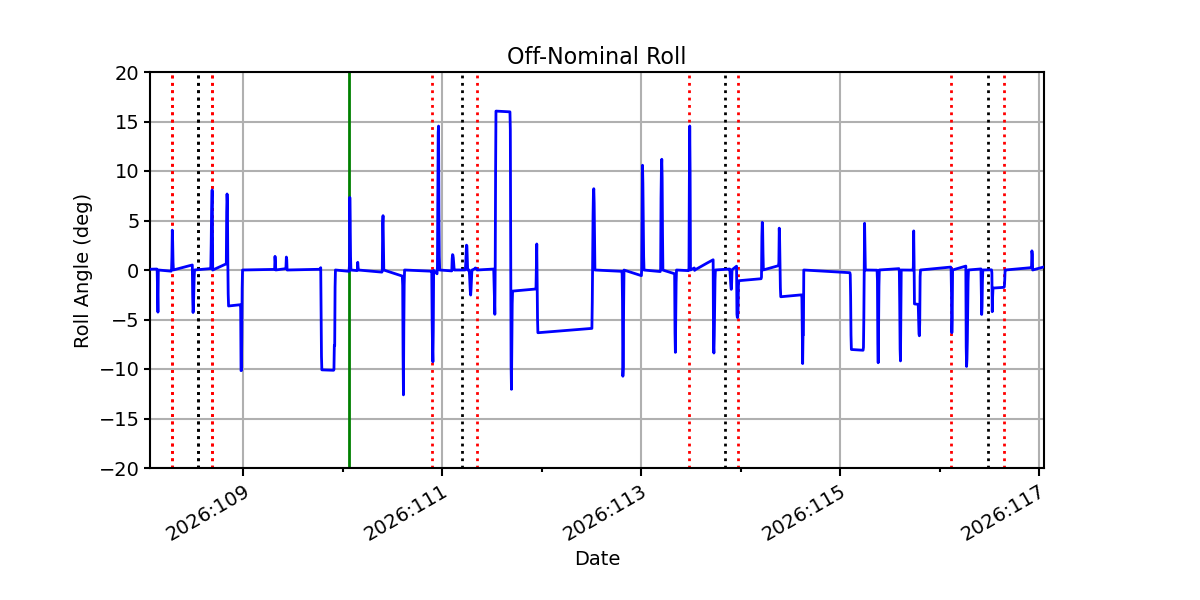

| roll | -2.035 | -0.174 | -0.007 | -0.000 | 0.006 | 0.168 | 1.978 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -3.36 | 2.00 |
| PITCH | 1 | -11.191 | 3.00 |
| PITCH | 99 | 12.106 | 3.00 |

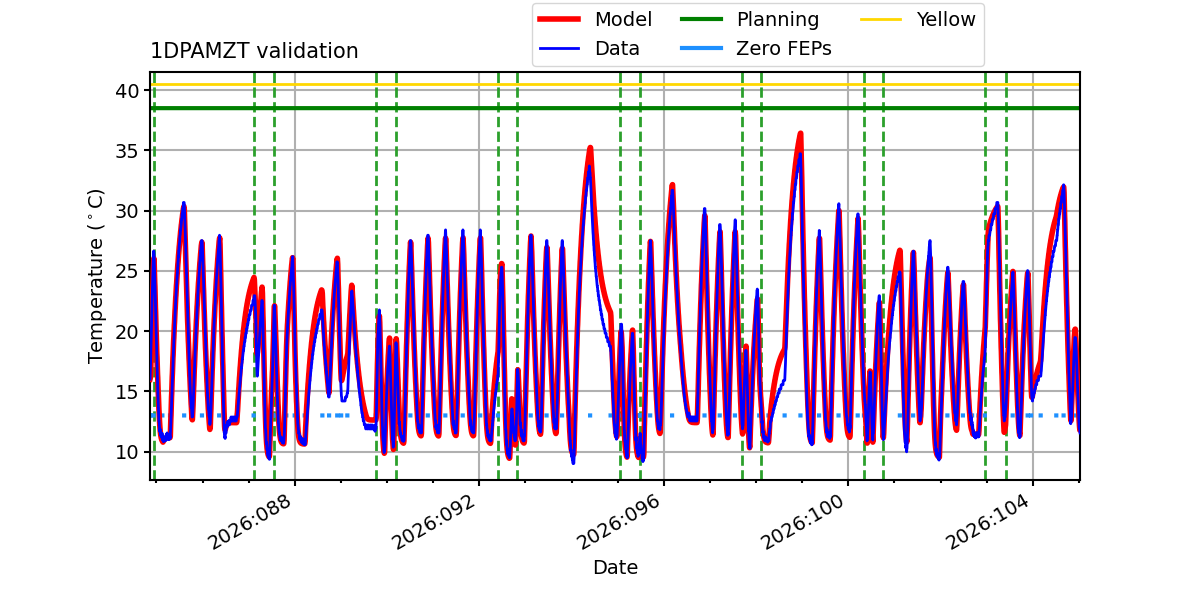

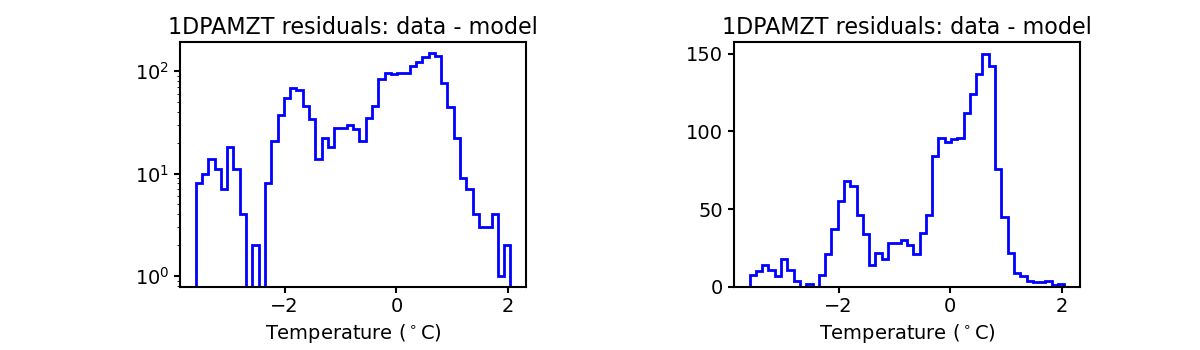

1DPAMZT
Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

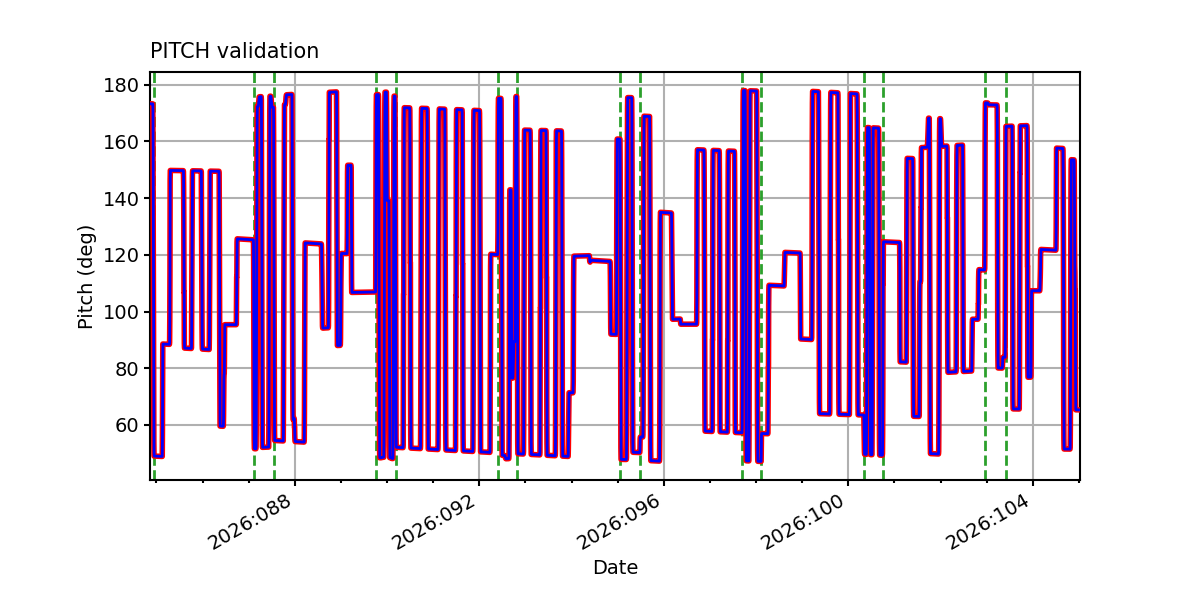

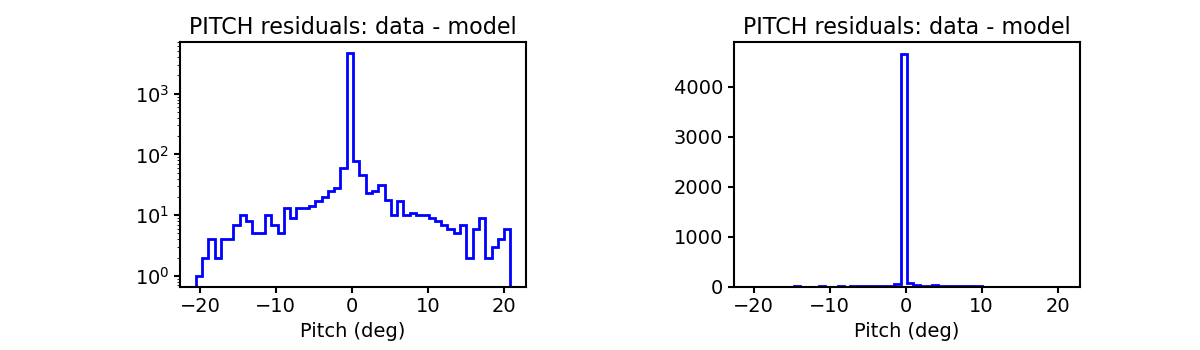

PITCH

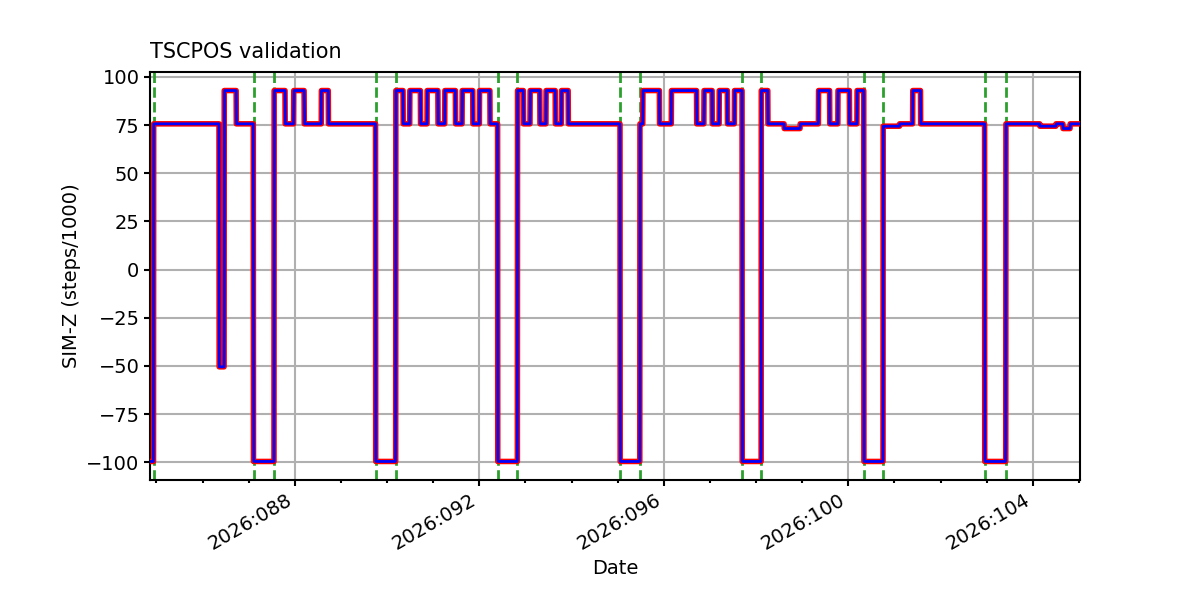

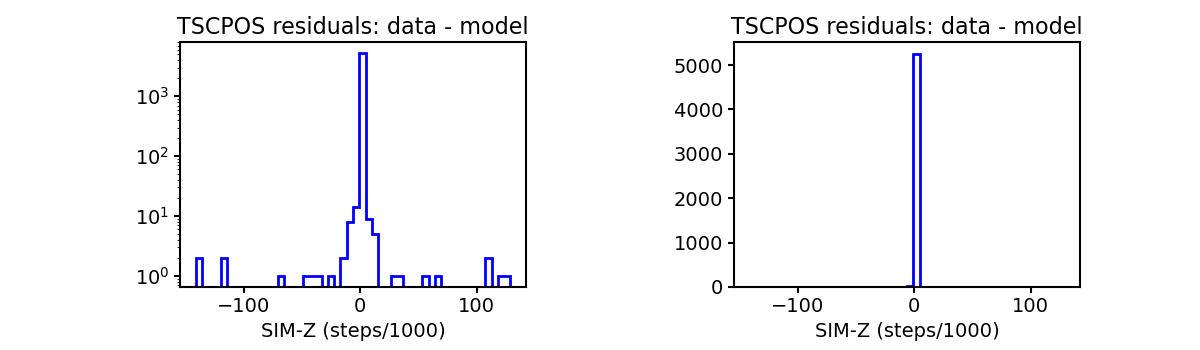

TSCPOS

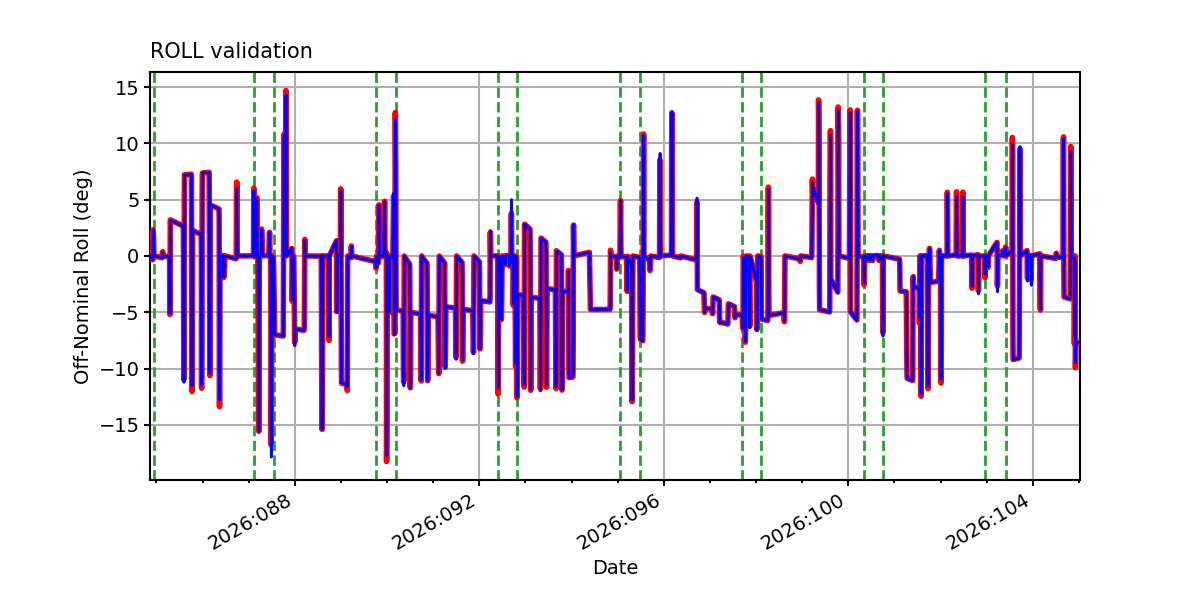

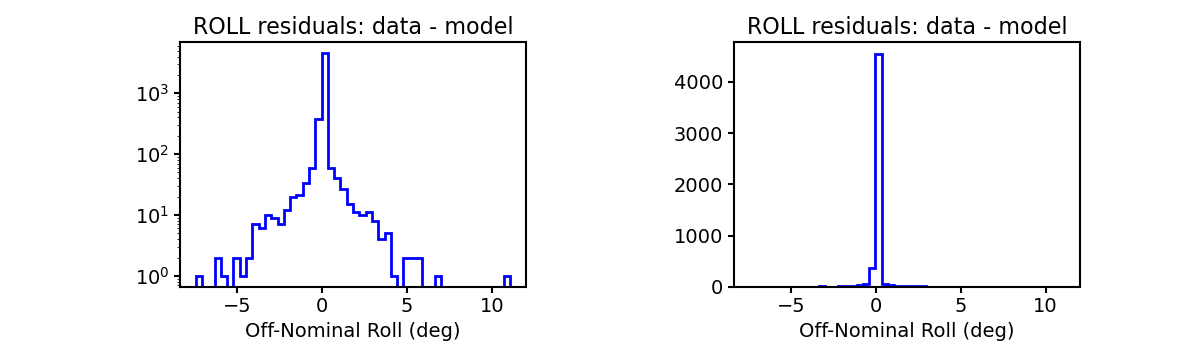

ROLL

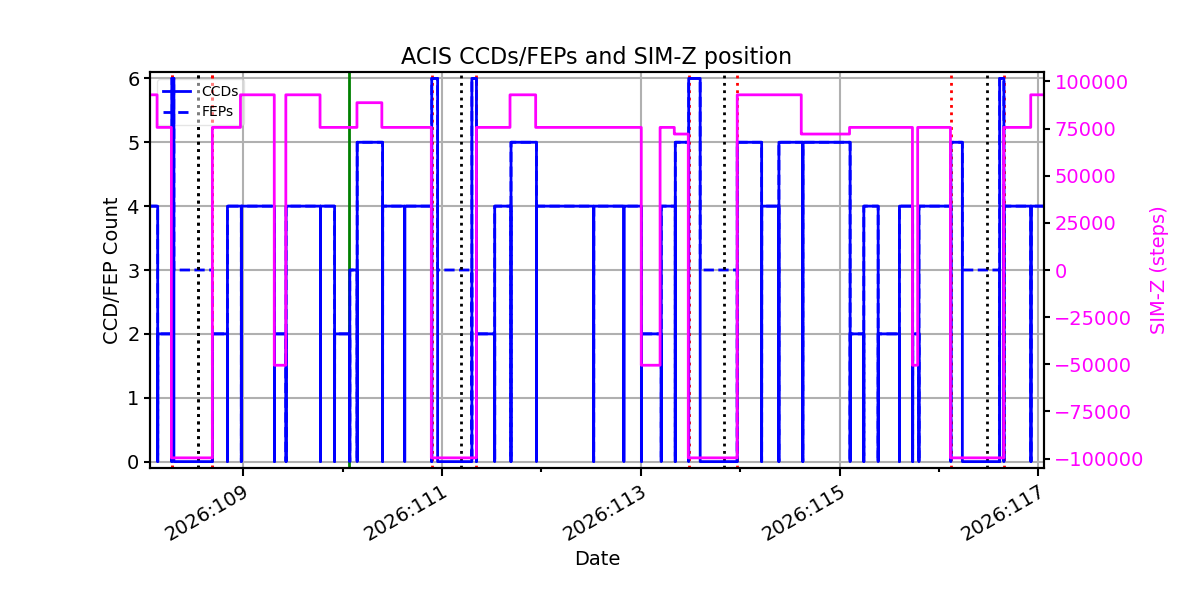

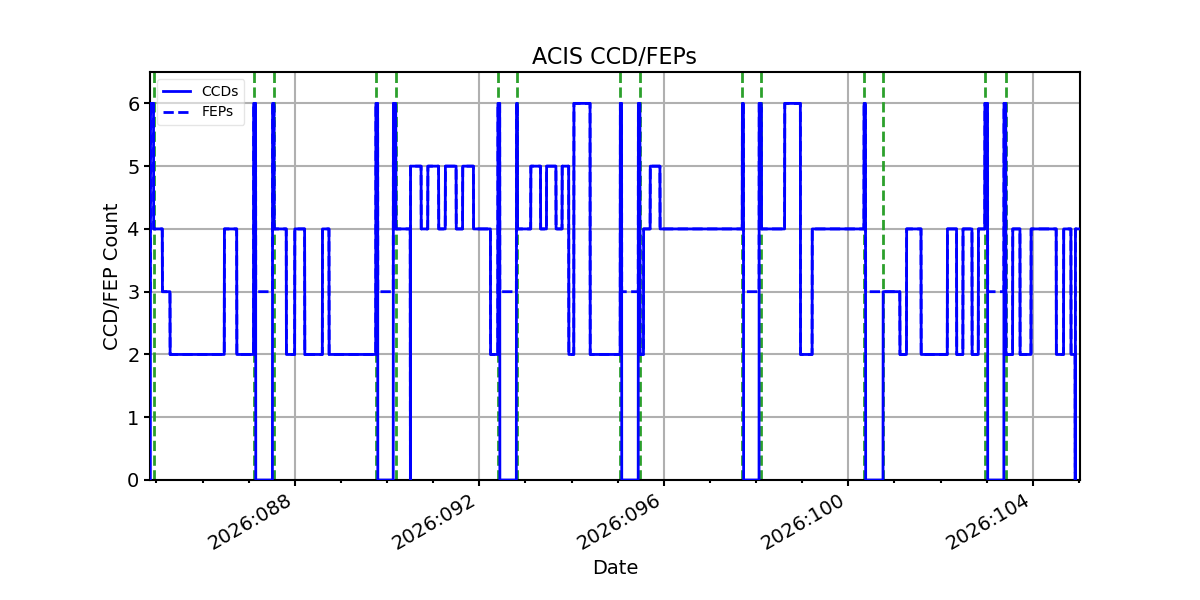

ACIS CCD/FEP Count
