DPA Temperatures Check
Summary
| Date start | 2026:117:01:16:40.316 |
| Date stop | 2026:123:23:23:16.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/APR2726/oflsa |
| Run time | Wed Apr 22 09:29:03 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

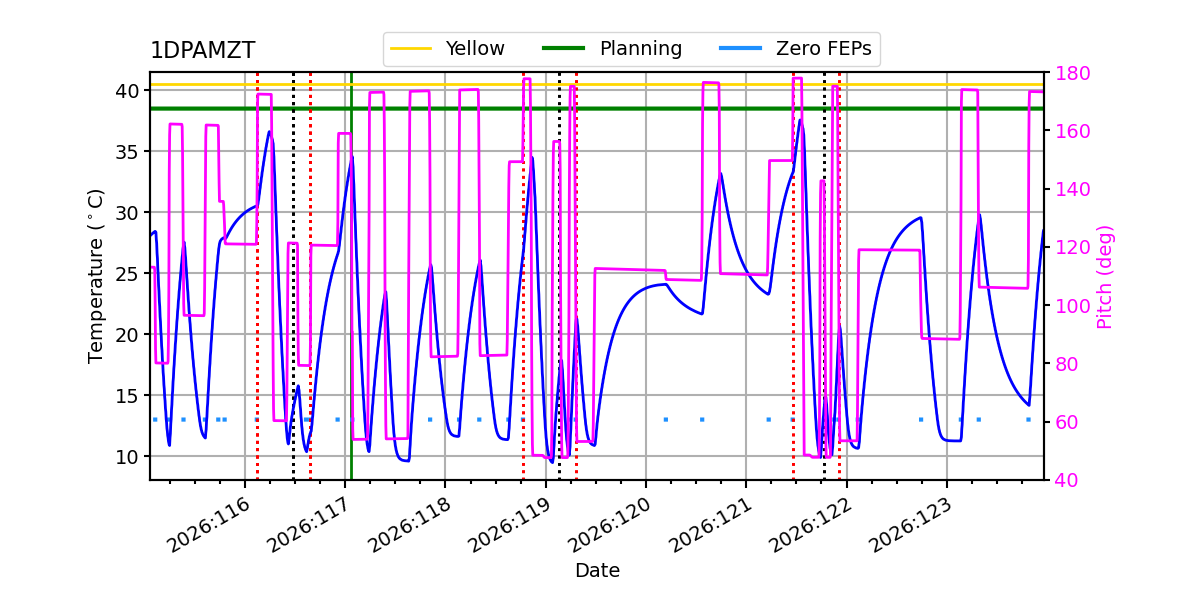

No 1DPAMZT Upper Limit Violations
No 1DPAMZT Lower Limit Violations
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -3.25 | -2.12 | -1.48 | -0.03 | 0.77 | 1.31 | 1.83 |
| pitch | -11.066 | -0.652 | -0.004 | 0.000 | 0.004 | 0.988 | 11.266 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -1.929 | -0.143 | -0.007 | -0.000 | 0.007 | 0.144 | 1.978 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -3.25 | 2.00 |
| PITCH | 1 | -11.066 | 3.00 |
| PITCH | 99 | 11.266 | 3.00 |

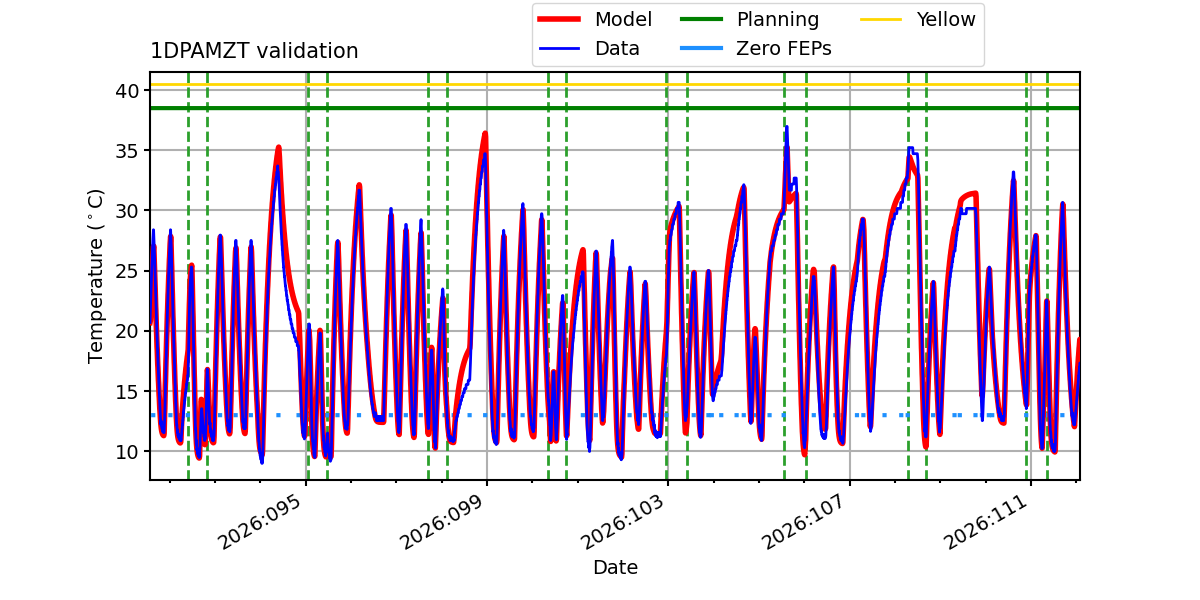

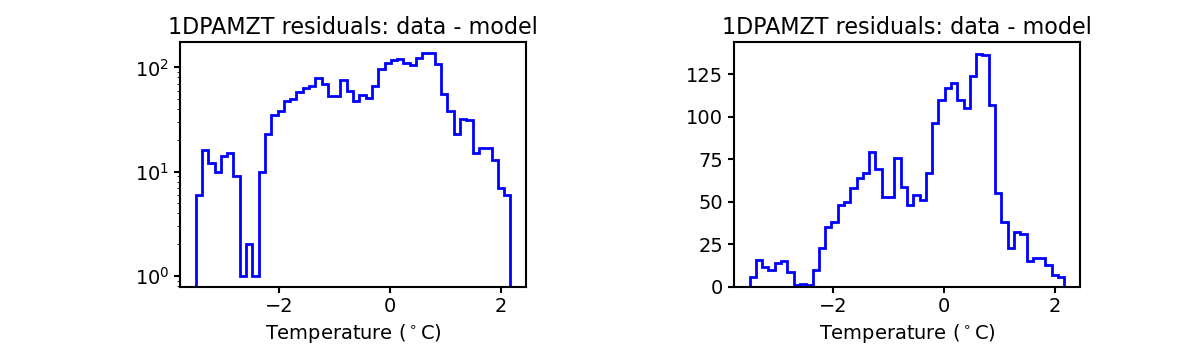

1DPAMZT
Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

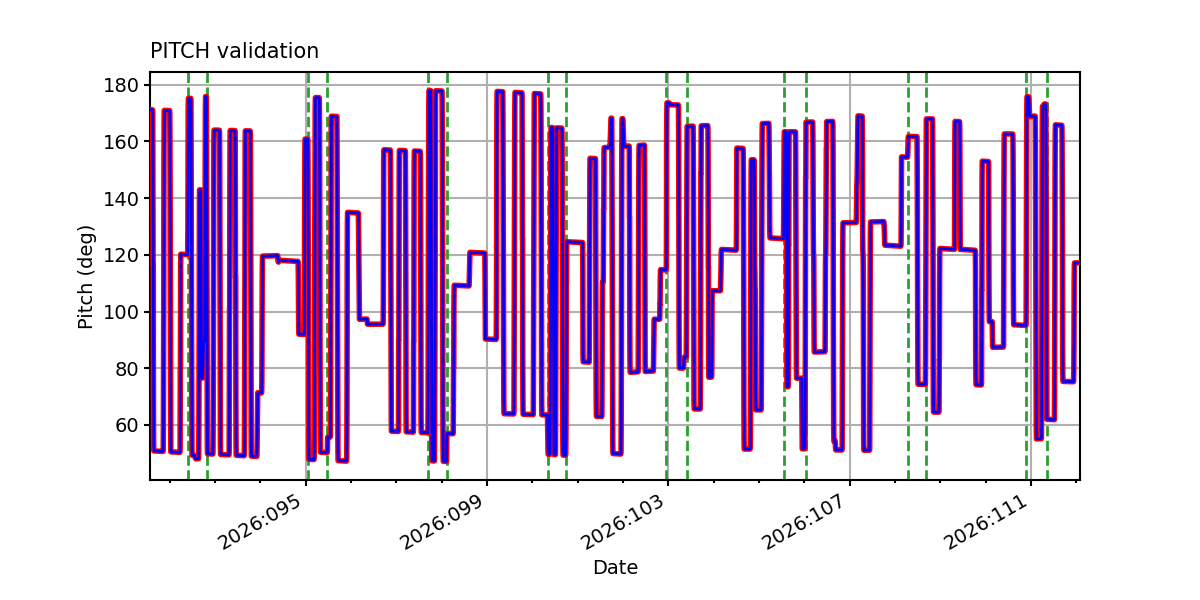

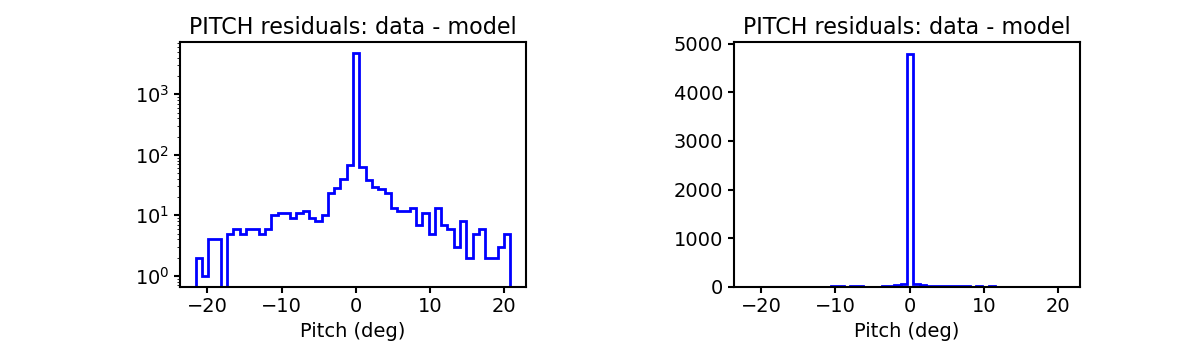

PITCH

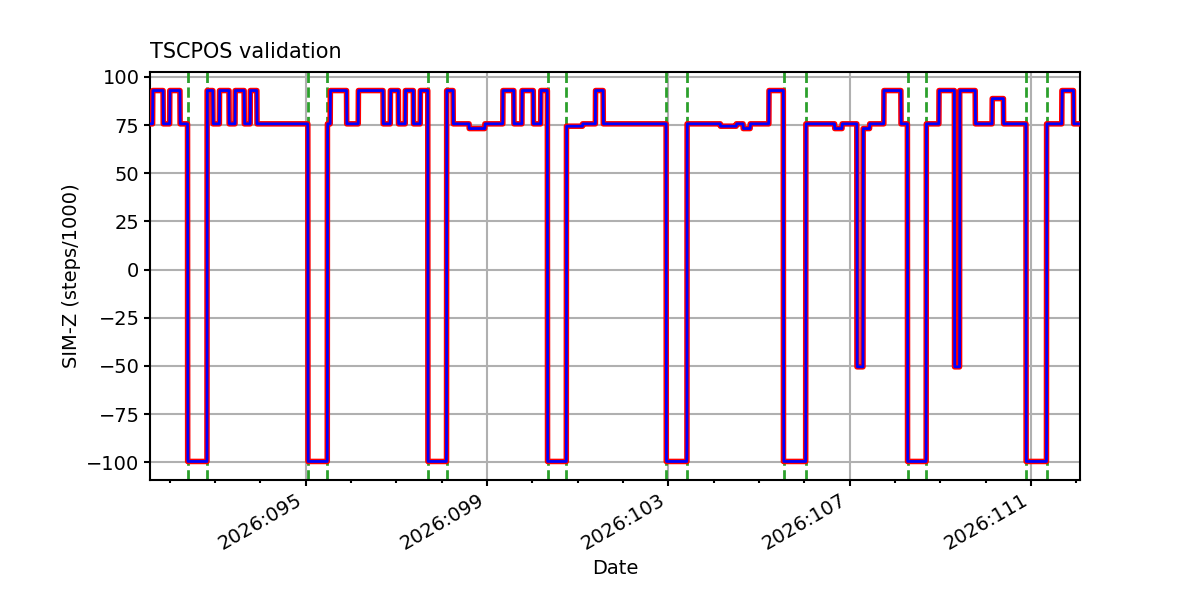

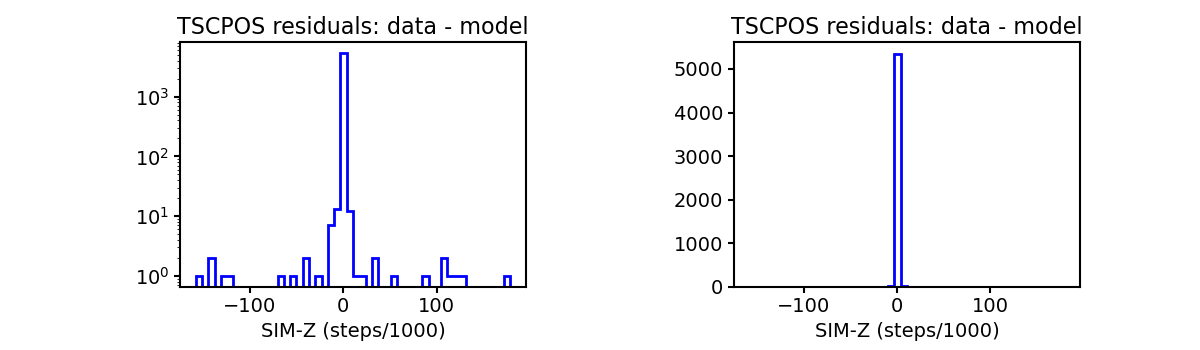

TSCPOS

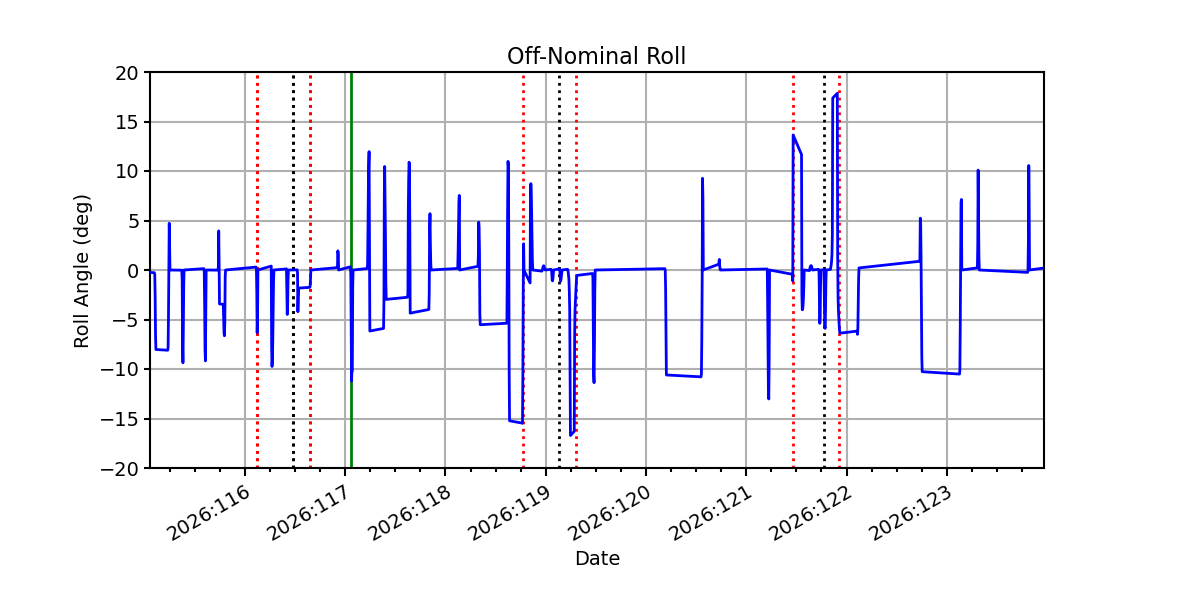

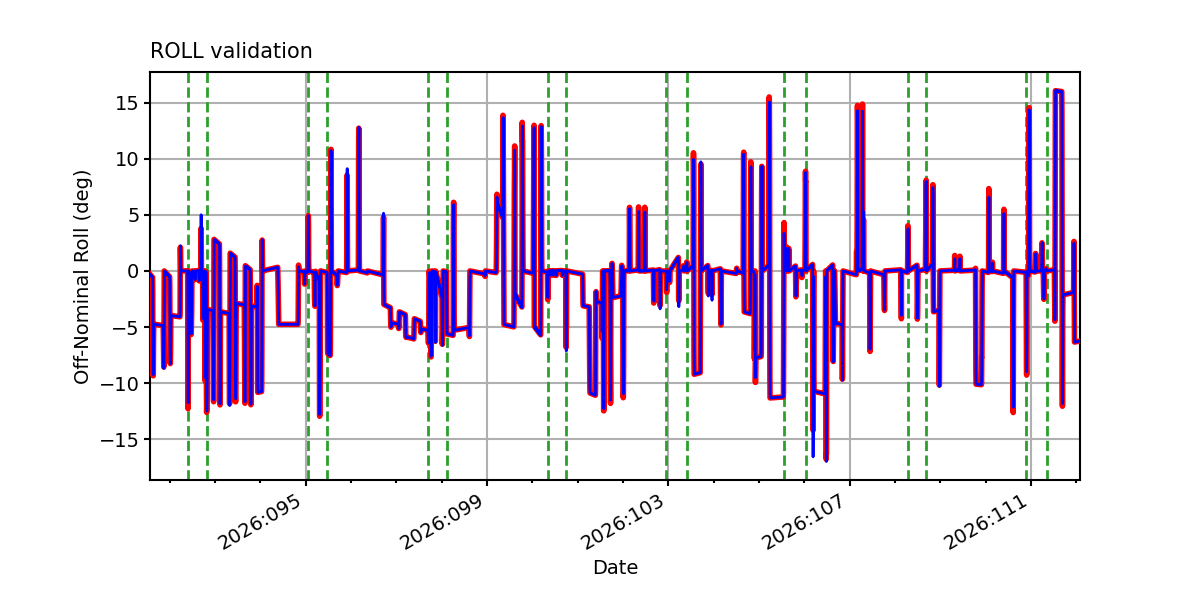

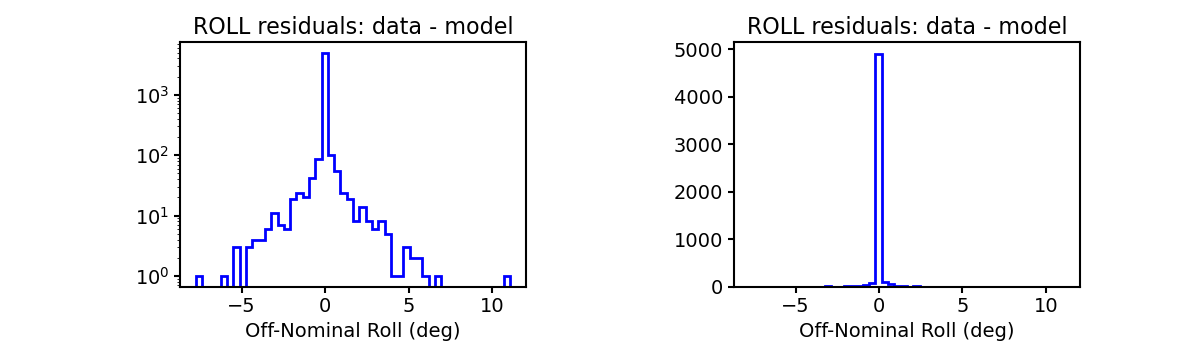

ROLL

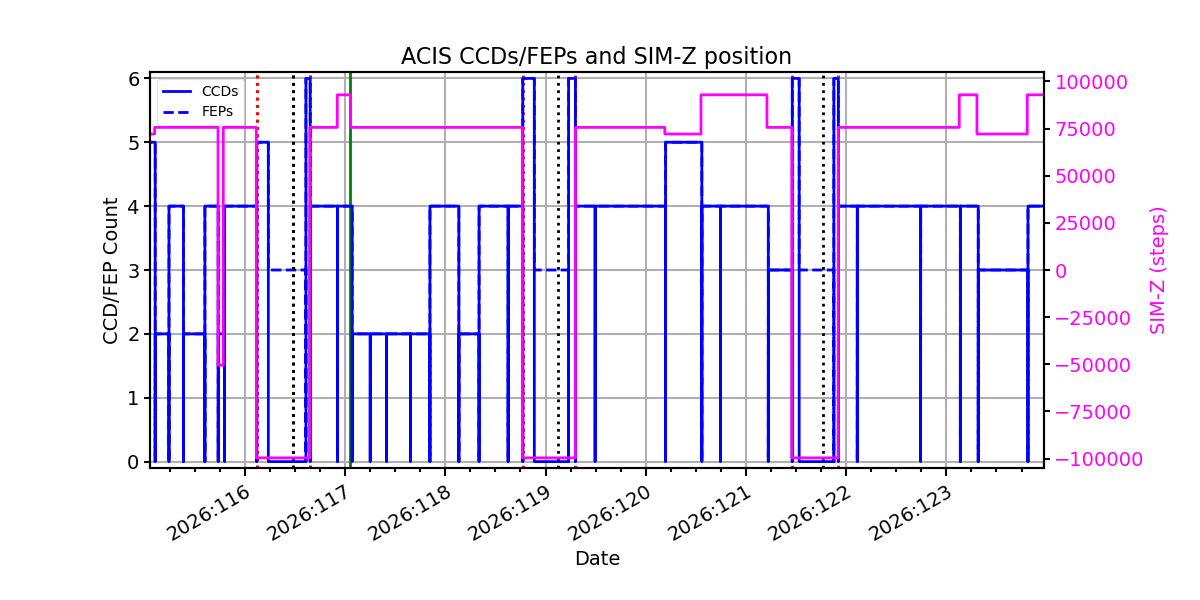

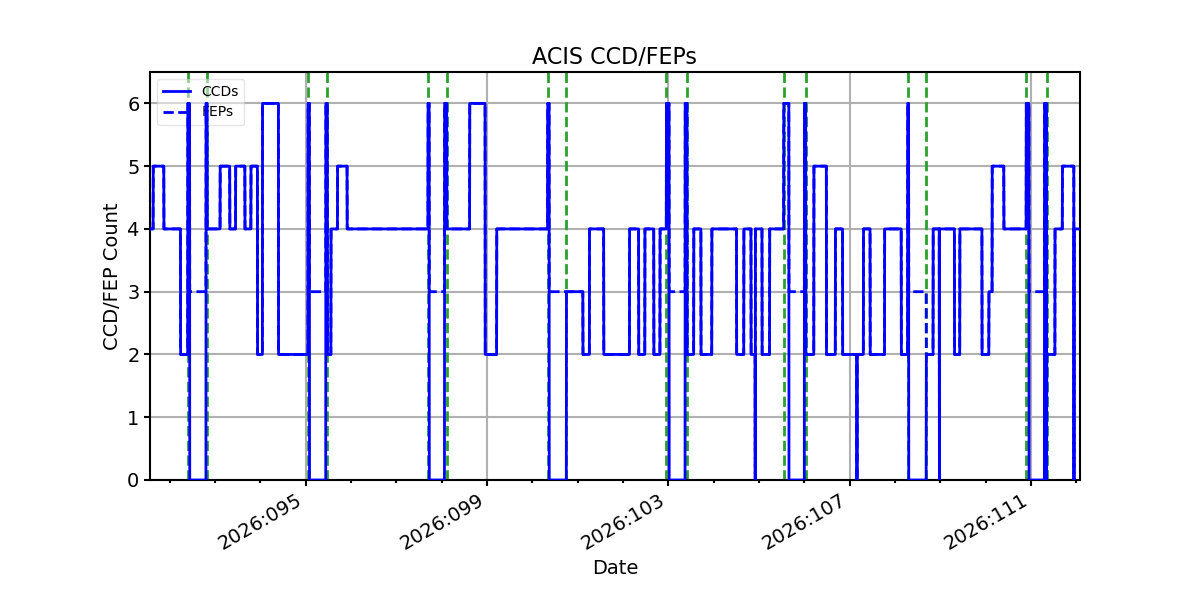

ACIS CCD/FEP Count
