DPA Temperatures Check
Summary
| Date start | 2026:215:01:01:13.716 |
| Date stop | 2026:222:00:50:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/AUG0326/oflsa |
| Run time | Wed Jul 29 19:52:06 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

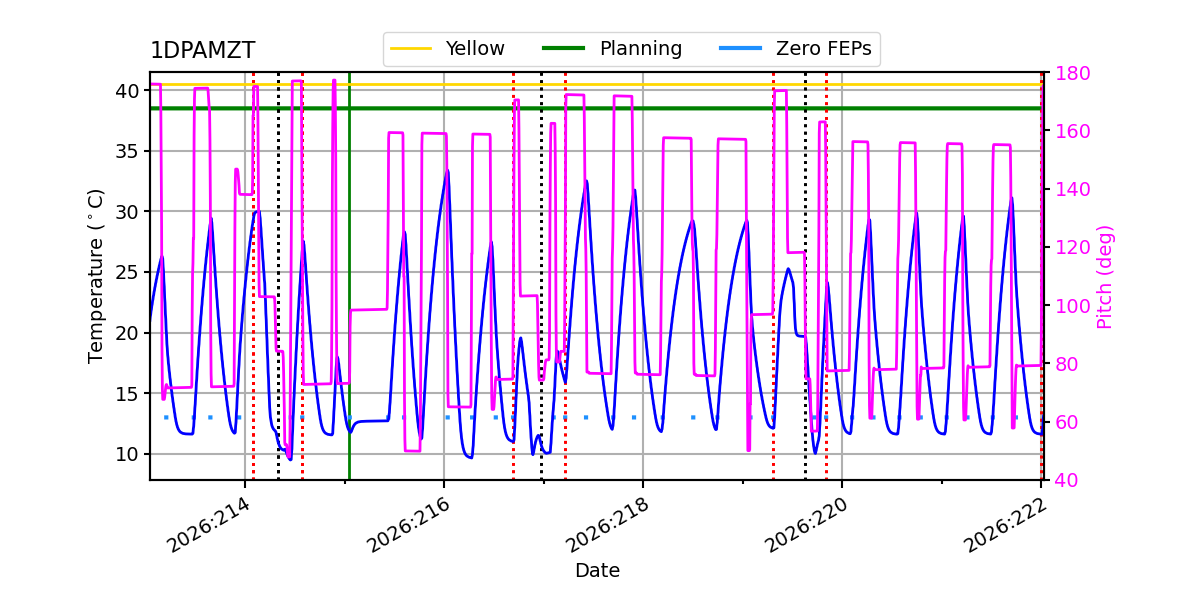

No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2026:216:06:42:26.378 | 2026:216:06:42:46.816 | 0.02 | 9.82 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -0.80 | -0.49 | -0.18 | 0.22 | 0.67 | 0.91 | 1.37 |
| pitch | -11.709 | -1.381 | -0.004 | 0.000 | 0.004 | 1.165 | 11.956 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 1 | 1 |
| roll | -2.048 | -0.235 | -0.009 | 0.000 | 0.009 | 0.271 | 1.849 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -11.709 | 3.00 |
| PITCH | 99 | 11.956 | 3.00 |

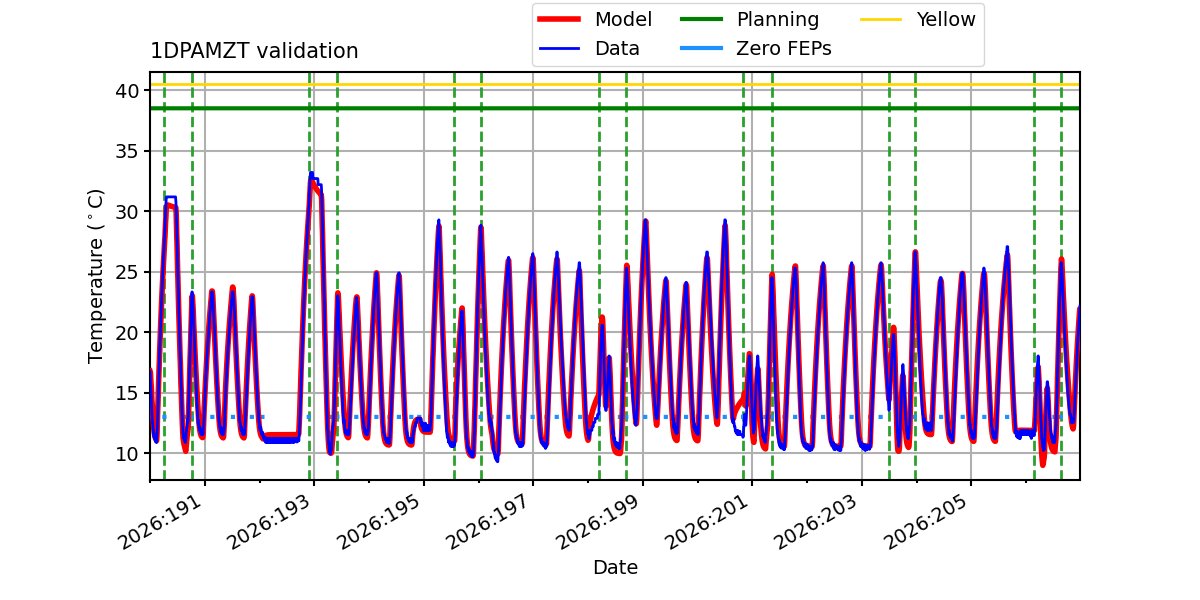

1DPAMZT

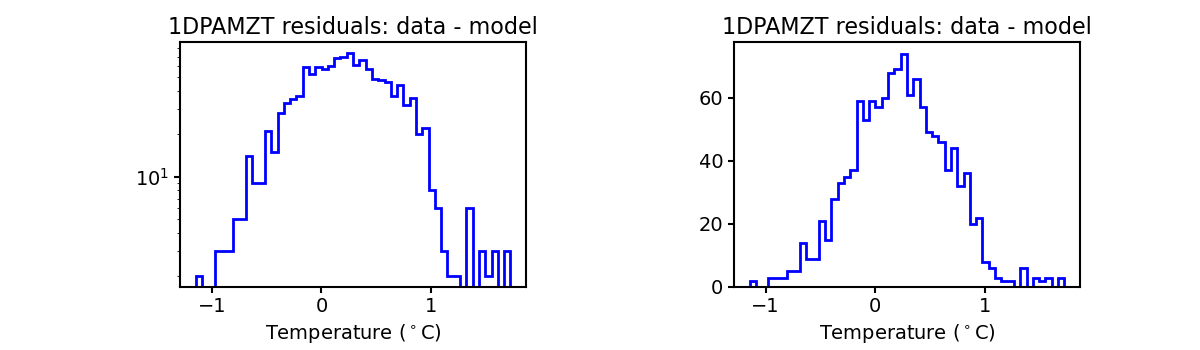

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

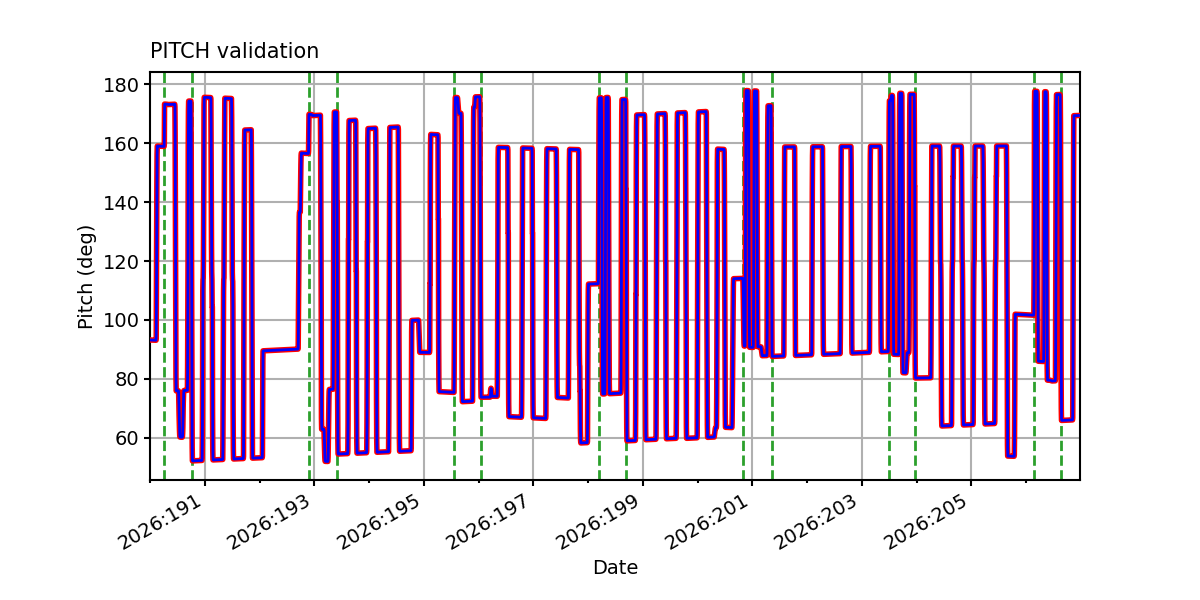

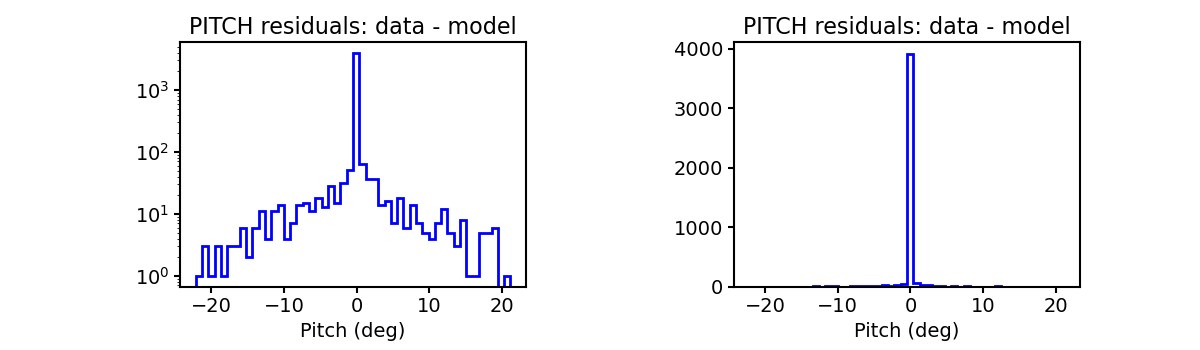

PITCH

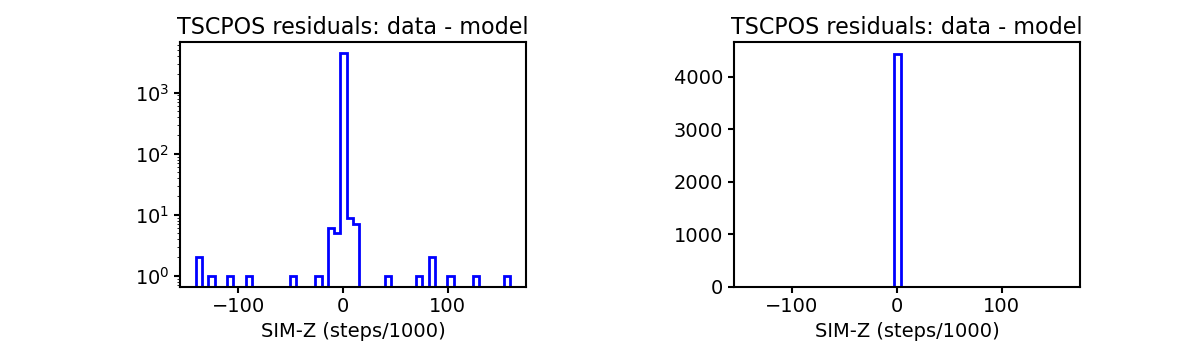

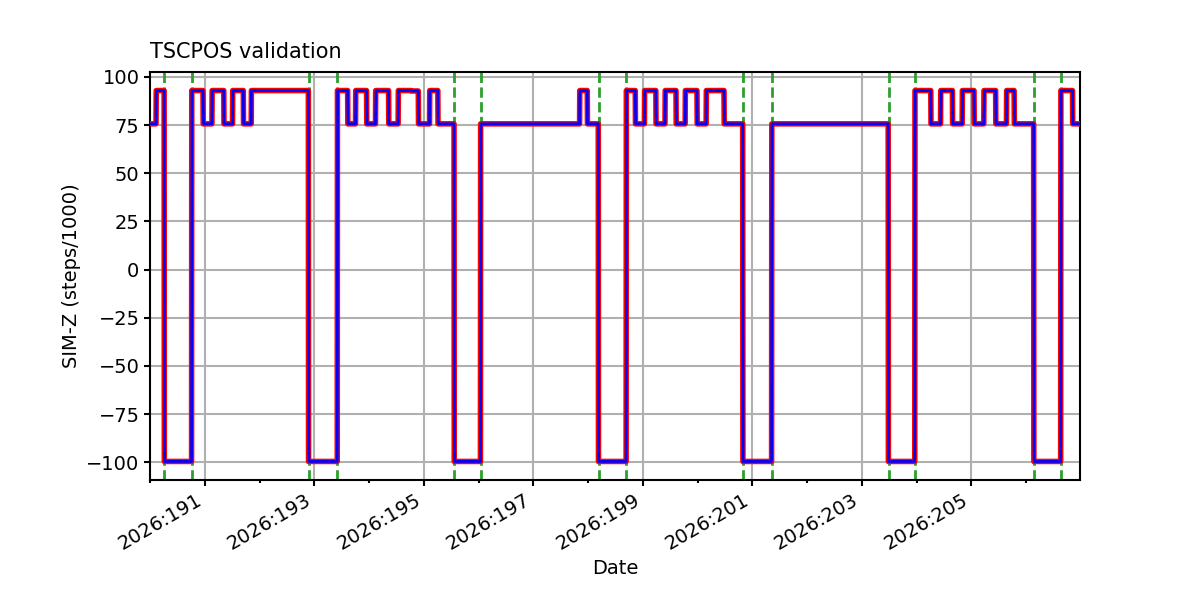

TSCPOS

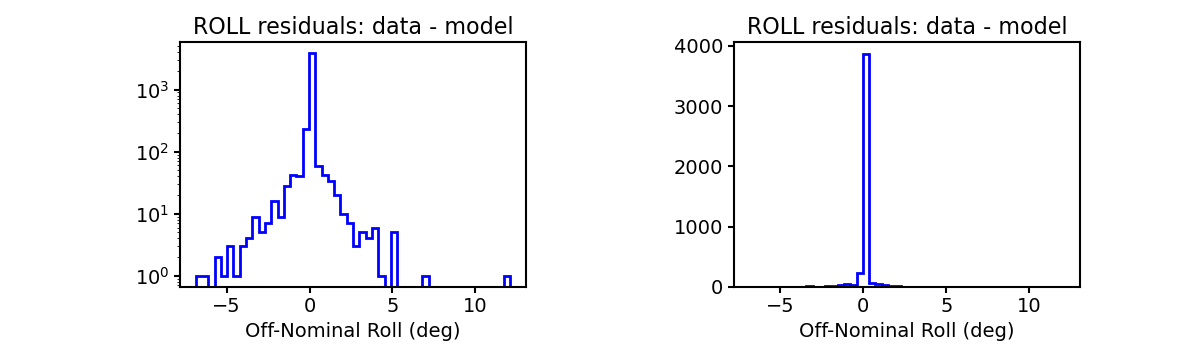

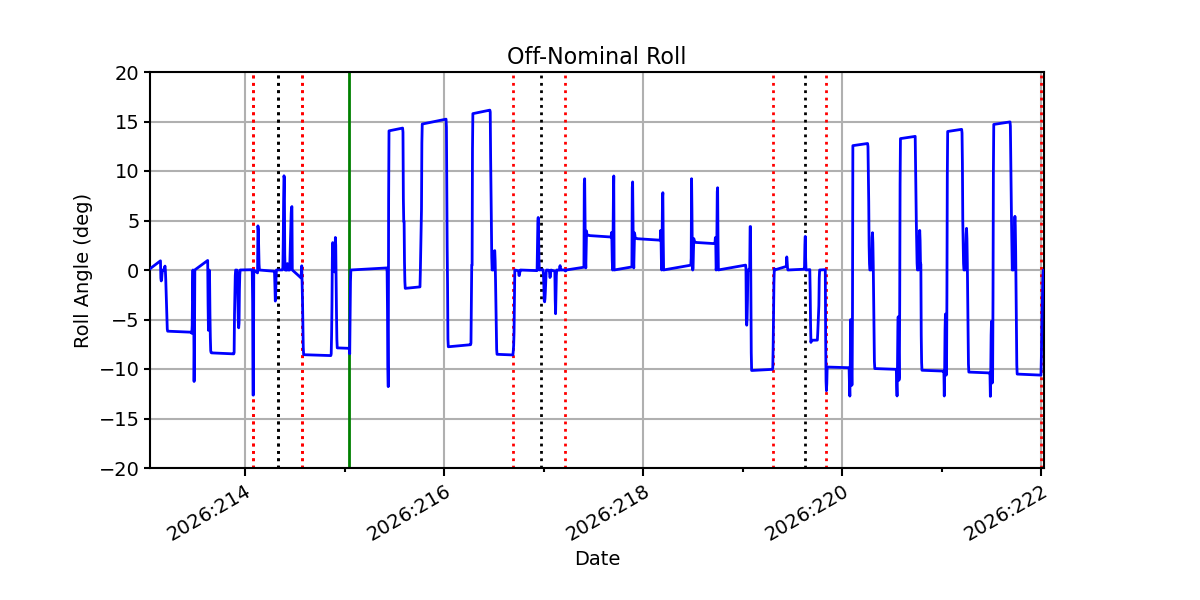

ROLL

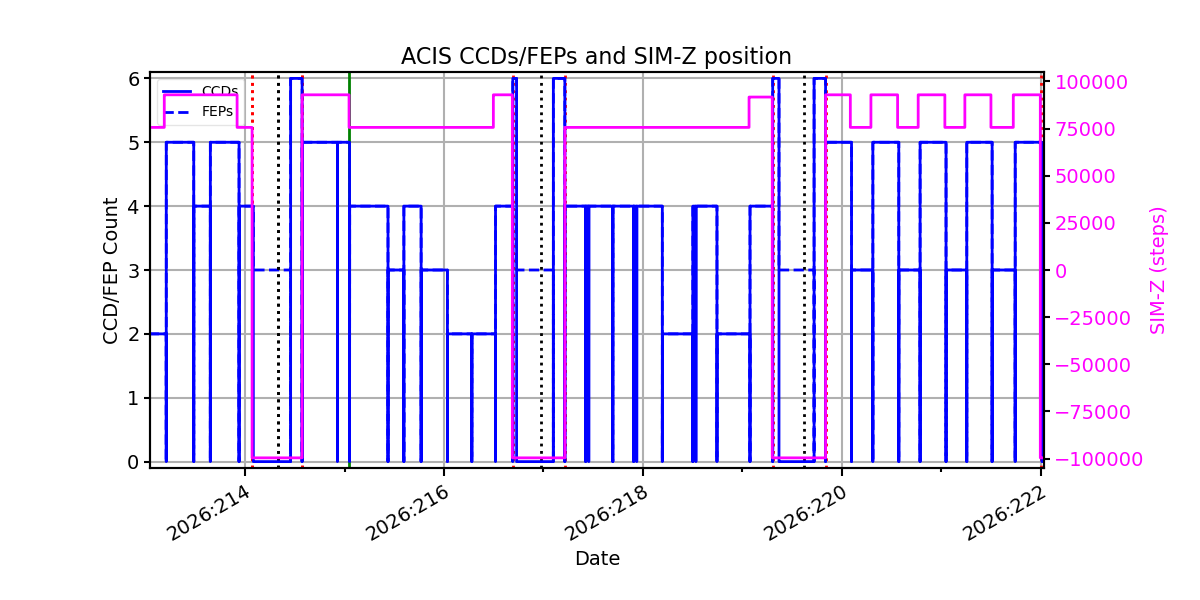

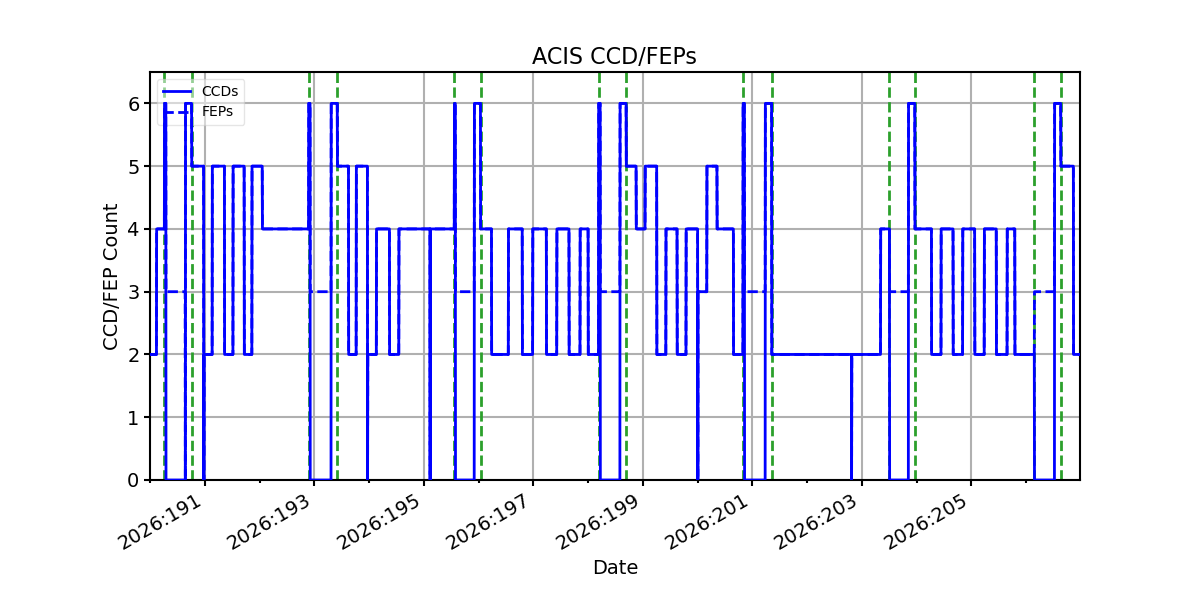

ACIS CCD/FEP Count
