DPA Temperatures Check
Summary
| Date start | 2026:222:00:50:00.016 |
| Date stop | 2026:229:01:19:21.916 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/AUG1026/oflsb |
| Run time | Wed Aug 5 10:53:55 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
No 1DPAMZT Lower Limit Violations
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -0.99 | -0.64 | -0.24 | 0.18 | 0.59 | 0.90 | 1.38 |
| pitch | -12.462 | -1.186 | -0.004 | -0.000 | 0.004 | 1.072 | 12.800 |
| tscpos | -1 | -1 | -1 | 0 | 1 | 1 | 1 |
| roll | -2.057 | -0.193 | -0.009 | 0.000 | 0.010 | 0.281 | 1.894 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -12.462 | 3.00 |
| PITCH | 99 | 12.8 | 3.00 |

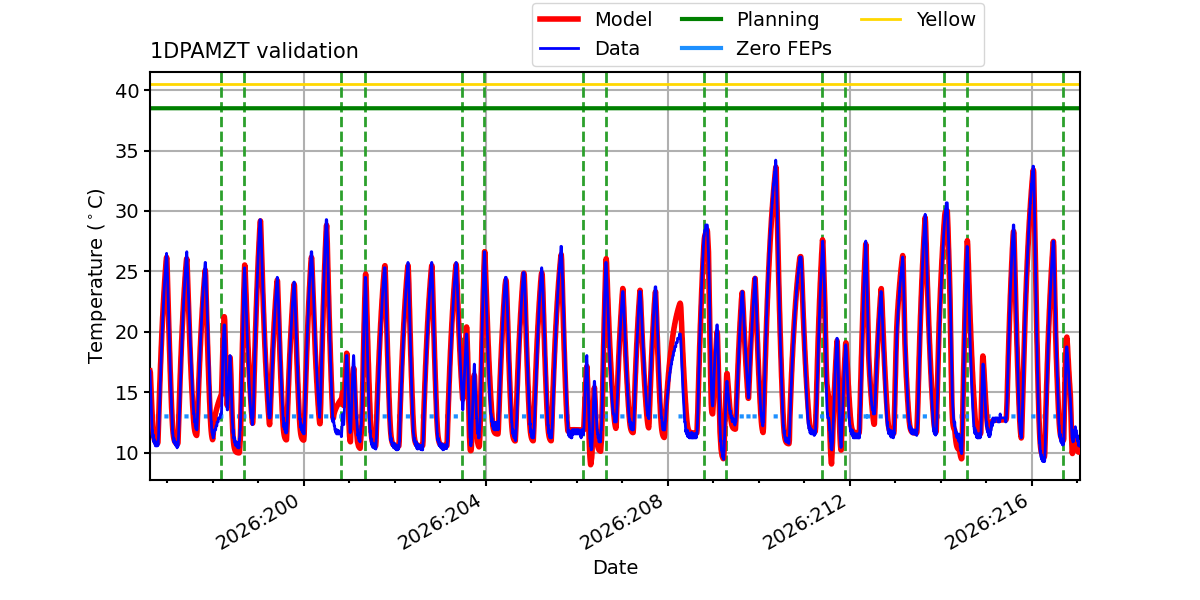

1DPAMZT
Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

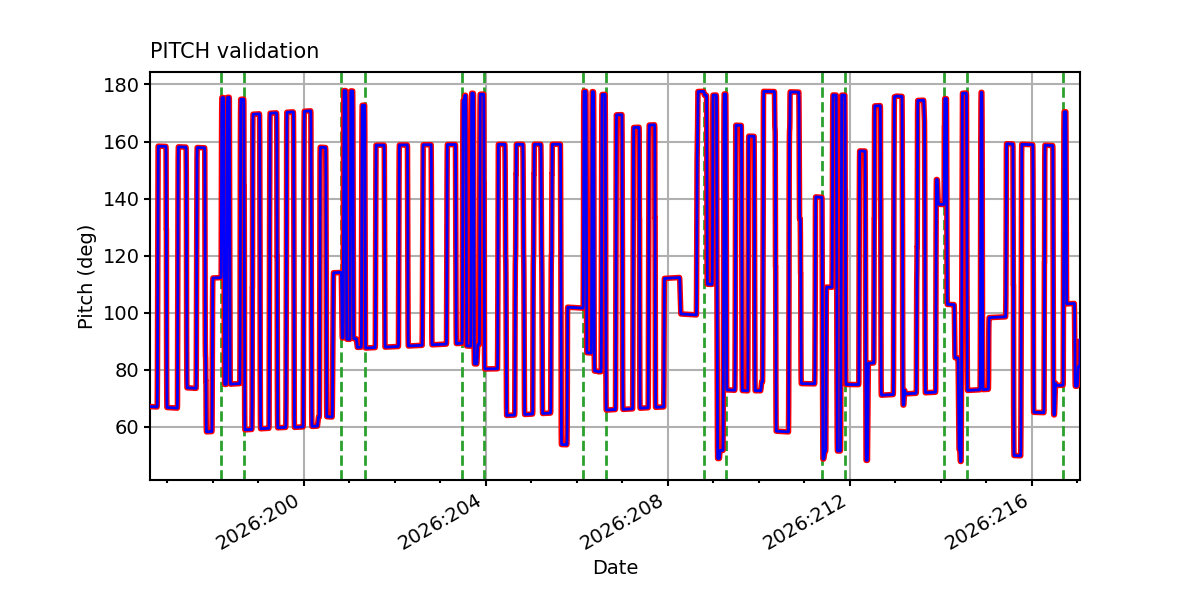

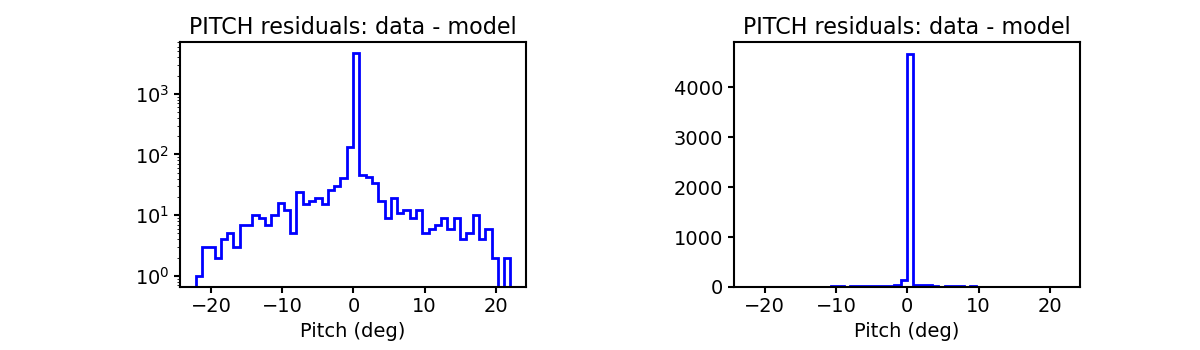

PITCH

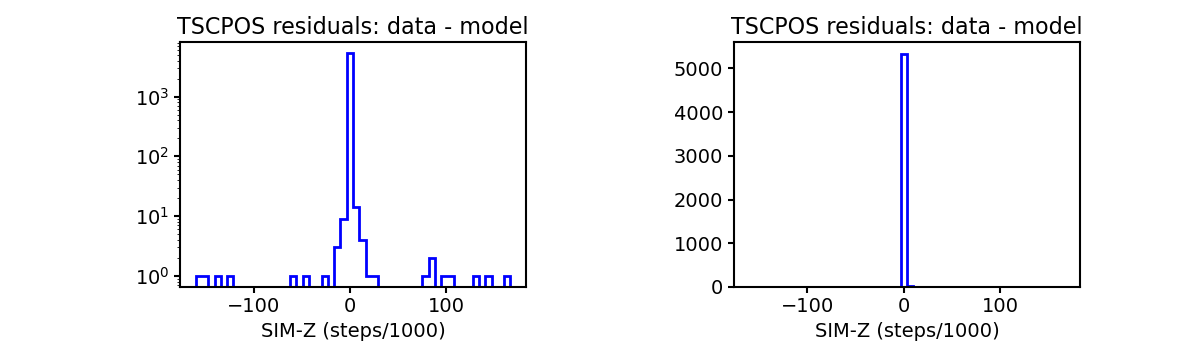

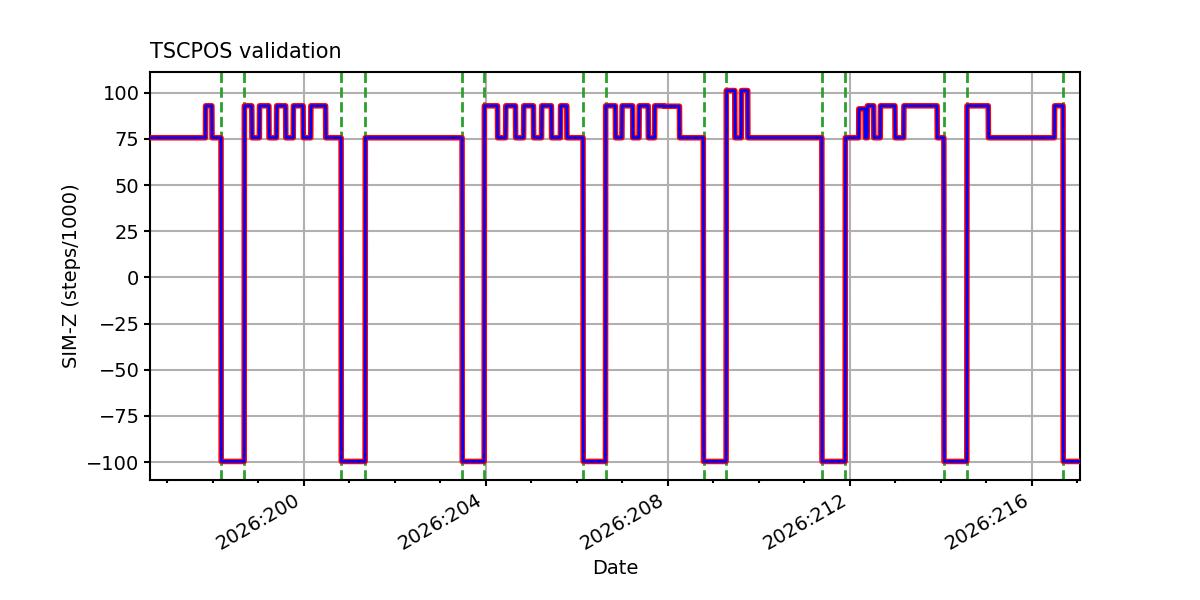

TSCPOS
ROLL

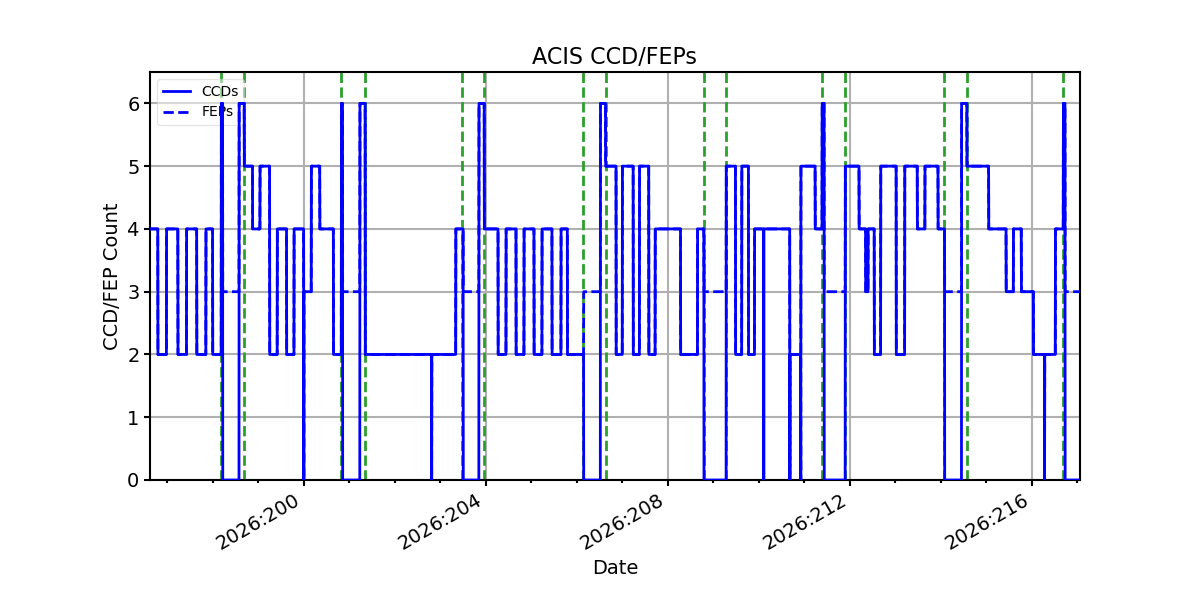

ACIS CCD/FEP Count
