DPA Temperatures Check
Summary
| Date start | 2025:222:16:32:40.916 |
| Date stop | 2025:230:00:53:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/AUG1125/oflsa |
| Run time | Wed Aug 6 15:40:12 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

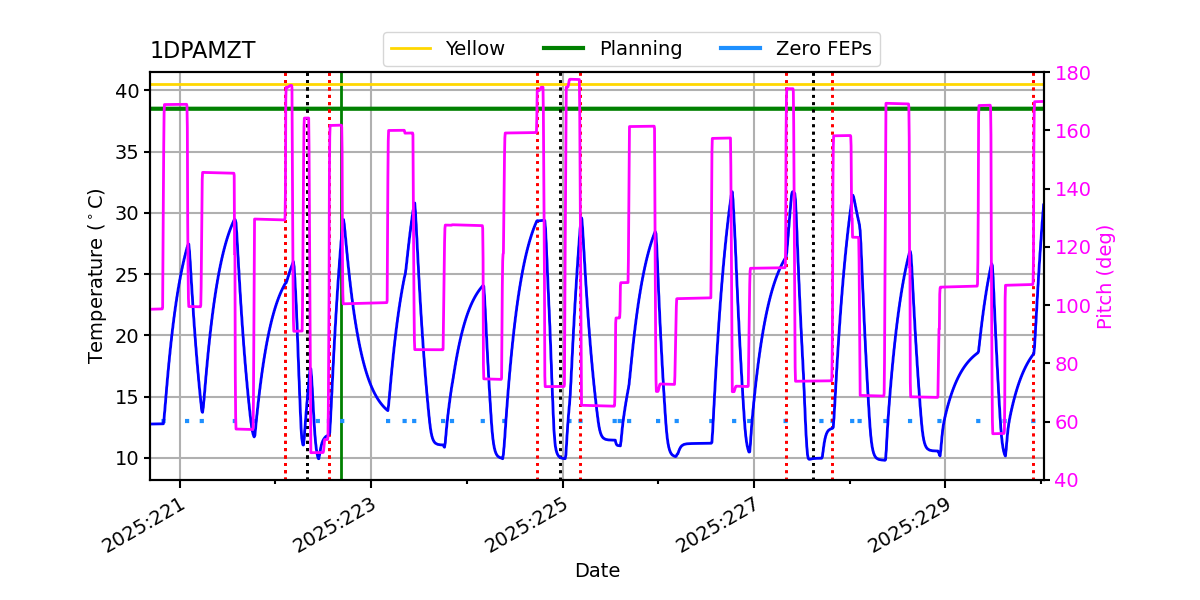

No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2025:223:18:03:00.281 | 2025:223:18:03:02.816 | 0.00 | 11.05 / 13.00 |
| 2025:226:04:37:52.178 | 2025:226:04:38:06.816 | 0.01 | 10.22 / 13.00 |
| 2025:228:22:31:30.913 | 2025:228:22:31:37.300 | 0.01 | 10.26 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -2.17 | -1.64 | -0.93 | 0.12 | 0.69 | 1.04 | 1.47 |
| pitch | -10.967 | -0.326 | -0.004 | 0.000 | 0.004 | 0.541 | 9.724 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.780 | -0.112 | -0.006 | -0.000 | 0.005 | 0.121 | 1.591 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -2.17 | 2.00 |
| PITCH | 1 | -10.967 | 3.00 |
| PITCH | 99 | 9.724 | 3.00 |

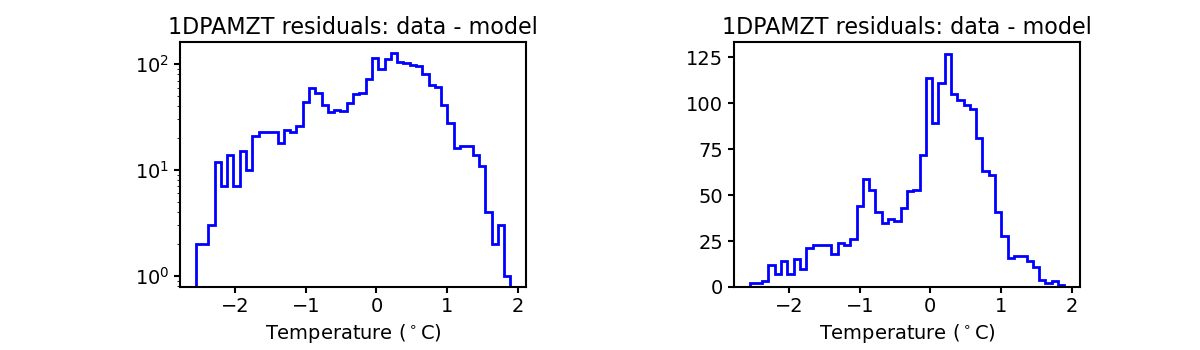

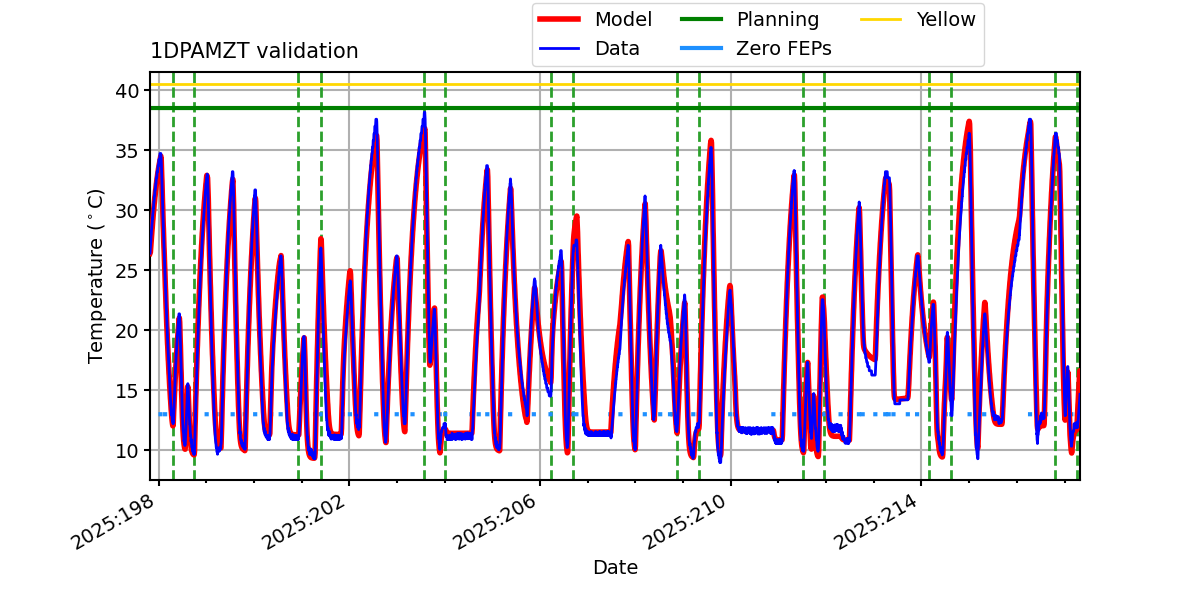

1DPAMZT
Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

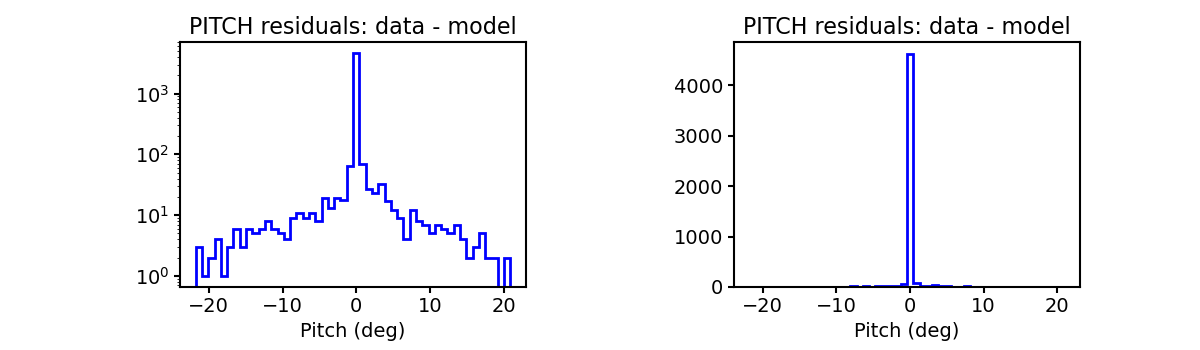

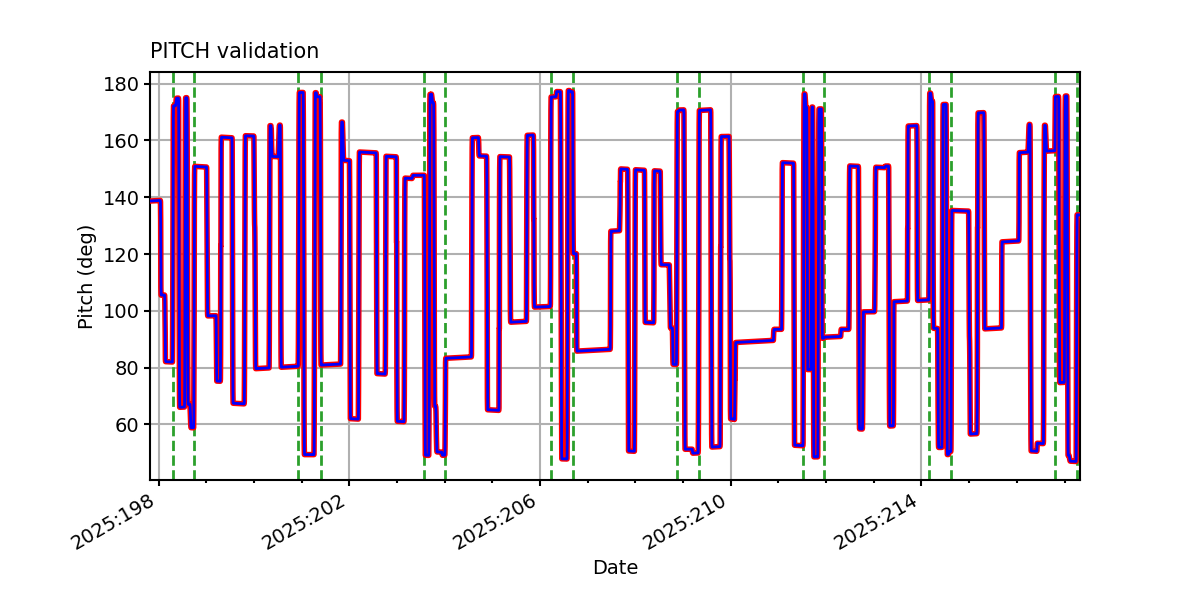

PITCH

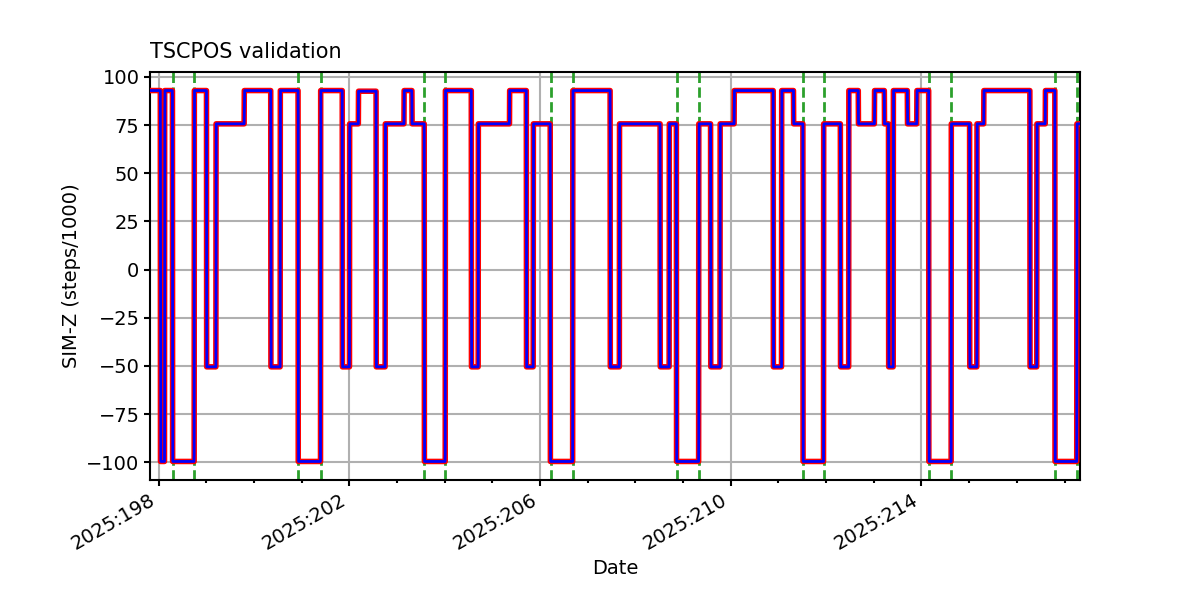

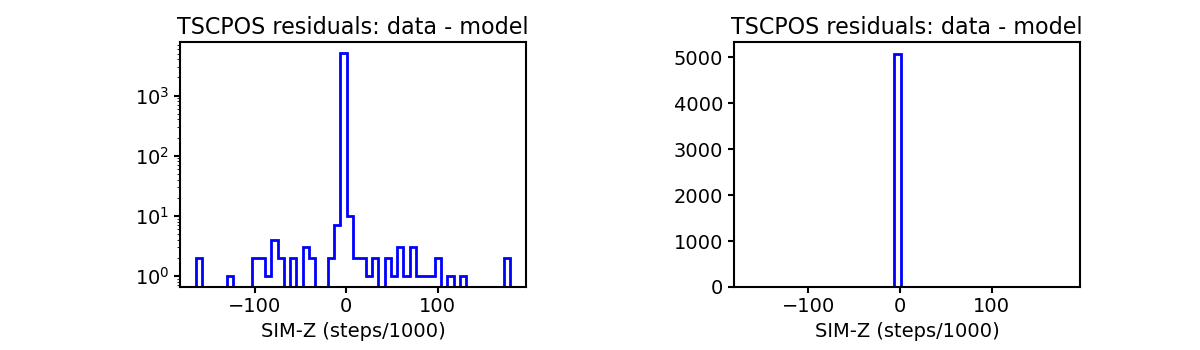

TSCPOS

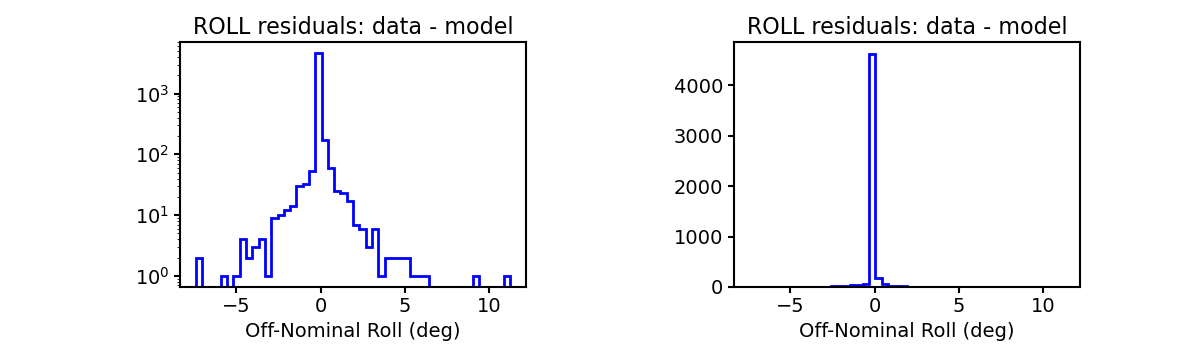

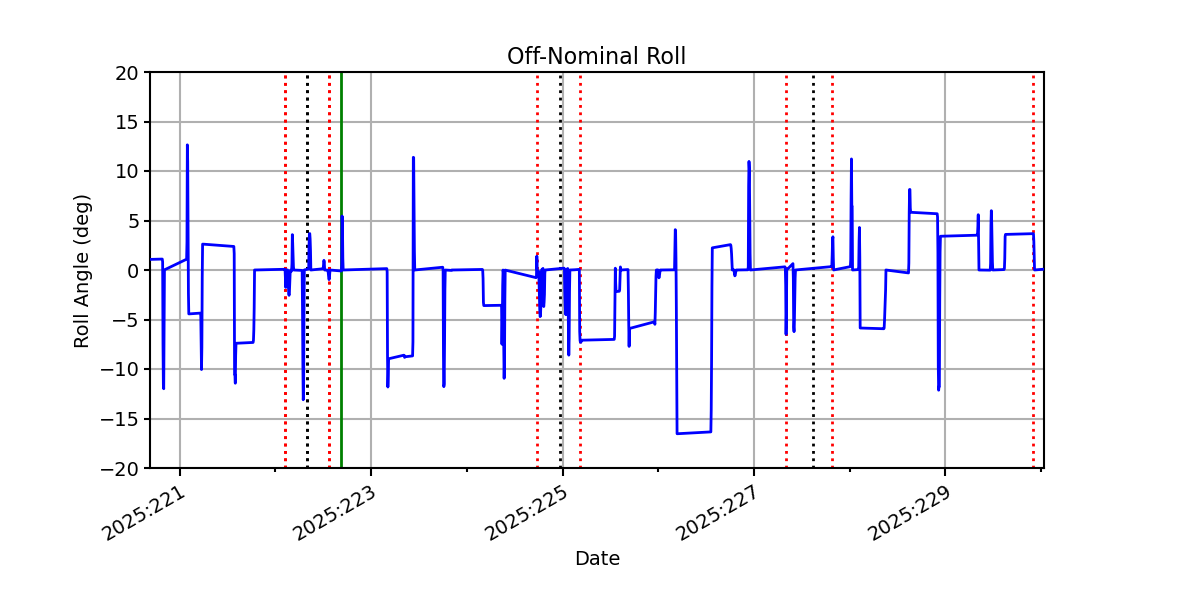

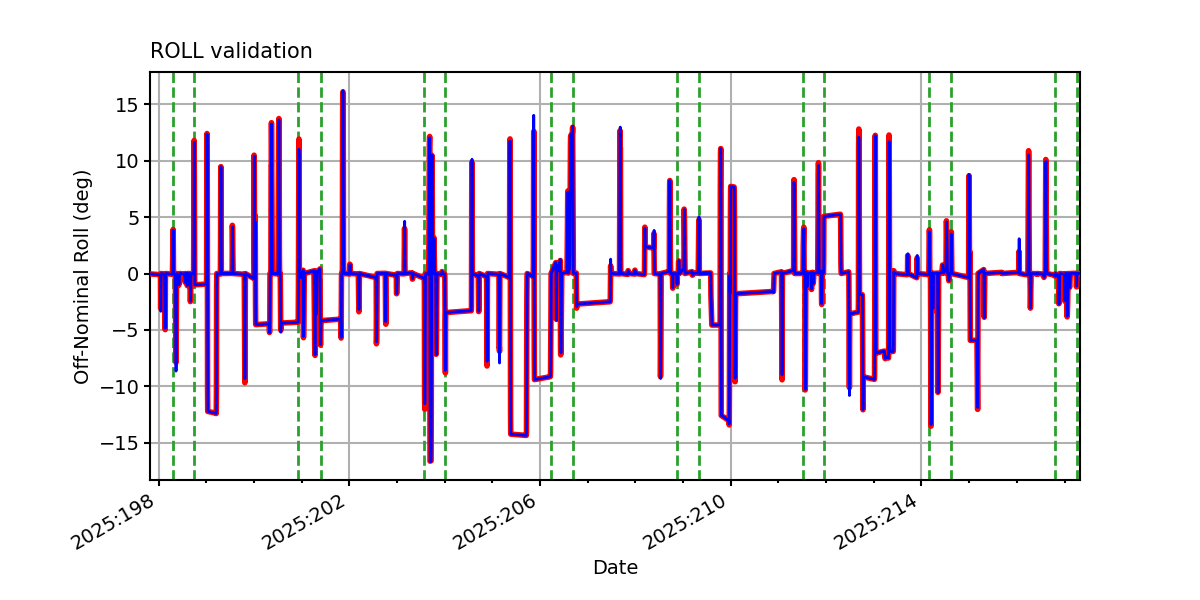

ROLL

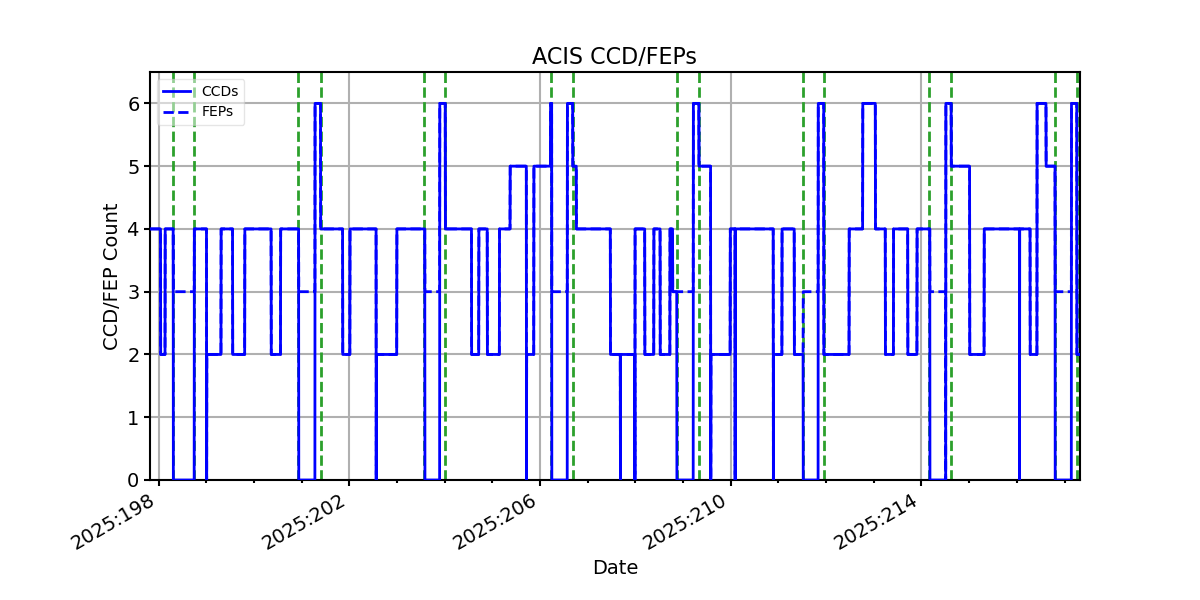

ACIS CCD/FEP Count
