DPA Temperatures Check
Summary
| Date start | 2026:229:01:16:21.916 |
| Date stop | 2026:235:21:59:21.316 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/AUG1726/oflsa |
| Run time | Thu Aug 13 13:38:13 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2026:232:00:43:44.257 | 2026:232:00:43:58.816 | 0.01 | 9.64 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -0.99 | -0.65 | -0.32 | 0.24 | 0.74 | 1.40 | 1.79 |
| pitch | -10.498 | -1.398 | -0.004 | 0.000 | 0.004 | 0.961 | 11.313 |
| tscpos | -1 | -1 | -1 | 0 | 1 | 1 | 1 |
| roll | -1.937 | -0.195 | -0.009 | 0.000 | 0.009 | 0.304 | 2.030 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -10.498 | 3.00 |
| PITCH | 99 | 11.313 | 3.00 |

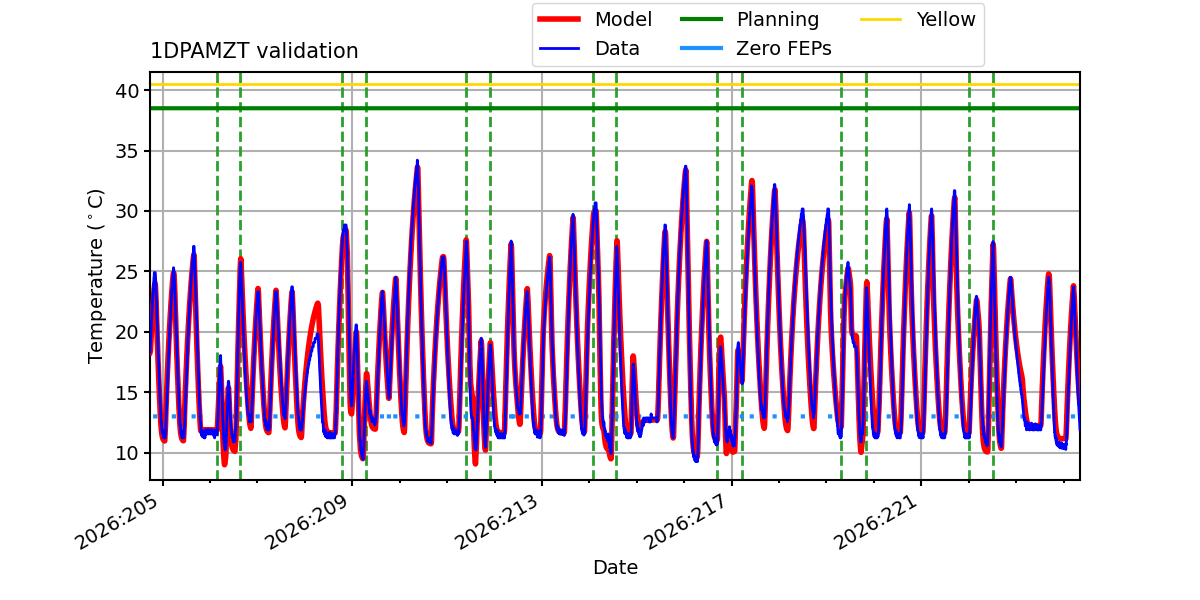

1DPAMZT
Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

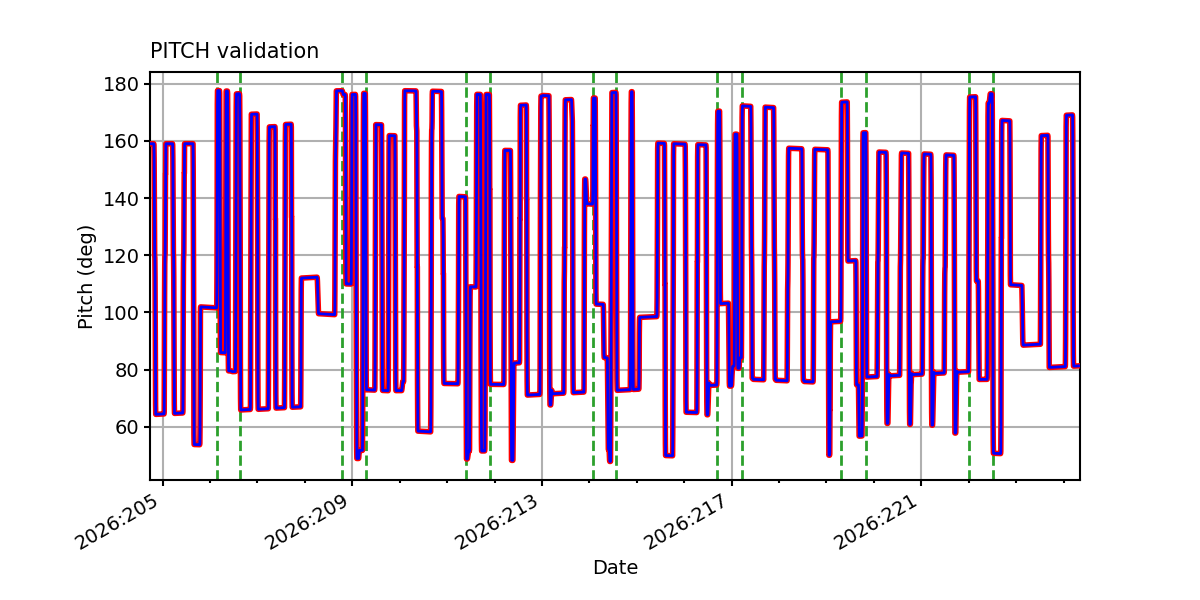

PITCH

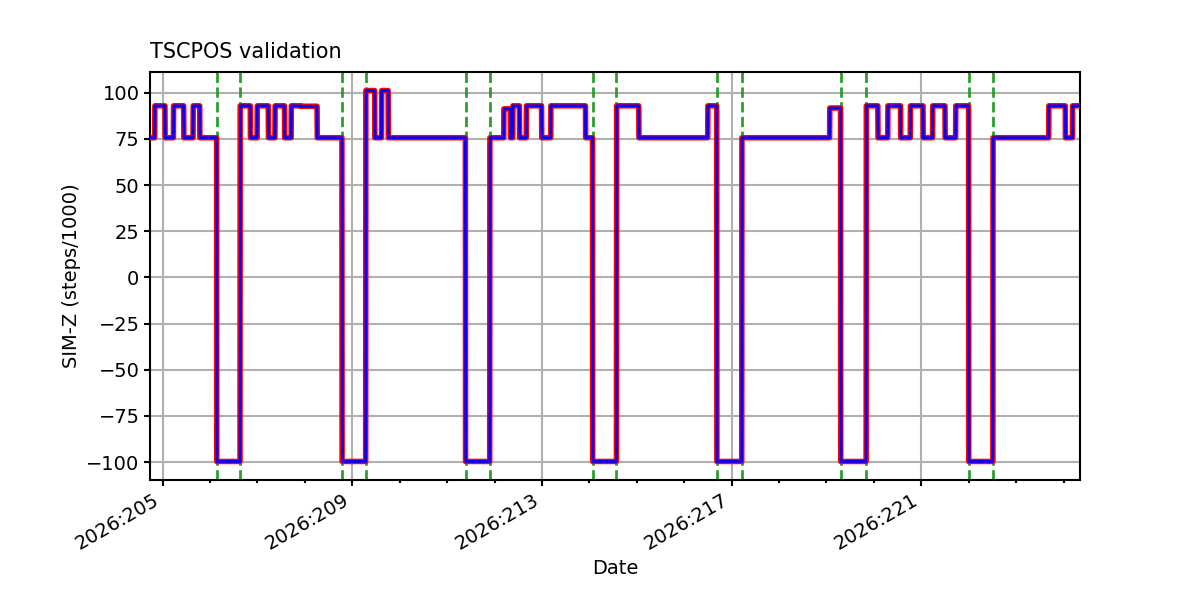

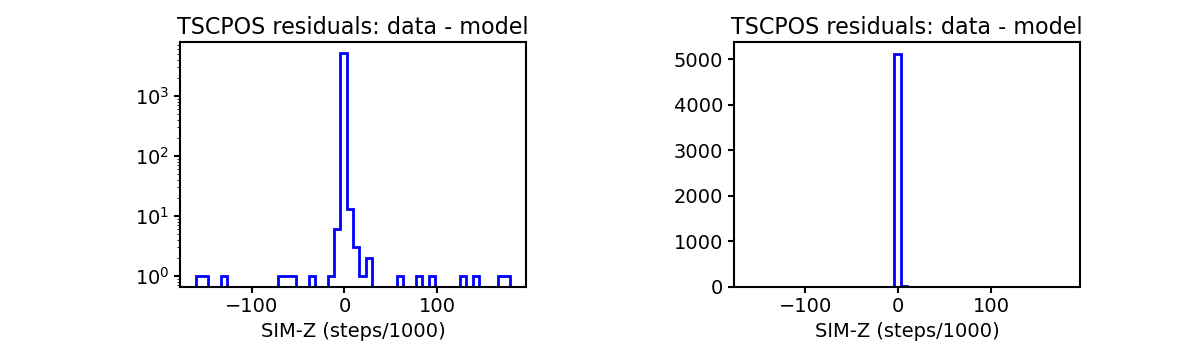

TSCPOS

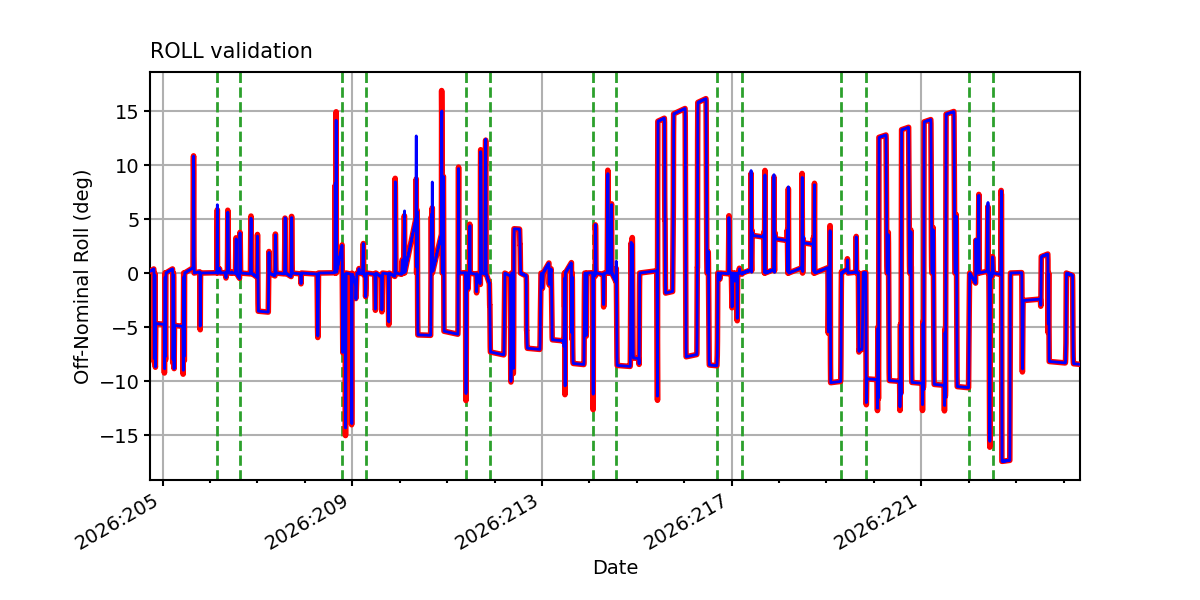

ROLL

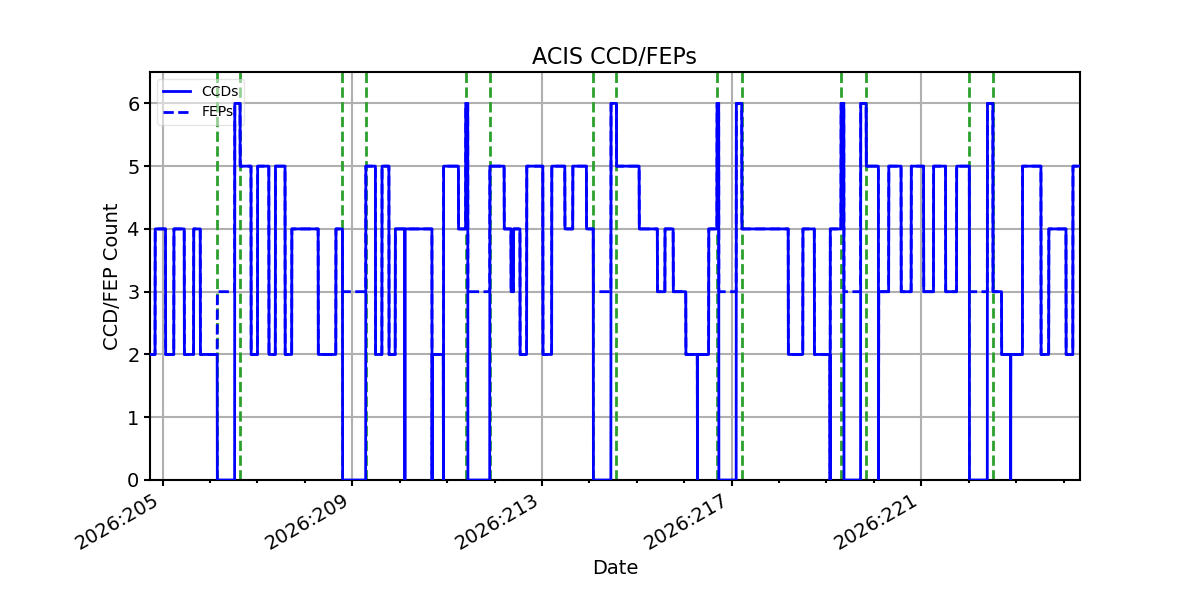

ACIS CCD/FEP Count
