DPA Temperatures Check
Summary
| Date start | 2025:230:00:50:00.016 |
| Date stop | 2025:237:02:29:32.916 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/AUG1825/oflsb |
| Run time | Fri Aug 15 09:25:06 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
No 1DPAMZT Lower Limit Violations
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -2.53 | -2.11 | -1.49 | -0.26 | 0.51 | 0.97 | 1.50 |
| pitch | -9.857 | -0.333 | -0.004 | -0.000 | 0.004 | 0.270 | 10.324 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 1 | 1 |
| roll | -1.316 | -0.081 | -0.004 | -0.000 | 0.005 | 0.101 | 1.702 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -2.53 | 2.00 |
| PITCH | 1 | -9.857 | 3.00 |
| PITCH | 99 | 10.324 | 3.00 |

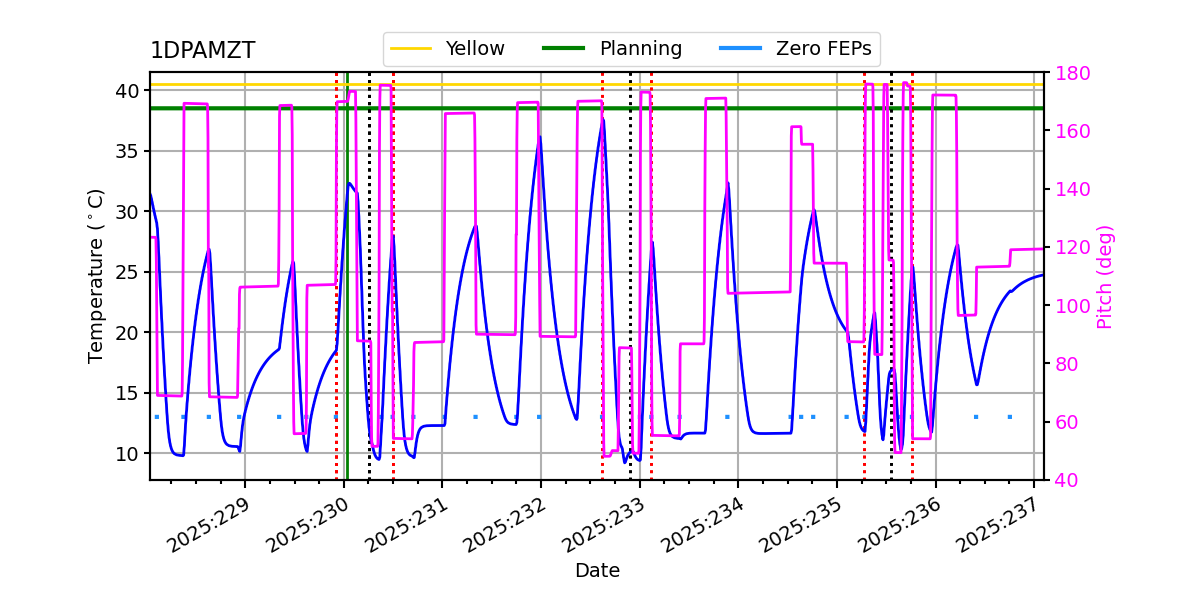

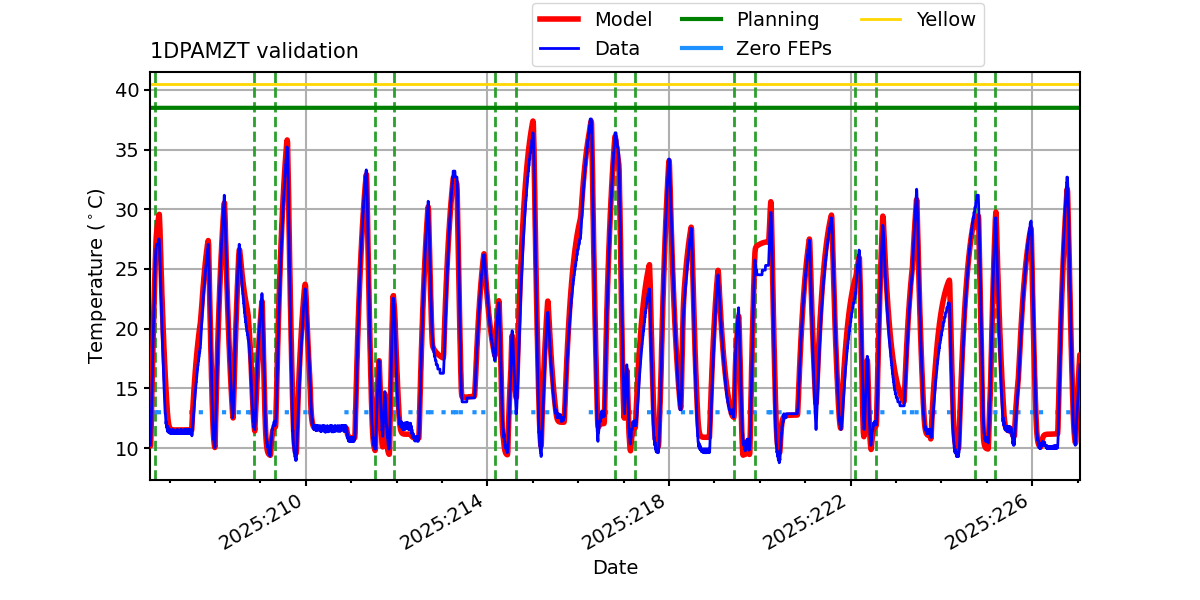

1DPAMZT

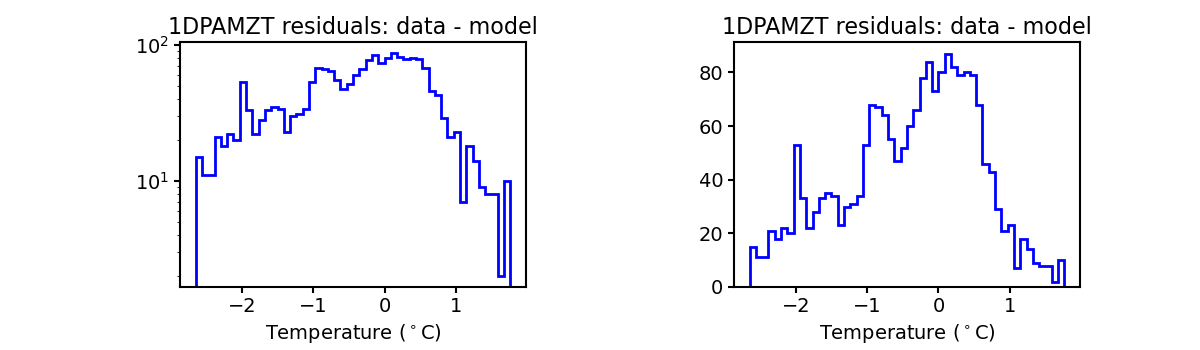

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

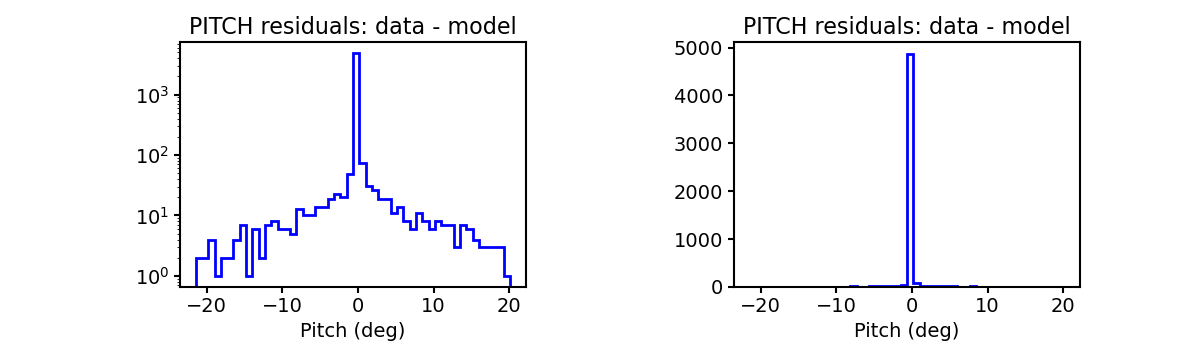

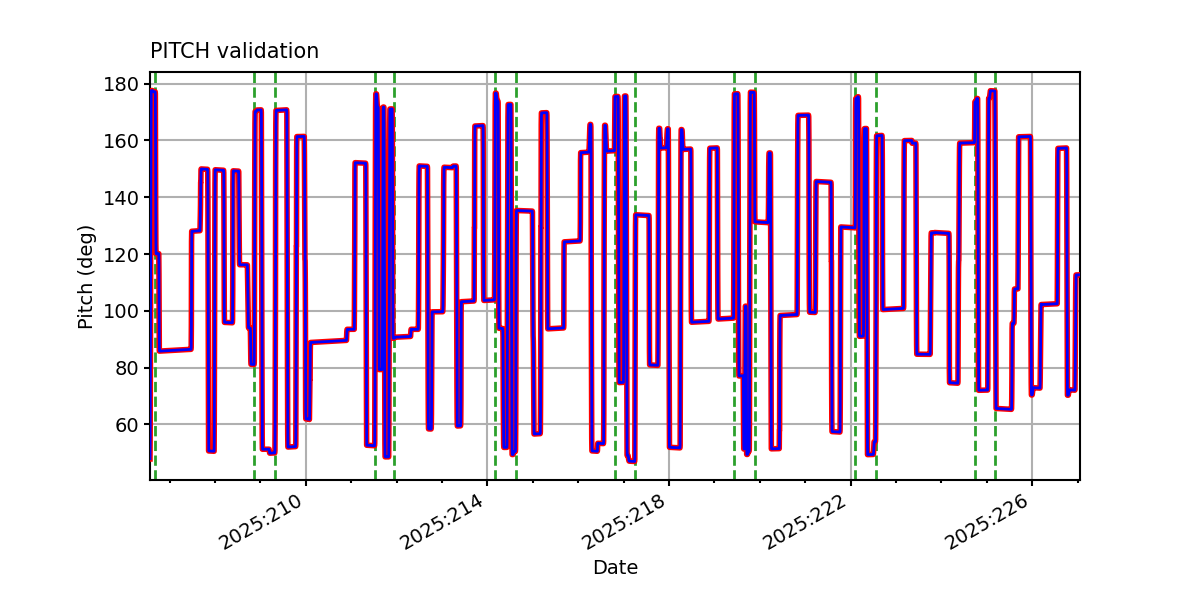

PITCH

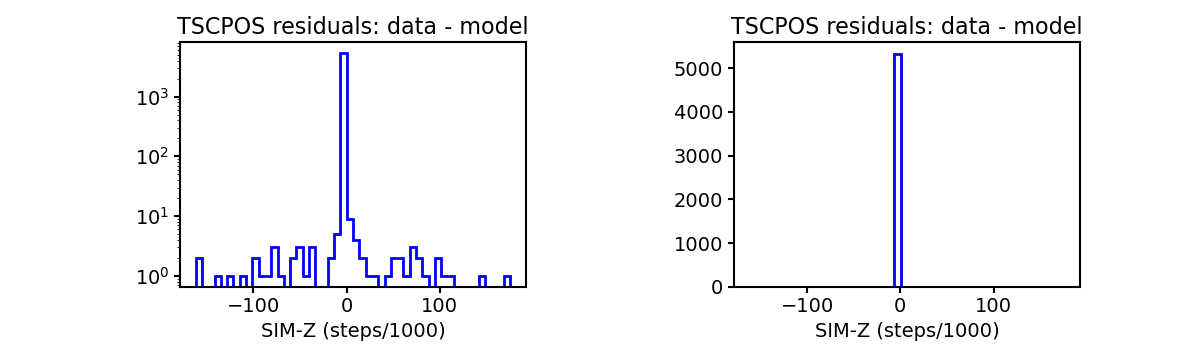

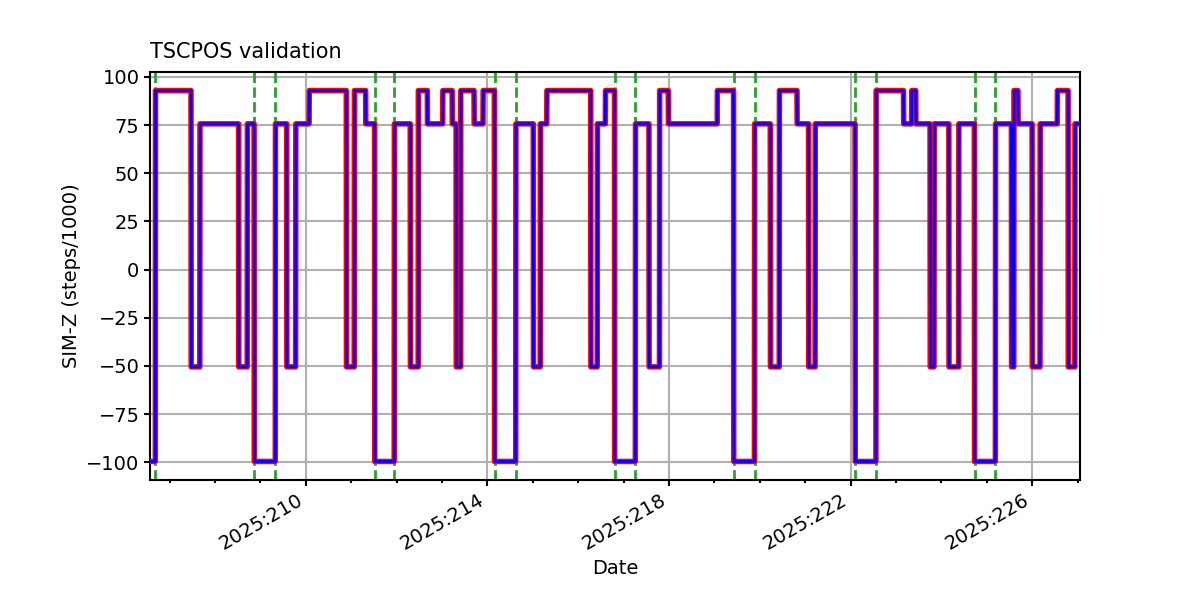

TSCPOS

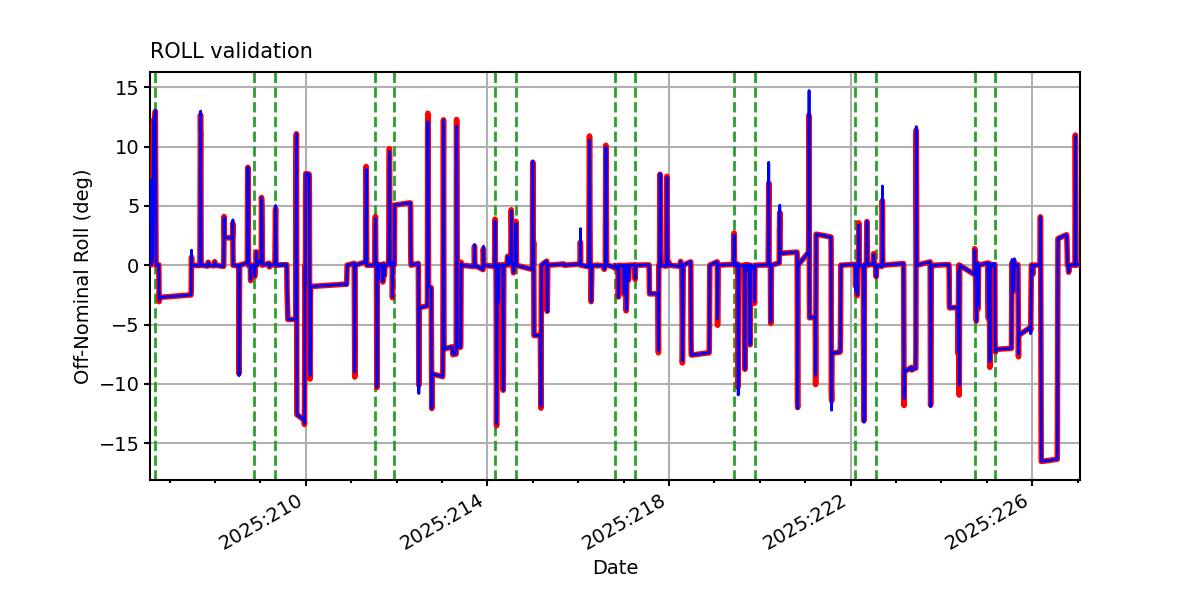

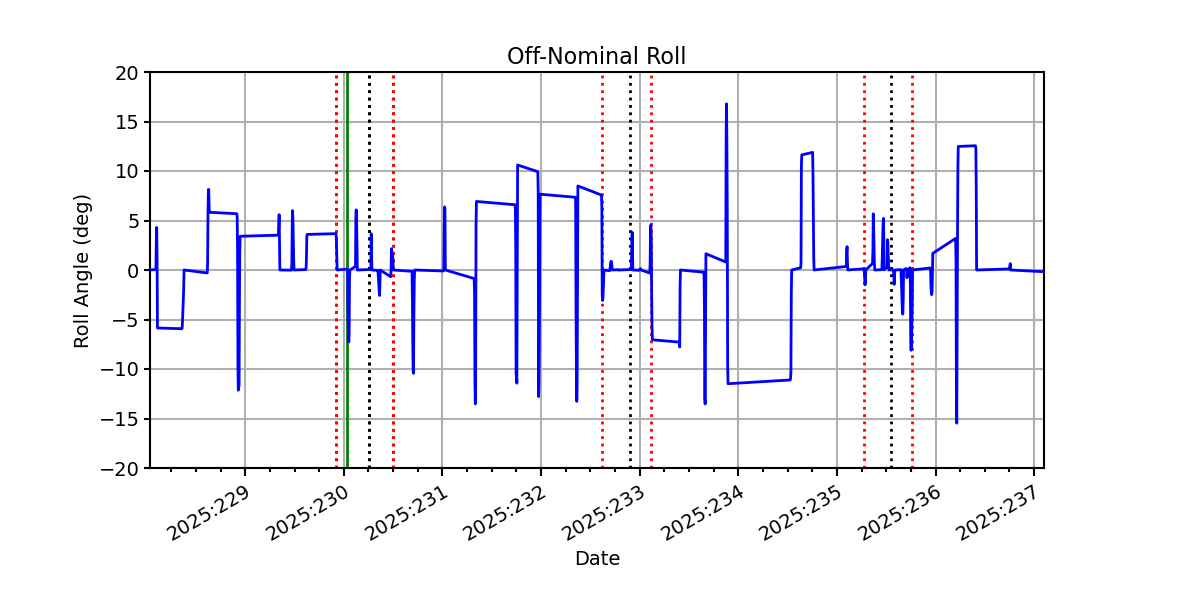

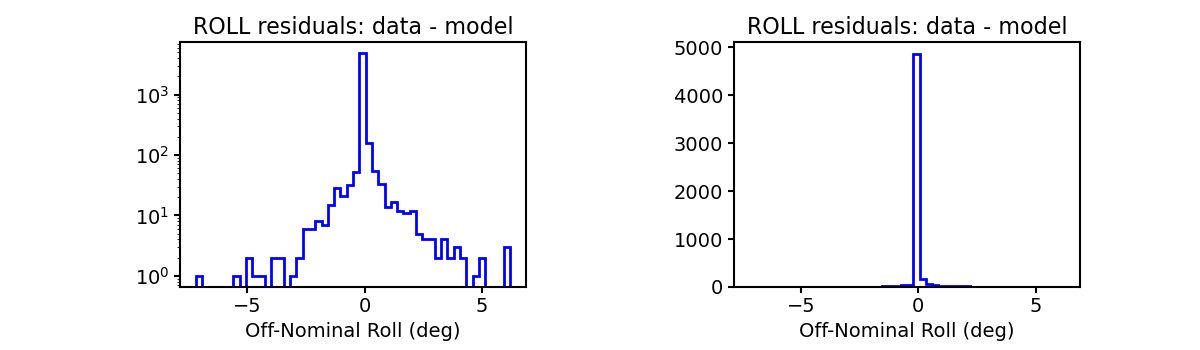

ROLL

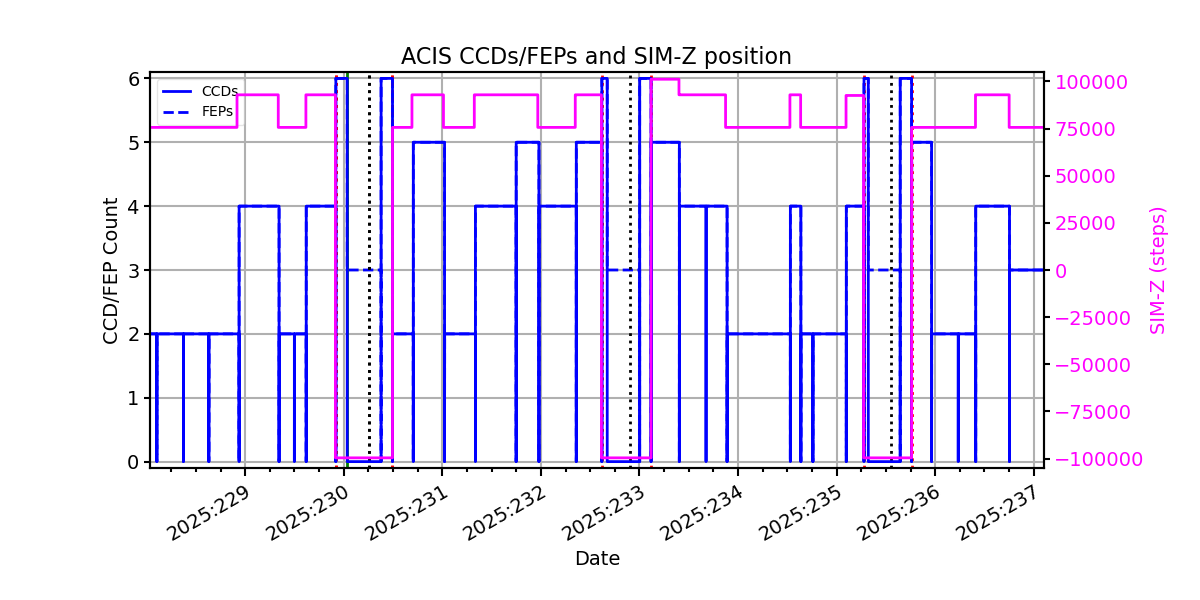

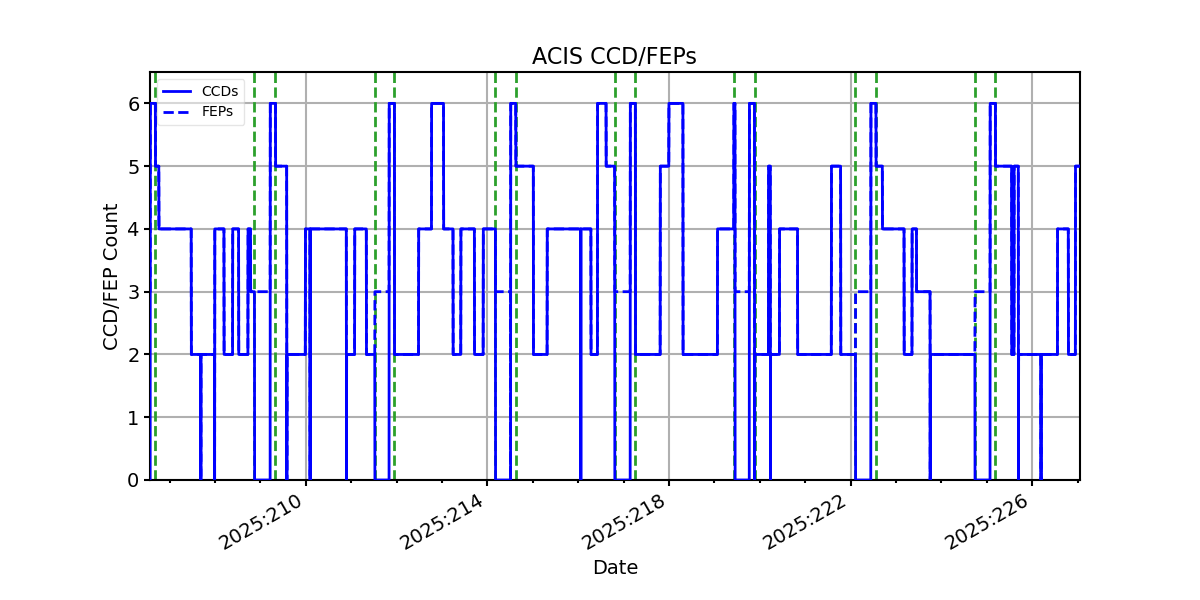

ACIS CCD/FEP Count
