DPA Temperatures Check
Summary
| Date start | 2025:335:01:19:35.216 |
| Date stop | 2025:342:01:01:51.816 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/DEC0125/oflsa |
| Run time | Tue Nov 25 12:05:32 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2025:339:01:13:08.906 | 2025:339:01:13:13.364 | 0.00 | 11.65 / 13.00 |
| 2025:341:20:54:42.789 | 2025:341:20:54:47.602 | 0.00 | 10.55 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -2.08 | -1.67 | -0.88 | 0.09 | 0.93 | 1.39 | 1.94 |
| pitch | -12.488 | -1.692 | -0.004 | -0.000 | 0.004 | 1.263 | 12.001 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.636 | -0.242 | -0.007 | -0.000 | 0.008 | 0.293 | 2.822 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -2.08 | 2.00 |
| PITCH | 1 | -12.488 | 3.00 |
| PITCH | 99 | 12.001 | 3.00 |

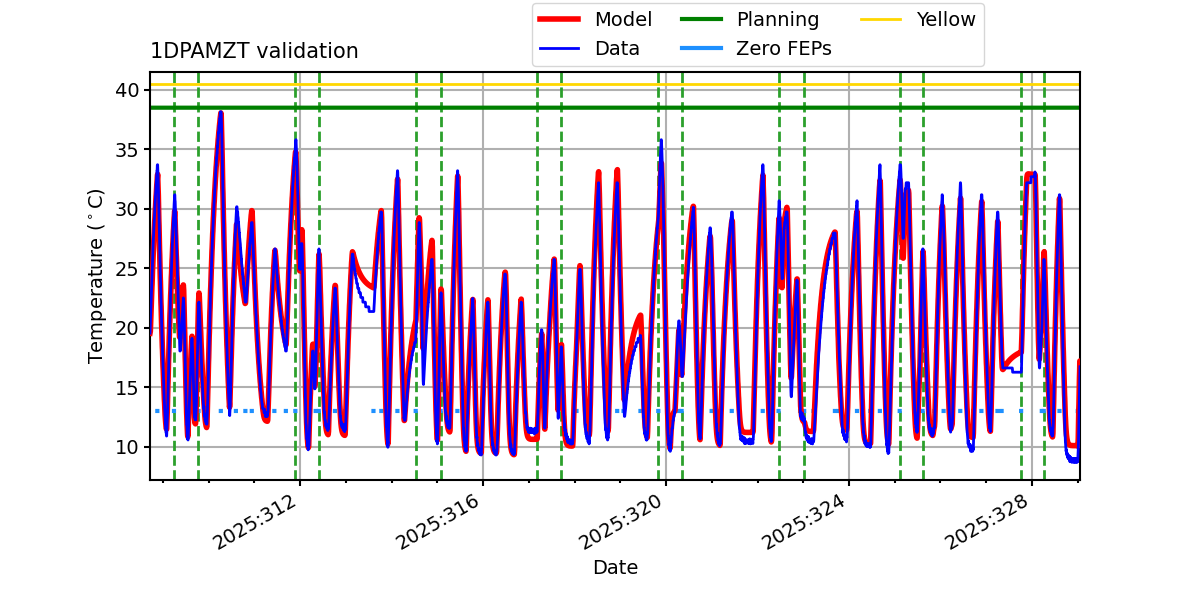

1DPAMZT

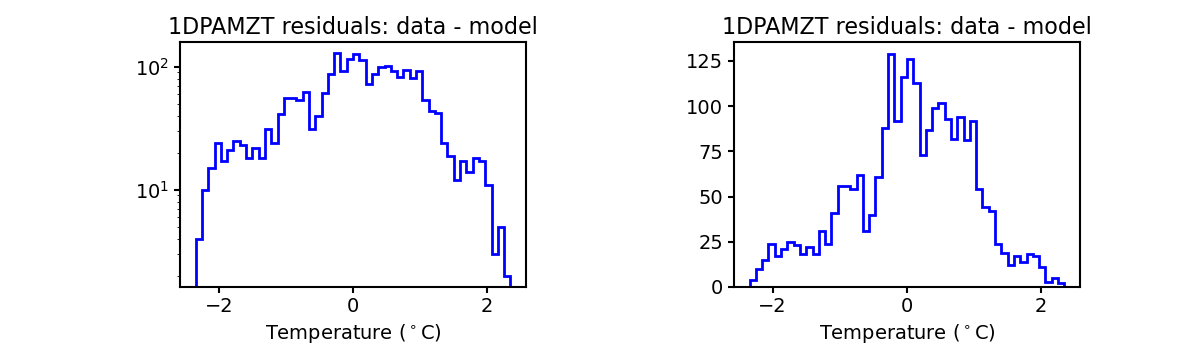

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

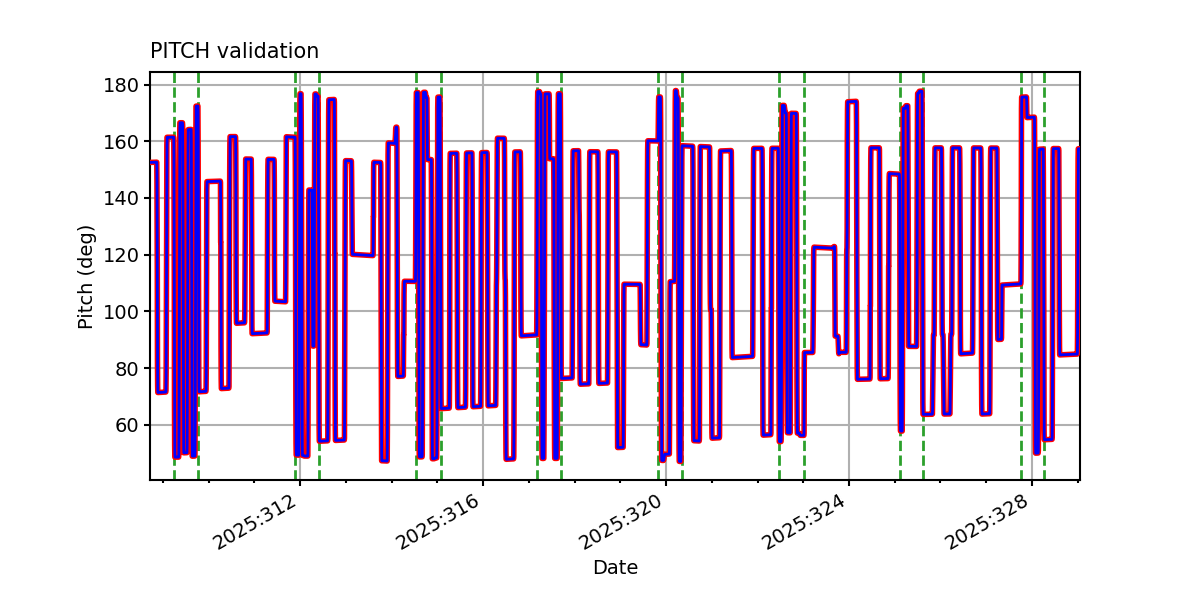

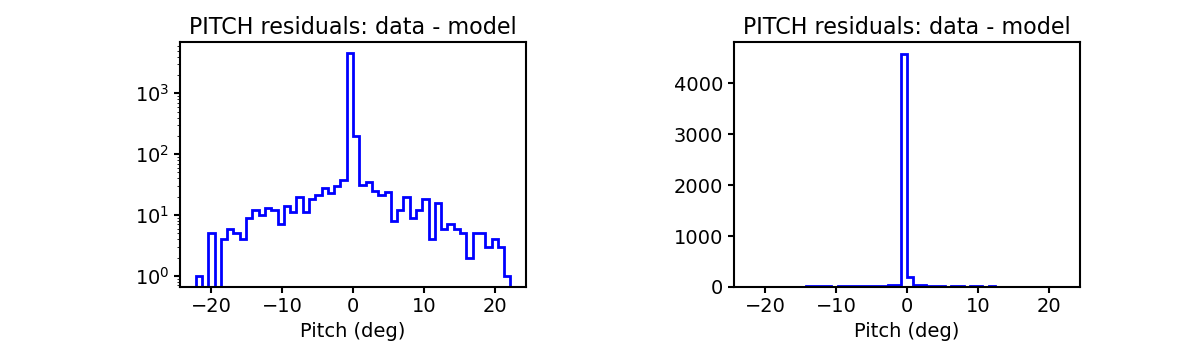

PITCH
TSCPOS

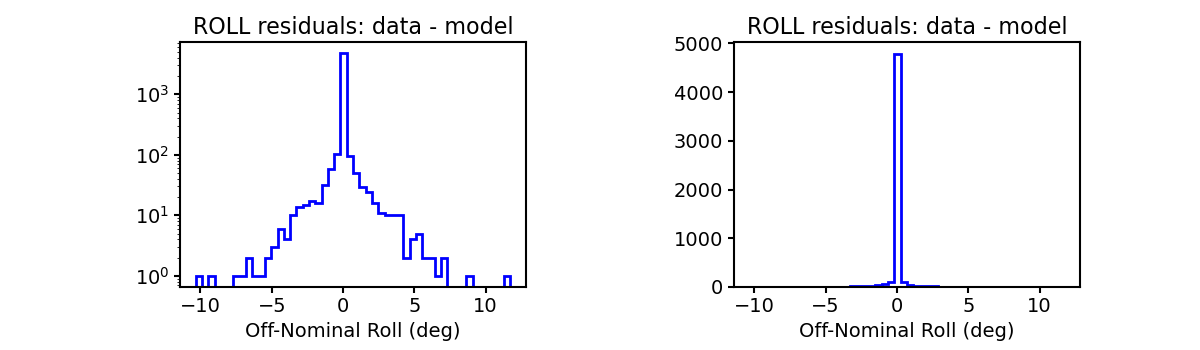

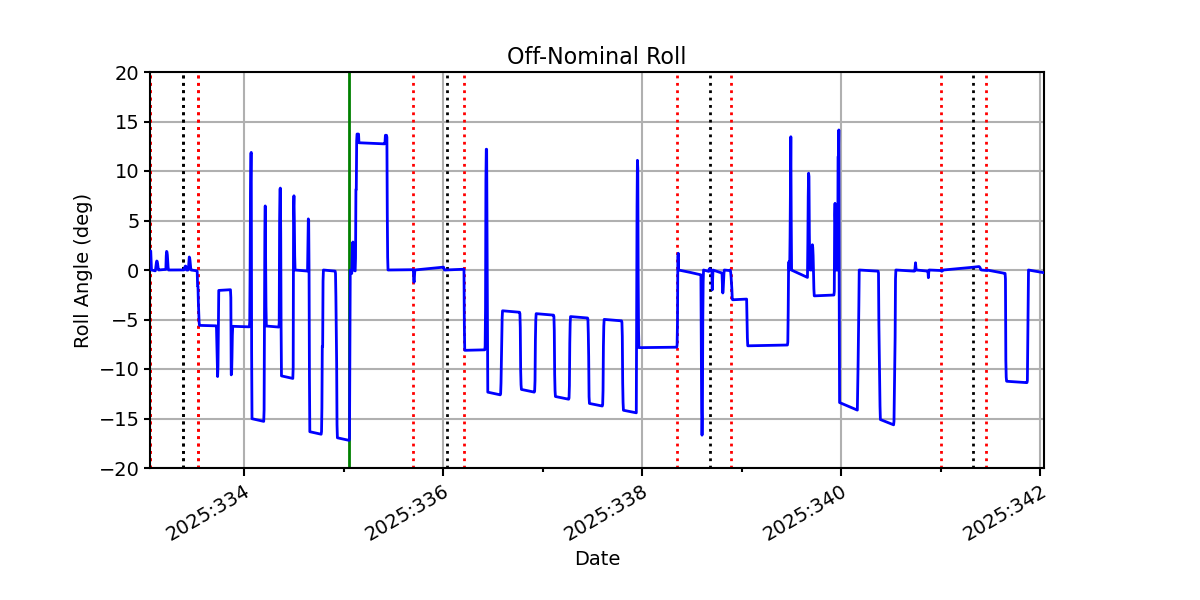

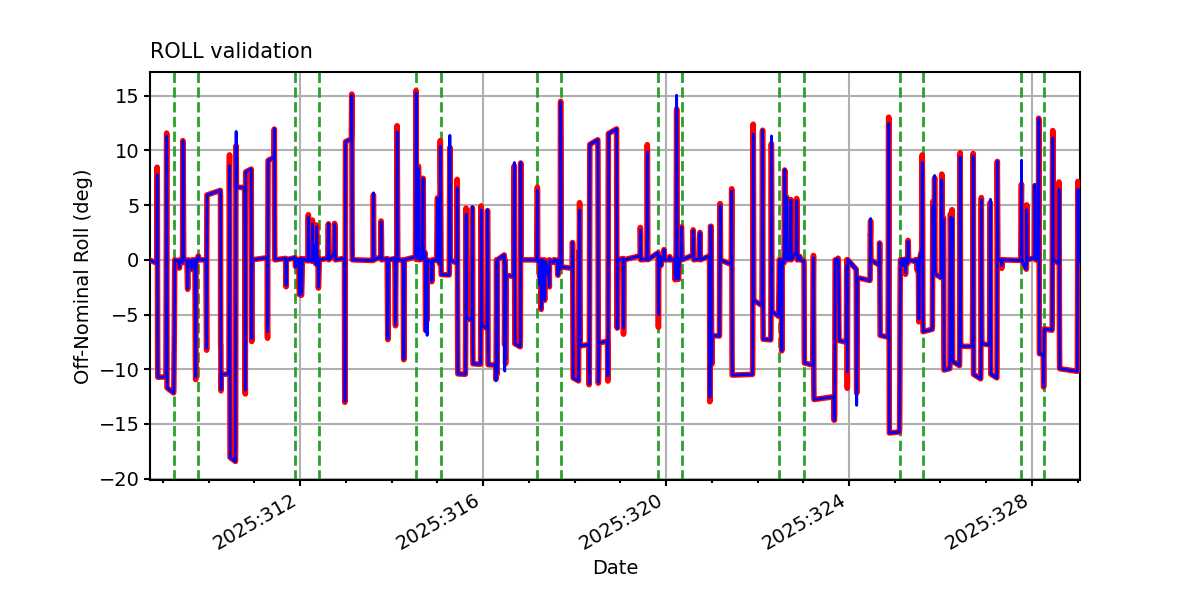

ROLL

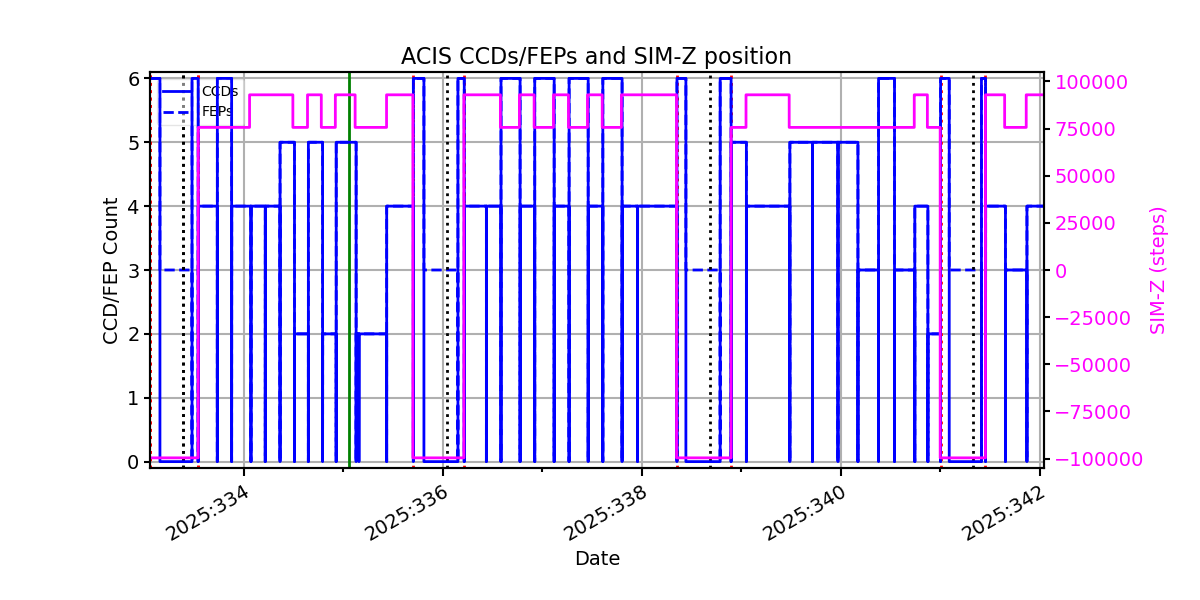

ACIS CCD/FEP Count
