DPA Temperatures Check
Summary
| Date start | 2025:349:00:38:00.016 |
| Date stop | 2025:355:22:58:21.916 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/DEC1525/oflsa |
| Run time | Wed Dec 10 14:34:54 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2025:349:08:27:40.463 | 2025:349:08:27:42.816 | 0.00 | 11.23 / 13.00 |
| 2025:349:09:27:48.508 | 2025:349:09:27:50.816 | 0.00 | 12.65 / 13.00 |
| 2025:349:20:28:40.853 | 2025:349:20:28:46.966 | 0.01 | 11.06 / 13.00 |
| 2025:350:04:51:55.107 | 2025:350:04:52:14.816 | 0.02 | 11.05 / 13.00 |
| 2025:350:13:10:03.794 | 2025:350:13:10:10.844 | 0.01 | 10.96 / 13.00 |
| 2025:352:21:27:50.848 | 2025:352:21:28:06.816 | 0.02 | 10.13 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -0.99 | -0.54 | -0.03 | 0.62 | 1.15 | 1.48 | 1.99 |
| pitch | -9.702 | -0.366 | -0.004 | -0.000 | 0.004 | 0.448 | 10.293 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.000 | -0.101 | -0.007 | -0.000 | 0.007 | 0.137 | 2.045 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -9.702 | 3.00 |
| PITCH | 99 | 10.293 | 3.00 |

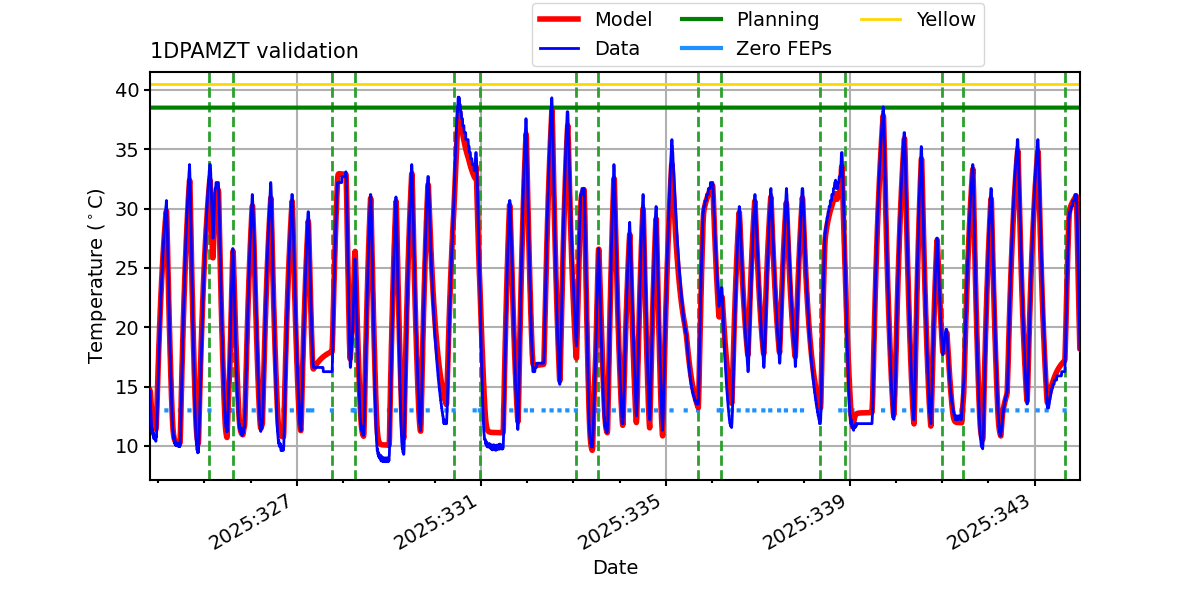

1DPAMZT

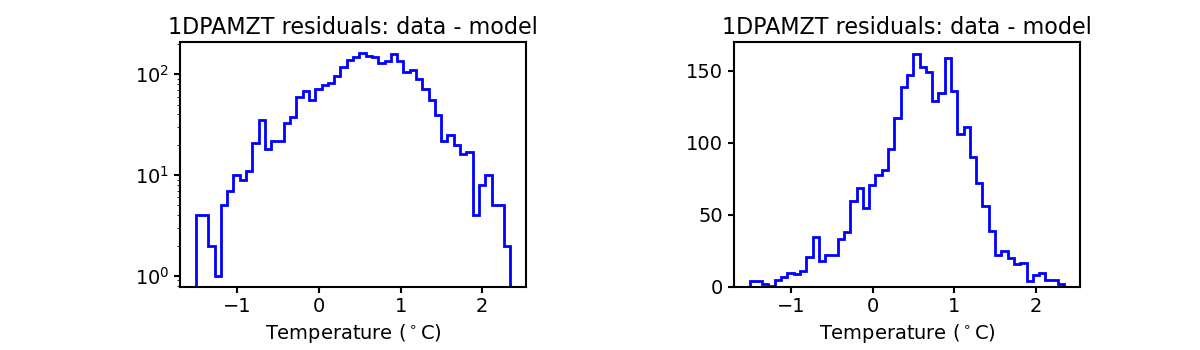

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

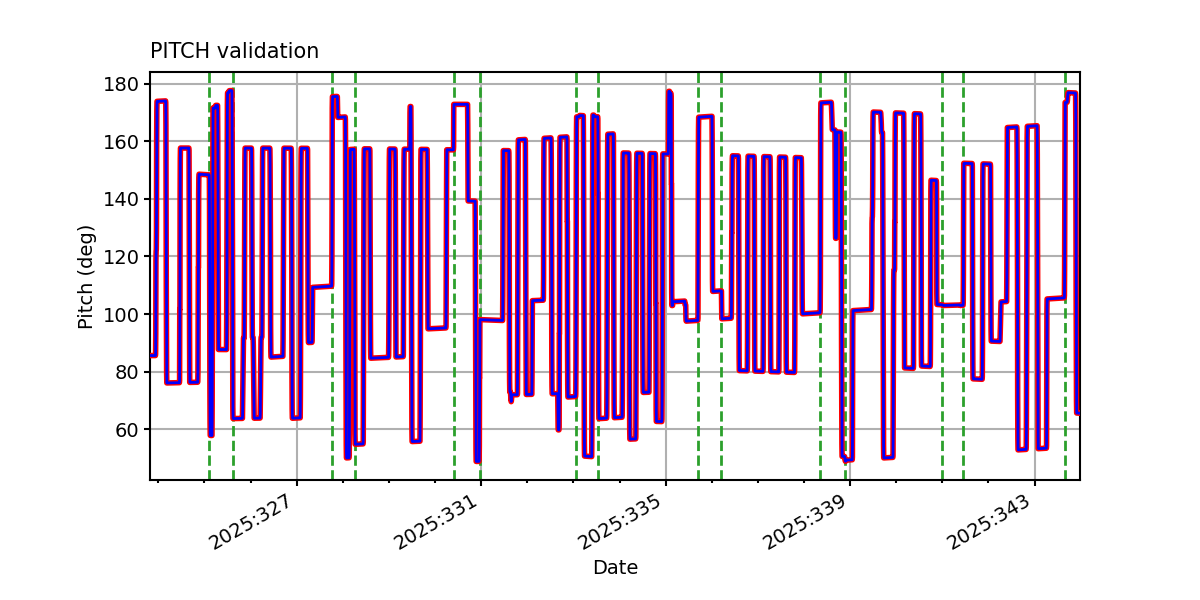

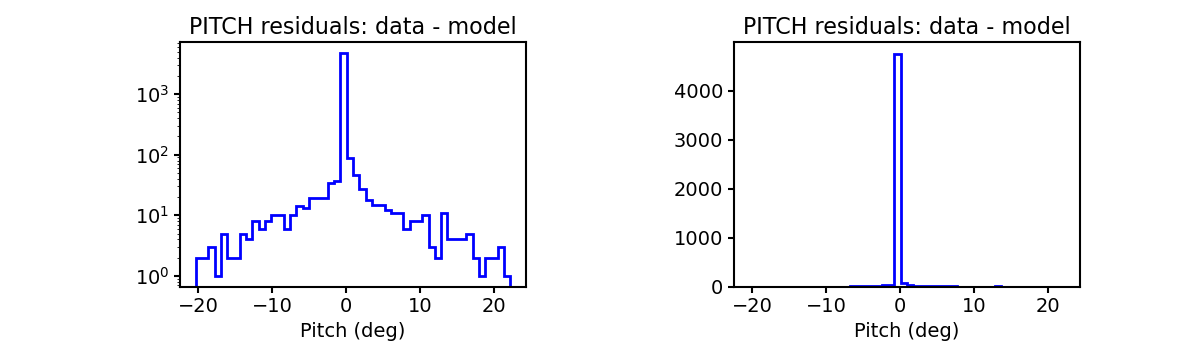

PITCH

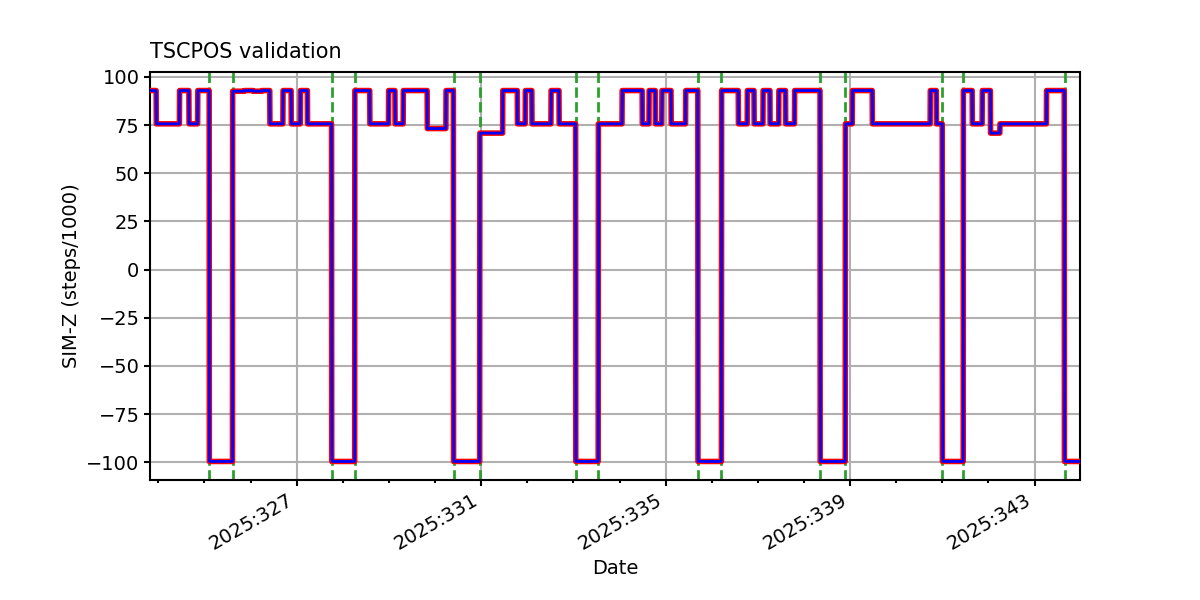

TSCPOS

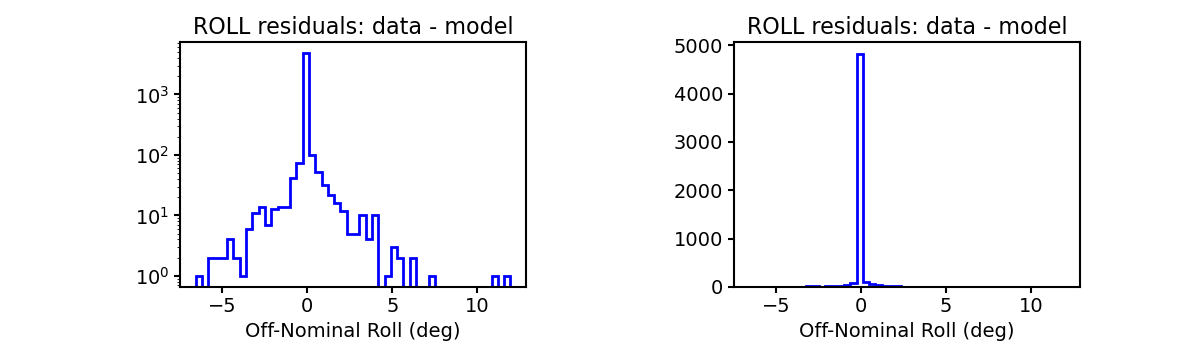

ROLL

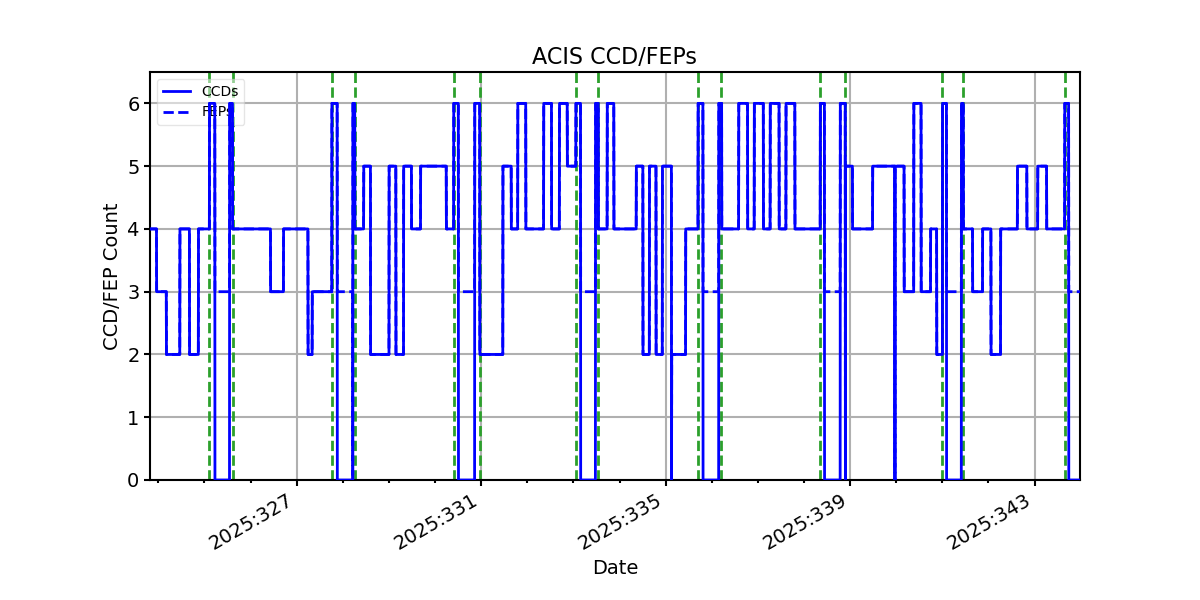

ACIS CCD/FEP Count
