DPA Temperatures Check
Summary
| Date start | 2026:046:22:04:13.416 |
| Date stop | 2026:054:01:55:44.816 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/FEB1626/oflsa |
| Run time | Wed Feb 11 15:17:04 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2026:051:01:09:06.829 | 2026:051:01:09:24.371 | 0.02 | 12.15 / 13.00 |
| 2026:052:11:15:56.604 | 2026:052:11:16:06.816 | 0.01 | 10.47 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -2.66 | -1.82 | -1.28 | -0.03 | 0.66 | 1.01 | 1.45 |
| pitch | -8.760 | -0.500 | -0.004 | 0.000 | 0.004 | 0.273 | 9.387 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.833 | -0.154 | -0.009 | 0.000 | 0.007 | 0.088 | 1.852 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -2.66 | 2.00 |
| PITCH | 1 | -8.76 | 3.00 |
| PITCH | 99 | 9.387 | 3.00 |
1DPAMZT
Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

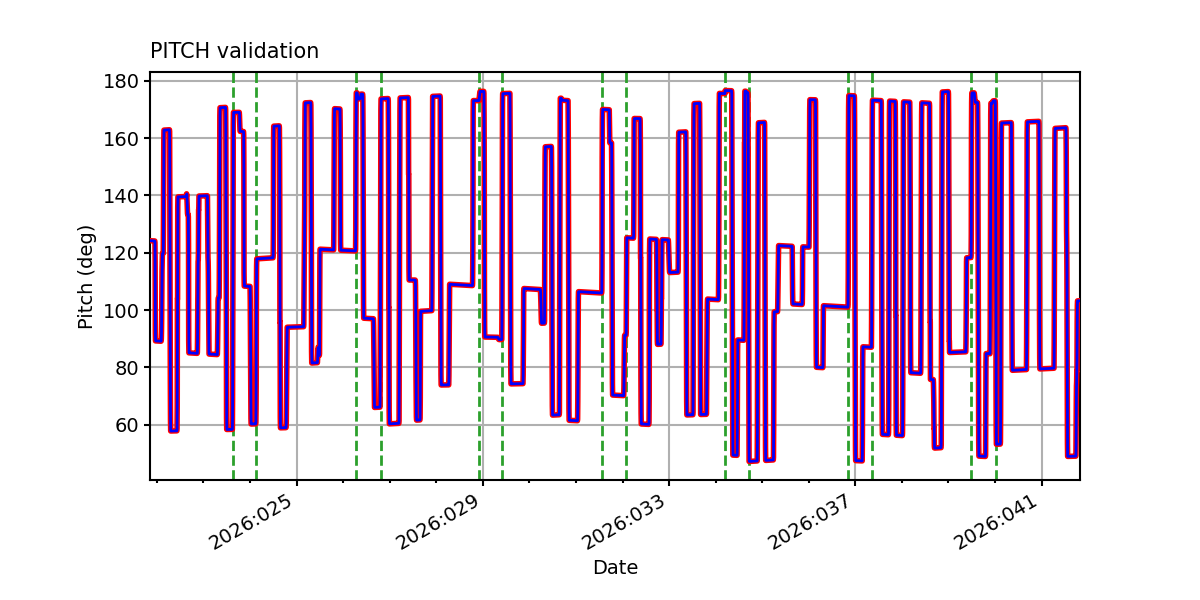

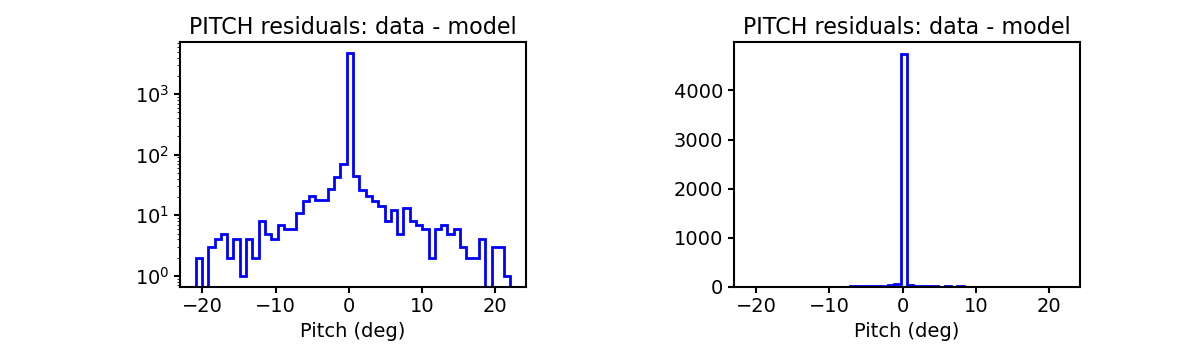

PITCH

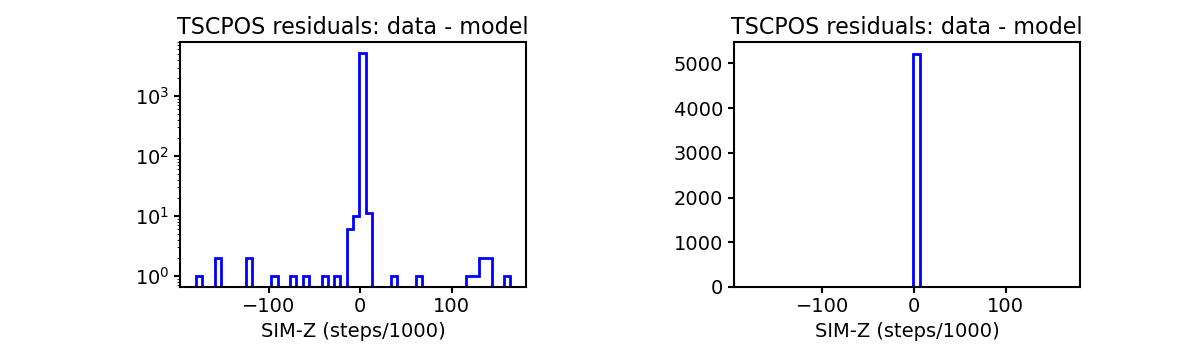

TSCPOS

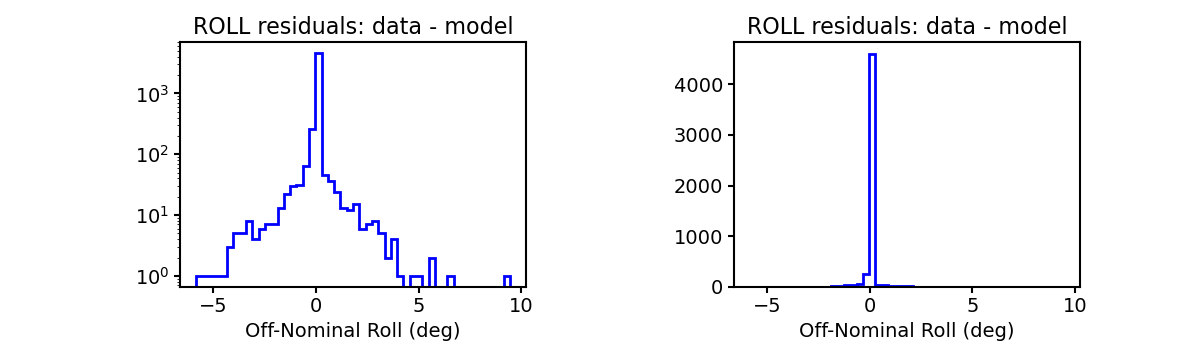

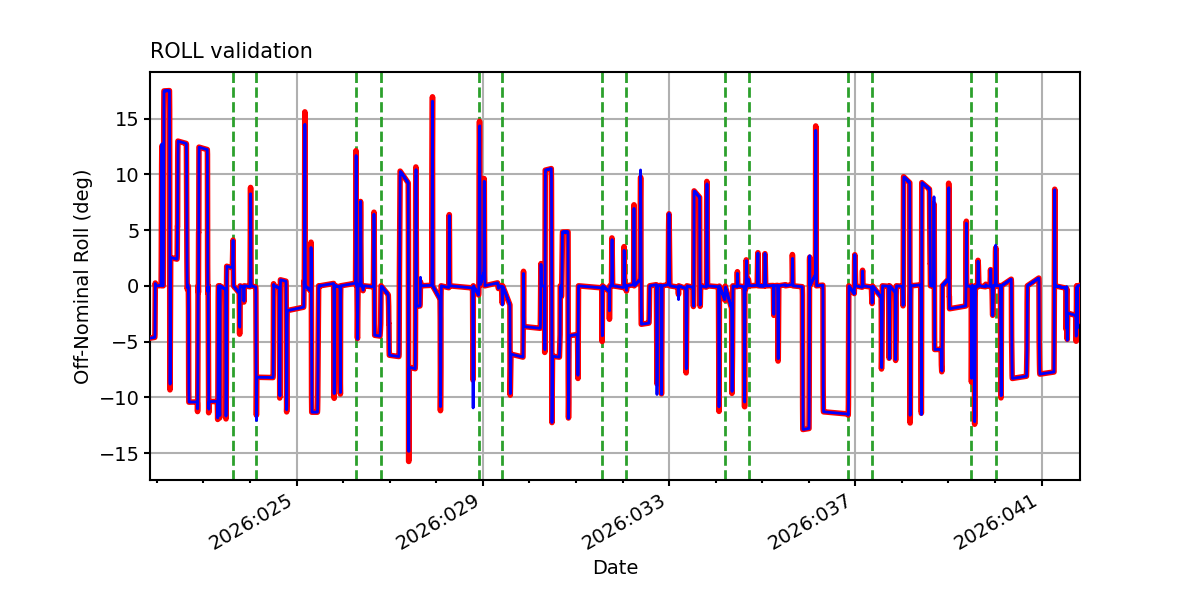

ROLL

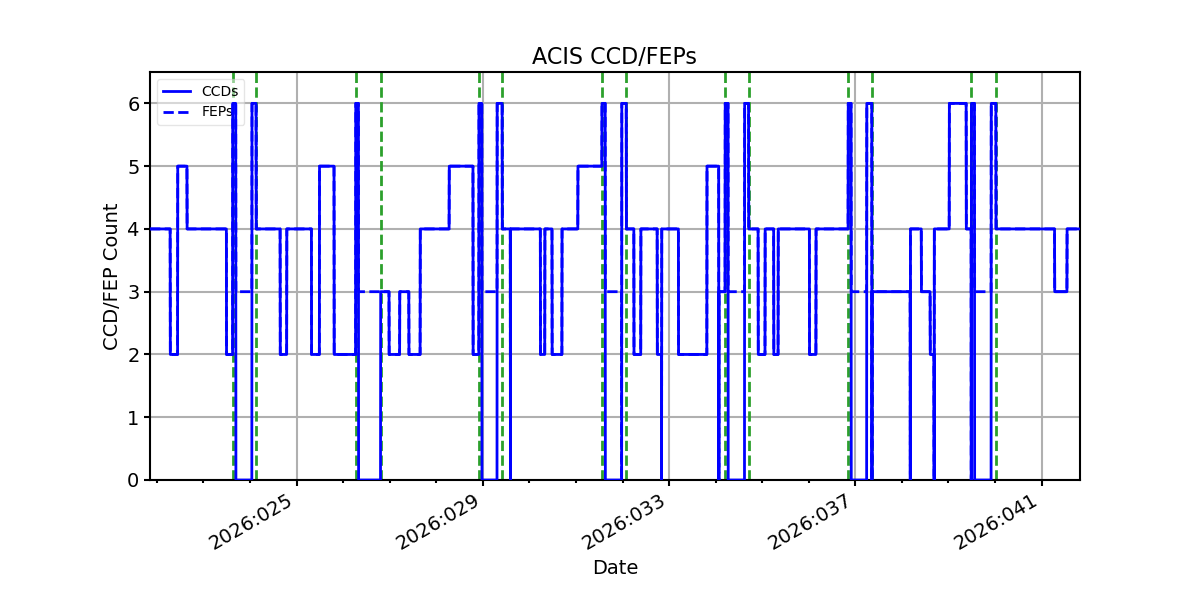

ACIS CCD/FEP Count
