DPA Temperatures Check
Summary
| Date start | 2026:056:22:59:59.016 |
| Date stop | 2026:060:17:11:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/FEB2526/oflsa |
| Run time | Sun Feb 22 20:13:59 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
No 1DPAMZT Lower Limit Violations
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -1.95 | -1.34 | -0.60 | 0.20 | 0.69 | 1.06 | 1.49 |
| pitch | -9.334 | -0.697 | -0.004 | -0.000 | 0.004 | 0.314 | 12.426 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.696 | -0.137 | -0.010 | 0.000 | 0.011 | 0.109 | 1.749 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -9.334 | 3.00 |
| PITCH | 99 | 12.426 | 3.00 |

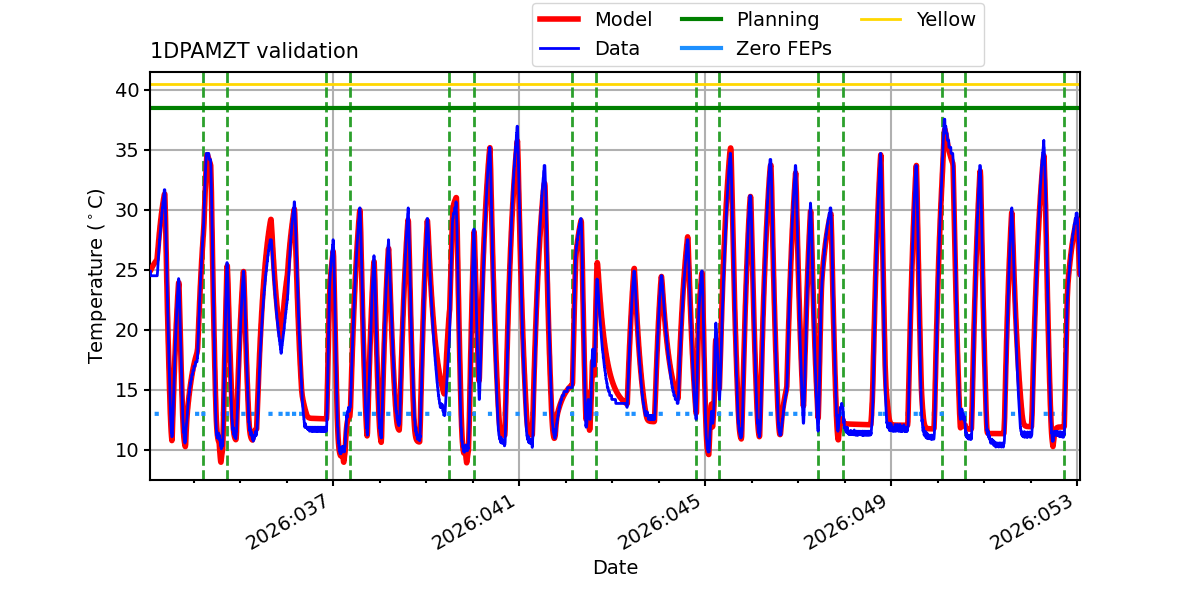

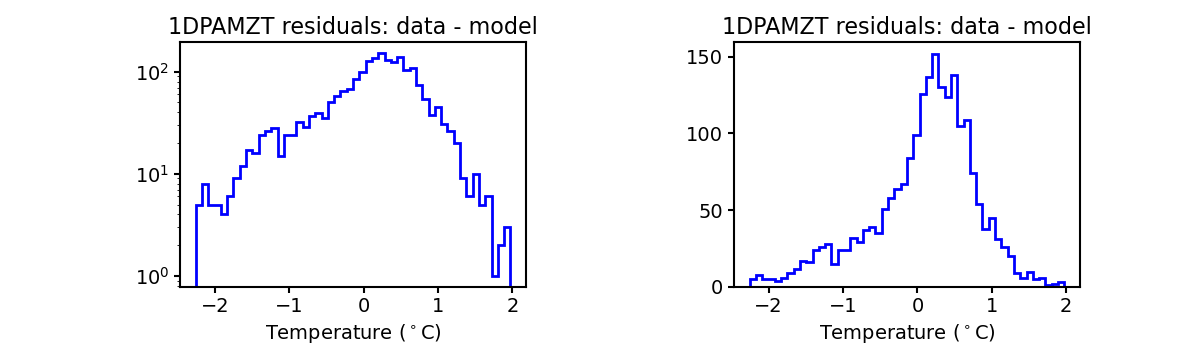

1DPAMZT
Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

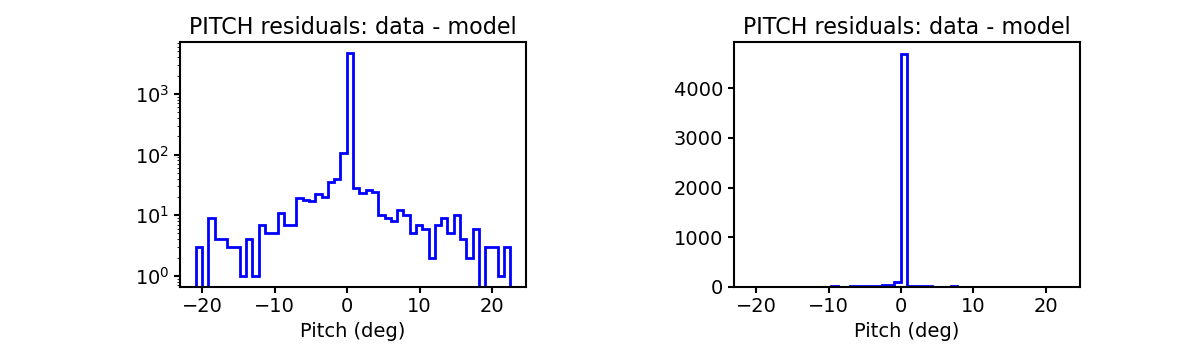

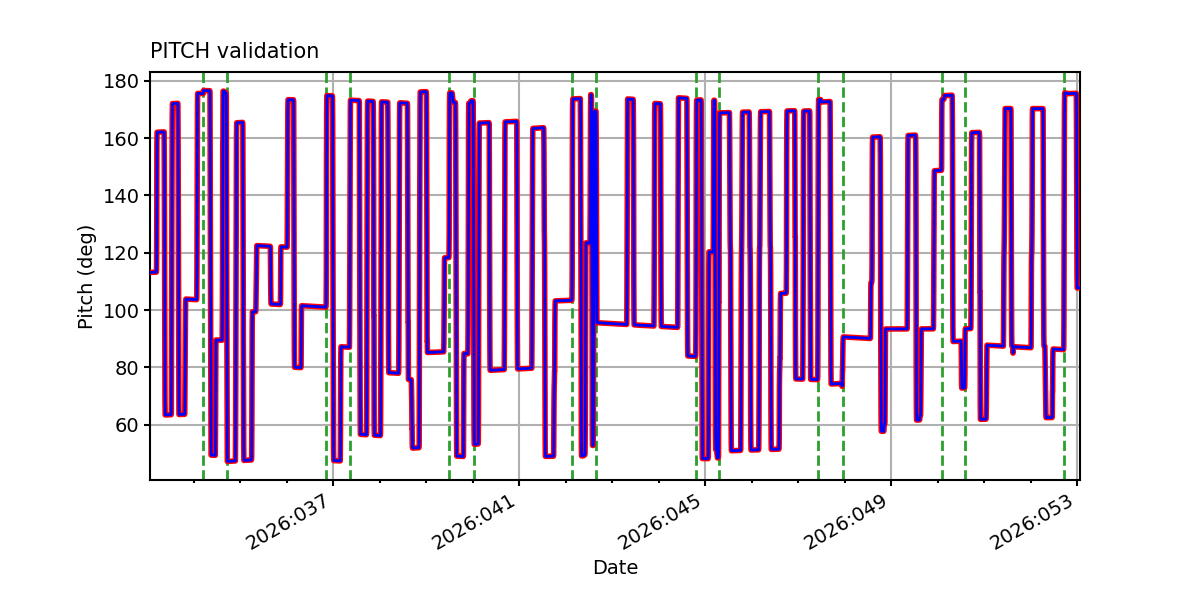

PITCH

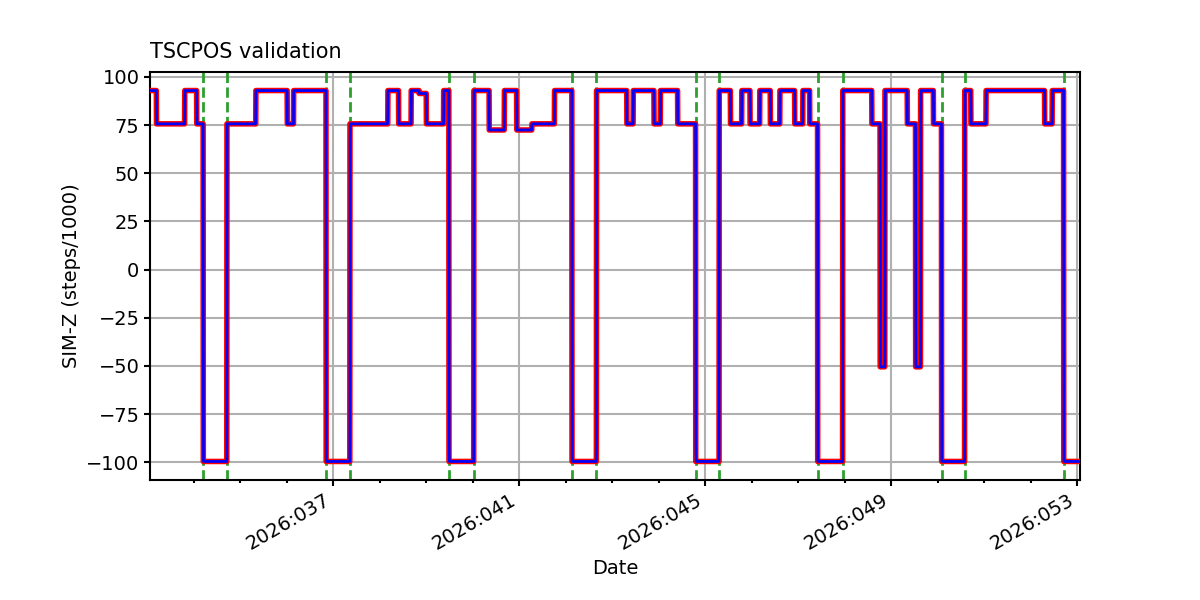

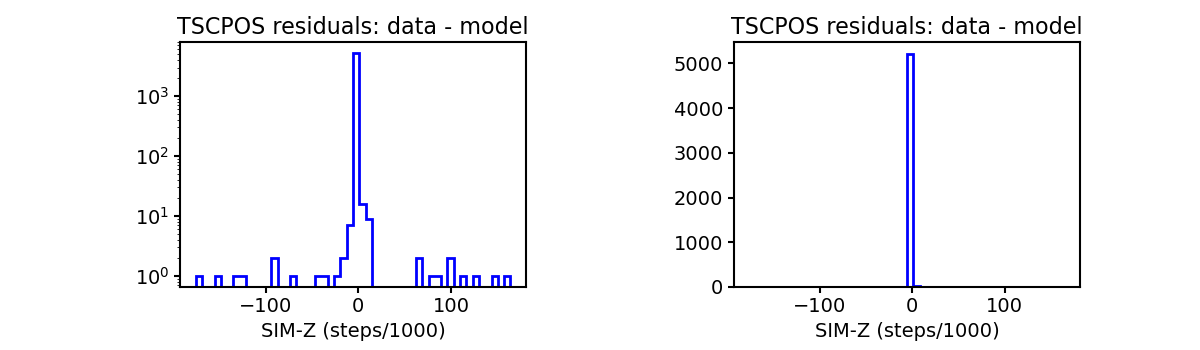

TSCPOS

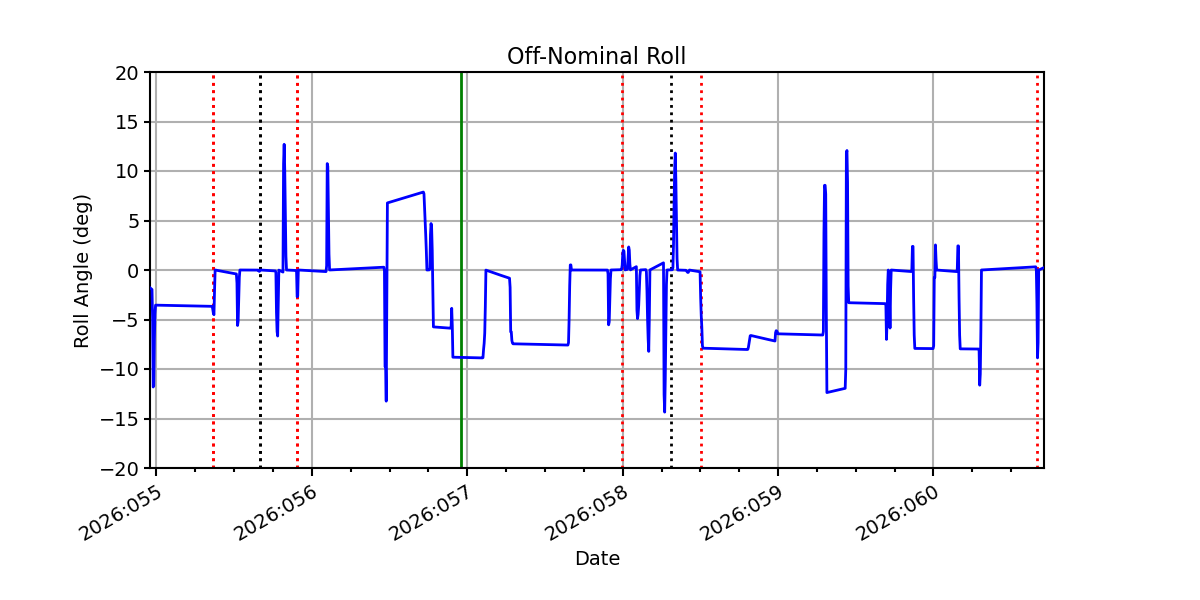

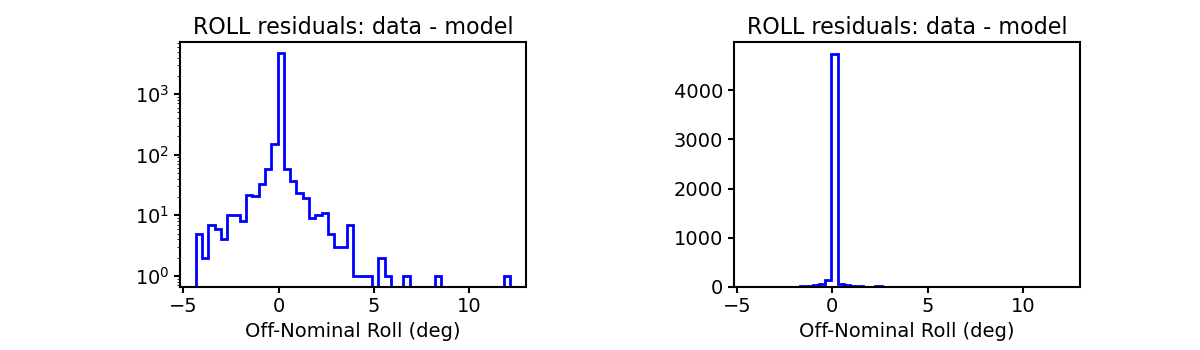

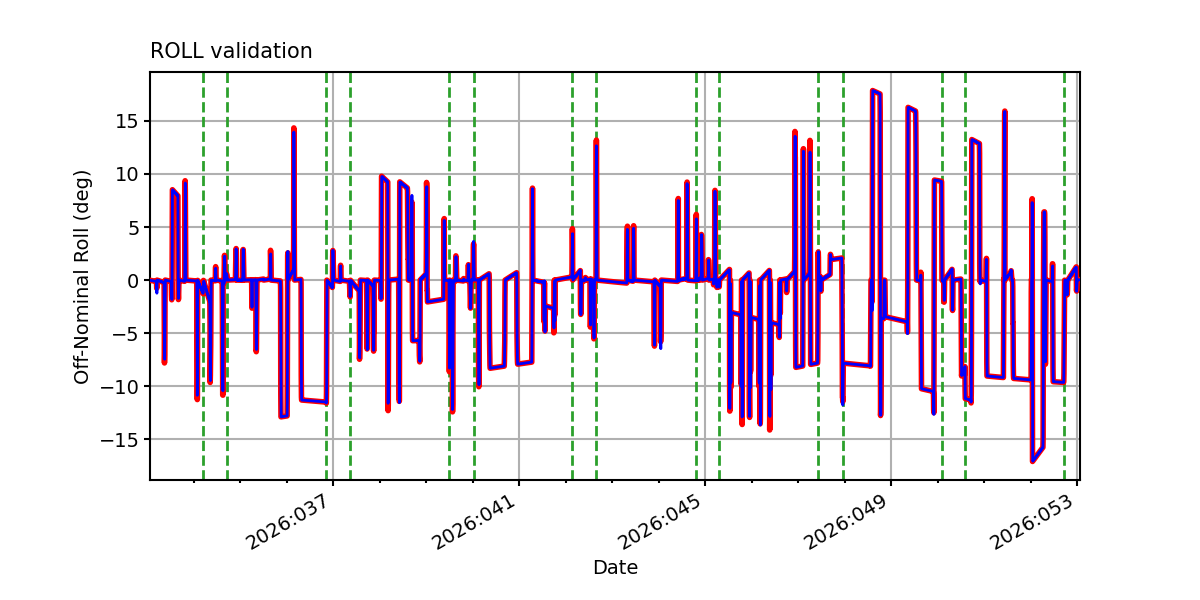

ROLL

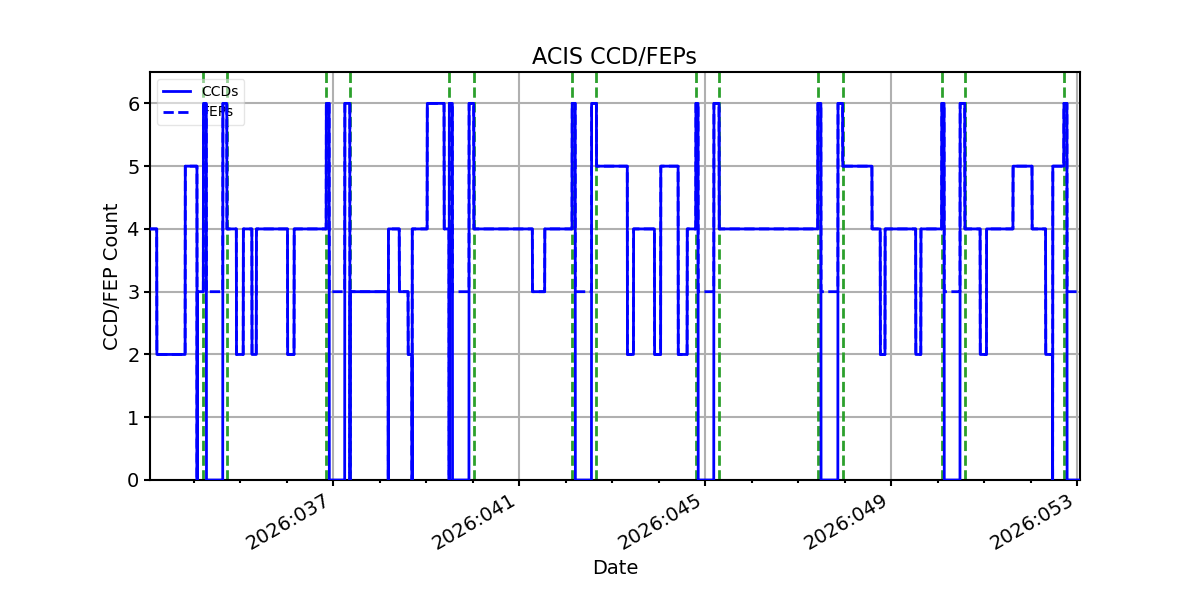

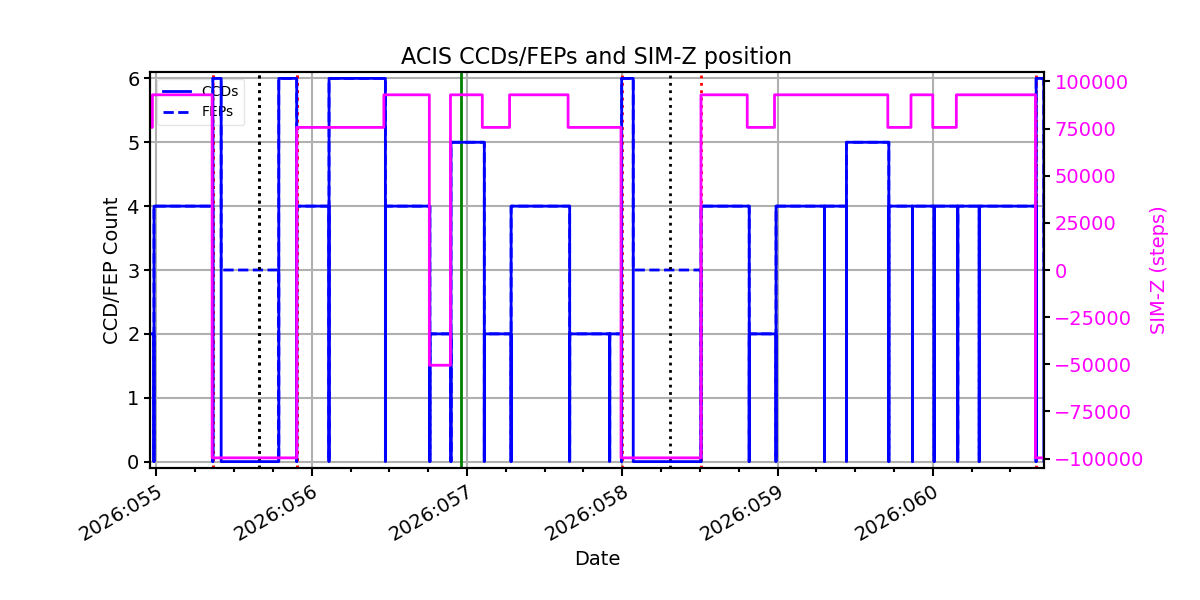

ACIS CCD/FEP Count
