DPA Temperatures Check
Summary
| Date start | 2026:019:00:49:29.616 |
| Date stop | 2026:025:19:30:25.416 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/JAN1926/oflsa |
| Run time | Wed Jan 14 14:16:47 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2026:020:04:16:29.487 | 2026:020:04:16:38.816 | 0.01 | 10.32 / 13.00 |
| 2026:021:08:58:32.221 | 2026:021:08:58:38.816 | 0.01 | 9.77 / 13.00 |
| 2026:022:10:40:27.719 | 2026:022:10:40:49.125 | 0.02 | 10.71 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -2.40 | -2.05 | -1.25 | 0.08 | 1.05 | 1.79 | 2.38 |
| pitch | -11.371 | -0.613 | -0.004 | -0.000 | 0.004 | 0.617 | 11.702 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -1.892 | -0.231 | -0.008 | -0.000 | 0.007 | 0.143 | 1.844 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -2.4 | 2.00 |
| 1DPAMZT | 99 | 2.38 | 2.00 |
| PITCH | 1 | -11.371 | 3.00 |
| PITCH | 99 | 11.702 | 3.00 |

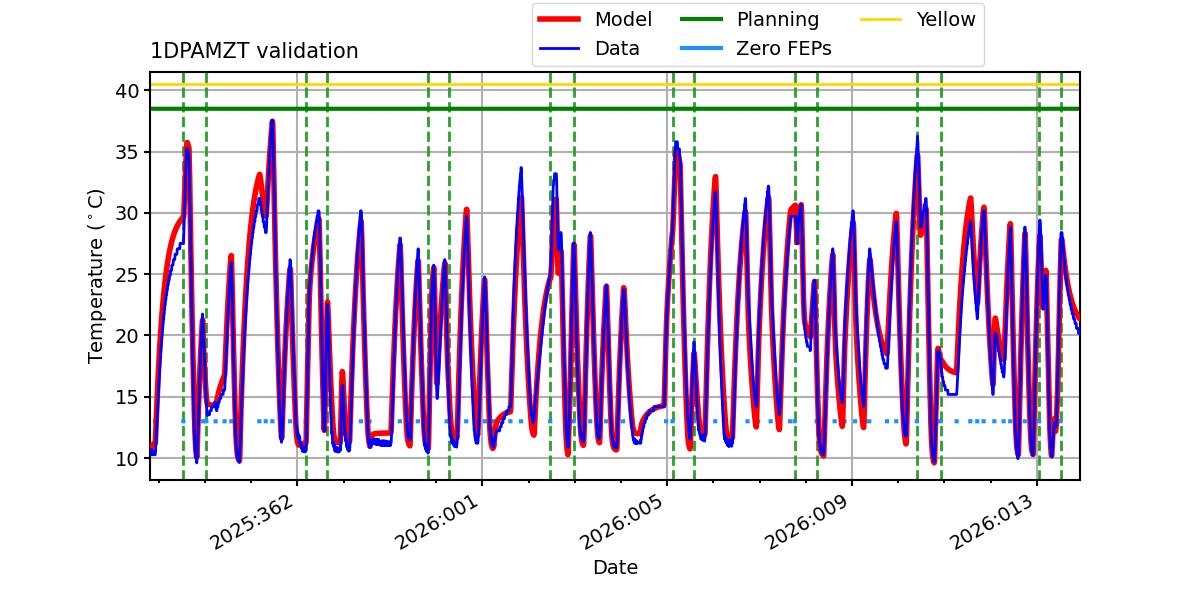

1DPAMZT

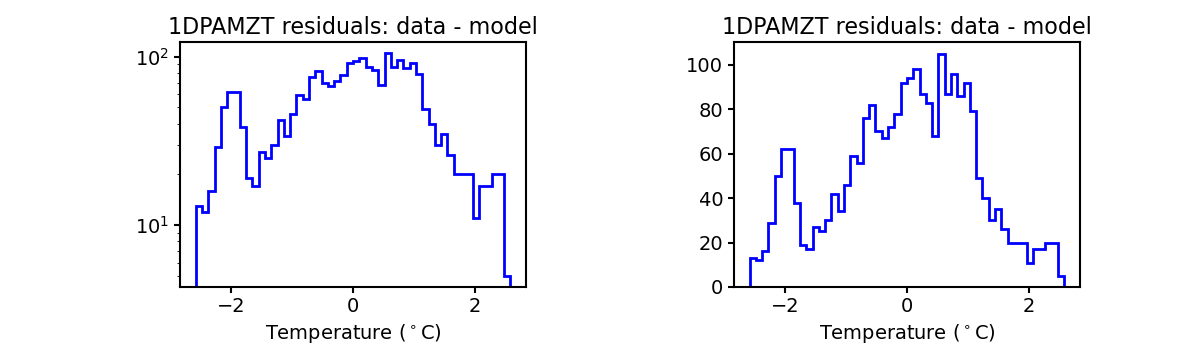

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

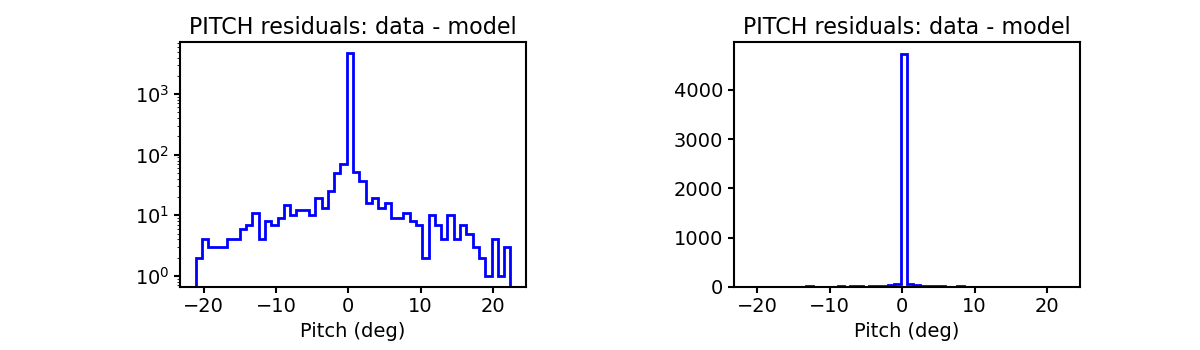

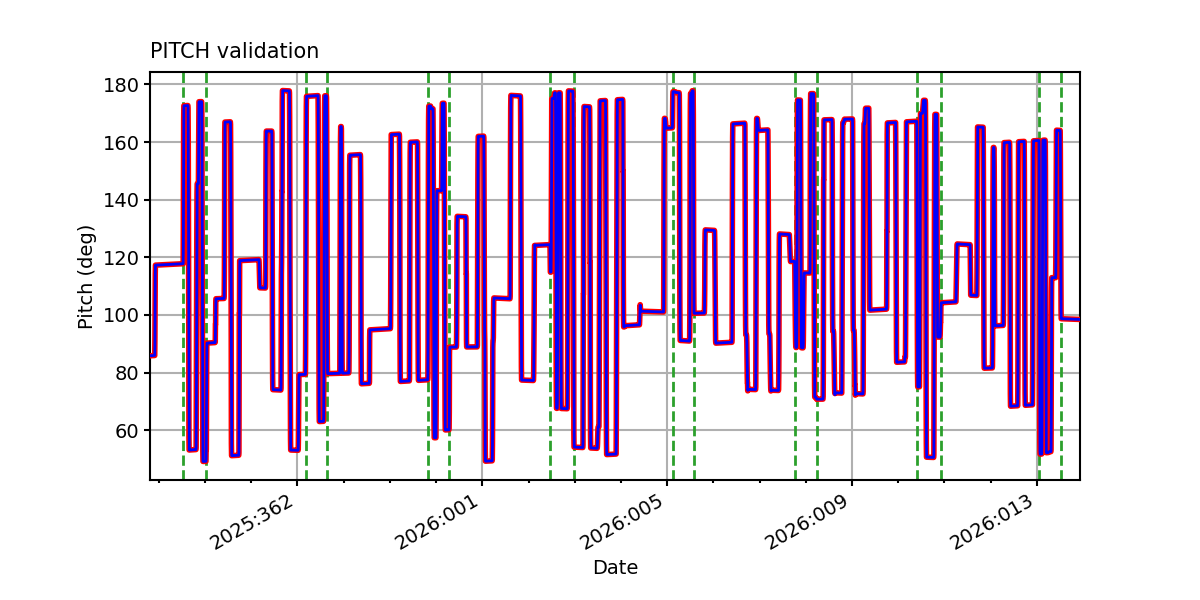

PITCH
TSCPOS

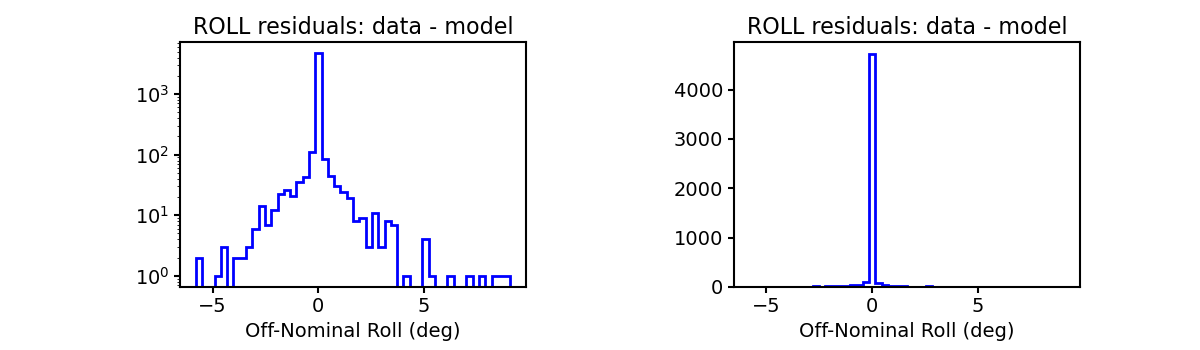

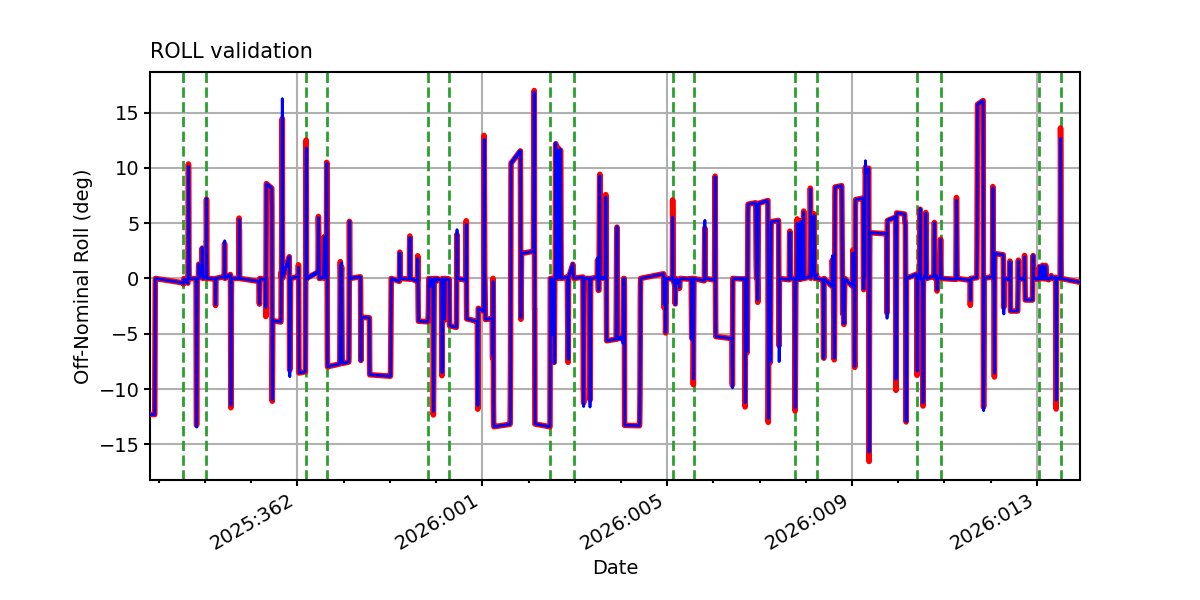

ROLL

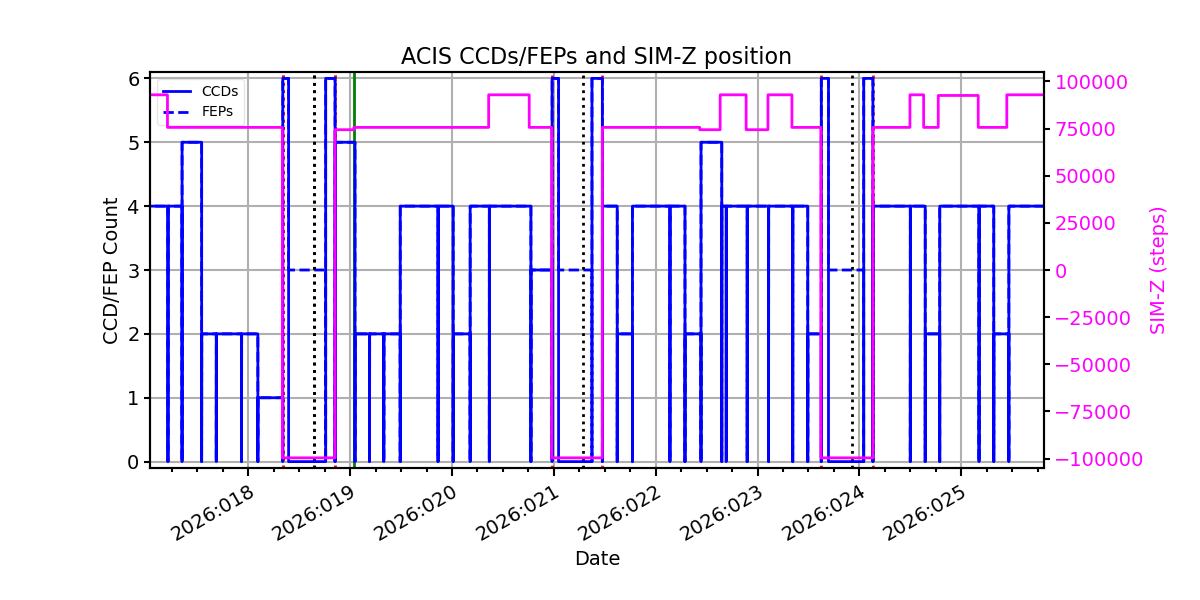

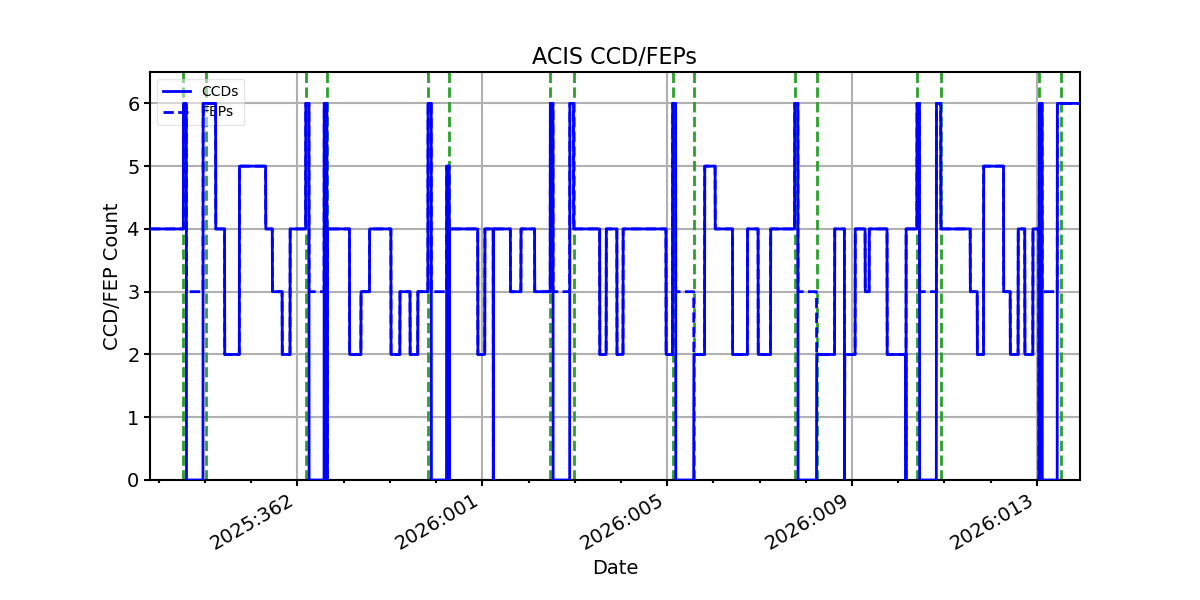

ACIS CCD/FEP Count
