DPA Temperatures Check
Summary
| Date start | 2026:019:00:49:29.616 |
| Date stop | 2026:025:19:08:18.516 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/JAN1926/oflsb |
| Run time | Thu Jan 15 22:00:45 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2026:019:11:35:56.916 | 2026:019:11:36:14.816 | 0.02 | 9.99 / 13.00 |
| 2026:020:16:10:11.725 | 2026:020:16:10:22.525 | 0.01 | 12.34 / 13.00 |
| 2026:021:08:58:32.221 | 2026:021:08:58:38.816 | 0.01 | 9.78 / 13.00 |
| 2026:022:10:40:27.714 | 2026:022:10:40:49.121 | 0.02 | 10.68 / 13.00 |
| 2026:025:11:47:29.492 | 2026:025:11:47:31.743 | 0.00 | 10.33 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -2.39 | -1.88 | -0.99 | 0.13 | 1.01 | 1.76 | 2.34 |
| pitch | -11.776 | -0.584 | -0.004 | 0.000 | 0.004 | 0.646 | 11.568 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -1.950 | -0.244 | -0.009 | -0.000 | 0.007 | 0.172 | 1.844 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -2.39 | 2.00 |
| 1DPAMZT | 99 | 2.34 | 2.00 |
| PITCH | 1 | -11.776 | 3.00 |
| PITCH | 99 | 11.568 | 3.00 |

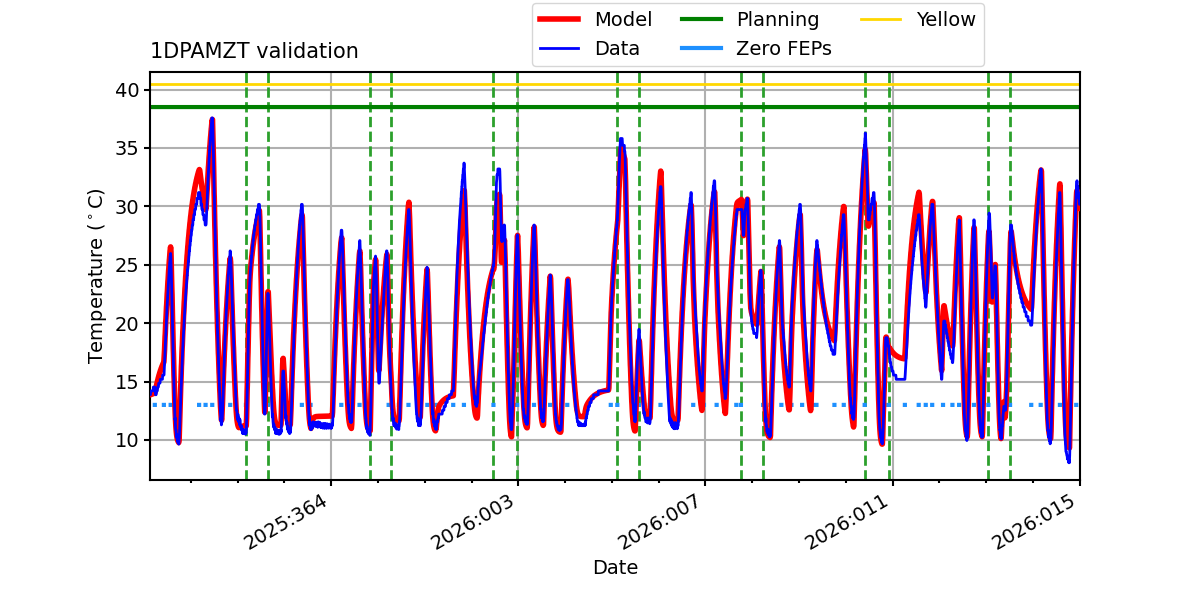

1DPAMZT

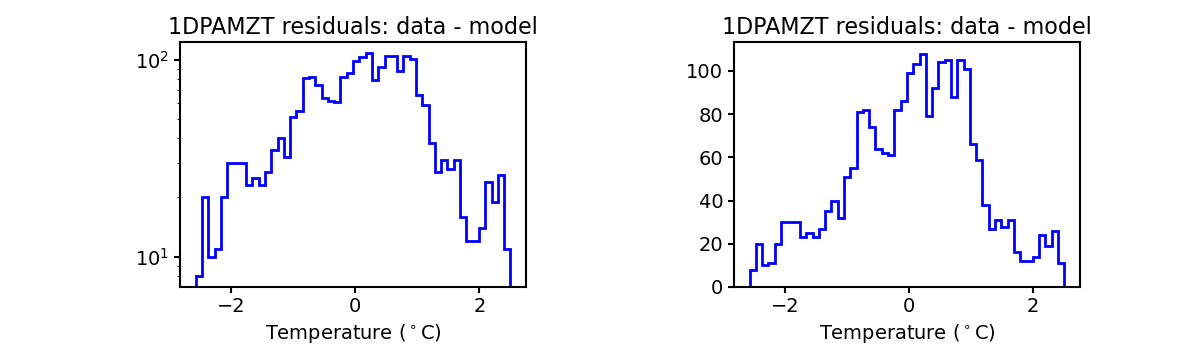

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

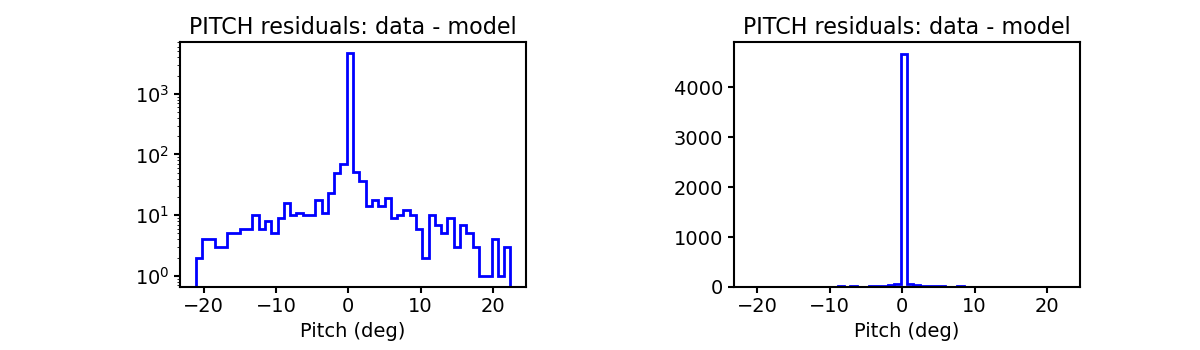

PITCH

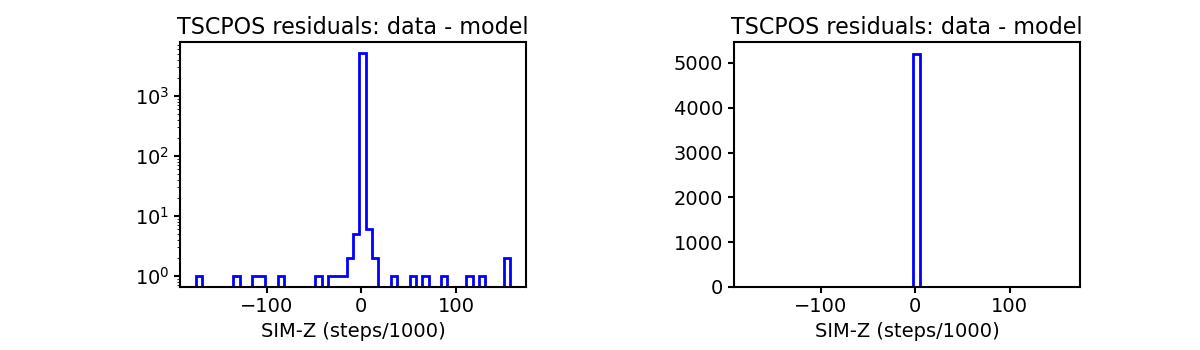

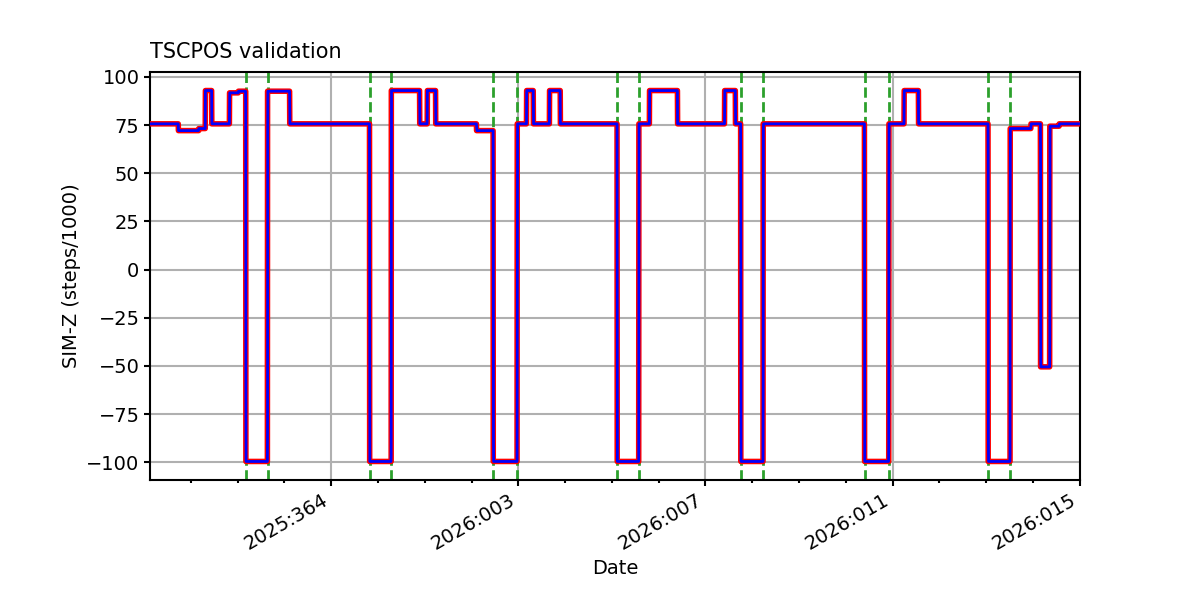

TSCPOS

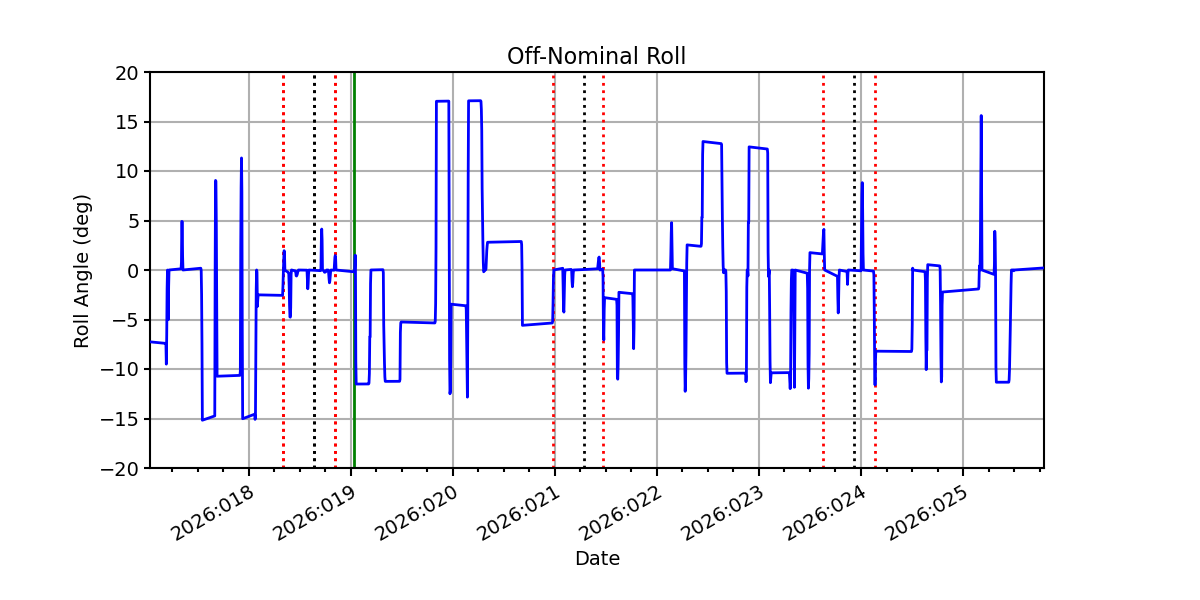

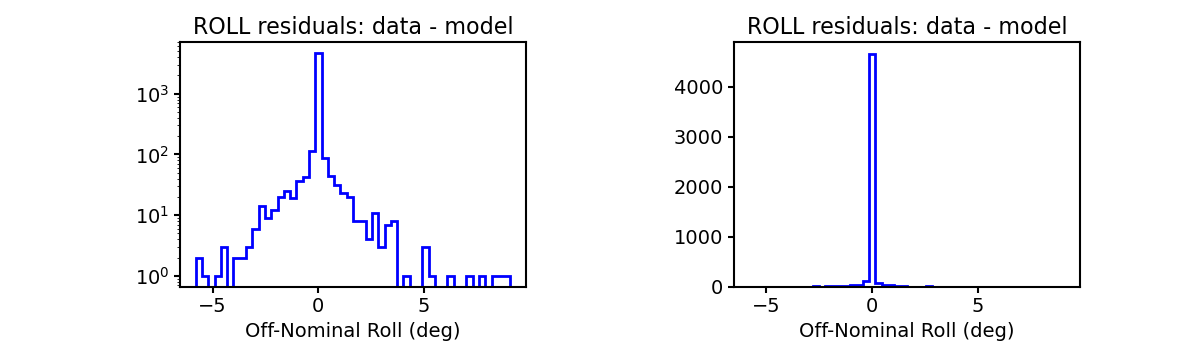

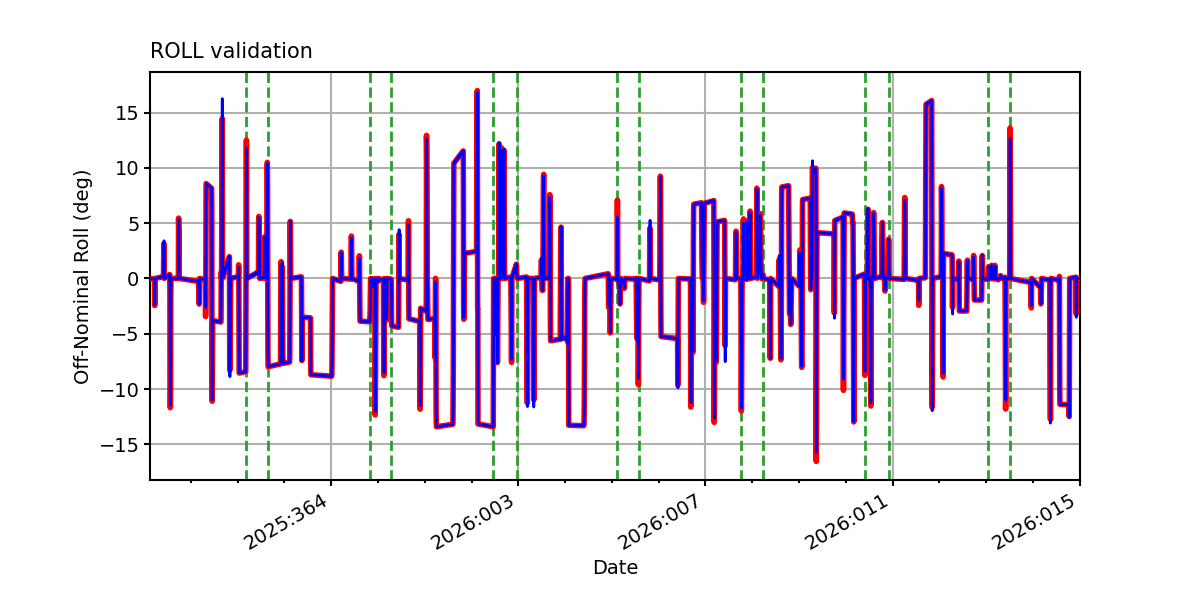

ROLL
ACIS CCD/FEP Count
