DPA Temperatures Check
Summary
| Date start | 2026:021:13:00:00.016 |
| Date stop | 2026:025:19:08:18.516 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/JAN2126/oflsa |
| Run time | Tue Jan 20 11:37:31 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2026:022:10:40:33.857 | 2026:022:10:40:49.374 | 0.02 | 10.97 / 13.00 |
| 2026:025:11:47:29.509 | 2026:025:11:47:31.760 | 0.00 | 10.33 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -2.39 | -1.51 | -0.87 | 0.08 | 0.97 | 1.76 | 2.34 |
| pitch | -11.845 | -0.750 | -0.004 | 0.000 | 0.004 | 0.744 | 11.250 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.132 | -0.245 | -0.009 | -0.000 | 0.007 | 0.172 | 2.019 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -2.39 | 2.00 |
| 1DPAMZT | 99 | 2.34 | 2.00 |
| PITCH | 1 | -11.845 | 3.00 |
| PITCH | 99 | 11.25 | 3.00 |

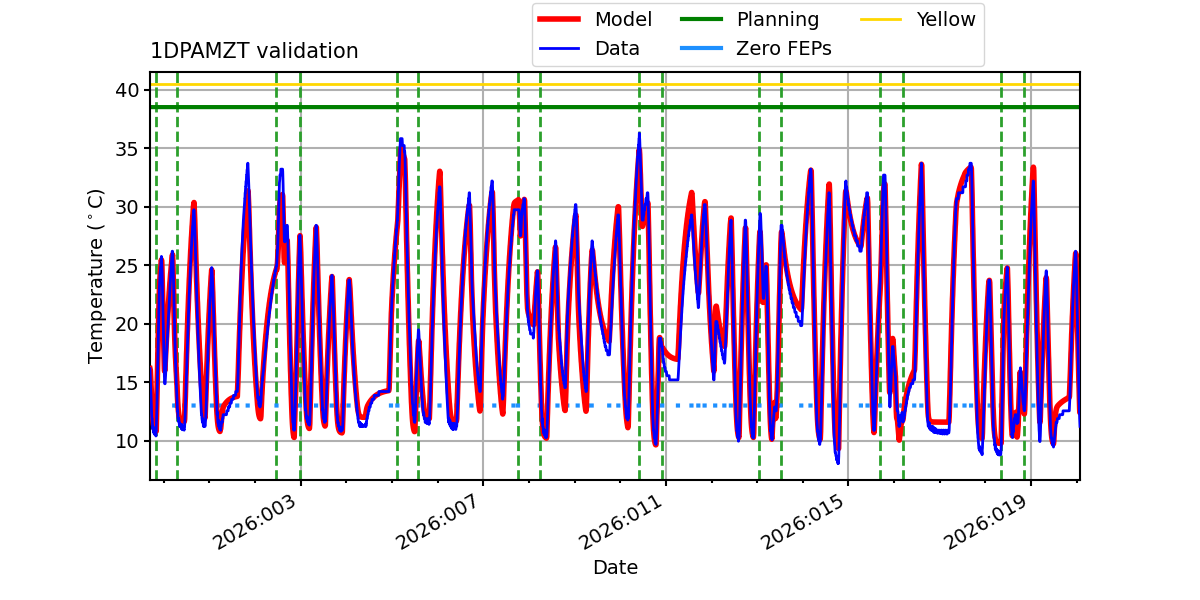

1DPAMZT

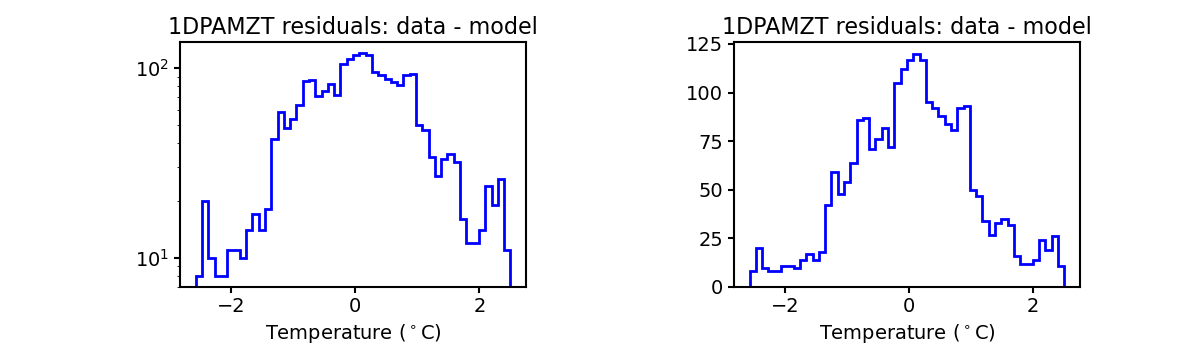

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

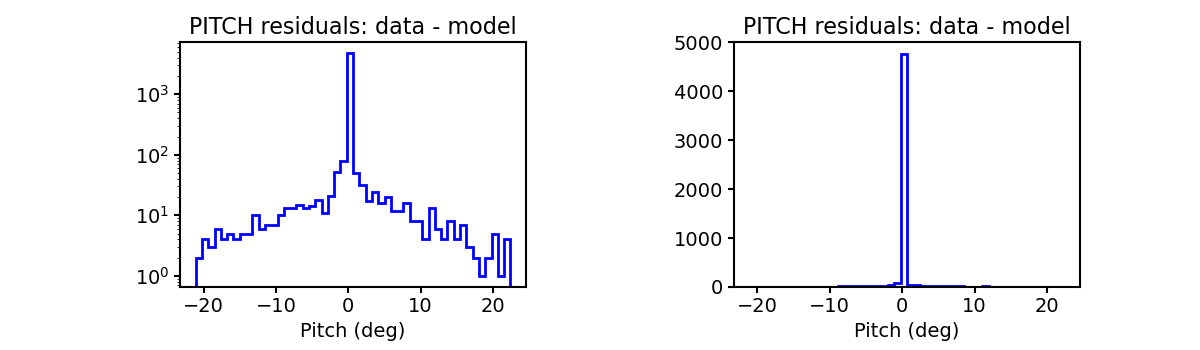

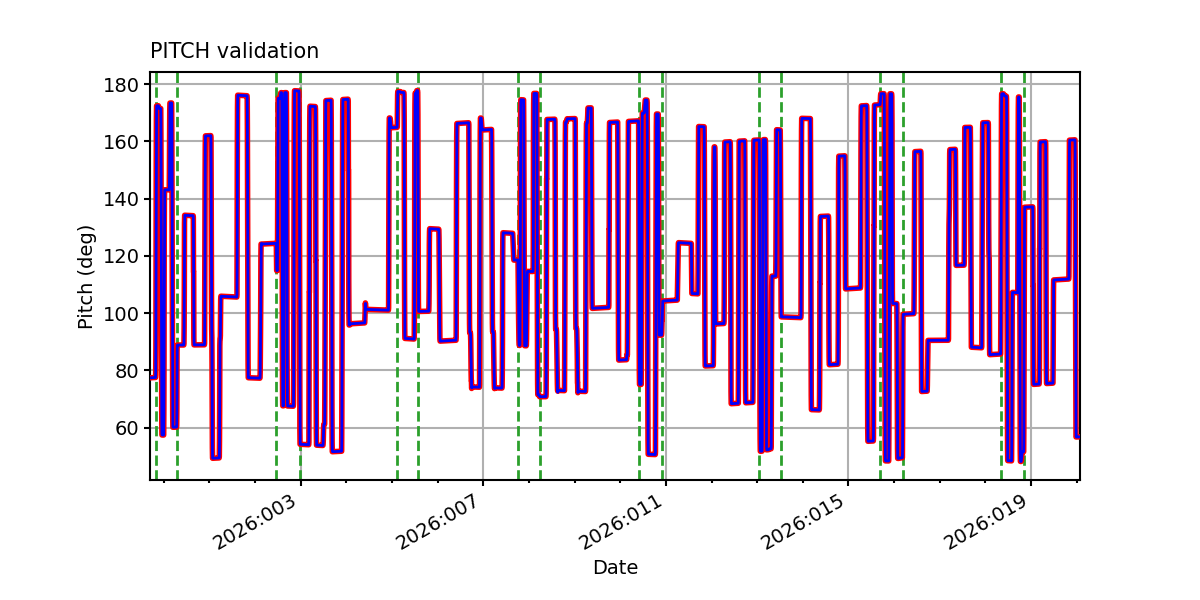

PITCH

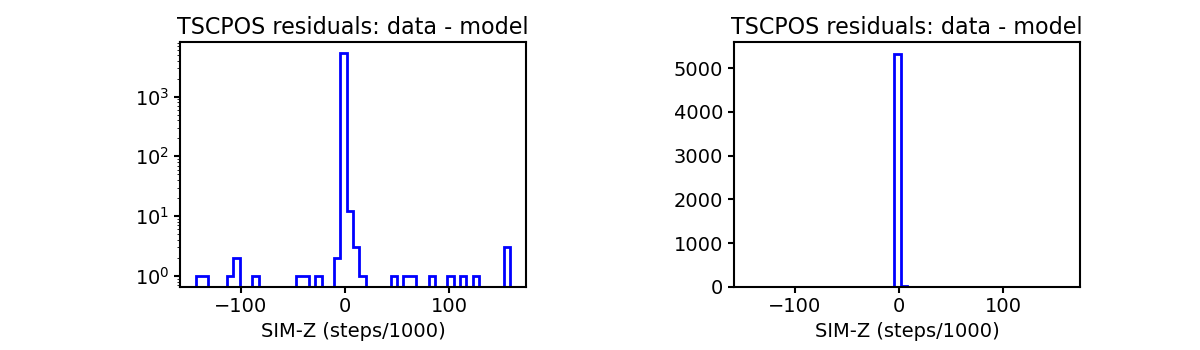

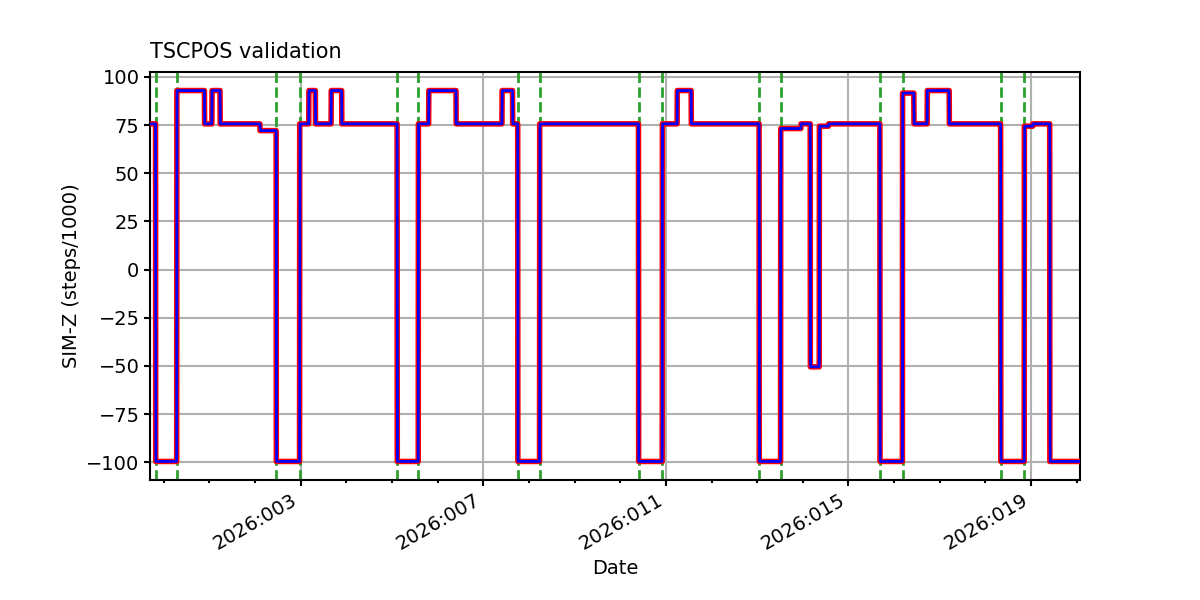

TSCPOS

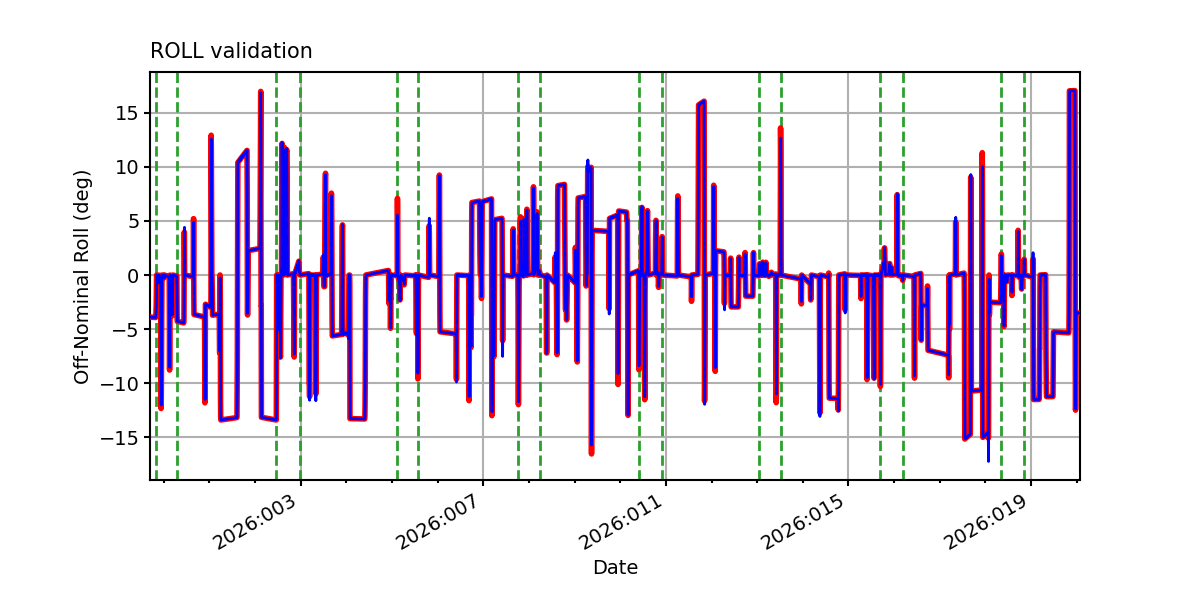

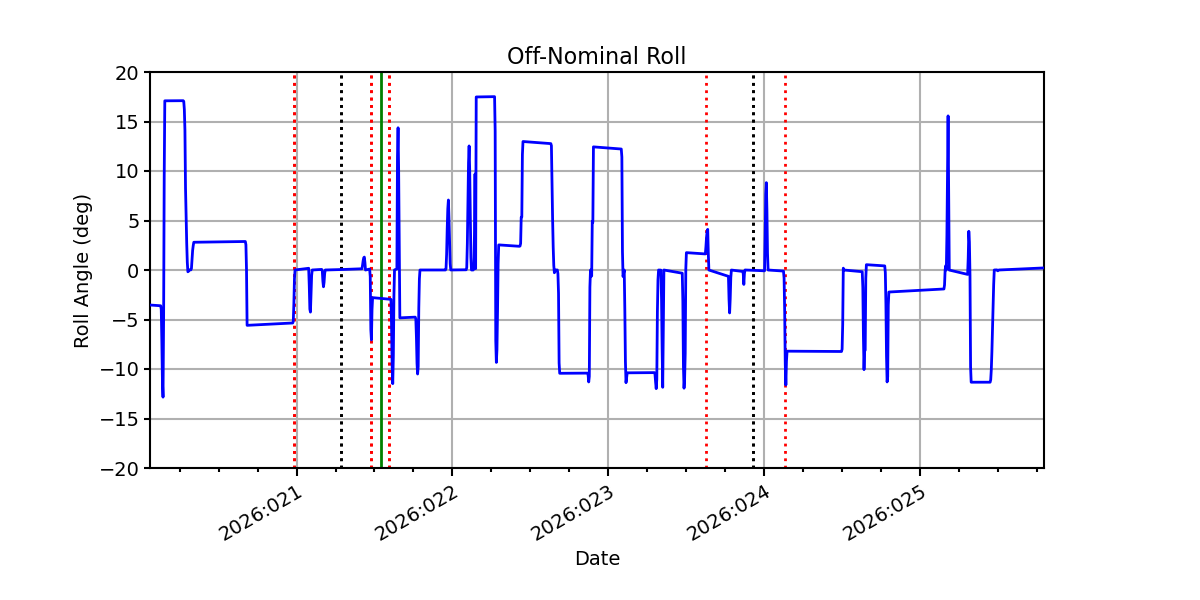

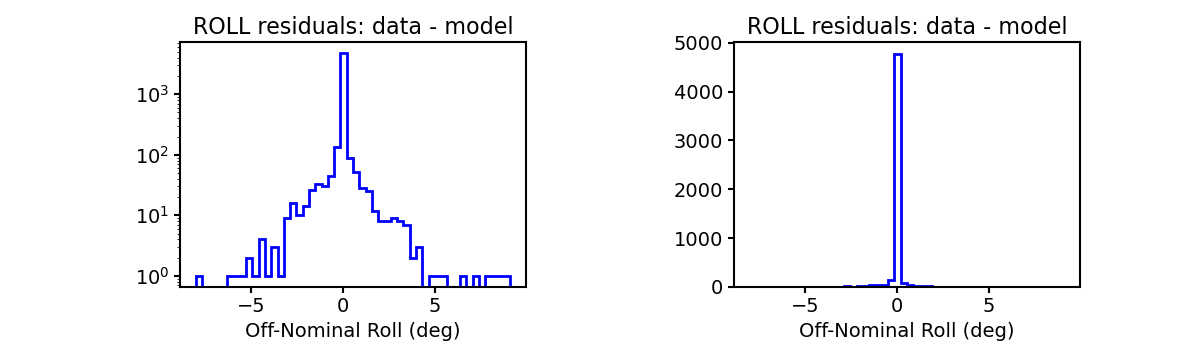

ROLL

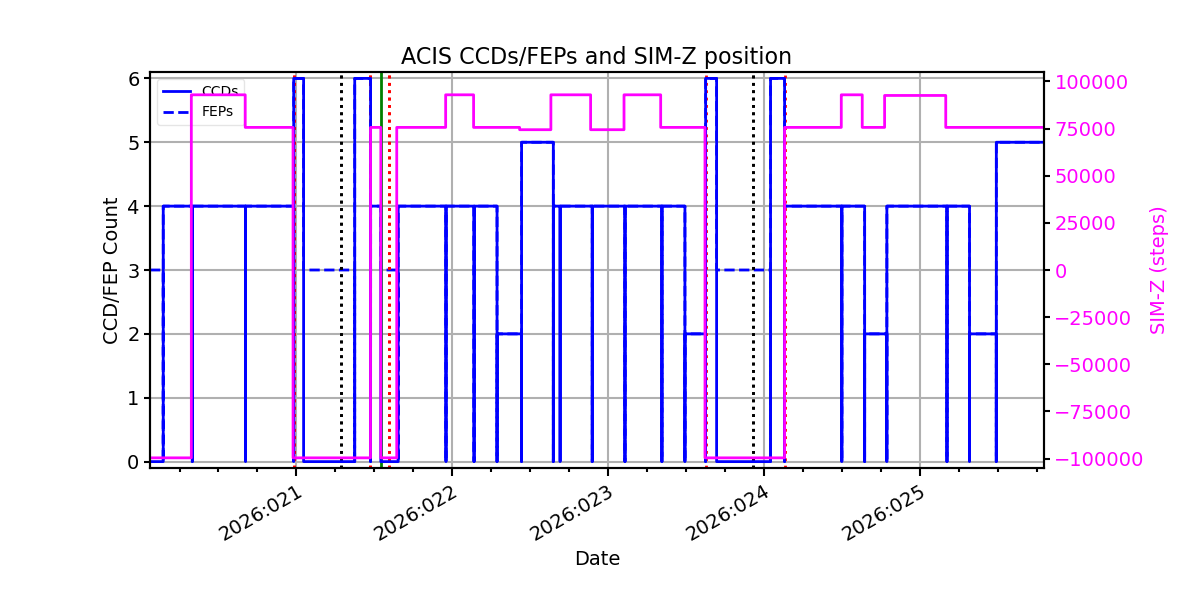

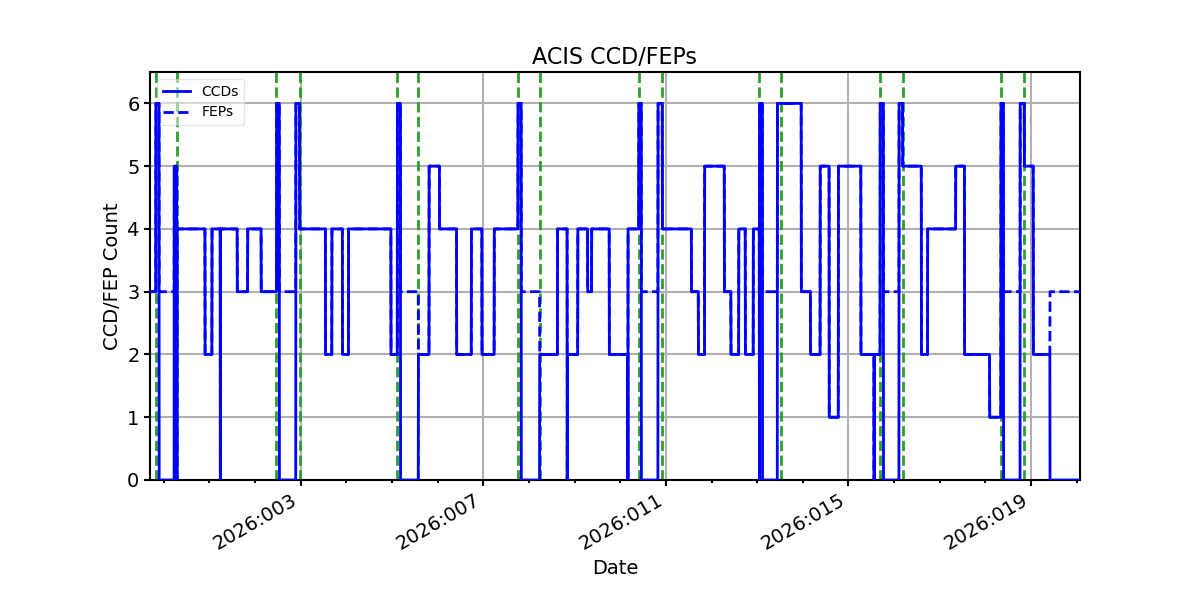

ACIS CCD/FEP Count
