DPA Temperatures Check
Summary
| Date start | 2026:186:23:47:27.716 |
| Date stop | 2026:193:22:57:34.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/JUL0626/oflsa |
| Run time | Tue Jun 30 18:21:44 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations

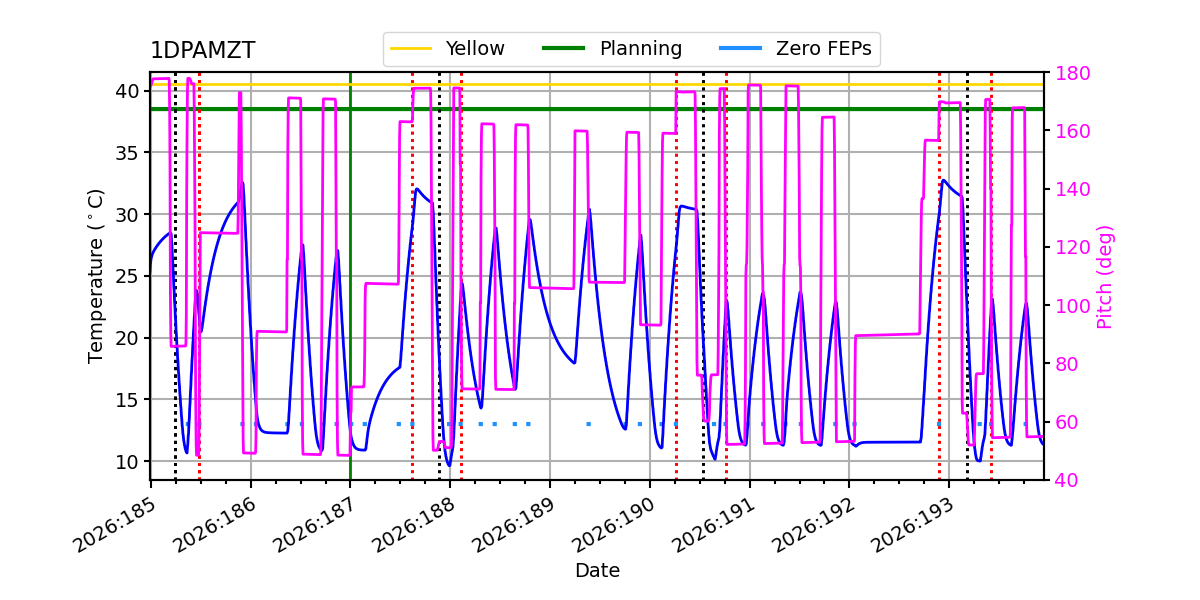

1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2026:187:00:10:19.007 | 2026:187:00:10:27.689 | 0.01 | 11.94 / 13.00 |
| 2026:190:15:26:12.474 | 2026:190:15:26:22.816 | 0.01 | 10.31 / 13.00 |
| 2026:190:23:32:39.401 | 2026:190:23:32:54.816 | 0.02 | 12.81 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -2.66 | -2.17 | -1.07 | 0.01 | 0.53 | 0.82 | 1.09 |
| pitch | -10.607 | -0.365 | -0.004 | -0.000 | 0.004 | 0.367 | 10.159 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.994 | -0.098 | -0.009 | 0.000 | 0.008 | 0.086 | 1.701 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -2.66 | 2.00 |
| PITCH | 1 | -10.607 | 3.00 |
| PITCH | 99 | 10.159 | 3.00 |

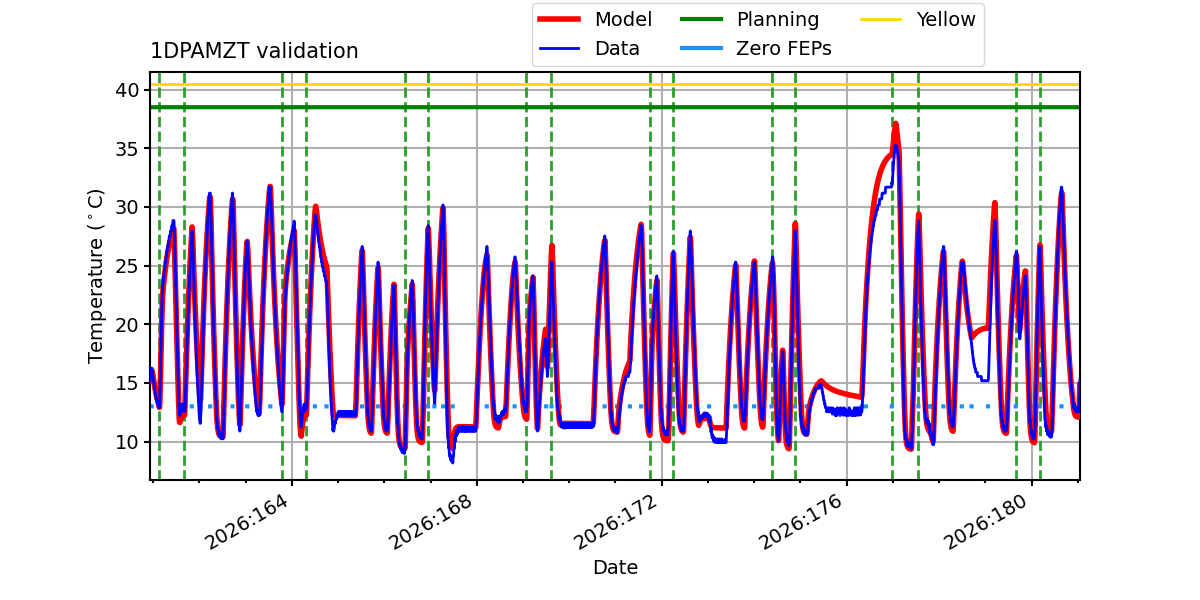

1DPAMZT

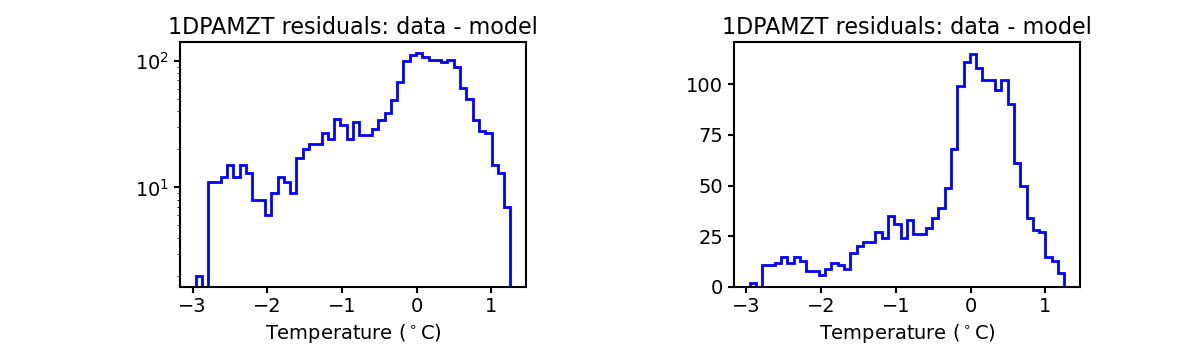

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

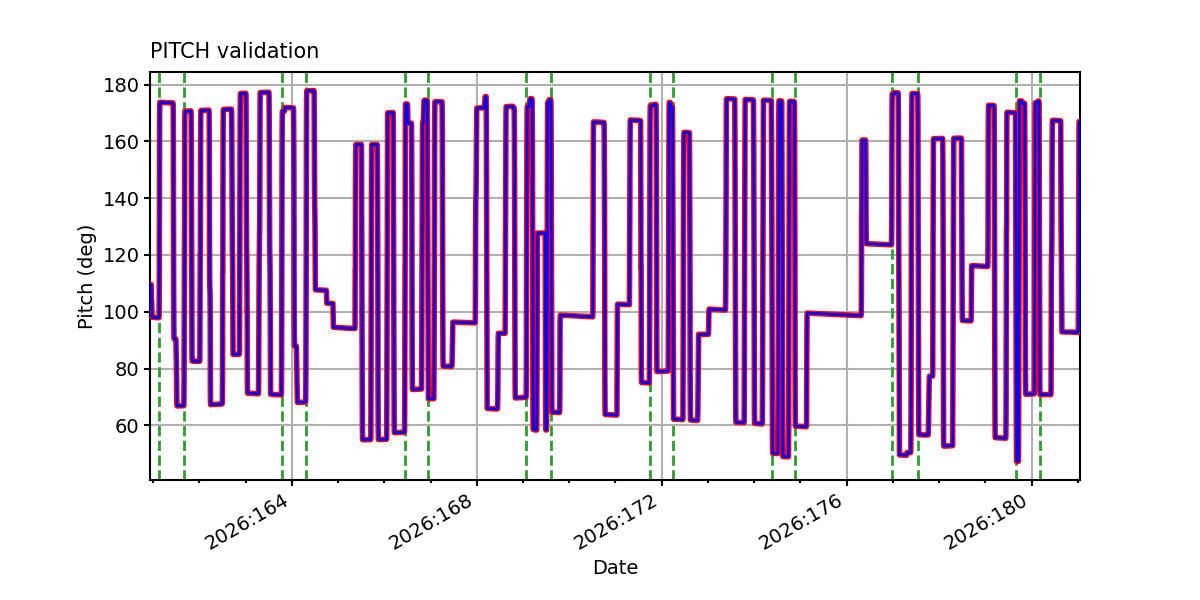

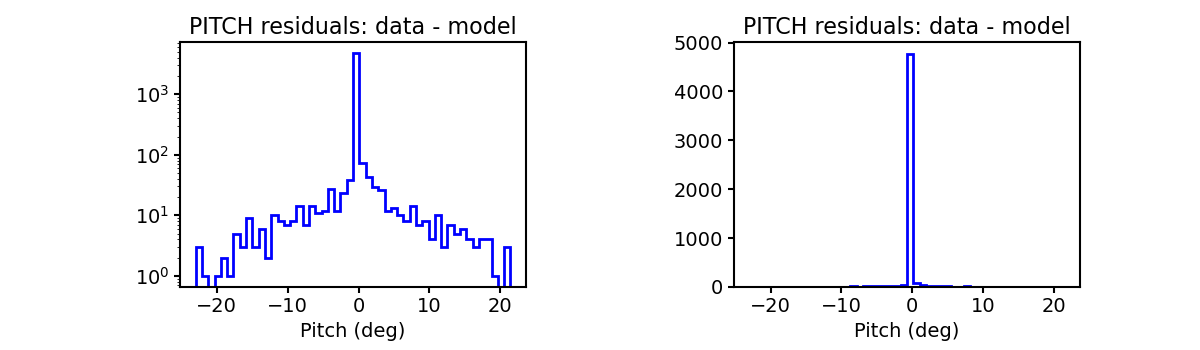

PITCH

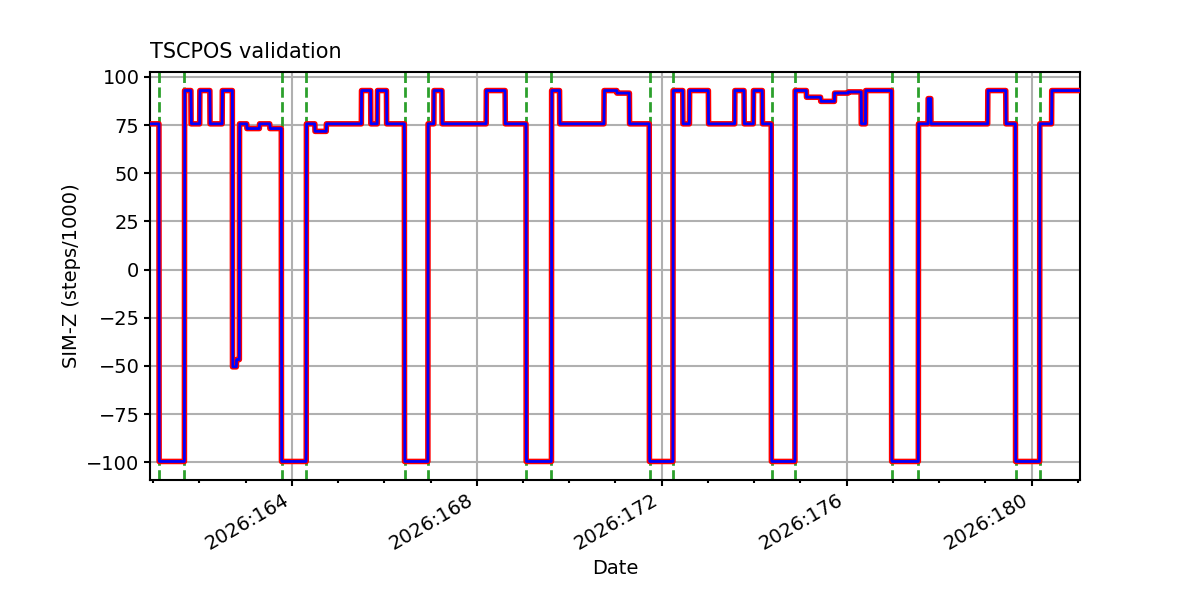

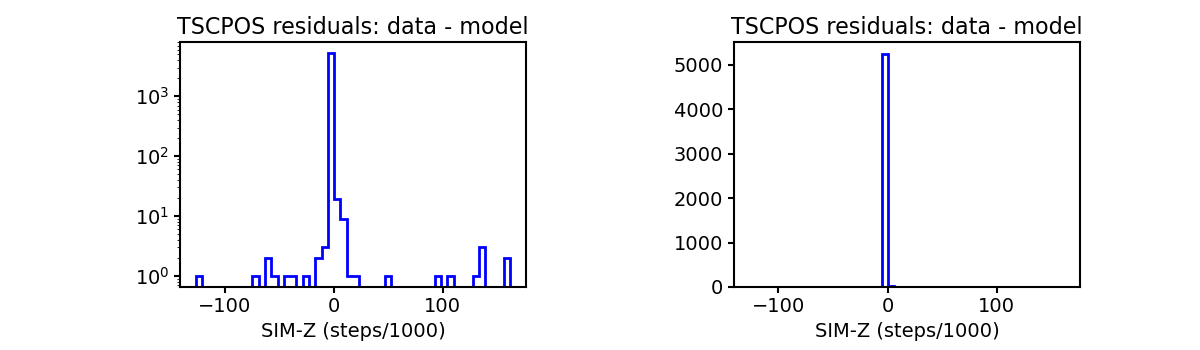

TSCPOS

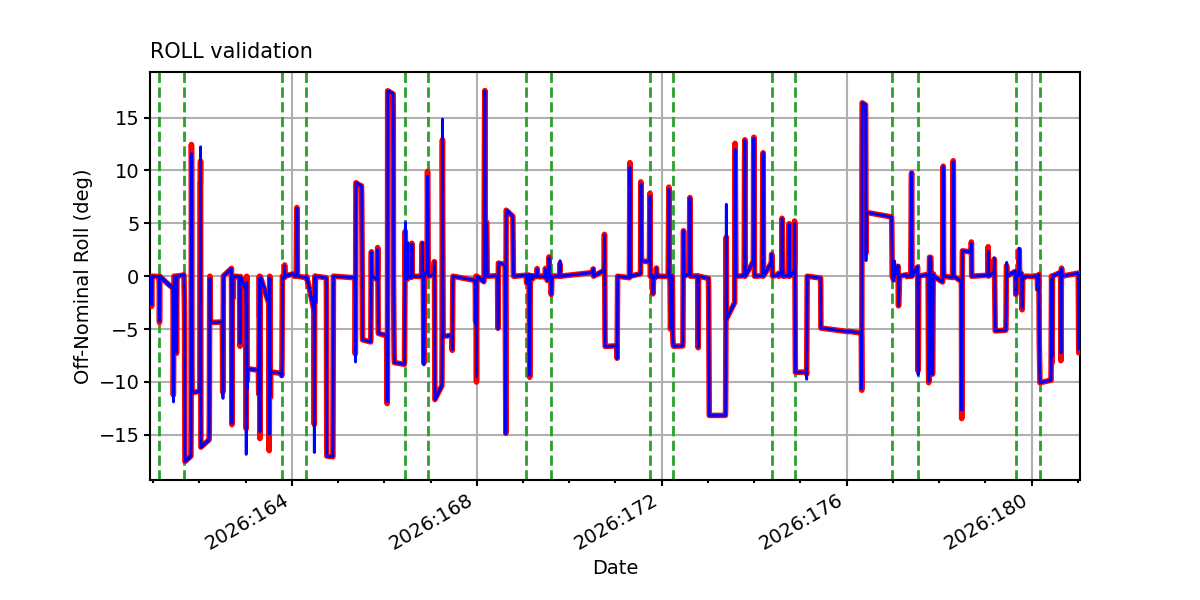

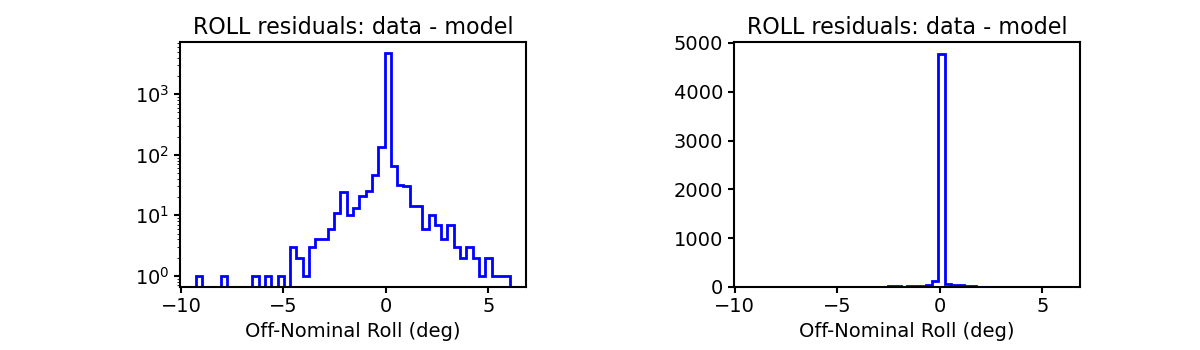

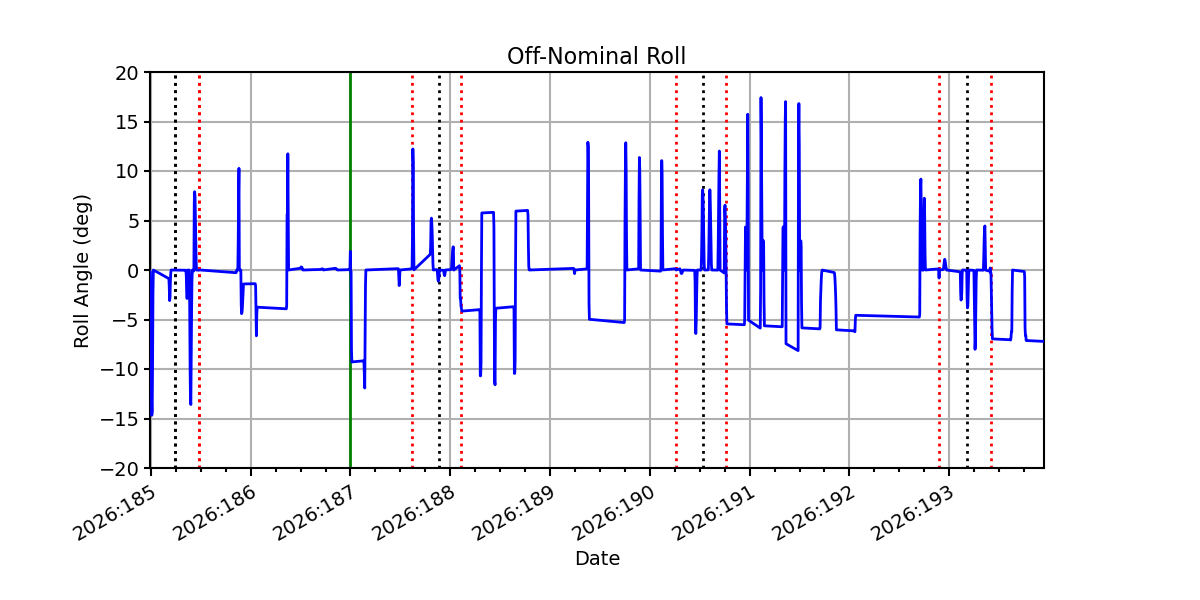

ROLL

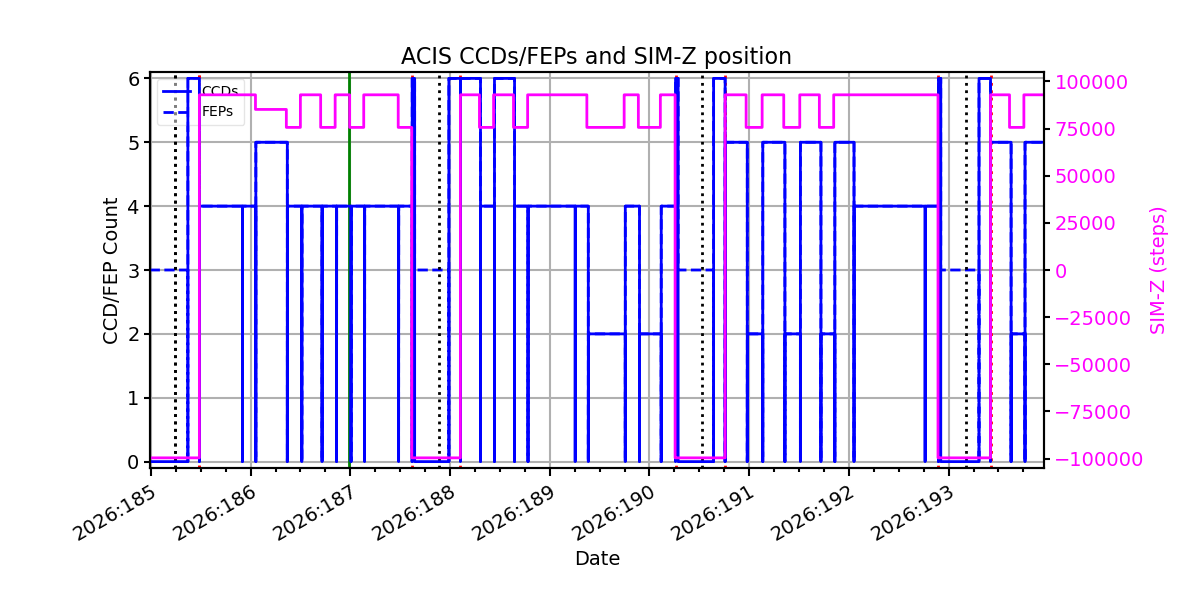

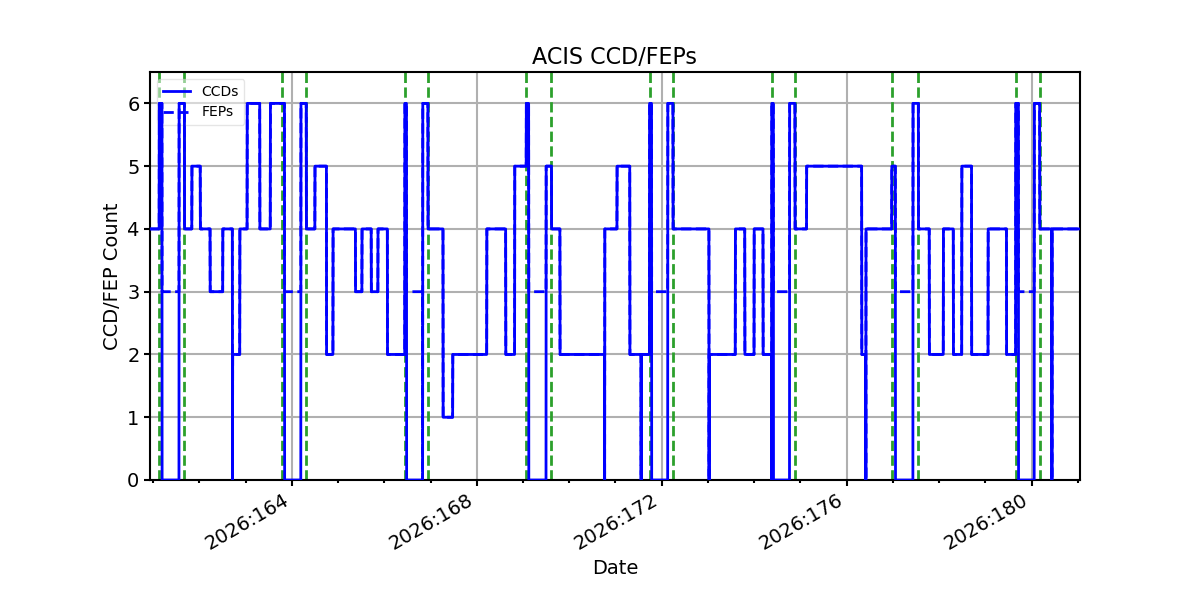

ACIS CCD/FEP Count
