DPA Temperatures Check
Summary
| Date start | 2025:202:00:01:37.716 |
| Date stop | 2025:208:21:31:00.016 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/JUL2125/ofls |
| Run time | Thu Jul 17 13:48:34 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2025:202:18:19:49.192 | 2025:202:18:20:09.303 | 0.02 | 10.68 / 13.00 |
| 2025:205:17:10:36.327 | 2025:205:17:10:54.816 | 0.02 | 12.54 / 13.00 |
| 2025:207:23:45:20.751 | 2025:207:23:45:26.816 | 0.01 | 10.09 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -1.09 | -0.73 | -0.25 | 0.25 | 0.68 | 1.00 | 1.36 |
| pitch | -8.603 | -0.332 | -0.004 | 0.000 | 0.004 | 0.395 | 9.807 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.893 | -0.131 | -0.007 | 0.000 | 0.007 | 0.109 | 1.889 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -8.603 | 3.00 |
| PITCH | 99 | 9.807 | 3.00 |

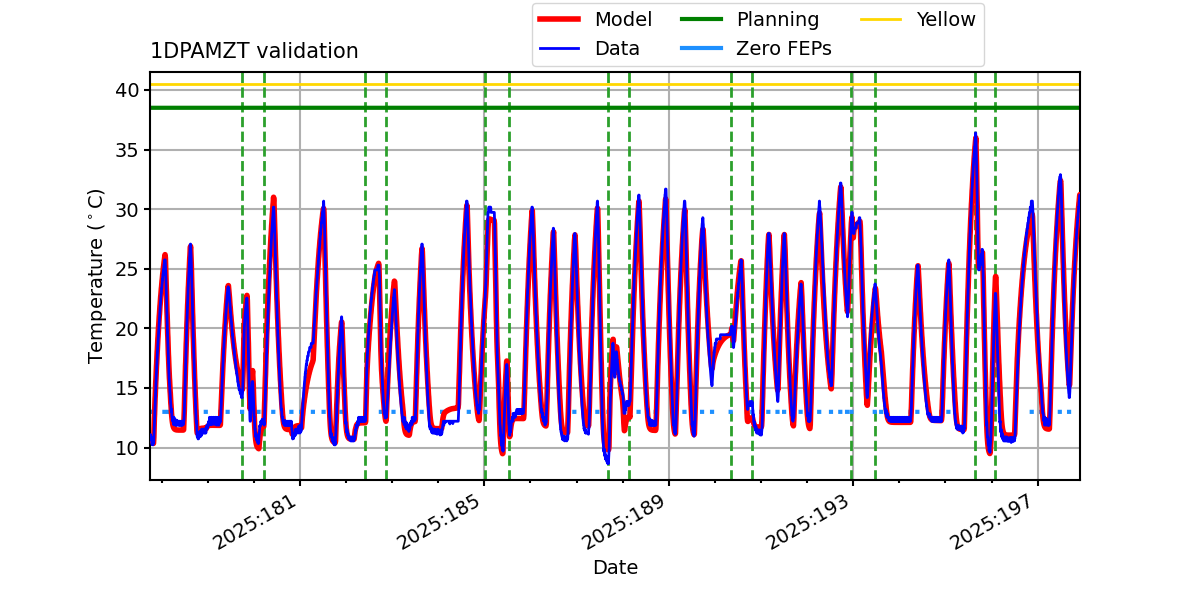

1DPAMZT

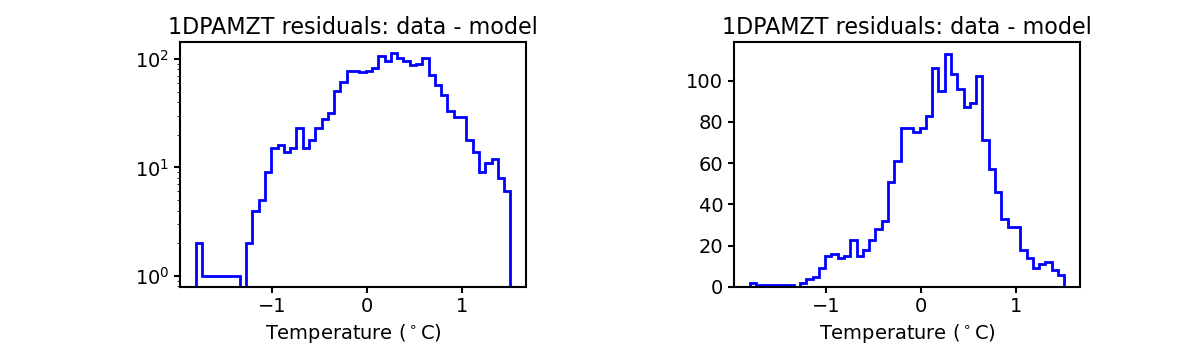

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

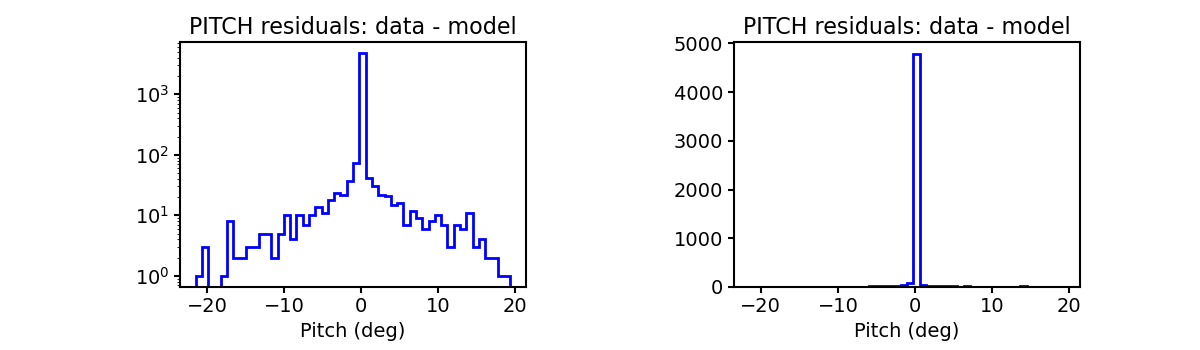

PITCH

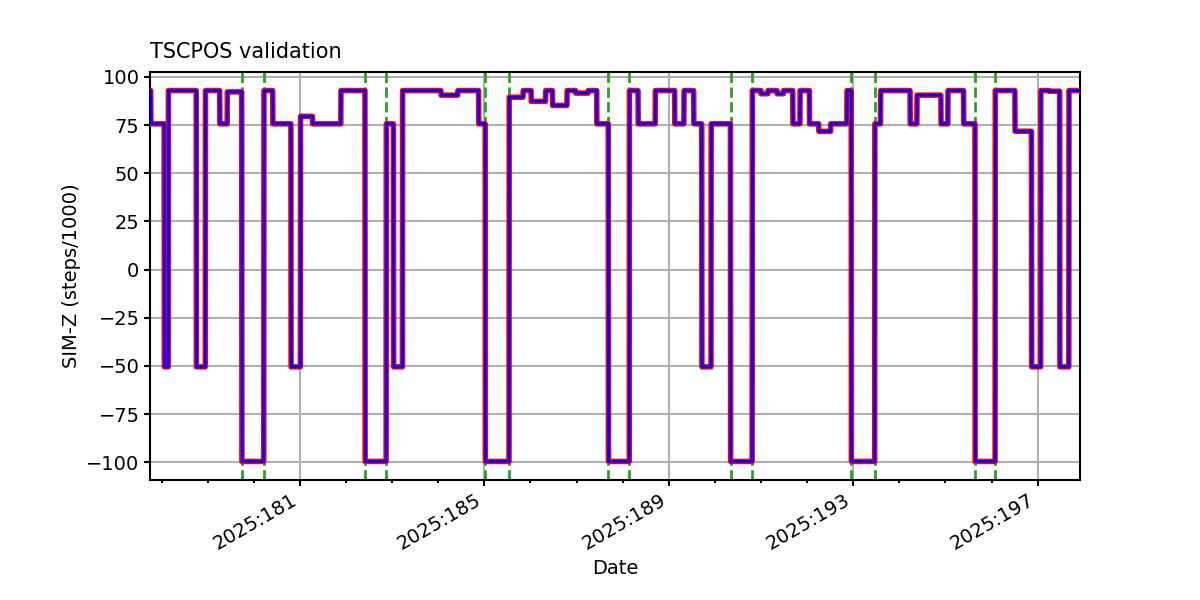

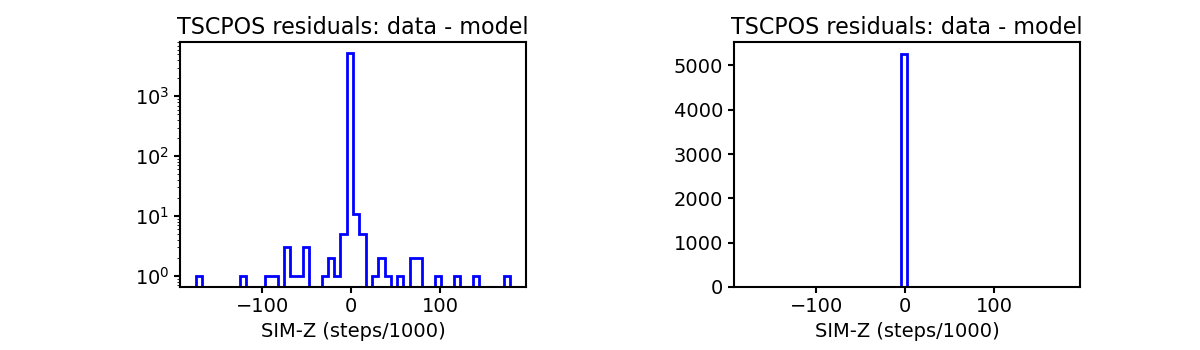

TSCPOS

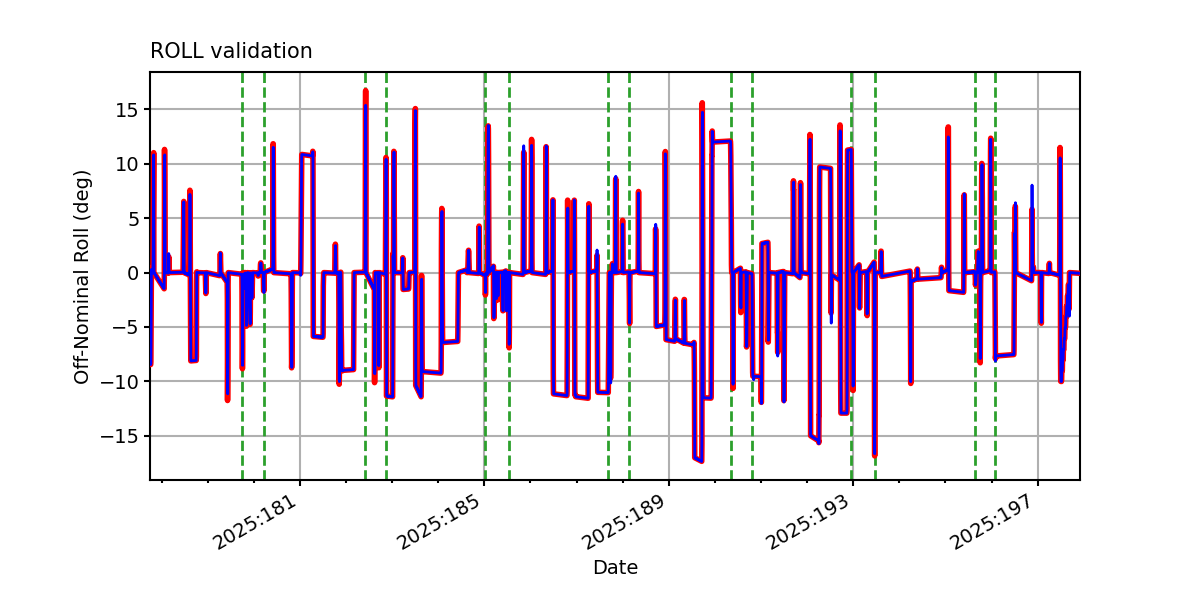

ROLL

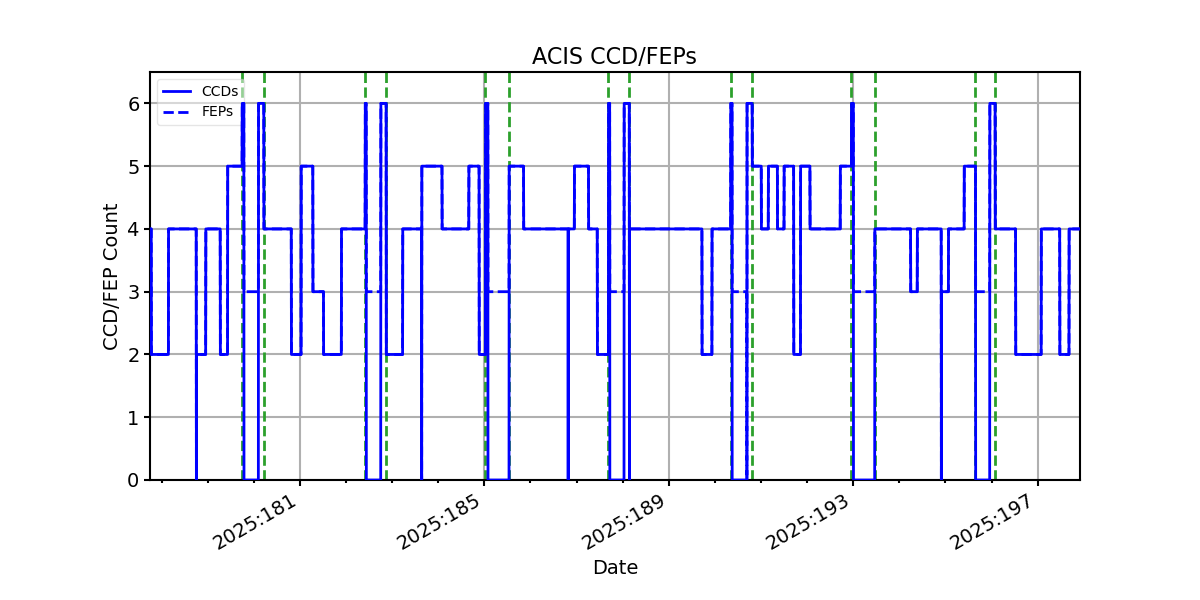

ACIS CCD/FEP Count
