DPA temperatures check
Summary
| Date start | 2018:203:12:26:00.000 |
| Date stop | 2018:211:10:46:08.473 |
| Model status | NOT OK (Planning Limit = 35.5 C) |
| Load directory | /data/acis/LoadReviews/2018/JUL2318/ofls |
| Run time | Thu Jul 19 20:57:55 2018 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
1DPAMZT Hot Violations
| Date start | Date stop | Max temperature |
|---|---|---|
| 2018:204:11:02:38.816 | 2018:204:11:13:34.816 | 35.57 |
DPA Model Validation
MSID quantiles
Note: DPA quantiles are calculated using only points where 1DPAMZT > 20.0 degC.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1DPAMZT | -4.59 | -4.09 | -2.46 | -1.37 | 0.48 | 1.30 | 1.94 |
| PITCH | -5.290 | -0.187 | -0.016 | 0.091 | 0.182 | 0.226 | 3.536 |
| TSCPOS | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| ROLL | -1.370 | -0.581 | -0.405 | -0.112 | 0.274 | 0.518 | 0.996 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -4.59 | 2.00 |
| 1DPAMZT | 50 | -1.37 | 1.00 |
| PITCH | 1 | -5.29 | 3.00 |
| PITCH | 99 | 3.536 | 3.00 |

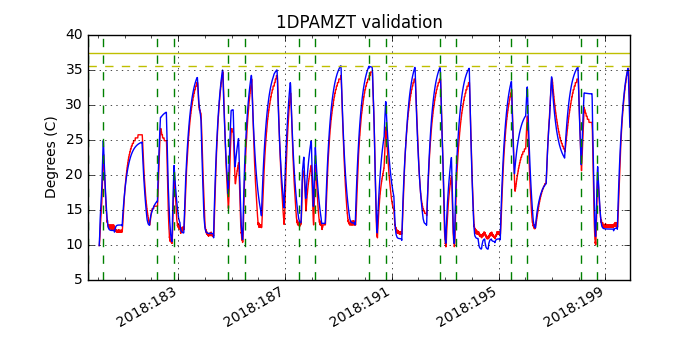

1DPAMZT
Note: DPA residual histograms include only points where 1DPAMZT >= 20.0 degC.
Red = telemetry, blue = model

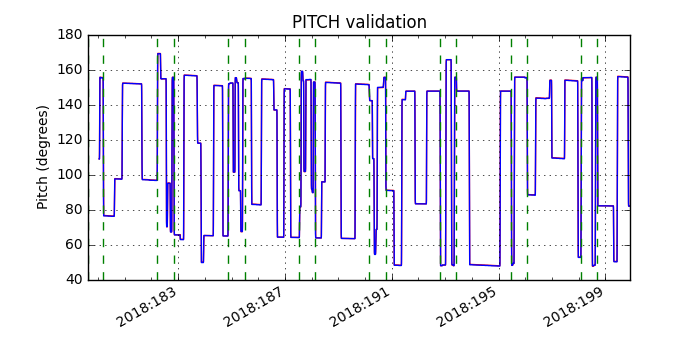

PITCH
Red = telemetry, blue = model

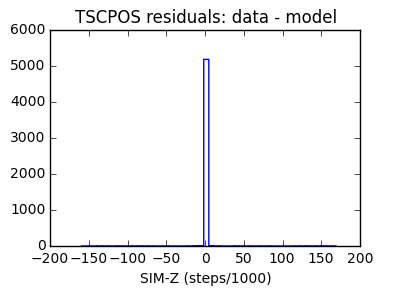

TSCPOS
Red = telemetry, blue = model
ROLL
Red = telemetry, blue = model
