DPA Temperatures Check
Summary
| Date start | 2026:210:23:59:59.016 |
| Date stop | 2026:215:01:04:13.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JUL2926/oflsa |
| Run time | Tue Jul 28 09:29:24 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
No 1DPAMZT Lower Limit Violations
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -1.23 | -0.65 | -0.33 | 0.13 | 0.61 | 0.86 | 1.38 |
| pitch | -11.700 | -1.139 | -0.004 | 0.000 | 0.004 | 1.072 | 11.467 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.050 | -0.209 | -0.008 | 0.000 | 0.009 | 0.242 | 1.833 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -11.7 | 3.00 |
| PITCH | 99 | 11.467 | 3.00 |

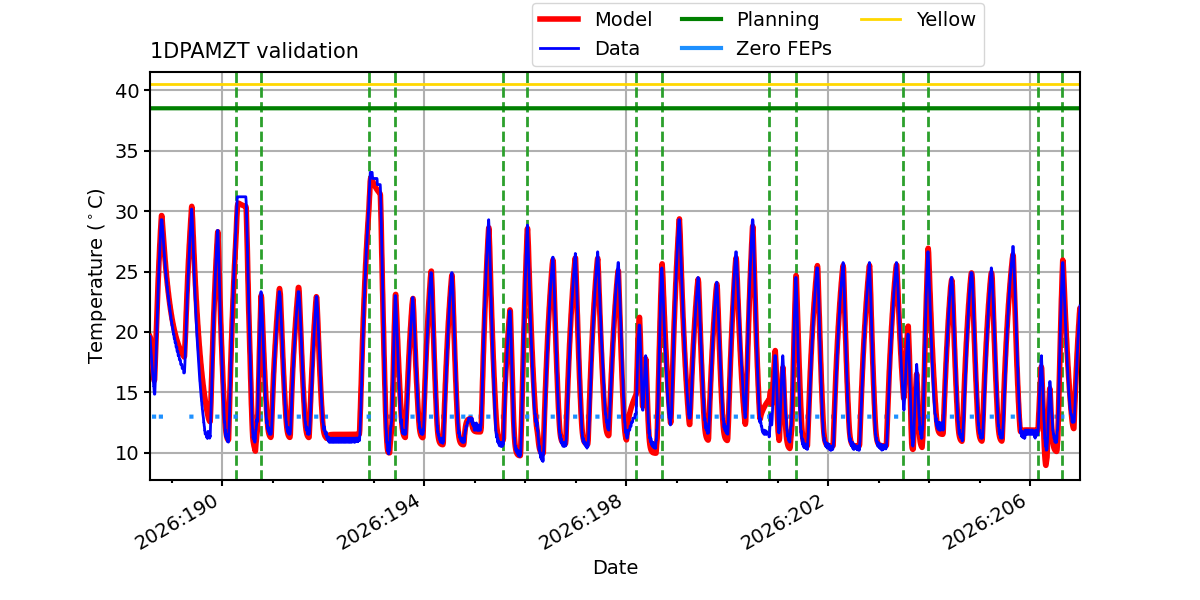

1DPAMZT

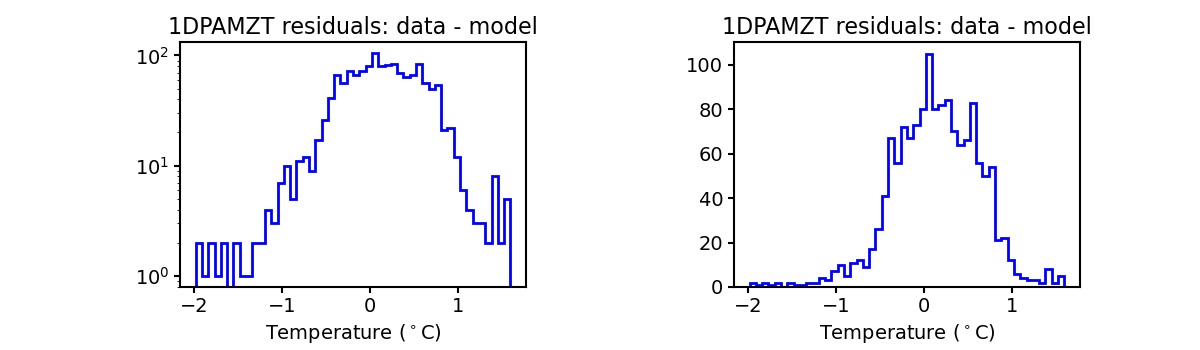

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.
PITCH

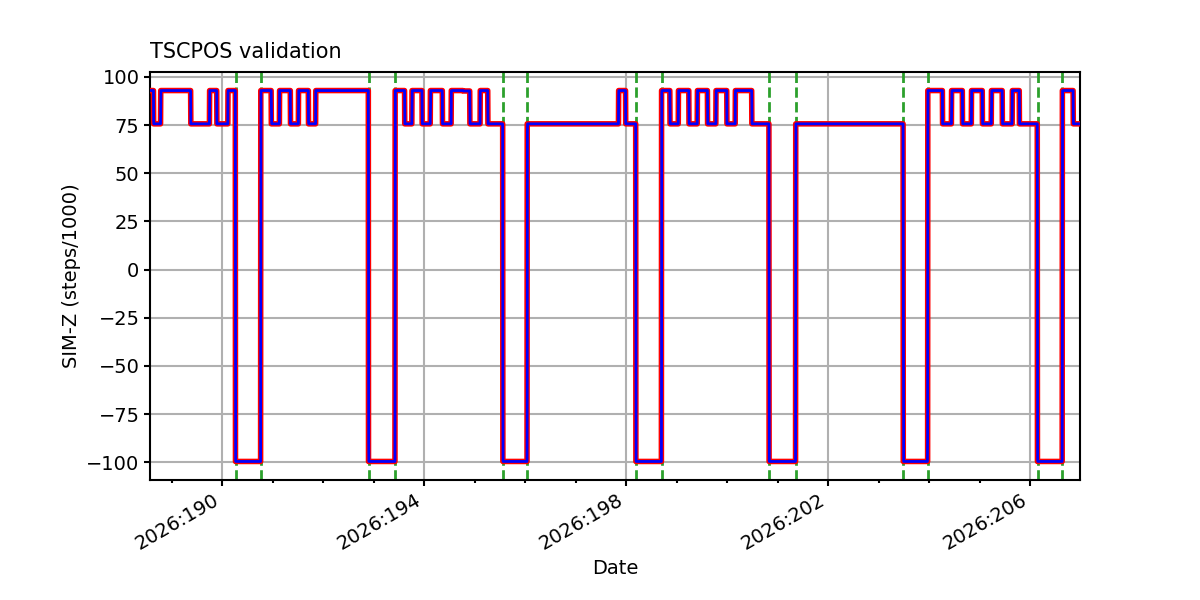

TSCPOS

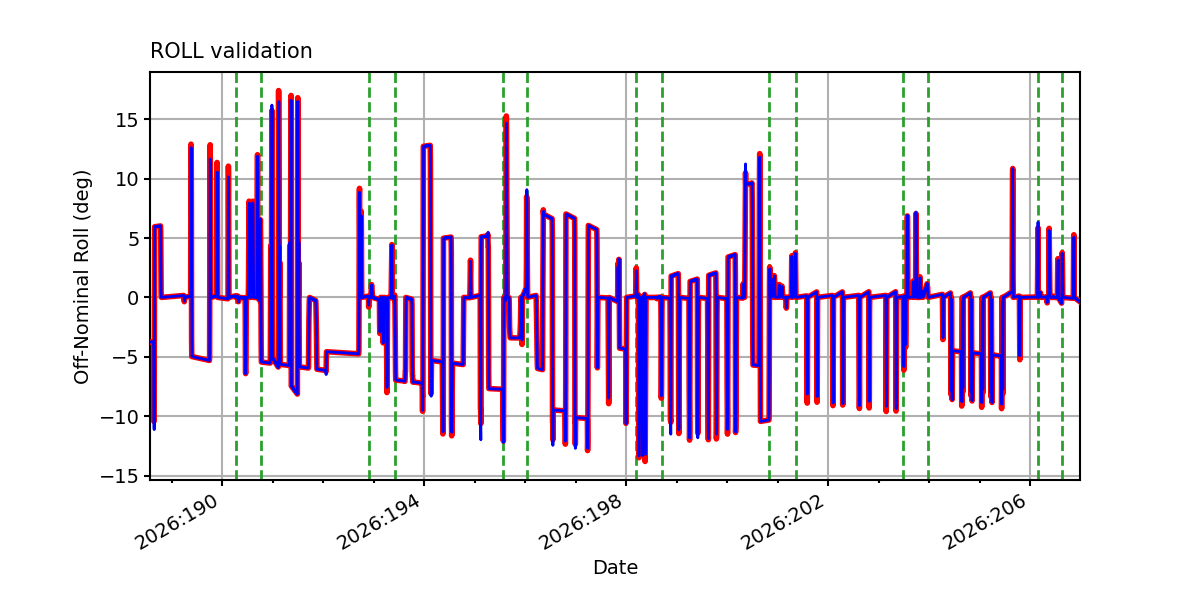

ROLL

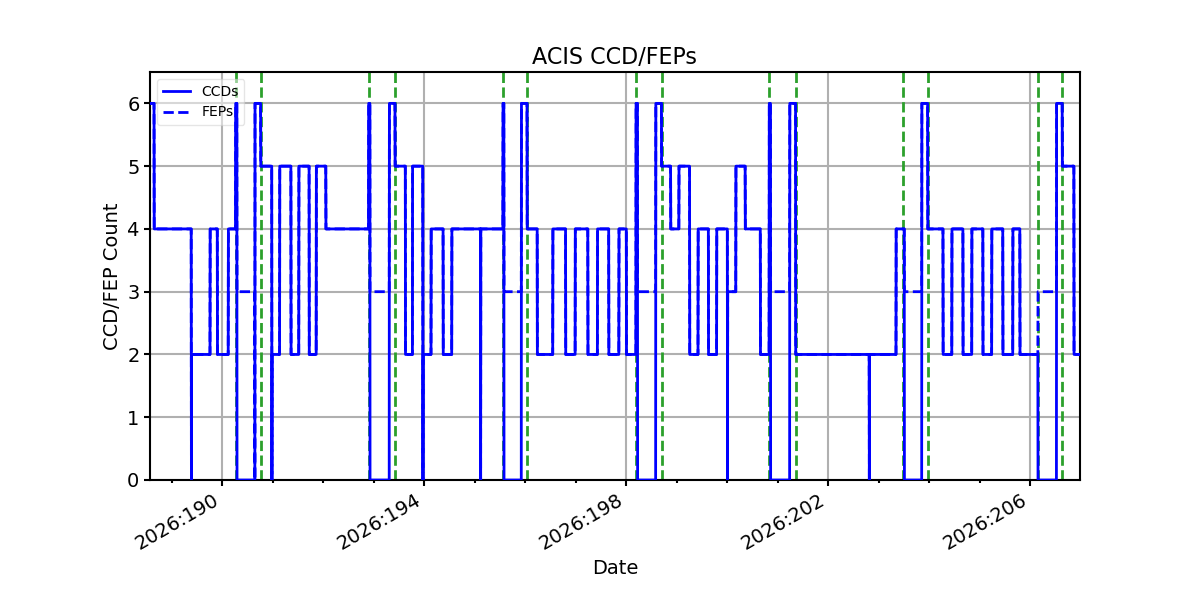

ACIS CCD/FEP Count
