DPA Temperatures Check
Summary
| Date start | 2026:151:22:27:10.716 |
| Date stop | 2026:159:03:18:11.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JUN0126/oflsa |
| Run time | Thu May 28 08:13:00 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
No 1DPAMZT Lower Limit Violations
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -3.26 | -2.13 | -1.14 | -0.01 | 0.52 | 0.80 | 1.09 |
| pitch | -7.524 | -0.393 | -0.004 | -0.000 | 0.004 | 0.118 | 9.520 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.816 | -0.080 | -0.005 | -0.000 | 0.005 | 0.092 | 1.894 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -3.26 | 2.00 |
| PITCH | 1 | -7.524 | 3.00 |
| PITCH | 99 | 9.52 | 3.00 |

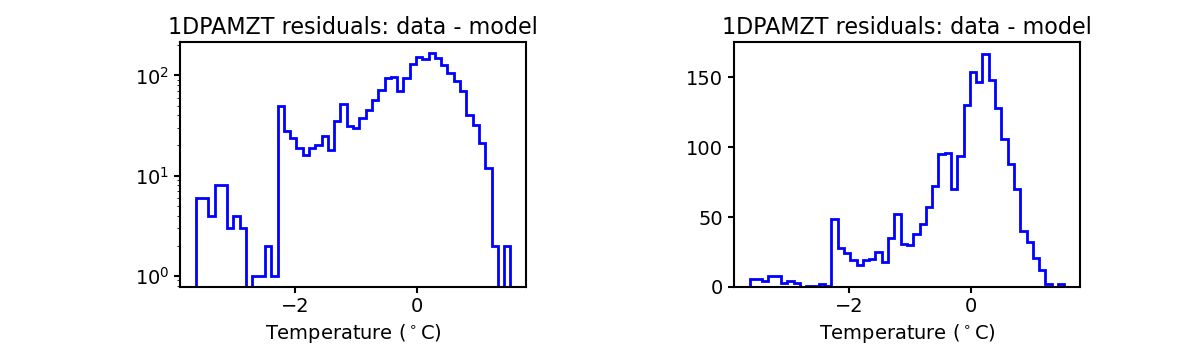

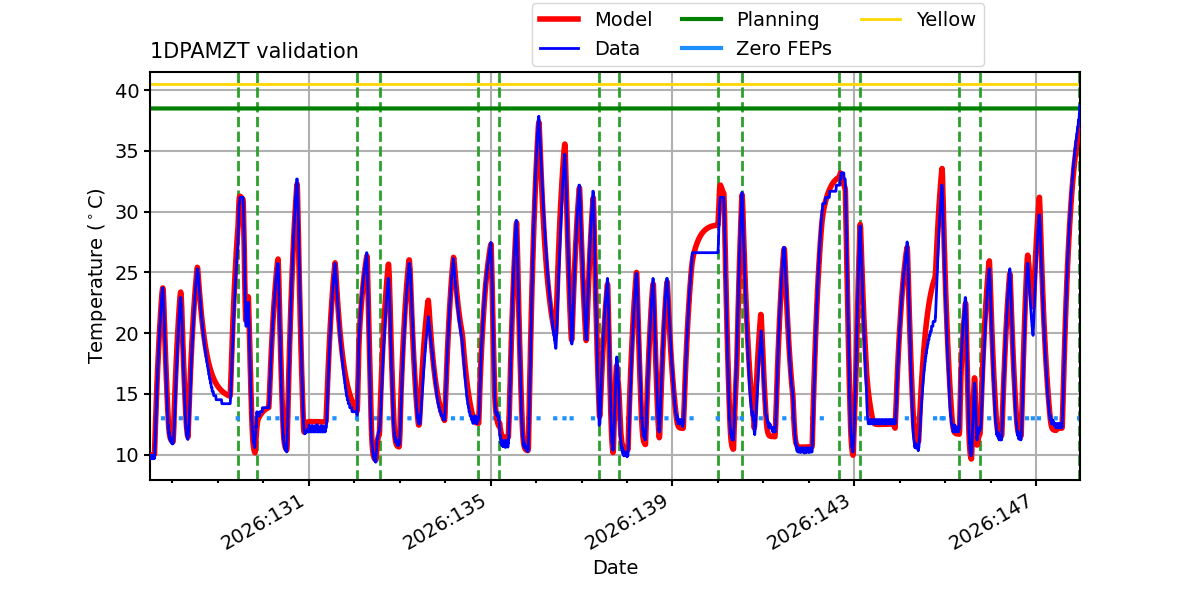

1DPAMZT
Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

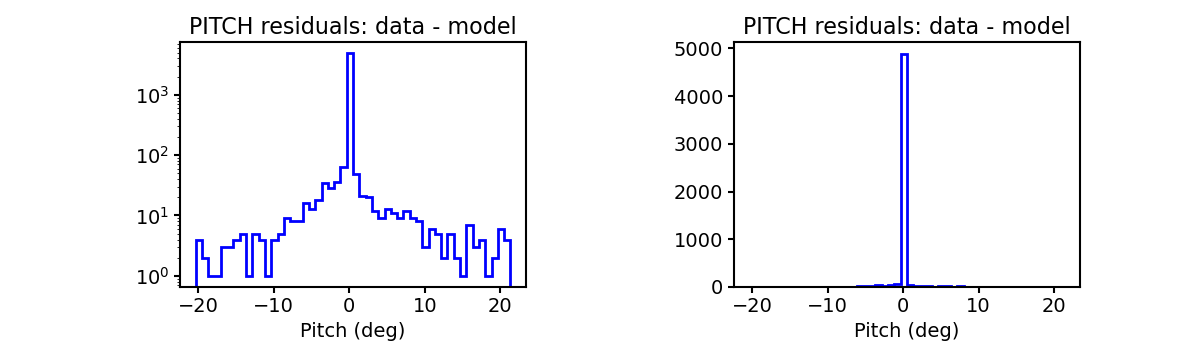

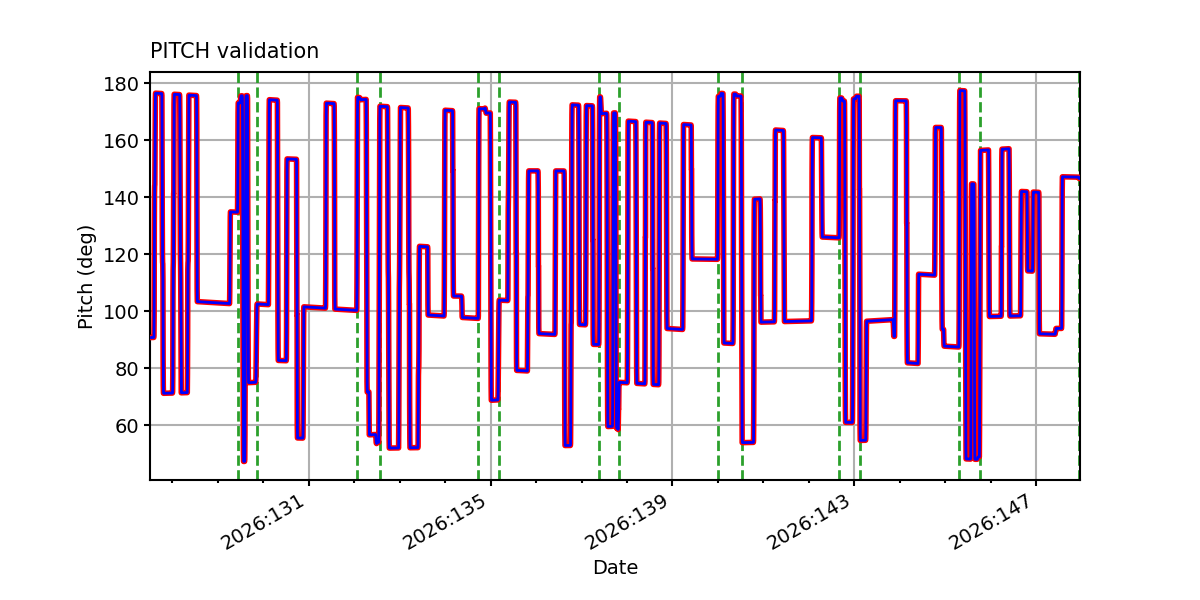

PITCH

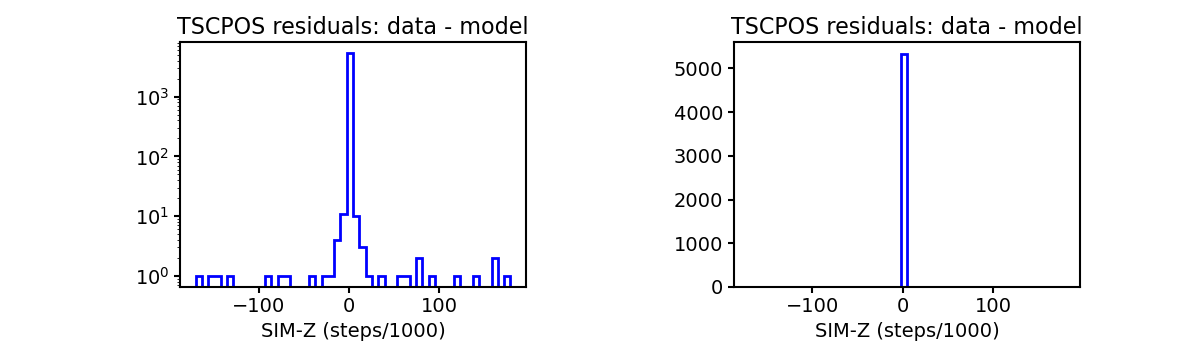

TSCPOS

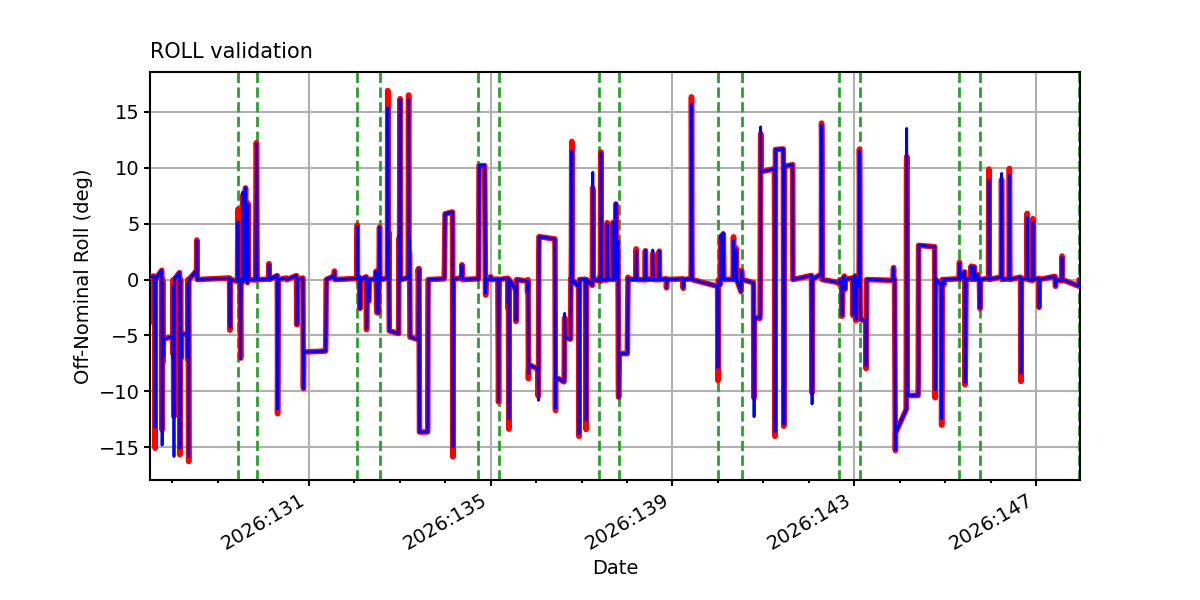

ROLL

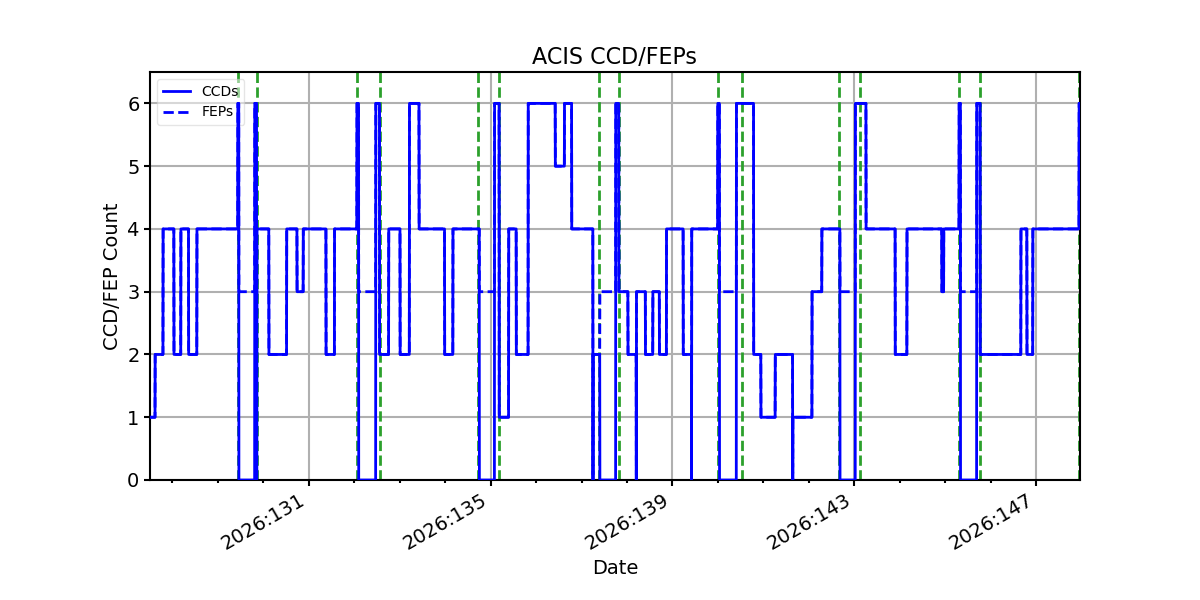

ACIS CCD/FEP Count
