DPA Temperatures Check
Summary
| Date start | 2025:152:23:51:14.516 |
| Date stop | 2025:159:23:43:43.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/JUN0225/ofls |
| Run time | Wed May 28 11:05:12 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

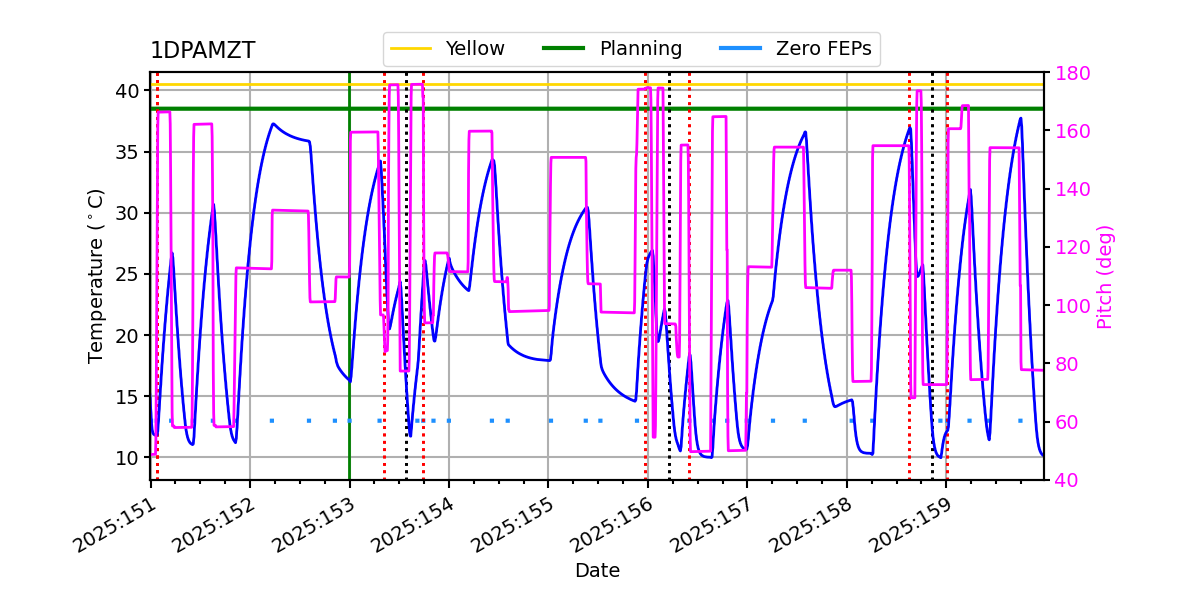

No 1DPAMZT Upper Limit Violations
No 1DPAMZT Lower Limit Violations
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -2.92 | -2.36 | -1.51 | -0.31 | 0.56 | 1.04 | 1.49 |
| pitch | -5.116 | -0.266 | -0.004 | 0.000 | 0.004 | 0.397 | 5.407 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.346 | -0.109 | -0.005 | -0.000 | 0.005 | 0.118 | 1.401 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -2.92 | 2.00 |
| PITCH | 1 | -5.116 | 3.00 |
| PITCH | 99 | 5.407 | 3.00 |

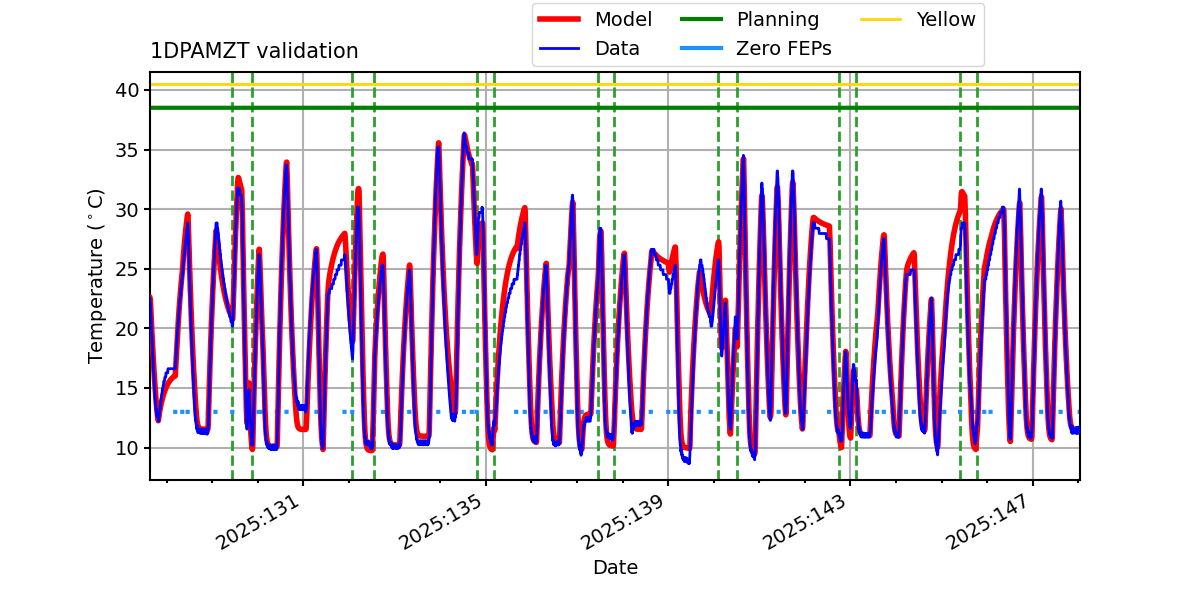

1DPAMZT

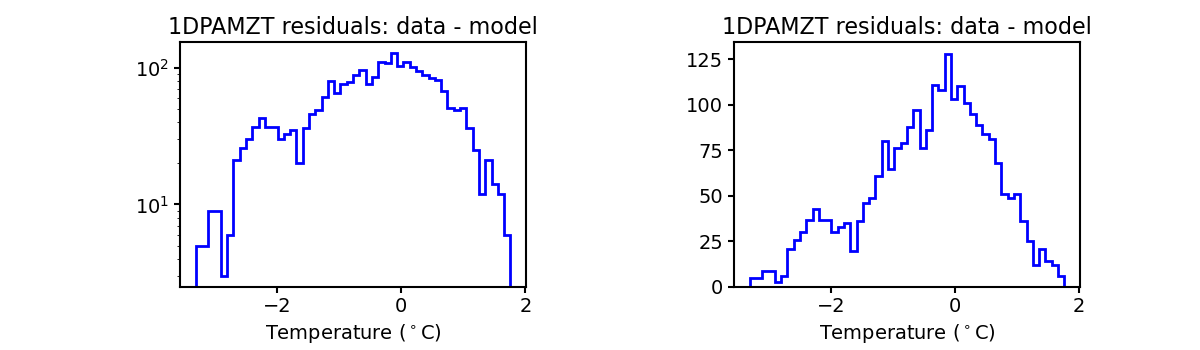

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

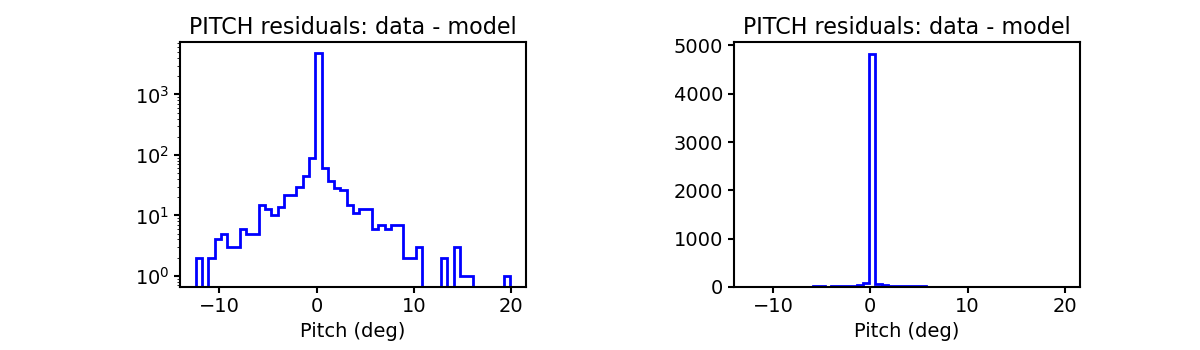

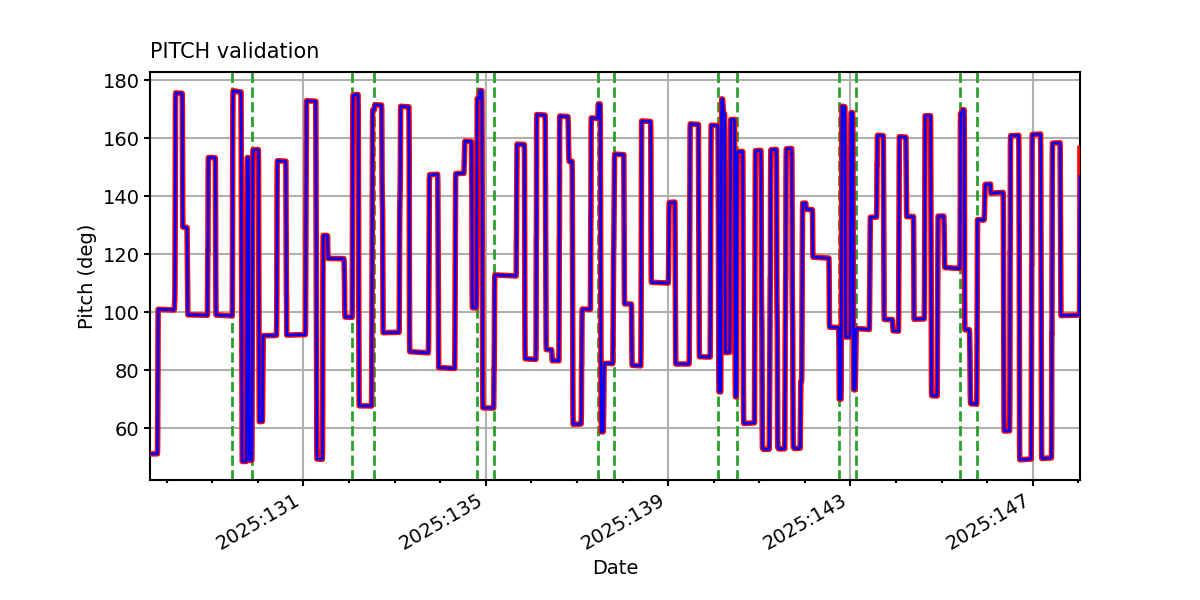

PITCH

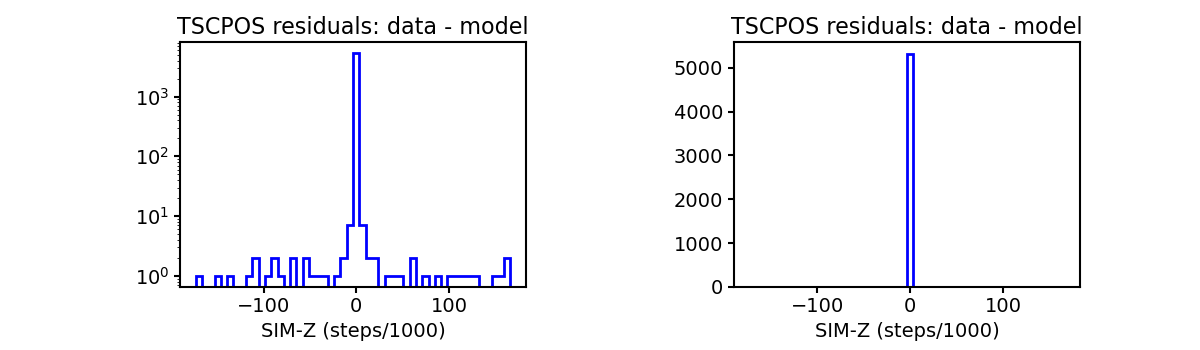

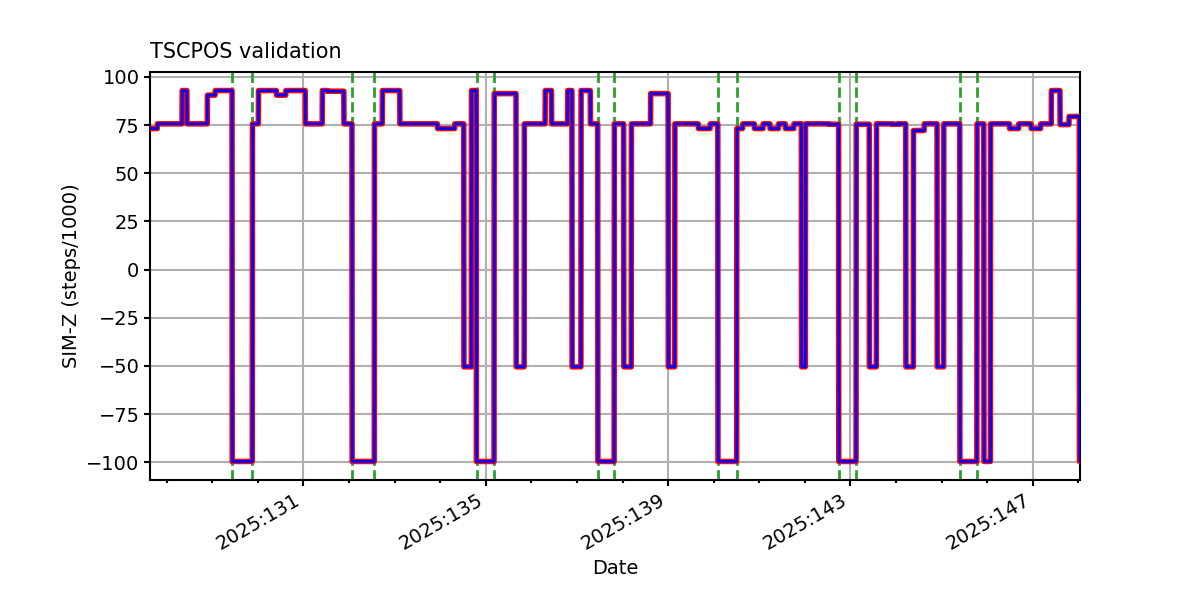

TSCPOS
ROLL

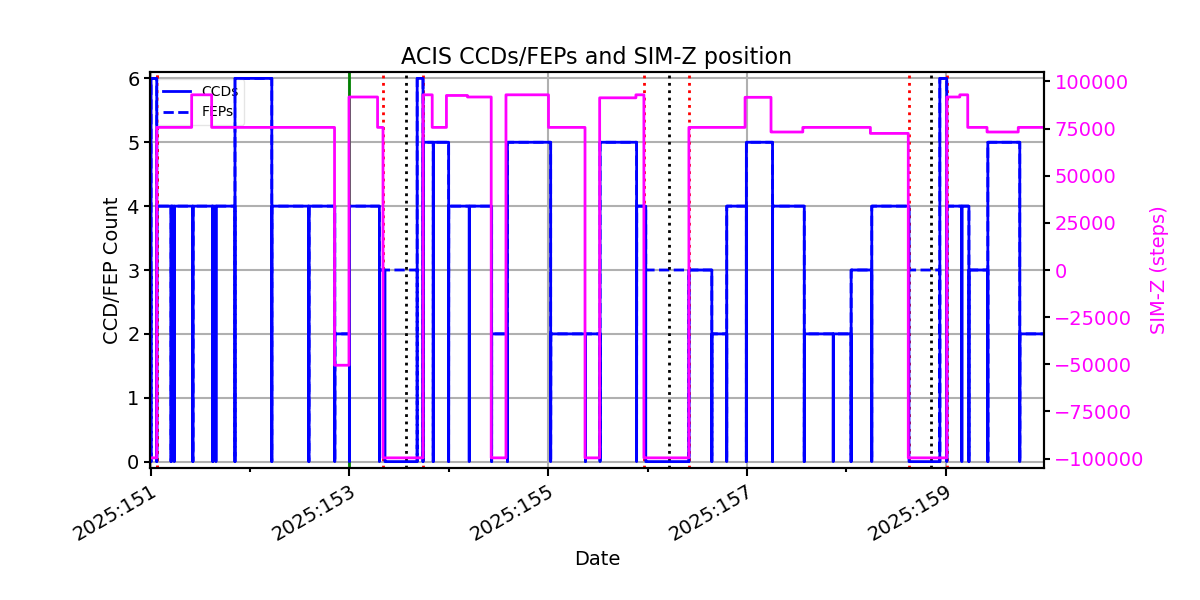

ACIS CCD/FEP Count
