DPA Temperatures Check
Summary
| Date start | 2026:159:03:15:11.516 |
| Date stop | 2026:166:01:12:48.416 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2026/JUN0826/oflsb |
| Run time | Fri Jun 5 05:58:40 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
1DPAMZT Lower Limit Violations
| Date start | Date stop | Duration (ks) | Min Temperature / Limit |
|---|---|---|---|
| 2026:165:09:01:26.887 | 2026:165:09:01:35.639 | 0.01 | 12.25 / 13.00 |
| 2026:165:17:16:23.347 | 2026:165:17:16:41.957 | 0.02 | 10.80 / 13.00 |
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -3.24 | -2.11 | -1.22 | 0.14 | 0.74 | 1.30 | 1.95 |
| pitch | -8.342 | -0.174 | -0.004 | 0.000 | 0.004 | 0.234 | 8.087 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.308 | -0.067 | -0.004 | -0.000 | 0.004 | 0.089 | 1.918 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -3.24 | 2.00 |
| PITCH | 1 | -8.342 | 3.00 |
| PITCH | 99 | 8.087 | 3.00 |

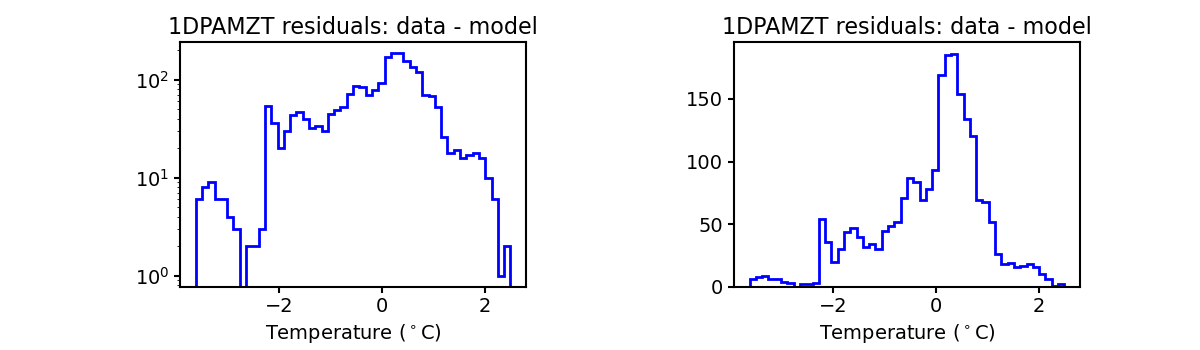

1DPAMZT
Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

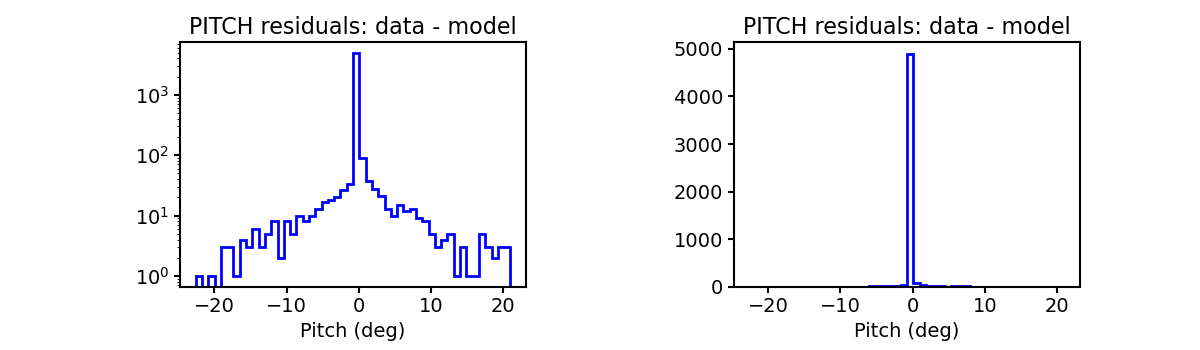

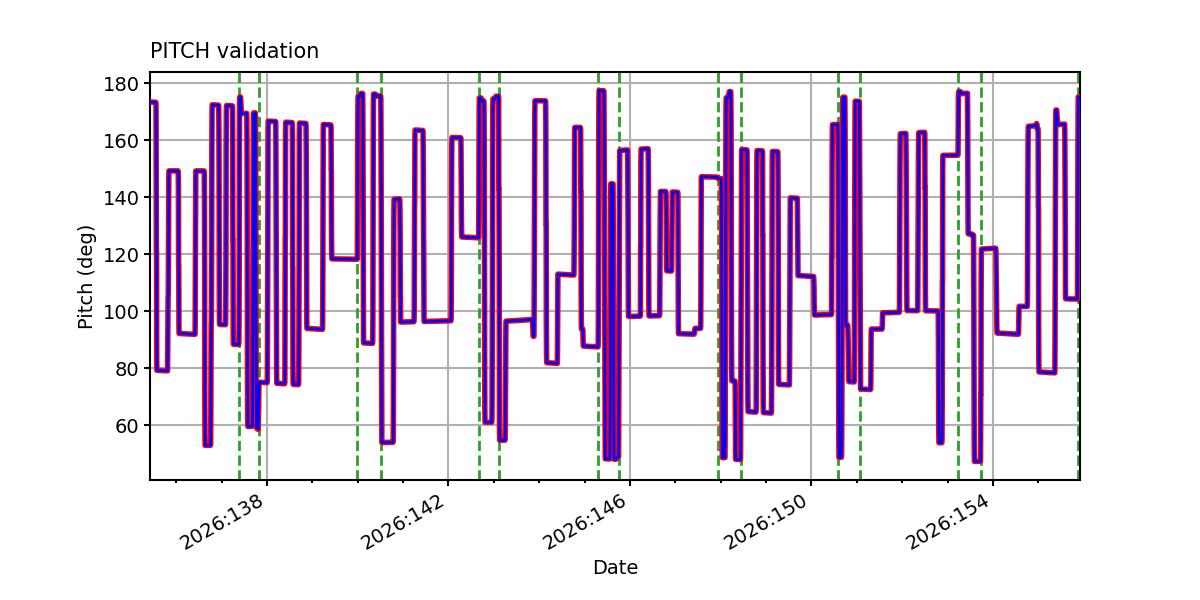

PITCH

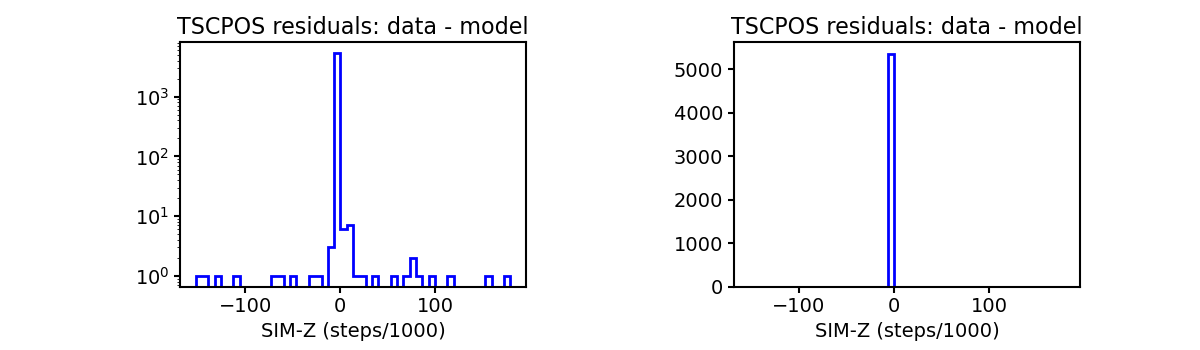

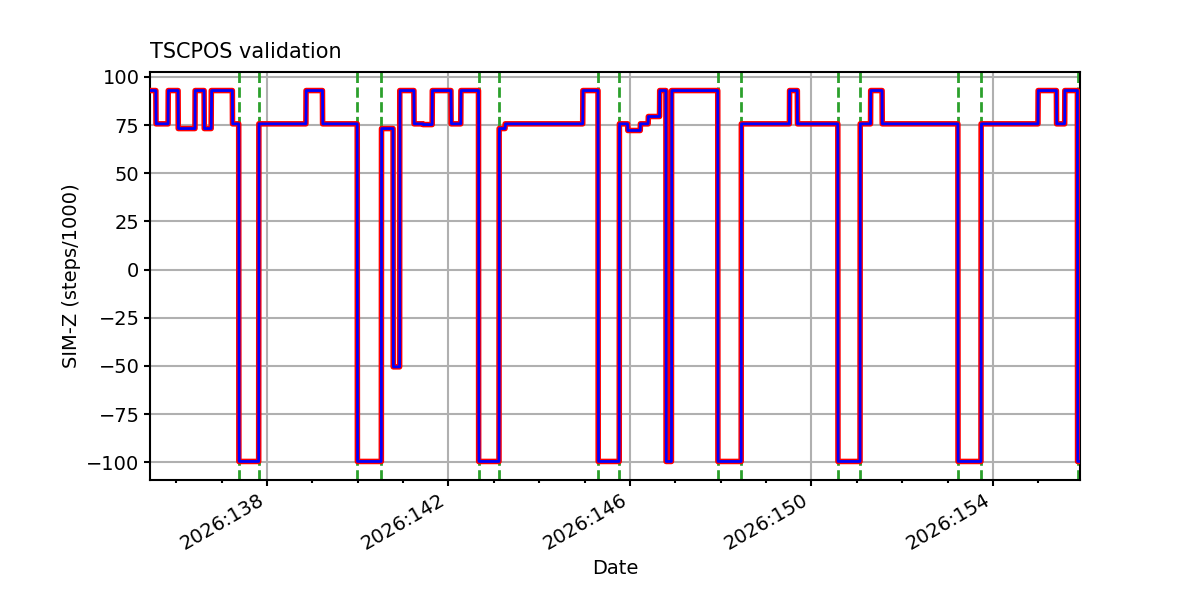

TSCPOS

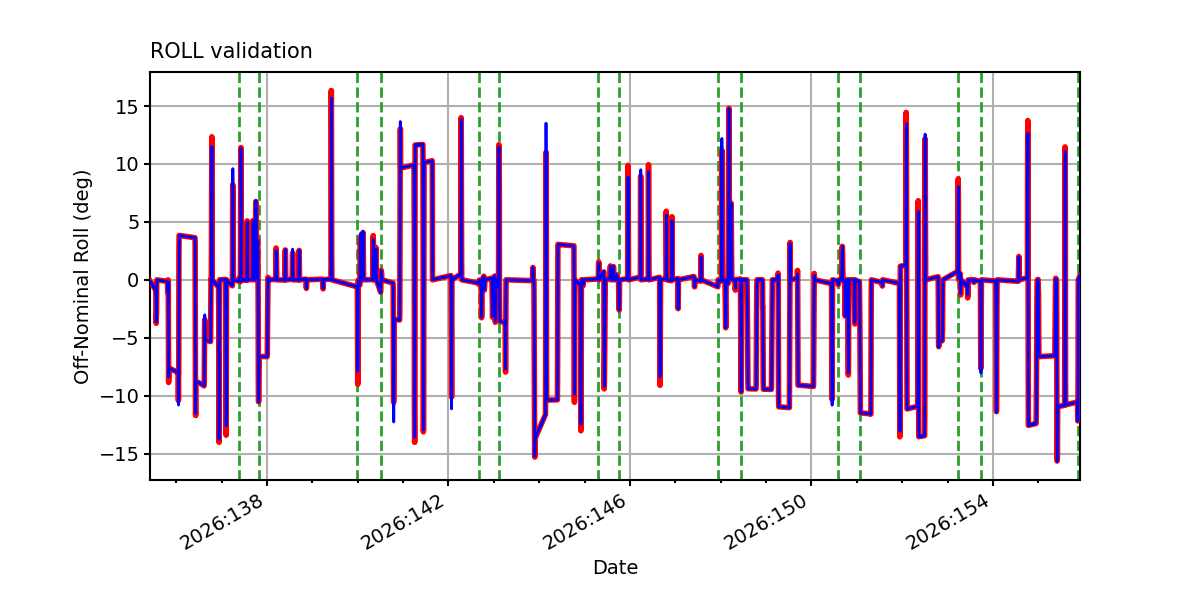

ROLL

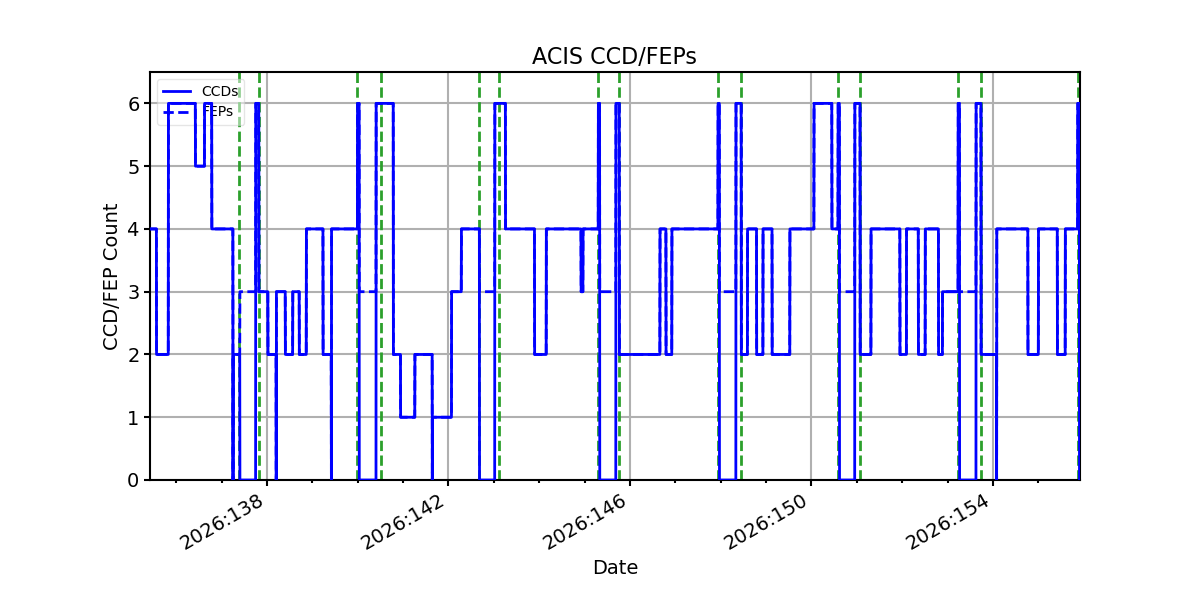

ACIS CCD/FEP Count
