DPA Temperatures Check
Summary
| Date start | 2025:159:23:40:43.816 |
| Date stop | 2025:166:13:54:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/JUN0925/ofls |
| Run time | Wed Jun 4 13:38:29 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1DPAMZT Upper Limit Violations
No 1DPAMZT Lower Limit Violations
DPA Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1DPAMZT >= 20.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1dpamzt | -3.69 | -2.58 | -1.68 | -0.25 | 0.62 | 1.35 | 1.62 |
| pitch | -5.013 | -0.349 | -0.004 | -0.000 | 0.004 | 0.358 | 5.016 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.277 | -0.128 | -0.006 | -0.000 | 0.005 | 0.126 | 1.353 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1DPAMZT | 1 | -3.69 | 2.00 |
| PITCH | 1 | -5.013 | 3.00 |
| PITCH | 99 | 5.016 | 3.00 |

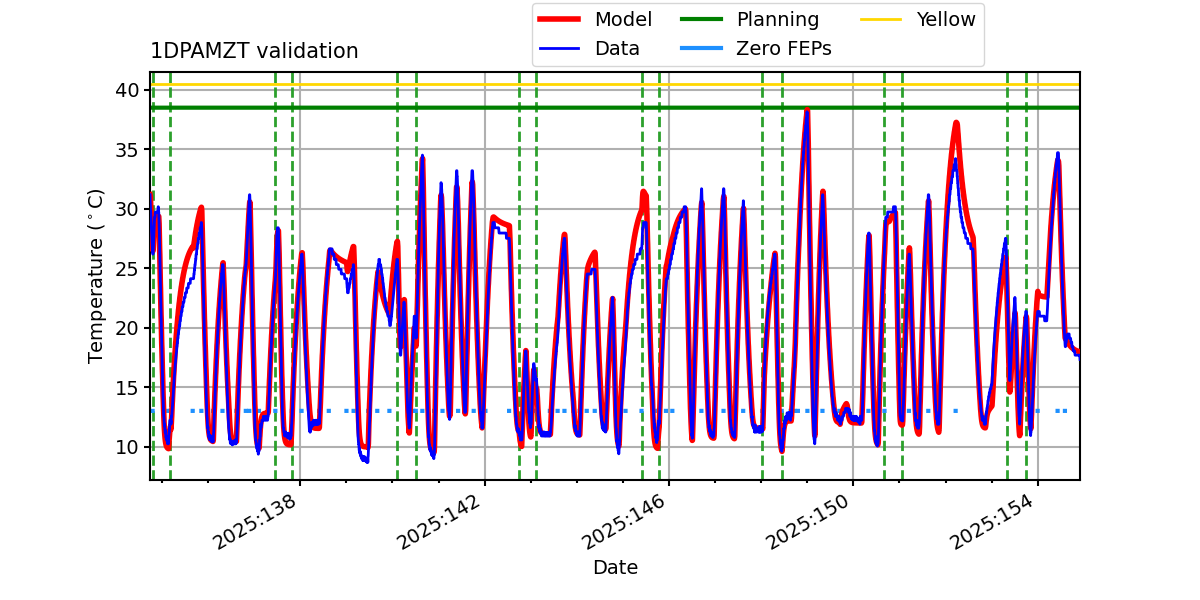

1DPAMZT

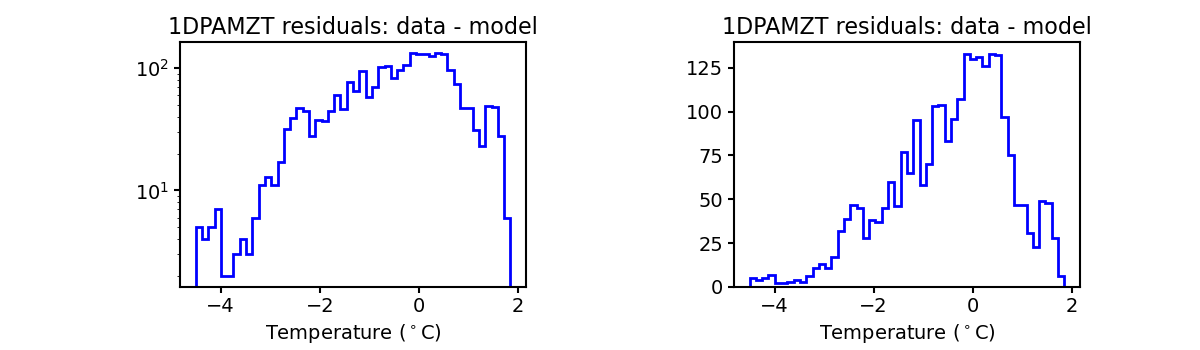

Note: 1DPAMZT residual histograms include only points where 1DPAMZT >= 20.0 C.

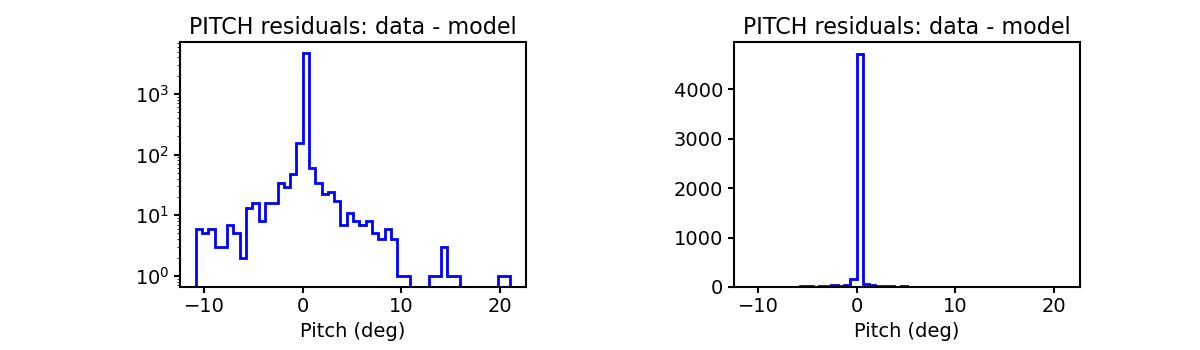

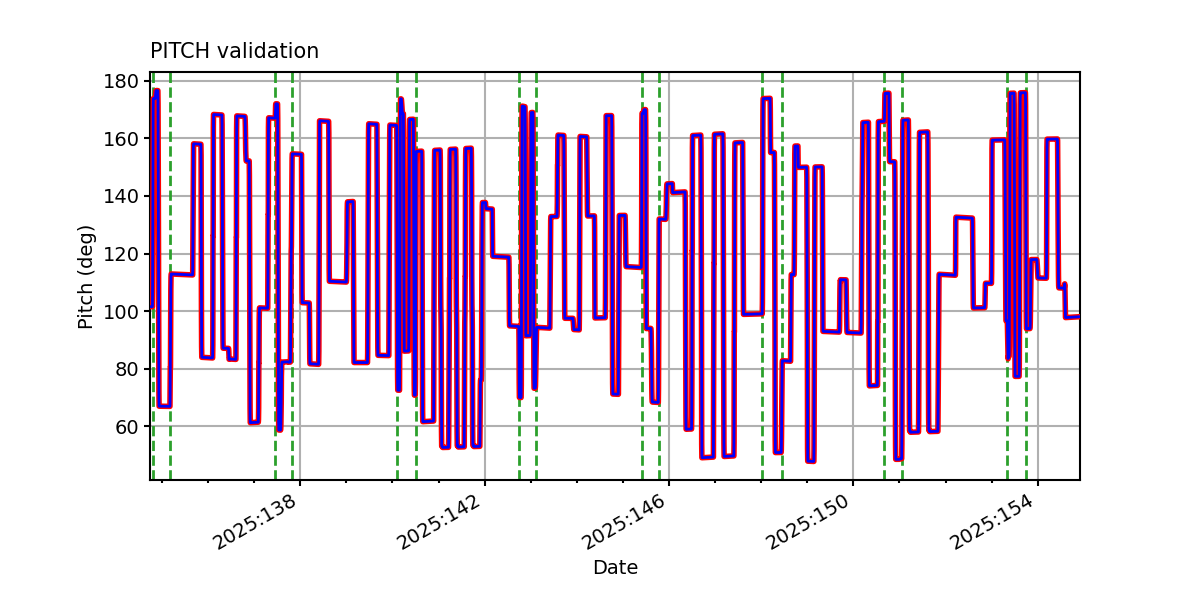

PITCH

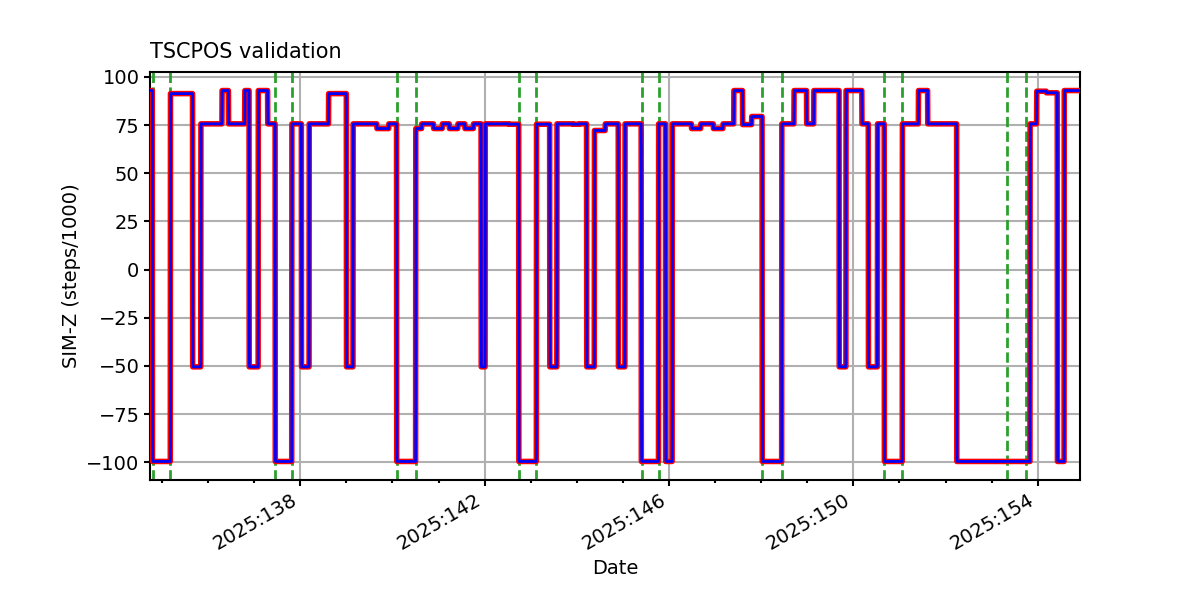

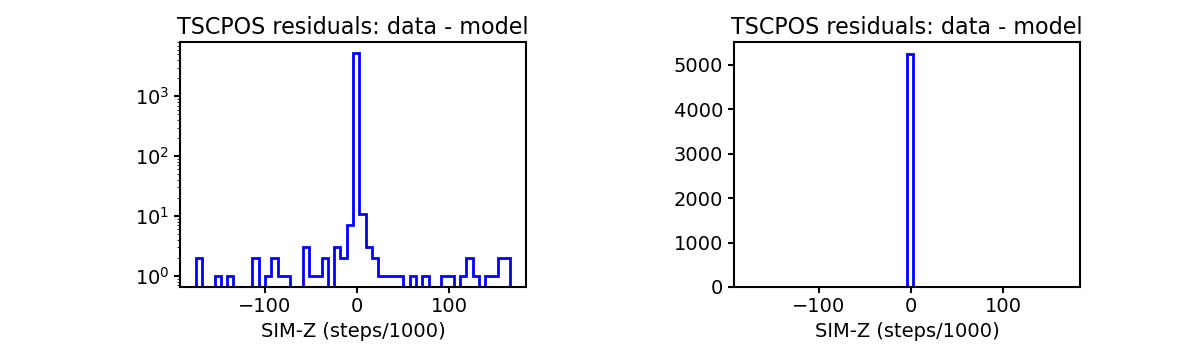

TSCPOS

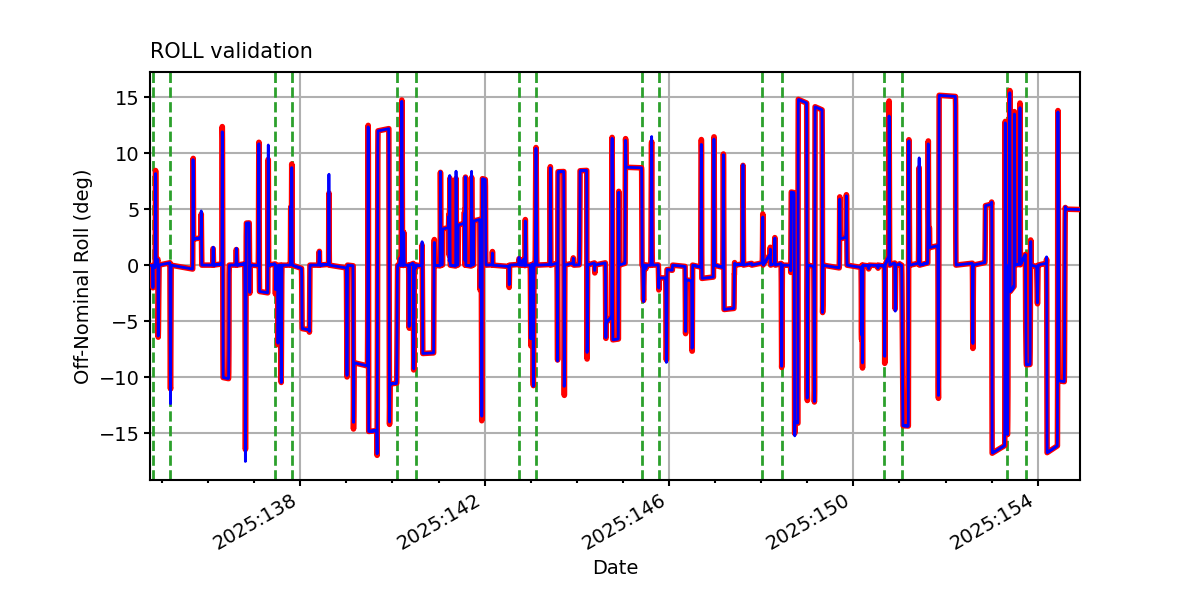

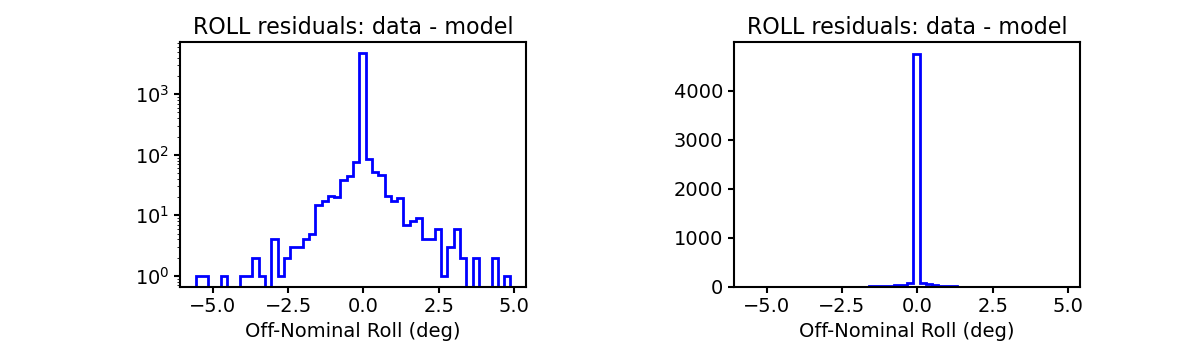

ROLL

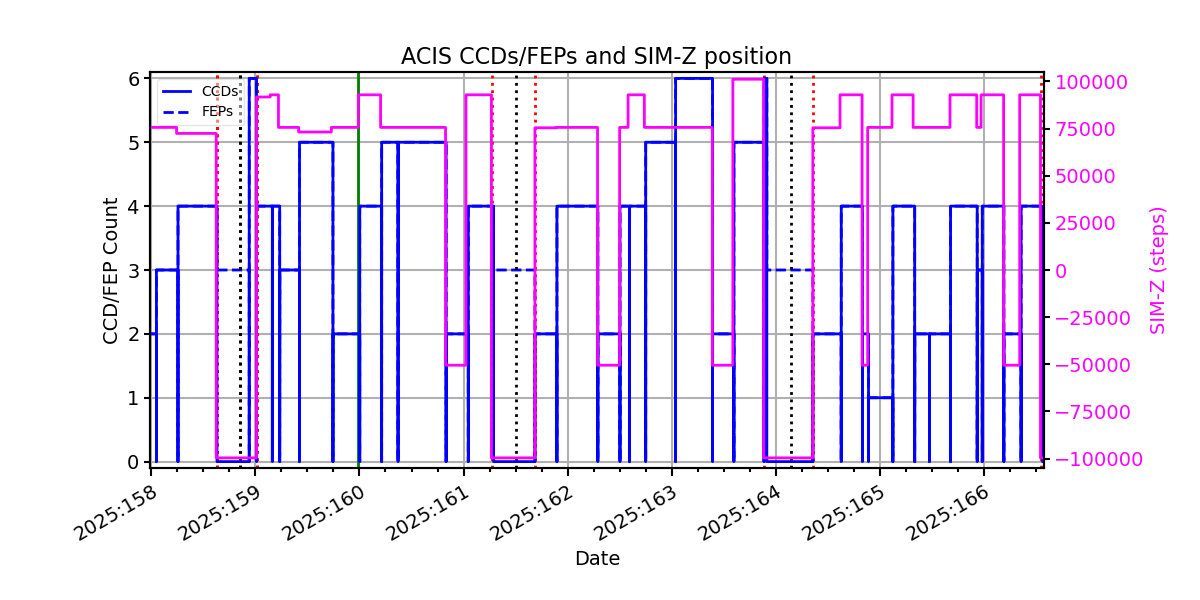

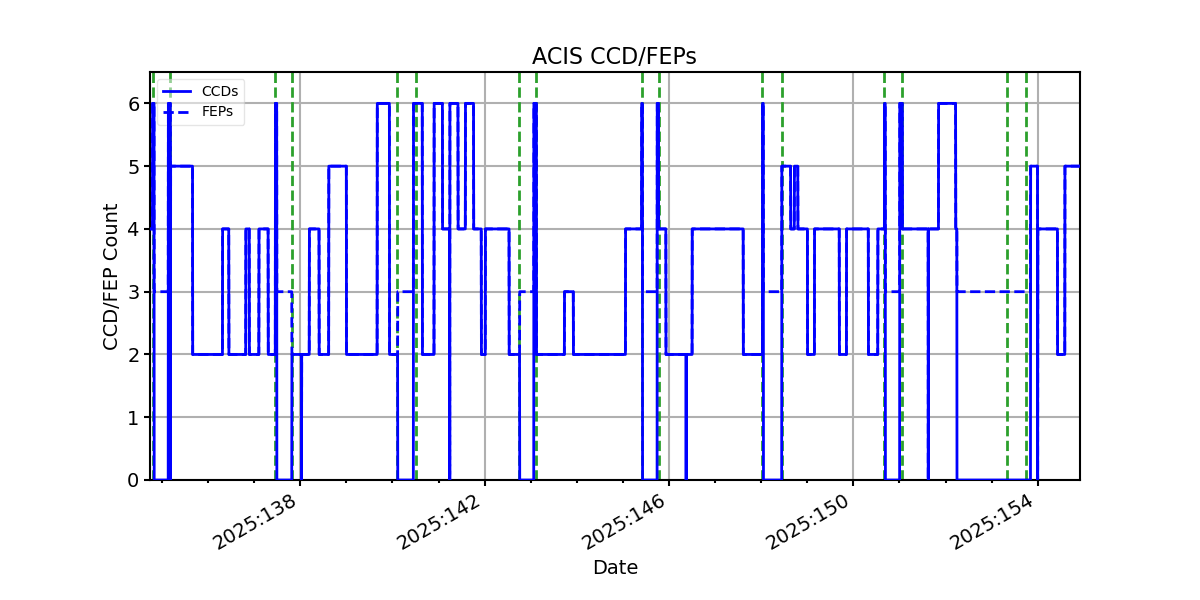

ACIS CCD/FEP Count
